Manitowoc

Manitowoc JCT1200 Vertical Discharge Air-Cooled Remote Condenser for Indigo NXT iT1200N Ice Machines

SKU: JCT1200-261
$1,593.68
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Disposable Tableware Disposables & Consumables Manitowoc New Arrivals

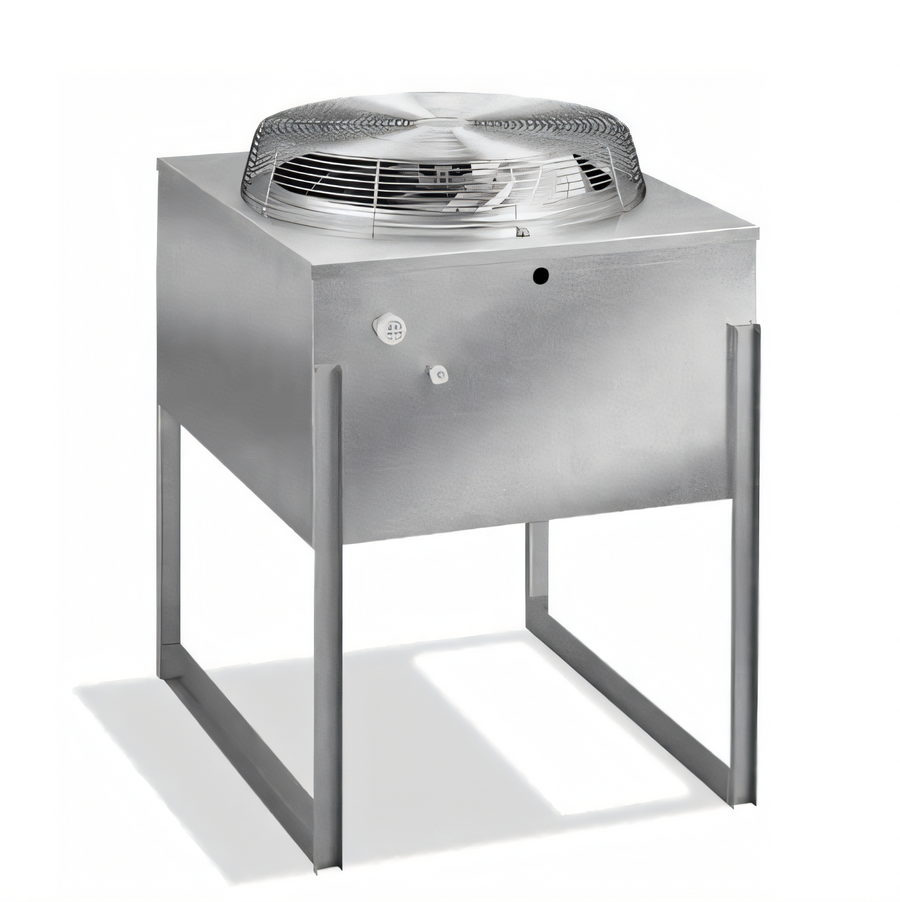

Manitowoc JCT1200 Vertical Discharge Air-Cooled Remote Condenser for Indigo NXT iT1200N Ice Machines

208-230V, 1-Phase, R410A

Move heat away from the ice machine and support efficient ice production with this pre-charged, air-cooled remote condenser built for Indigo NXT iT1200N systems.

  • Compatible with Indigo NXT iT1200N ice cube machines
  • Air-cooled remote condenser helps reduce ambient heat at the ice machine
  • Vertical discharge design is ideal for remote installation locations
  • Pre-charged refrigerant circuit and quick-connect fittings help simplify setup
  • Supports installation flexibility with up to 100 feet of line length
  • Backed by a 3-year parts and labor warranty

Overall Dimensions:

24.5"W x 28.0"D x 38.0"H

Product Weight:

67.0 lb

Vertical Discharge Design

Directs airflow upward for remote mounting and effective heat rejection away from the ice machine.

Air-Cooled Remote System

Helps improve efficiency and ice production while reducing heat load at the machine location.

R410A Refrigerant

Designed for R410A-based Indigo NXT refrigeration systems.

Pre-Charged With Quick-Connect Fittings

Comes pre-charged and uses quick-connect fittings for more convenient installation.

Wide Operating Range

Rated for ambient temperatures from -20°F to 120°F (-29°C to 49°C).

Installation Flexibility

Allows up to 20 inches of bottom clearance, 100 feet of total line length, 35 feet of vertical rise, and 15 feet of vertical drop.

Warranty Coverage

Includes a 3-year parts and labor warranty.

Type Remote Condenser
Style Vertical Discharge
Refrigeration Type Air-Cooled
Refrigerant Type R410A
Voltage 208-230 Volts
Amps 1.0 Amps
Hertz 60 Hz
Phase 1-Phase
Temperature Range -20°F to 120°F (-29°C to 49°C)
Bottom Clearance 20 Inches
Maximum Line Length 100 Feet
Maximum Vertical Rise 35 Feet
Maximum Vertical Drop 15 Feet
Shipping Width 25 Inches
Shipping Depth 28 Inches
Shipping Height 38 Inches
Shipping Weight 67 Pounds
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Warranty & Protection

3-year parts and labor

Documents

PDF Cutsheet PDF Download PDF Warrany PDF Download PDF Cleaner product guide PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It is available for the Indigo NXT Series iT1200N ice machine.
This remote condenser uses R410A refrigerant.
Yes, this is an air-cooled remote condenser.
The remote system components are pre-charged with refrigerant and use quick-connect fittings.
Maximum line length is 100 feet, maximum vertical rise is 35 feet, maximum vertical drop is 15 feet, and bottom clearance can be up to 20 inches.
The unit includes a 3-year parts and labor warranty.
