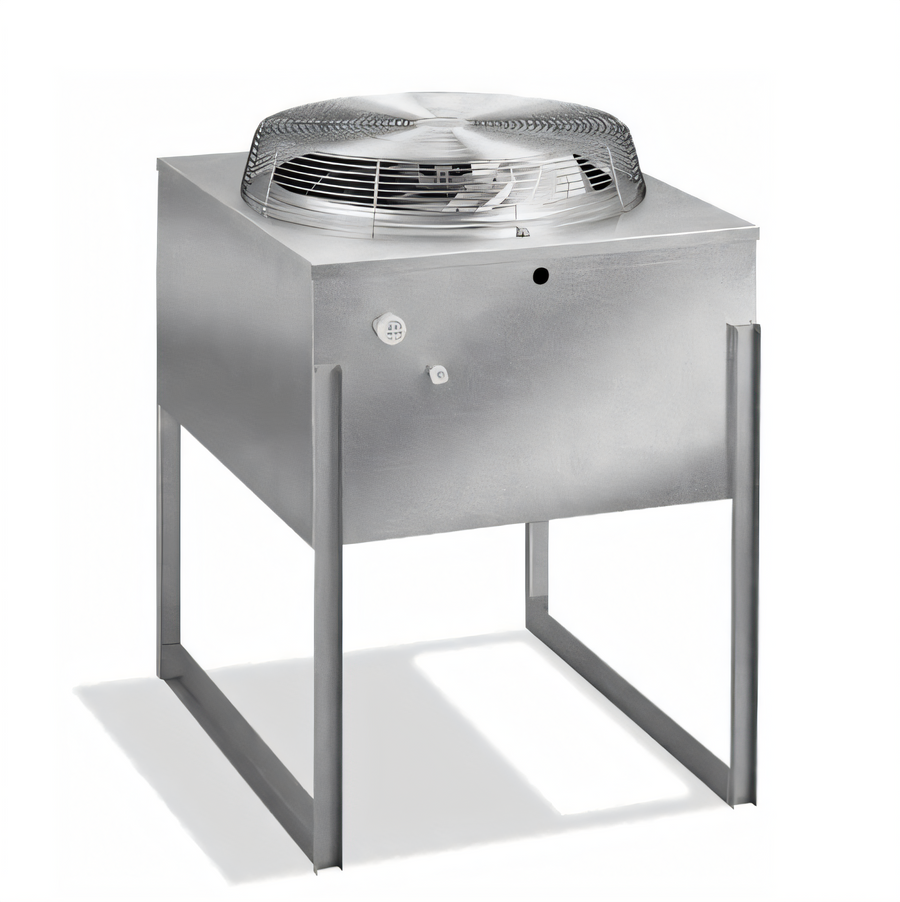

Manitowoc JCT1200-251 Vertical Discharge Air-Cooled Remote Condenser for Indigo NXT iT1200N Ice Machines

208-230V, 1-Phase, 60 Hz, R410A

This air-cooled vertical discharge remote condenser helps move heat away from the ice machine for better efficiency, with a pre-charged R410A system and quick-connect fittings that simplify installation.

  • Designed for Indigo NXT iT1200N ice machines.
  • Vertical discharge, air-cooled design helps dissipate heat away from the machine.
  • Pre-charged refrigerant circuit with quick-connect fittings supports easier installation.
  • Supports flexible remote installation with up to 100' line length and 35' vertical rise.
  • Can operate from -20°F to 120°F and allows up to 20" bottom clearance.
  • Power is intended to be supplied from the ice machine, with a separate source available if needed.

Overall Dimensions:

24.5"W x 28.0"D x 38.0"H

Product Weight:

67.0 lb

Vertical Discharge Design

Routes discharge upward for flexible condenser placement.

Air-Cooled Remote Operation

Dissipates heat away from the ice machine to help reduce ambient load and improve ice-making efficiency.

Indigo NXT Compatibility

Designed for the iT1200N model in Manitowoc's Indigo NXT ice cube machine series.

R410A Refrigerant System

Uses R410A refrigerant for the remote condensing system.

Pre-Charged With Quick-Connect Fittings

All components are pre-charged with refrigerant and include quick-connect fittings for convenient installation.

Broad Operating and Installation Range

Operates from -20°F to 120°F, allows up to 20" bottom clearance, and supports up to 100' total line length, 35' vertical rise, and 15' vertical drop.

Ice Machine-Supplied Power

Electrical power is intended to be supplied from the ice machine, though a separate power source can be used if necessary.

Type Remote Condenser
Style Vertical Discharge
Refrigeration Type Air-Cooled
Refrigerant Type R410A
Voltage 208-230 Volts
Hertz 60 Hz
Phase 1-Phase
Amps 1.0 Amps
Shipping Width 25 Inches
Shipping Depth 28 Inches
Shipping Height 38 Inches
Shipping Weight 67 Pounds
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Warranty & Protection

3-year parts and labor

Documents

PDF Cutsheet PDF Download PDF Cleaner product guide PDF Download PDF Warrany PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The JCT1200 model is matched to the Indigo NXT iT1200N ice machine.
Yes. The system components are pre-charged with refrigerant and use quick-connect fittings.
Maximum line length is 100', maximum vertical rise is 35' above the ice machine, and maximum vertical drop is 15' below it. The unit can also be installed with up to 20" of bottom clearance.
The JCT1200 uses 208-230/60/1 electrical service and draws 1.0 amp.
Power is intended to be supplied from the ice machine, but a separate electrical source can be used if needed.
The unit includes a 3-year parts and labor warranty.
