Key specifications
- BTU
- 8,800 BTU/h average; 10,570 BTU/h peak
- Dimensions
- 30.0"W × 24.0"D × 21.5"H
- Type
- Ice Maker
- Style
- Modular
- Installation Type
- Floor Model
- Material
- 304 Stainless Steel

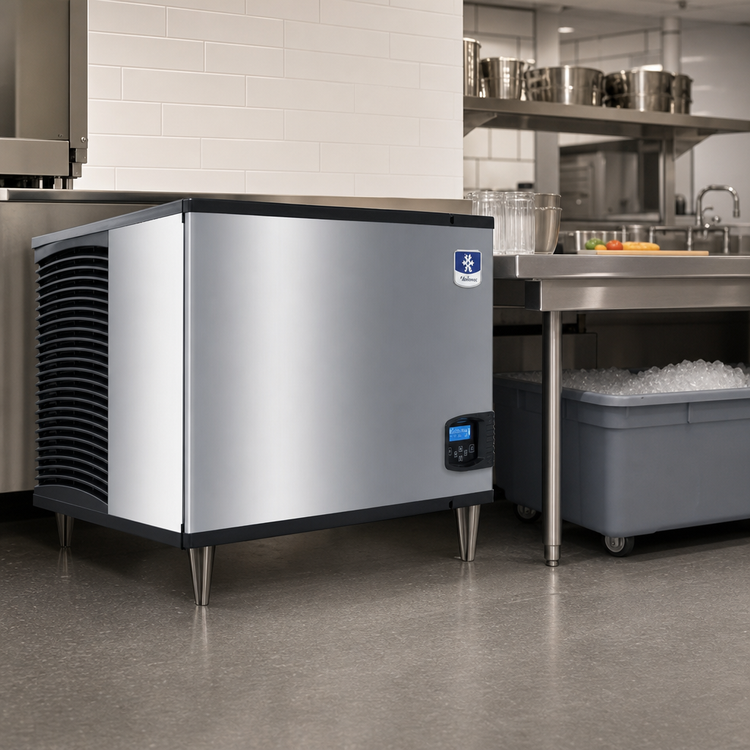

Manitowoc Indigo IYP0500A Half-Cube Ice Machine Head, 516 lb
Questions before you buy?
Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.
Specifications
Description
The Manitowoc IYP0500A is an air-cooled, self-contained ice maker that produces half-dice cubes for commercial foodservice operations. It produces up to 516 lb. of ice per 24 hours at 70°F air and 50°F water, with an AHRI-certified production rating of 444 lb. per 24 hours at 90°F air and 70°F water.
- Control: easyTouch display with 13 language options, date and time display, alerts, asset information, and continuous operating status.
- Production management: Programmable production settings include time, weight, and day or night operation.
- Cleaning and sanitation: One-touch cleaning displays instructions, while select components feature Alpha-San antimicrobial protection.
- Installation: The ice machine must be installed indoors. The ice machine and storage bin are sold separately.
The unit uses R290 refrigerant and has a DuraTech exterior. Its dimensions are 30 in. wide by 24 in. deep by 21.5 in. high.
Overall Dimensions:
30.0"W x 24.0"D x 21.5"HProduct Weight:
159.0 lbHalf-Dice Cube Production
Produces half-dice cubes measuring 3/8 in. × 1 1/8 in. × 7/8 in.
Air-Cooled Condenser
Uses an air-cooled condenser.
Self-Contained Refrigeration
The refrigeration system is self-contained.

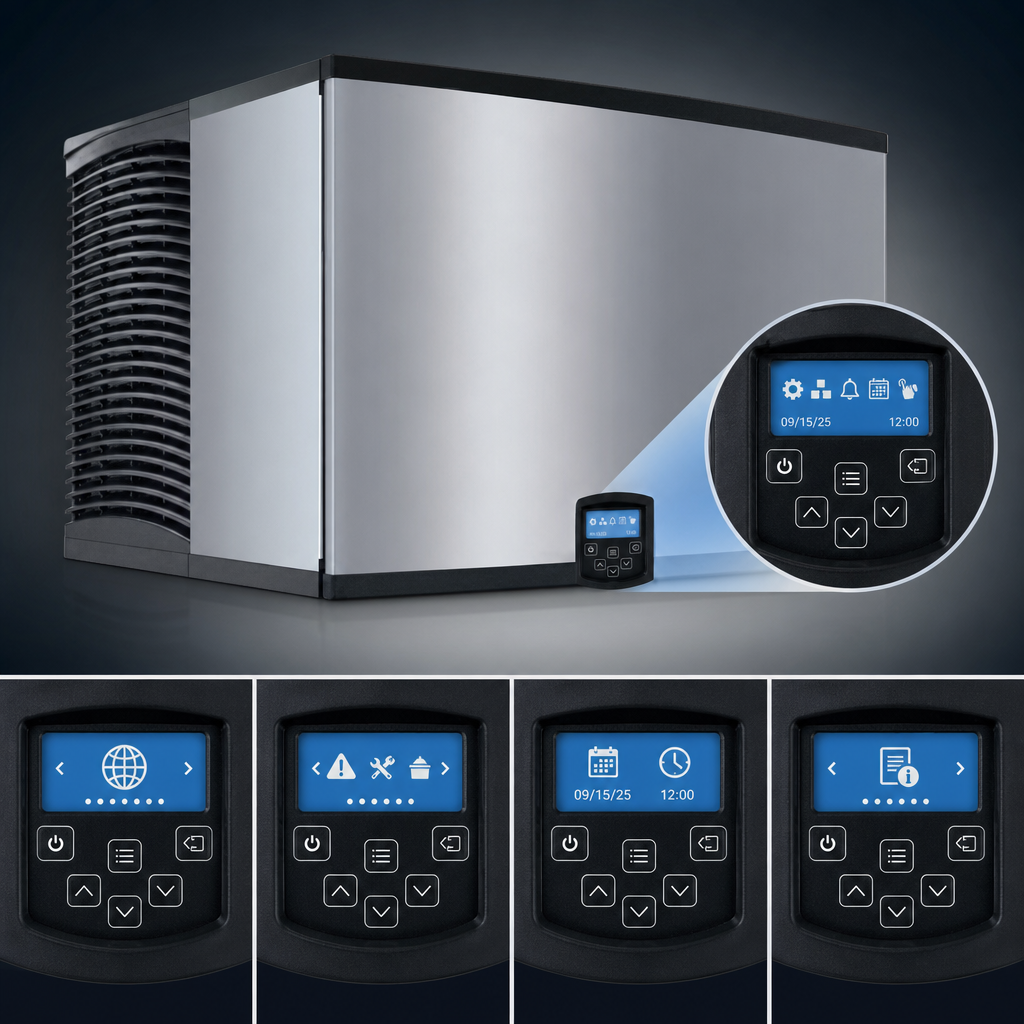

easyTouch Display
Provides 13 language options, date and time display, automatic reminders and alerts, asset information, and continuous operating status.

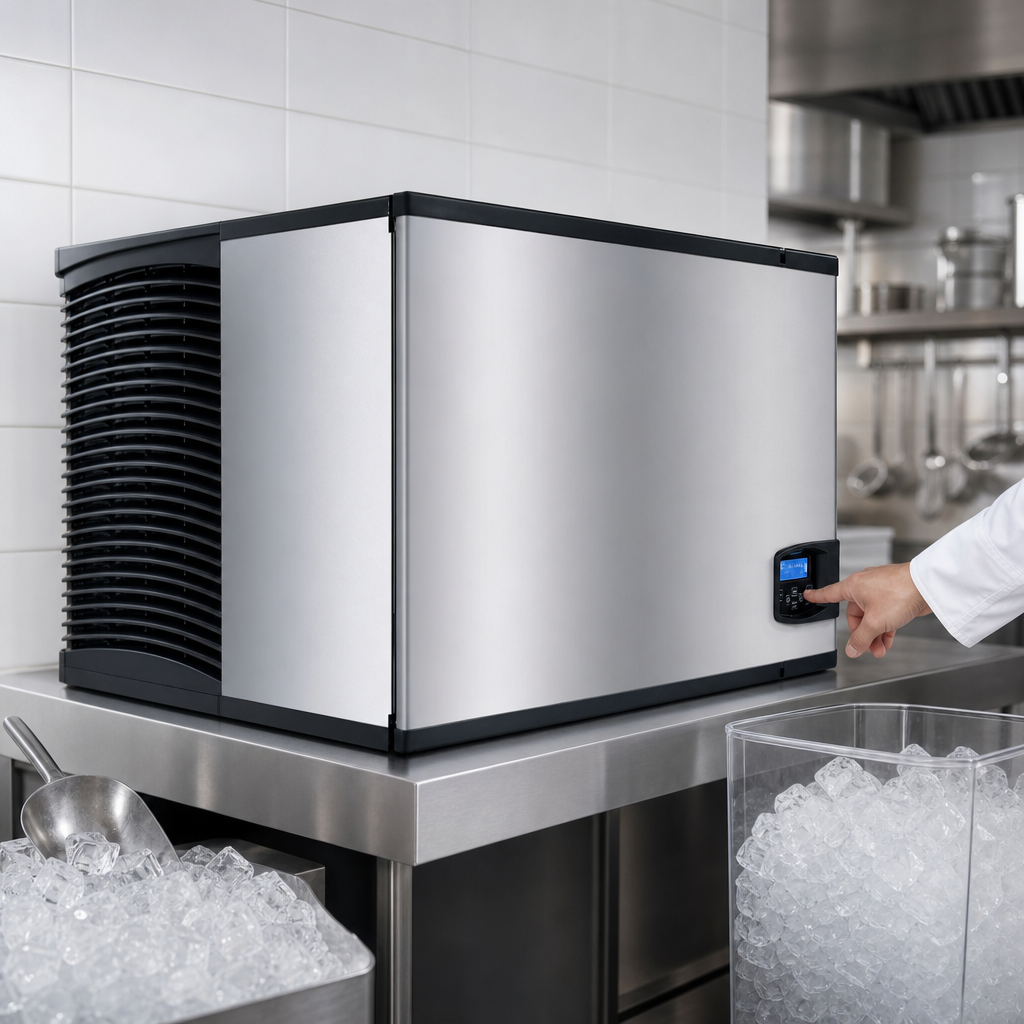

Programmable Production
Production options can be programmed by time, weight, and day or night operation.
Cleaning Guidance
One-touch cleaning displays cleaning instructions.
Sanitation Features
Select components feature Alpha-San antimicrobial protection, and the unit has a DuraTech exterior.
Diagnostic Technology
Includes acoustical ice sensing and self-diagnostic technology.
R290 Refrigerant
Uses R290 refrigerant.
Frequently Asked Questions
This ships by freight truck on a pallet, not by a parcel carrier. The carrier calls ahead to set a delivery window, and an adult 18 or older must be there to receive, inspect and sign for it.
The driver brings it to the back of the truck, or lowers it to the ground with liftgate service. They don’t bring it inside, so plan for a pallet jack or two people to move it from the curb.
- Count every piece against the delivery receipt.
- Check every side for crushed corners, torn wrap, punctures, water stains or a tipped unit.
- Photograph the freight on the truck before it’s moved.
- If you see any damage, even cosmetic, write “DAMAGED” and what you see on the receipt before you sign.
Your shipping email has the exact instructions for your order. Questions at the door? Call us at (888) 307-5030.
Keep all the packaging, photograph the damage and the packaging, and tell us within 5 business days of delivery. Reply to your shipping email with the photos or call (888) 307-5030.
If the driver won’t wait while you inspect, write “Received – pending inspection. Driver would not wait.” with the date and time on the receipt, then inspect right away and report any damage within 24 hours.
Book your installer only after the carrier gives you a firm delivery appointment. Freight dates can move, and installer trips lost to a late truck aren’t reimbursable.
