Manitowoc

Manitowoc QuietQube Indigo NXT Remote Air-Cooled Half-Dice Ice Maker, 30-Inch Wide, 1,425 lb/Day

SKU: IYF1400C
$7,624.65
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

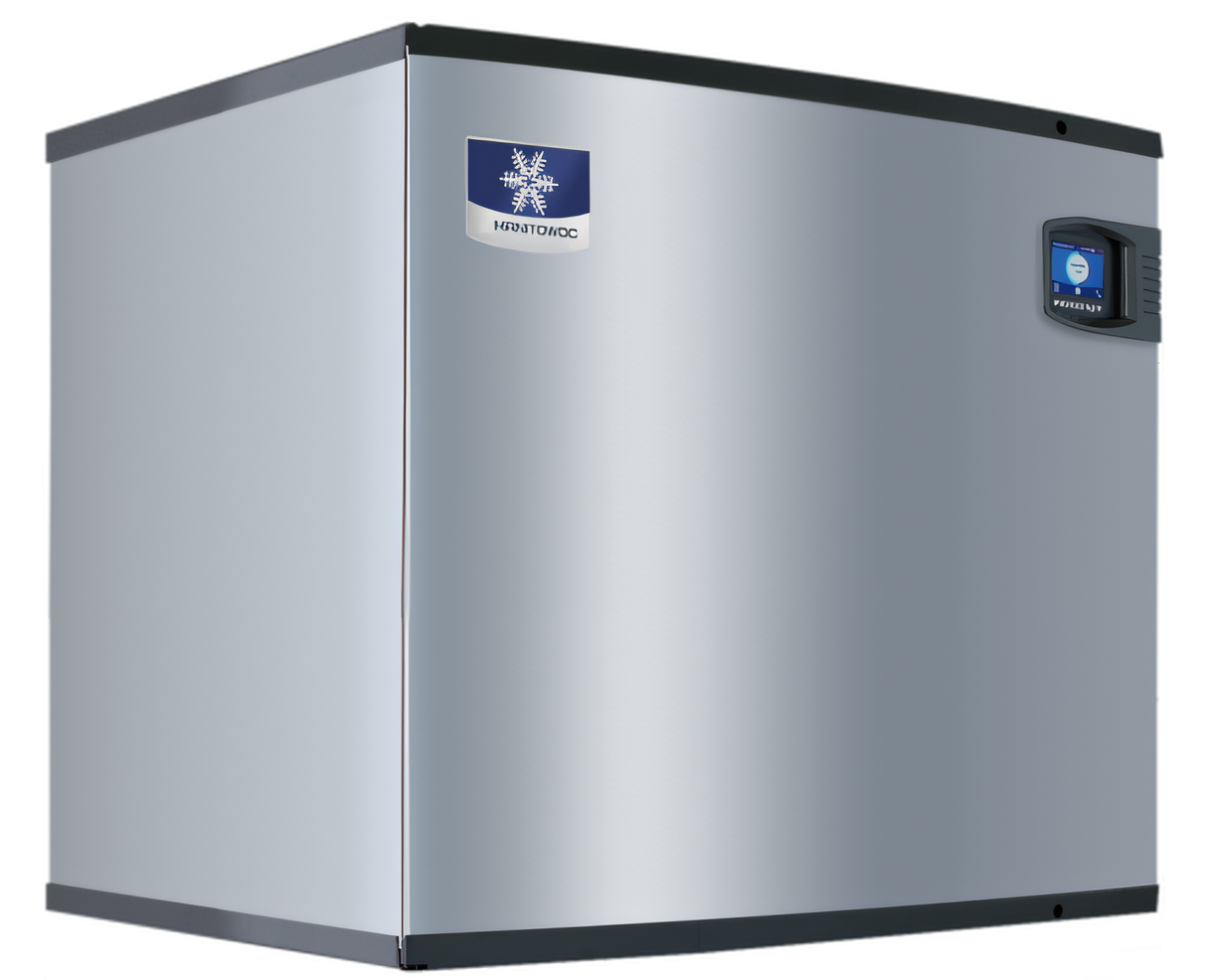

Manitowoc QuietQube Indigo NXT Remote Air-Cooled Half-Dice Ice Maker, 30-Inch Wide, 1,425 lb/Day

Remote refrigeration; condensing unit and lines sold separately

A quiet, space-saving remote ice maker that produces up to 1,425 lb of half-dice cubes per day.

  • Produces up to 1,425 lb of half-dice ice per 24 hours, with AHRI certified output of 1,230 lb at 90°F air / 70°F water.
  • QuietQube remote system moves the condensing unit away from the ice machine for quieter operation.
  • 30-inch-wide, air-cooled design helps conserve valuable kitchen space.
  • easyTouch touchscreen supports programmable ice production scheduling and operational control.
  • Easy-to-clean foodzone with removable components simplifies sanitation and maintenance.
  • DuraTech exterior helps resist fingerprints and corrosion for a cleaner appearance.

Overall Dimensions:

30.0"W x 24.5"D x 25.0"H

Product Weight:

174.0 lb

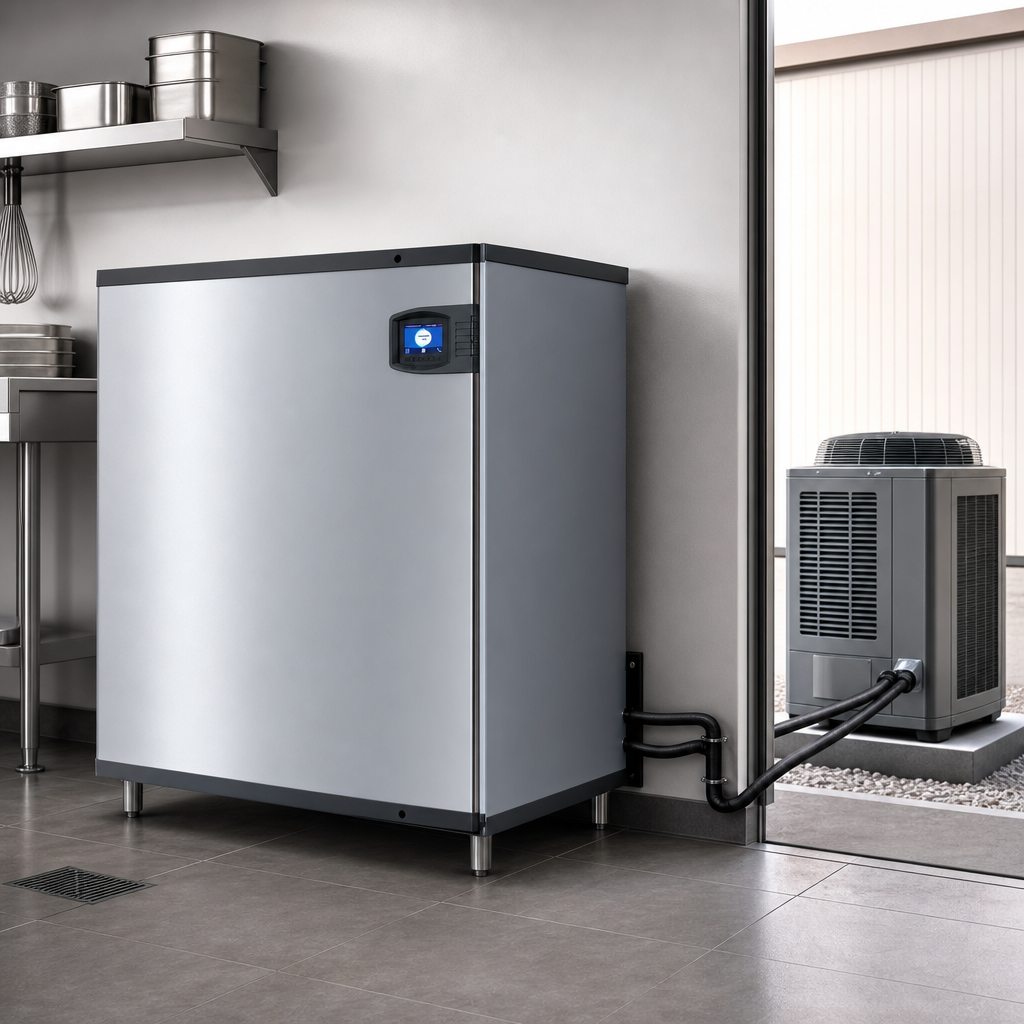

Remote QuietQube System

Designed for remote refrigeration with a separate condensing unit and interconnecting refrigerant lines, all ordered separately.

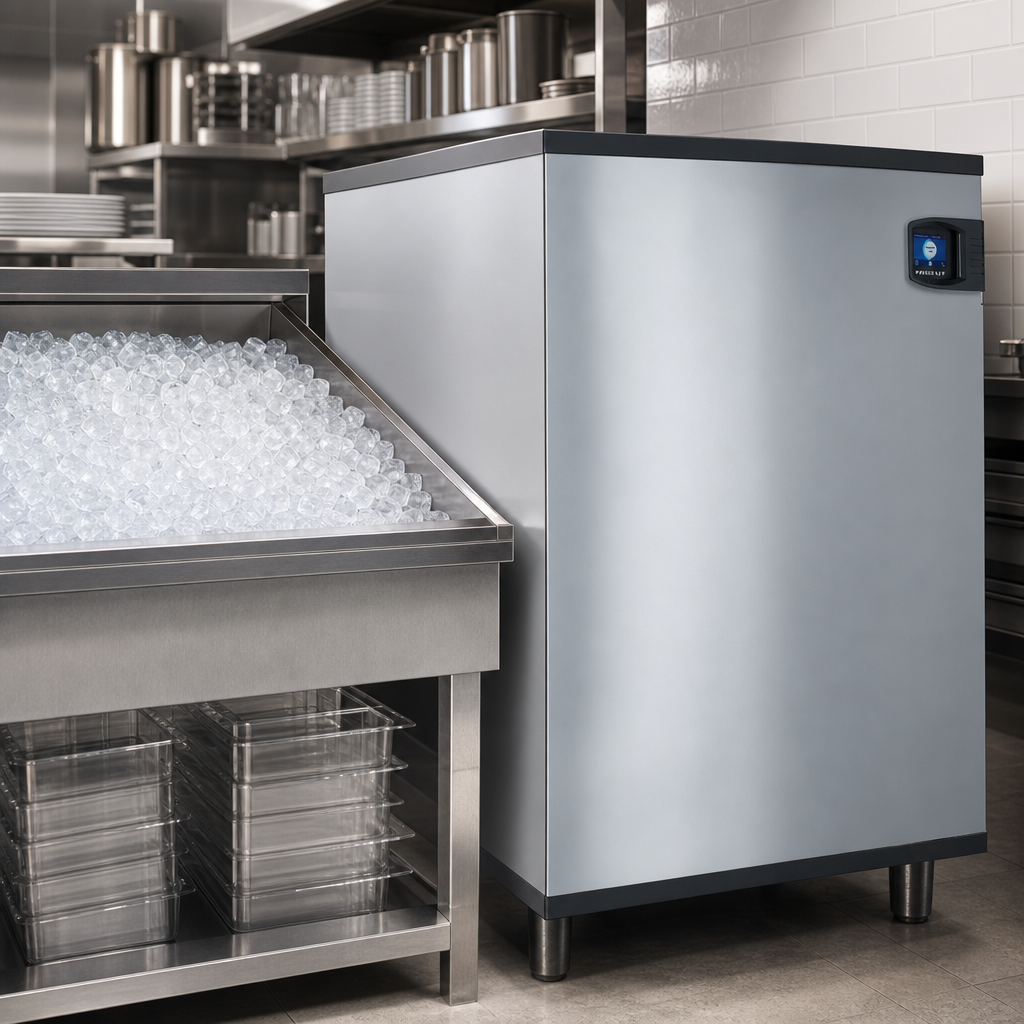

High Production Output

Produces up to 1,425 lb of ice in 24 hours under rated conditions; AHRI certified at 1,230 lb per 24 hours at 90°F air / 70°F water.

Half-Dice Ice Shape

Makes half-dice cubes measuring 3/8" x 1 1/8" x 7/8".

easyTouch Display

Icon-based touchscreen interface with programmable ice production settings and night-time programming.

Easy-to-Clean Foodzone

Hung door and removable water trough, distribution tube, splash guard, water probe, and water pump support fast cleaning.

Intelligent Diagnostics

Provides 24-hour preventative maintenance and diagnostic feedback for reliable operation.

Acoustical Ice Sensing Probe

Patented sensing technology is designed for dependable operation in challenging water conditions.

DuraTech Exterior

Clear-coat exterior helps resist fingerprints and dirt while improving corrosion resistance.

Type Ice Maker
Style Cube-Style
Refrigeration Type Remote
Condenser Type Air-Cooled
Capacity 1,425 lb per 24 Hours
Ice Shape Half-Dice Cubes
Controls Digital Touch Screen
Finish DuraTech
Voltage 115 Volts
Amps 1.1 Amps
Phase 1-Phase
Hertz 60 Hz
Water Connection Required
Drain Connection Required
Water Inlet Size 3/8 Inch F.P.T.
Drain Connection Size 1/2 Inch F.P.T.
Shipping Width 30 Inches
Shipping Depth 25 Inches
Shipping Height 25 Inches
Shipping Weight 174 lb.
Selling Unit Each
Units Per Case 1

Frequently Asked Questions

No. The remote condensing unit, refrigerant lines, and ice storage bin or dispenser are sold separately.
It produces half-dice cubes measuring 3/8" x 1 1/8" x 7/8".
It can produce up to 1,425 lb per 24 hours at 70°F air / 50°F water, and it is AHRI certified at 1,230 lb per 24 hours at 90°F air / 70°F water.
The unit uses 115/60/1 standard power and draws 1.1 amps, with a maximum fuse size of 15 amps.
It uses a 3/8" F.P.T. ice-making water inlet and a 1/2" F.P.T. ice-making water drain.
The document specifies 2" top, 8" sides, and 5" back clearances, with additional space possibly needed for servicing.
