Key specifications
- BTU
- 3,800 BTU/hour average; 6,000 BTU/hour peak
- Amps
- 11.5 Amps (minimum circuit ampacity)
- Phase
- 1-Phase
- Dimensions
- 30.0"W × 24.0"D × 21.5"H
- Type
- Cube Ice Maker
- Style
- Modular

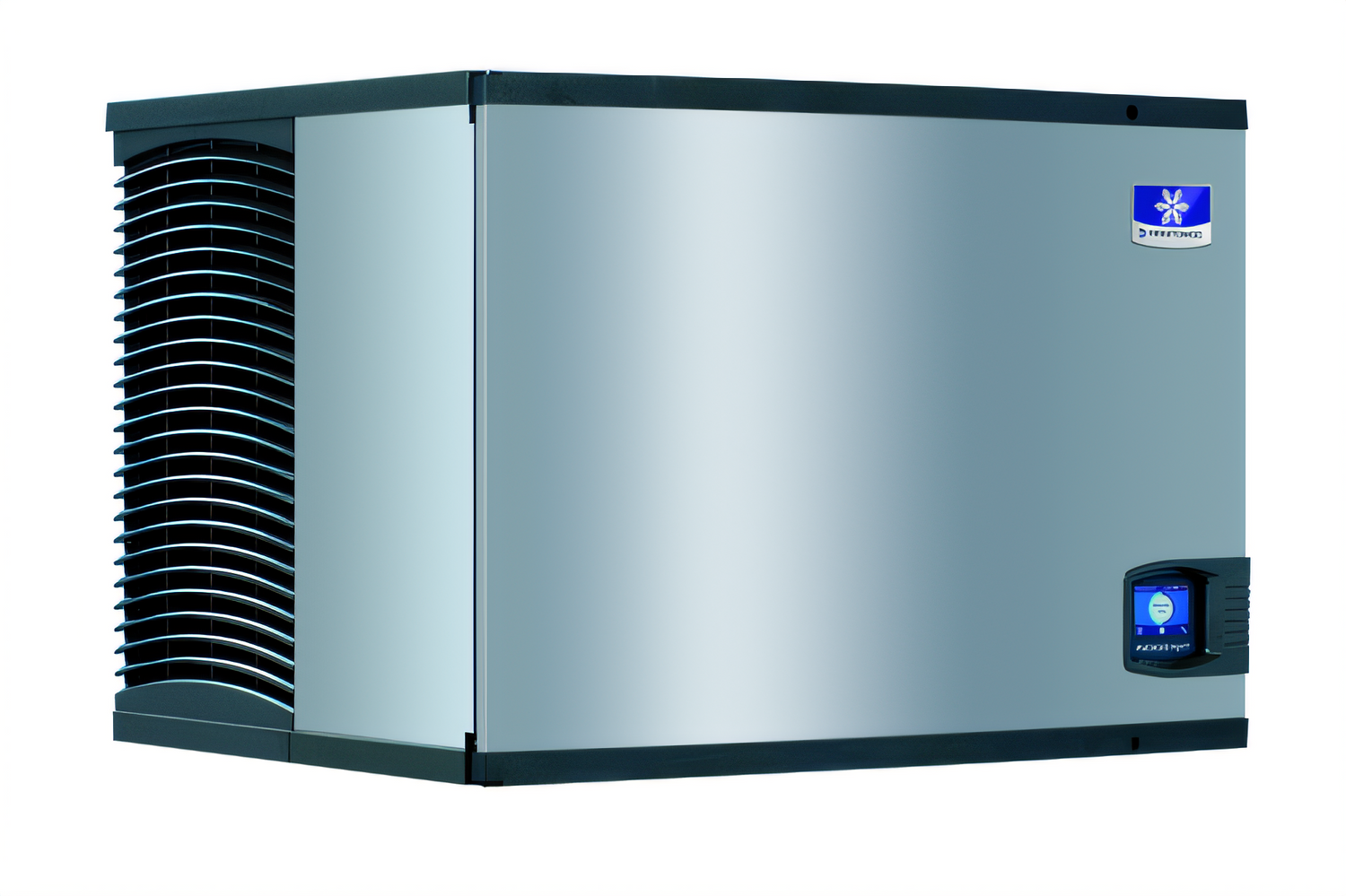

Manitowoc Indigo IRT0500A 500 lb Air-Cooled Cube Ice Maker
- Air-cooled
- Water-cooled
- Regular cube
- Dice cube
- Half-dice cube
Questions before you buy?
Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.
Specifications
Description
The Manitowoc Indigo NXT IRT0500A is an air-cooled, self-contained cube ice maker that produces regular-size cubes. It is rated for up to 500 lb of ice per 24 hours at 70°F air and 50°F water, with an AHRI-certified production rating of 386 lb per 24 hours at 90°F air and 70°F water.
- easyTouch display: Icon-based touch controls with 13 language options, date and time display, alerts, asset information, and operating status.
- Programmable production: Set production by time, weight, or day and night operation.
- Cleaning and diagnostics: One-touch cleaning with displayed instructions, preventative diagnostics, and self-diagnostic technology.
- Regular cube size: 1-1/8 in x 1-1/8 in x 7/8 in.
- Construction and refrigeration: DuraTech exterior, air-cooled condenser, self-contained refrigeration, and R410A refrigerant.
Overall Dimensions:
30.0"W x 24.0"D x 21.5"HProduct Weight:

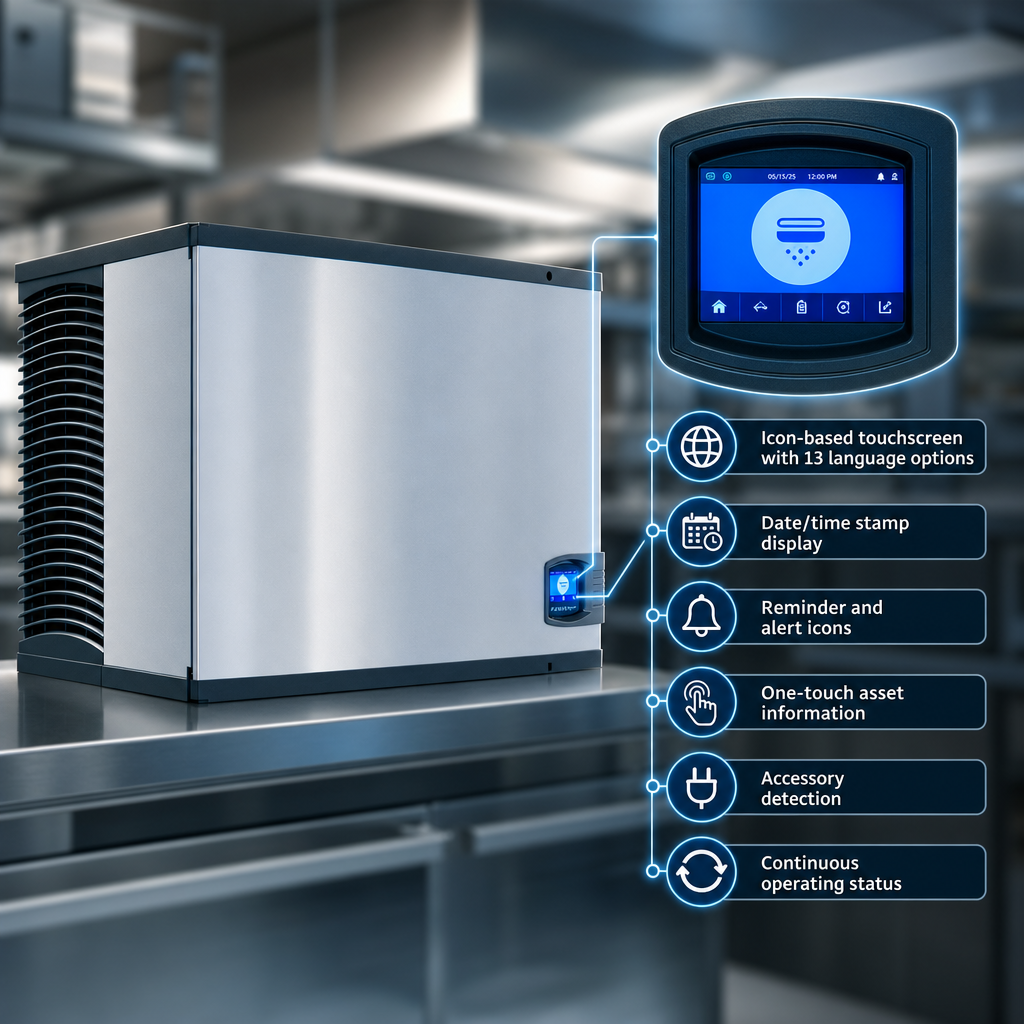

162.0 lbeasyTouch Display
Icon-based touch display with 13 language options, date and time display, alerts, one-touch asset information, and continuous operating status.

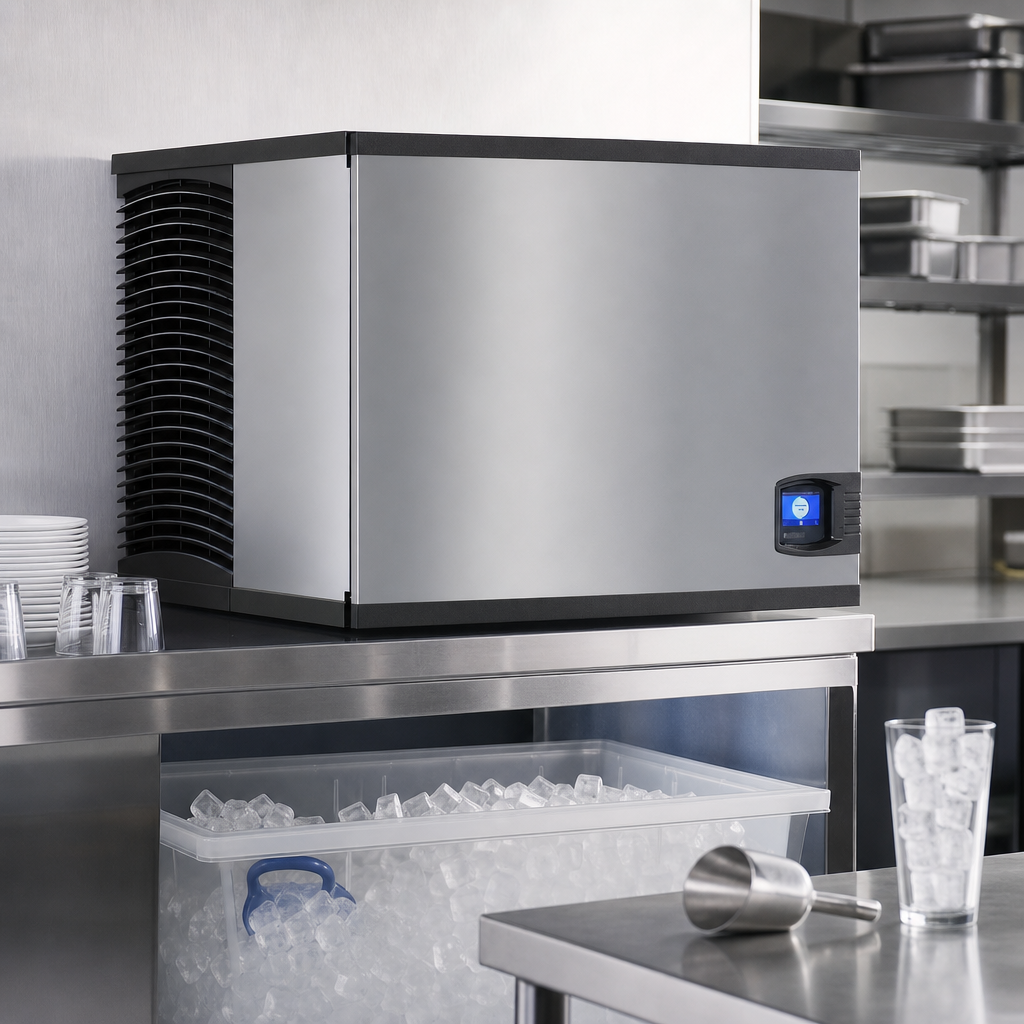

Programmable Ice Production
Production can be programmed by time, weight, or day and night operation.
One-Touch Cleaning
The display provides cleaning instructions during the cleaning process.
Intelligent Diagnostics
Preventative diagnostics and self-diagnostic technology monitor machine operation.
Acoustical Ice Sensing Probe
Acoustical ice sensing supports operation in challenging water conditions and environments.
AlphaSan Protection
Selected components include AlphaSan antimicrobial protection.
DuraTech Exterior
The machine has a DuraTech exterior.
Energy Efficiency
The exact product is identified as ENERGY STAR certified.
