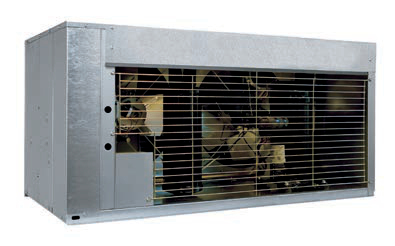

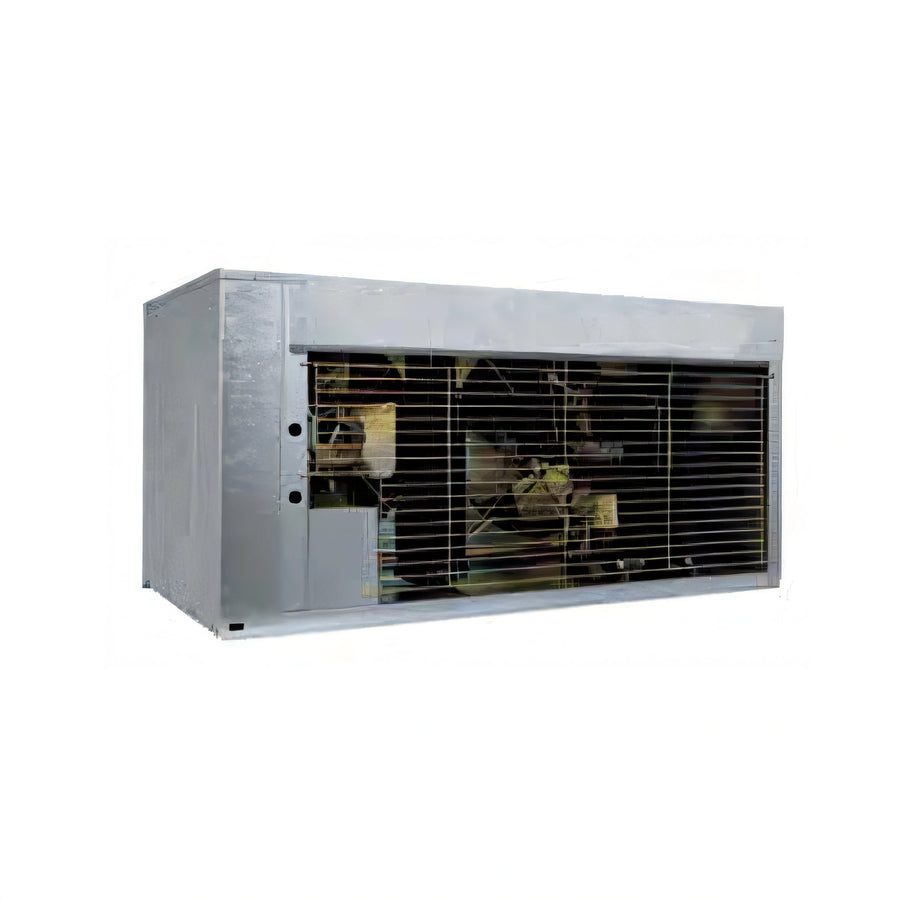

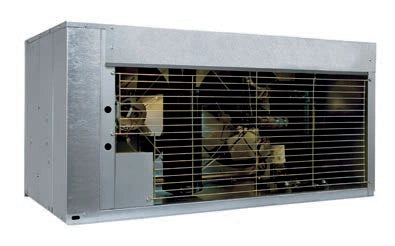

Manitowoc QuietQube CVDF3000 Air-Cooled Remote Condensing Unit, 5.5 HP, for SF-3000C Series Ice Machines
Related Searches
Manitowoc QuietQube CVDF3000 Air-Cooled Remote Condensing Unit, 5.5 HP, for SF-3000C Series Ice Machines
208-230V, 3-Phase
Keep compressor noise out of the serving area with a QuietQube remote condensing unit built for SF-3000C series ice machines.
- Remote, air-cooled condensing unit for QuietQube SF-3000C series systems.
- Patented CVD technology is designed to improve compressor reliability and extend service life.
- Remote compressor placement helps reduce noise at the ice machine location.
- Standard 208-230V, 60 Hz, 3-phase electrical service.
- Supports up to 100 ft of line length with a 35 ft maximum vertical rise and 15 ft maximum vertical drop.
- Operating range is -20°F to 120°F ambient.
Overall Dimensions:
52.5"W x 26.0"D x 26.0"HProduct Weight:
268.0 lbRemote Compressor Placement
Moves compressor noise away from the ice machine for a quieter serving area.
Air-Cooled Design
Uses air cooling for the remote condensing unit.
Patented CVD Technology
Designed to improve compressor reliability and extend service life.
5.5 HP Compressor
Provides the refrigeration capacity specified for this model.
208-230/60/3 Electrical Service
Standard power requirement for the condensing unit.
Installation Limits
Supports up to 100 ft of line length, 35 ft maximum vertical rise, and 15 ft maximum vertical drop; rises over 20 ft require two K-00166 S-Trap Kits.
Ambient Operating Range
Designed to operate from -20°F to 120°F ambient.
Recommended Clearances
Recommended clearance is 8 in. at the top and sides and 24 in. at the back; 24 in. on all sides is recommended.
Certifications & Compliance
