Magikitch'n (Middleby)  |  SKU: MKG-36-ST

Magikitch'n (Middleby) MKG-36-ST Gas Griddles

$20,224.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Parts manual Installation & operation (6/01/03 to 7/31/05) Service manual Mkg solid state control - calibration manual Installation & operation (pre 6/01/03) Middleby financial flyer Installation & operation (post 8/01/05) Warranty sheet
Related Searches
Gas Griddles Griddles & Flat Tops

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

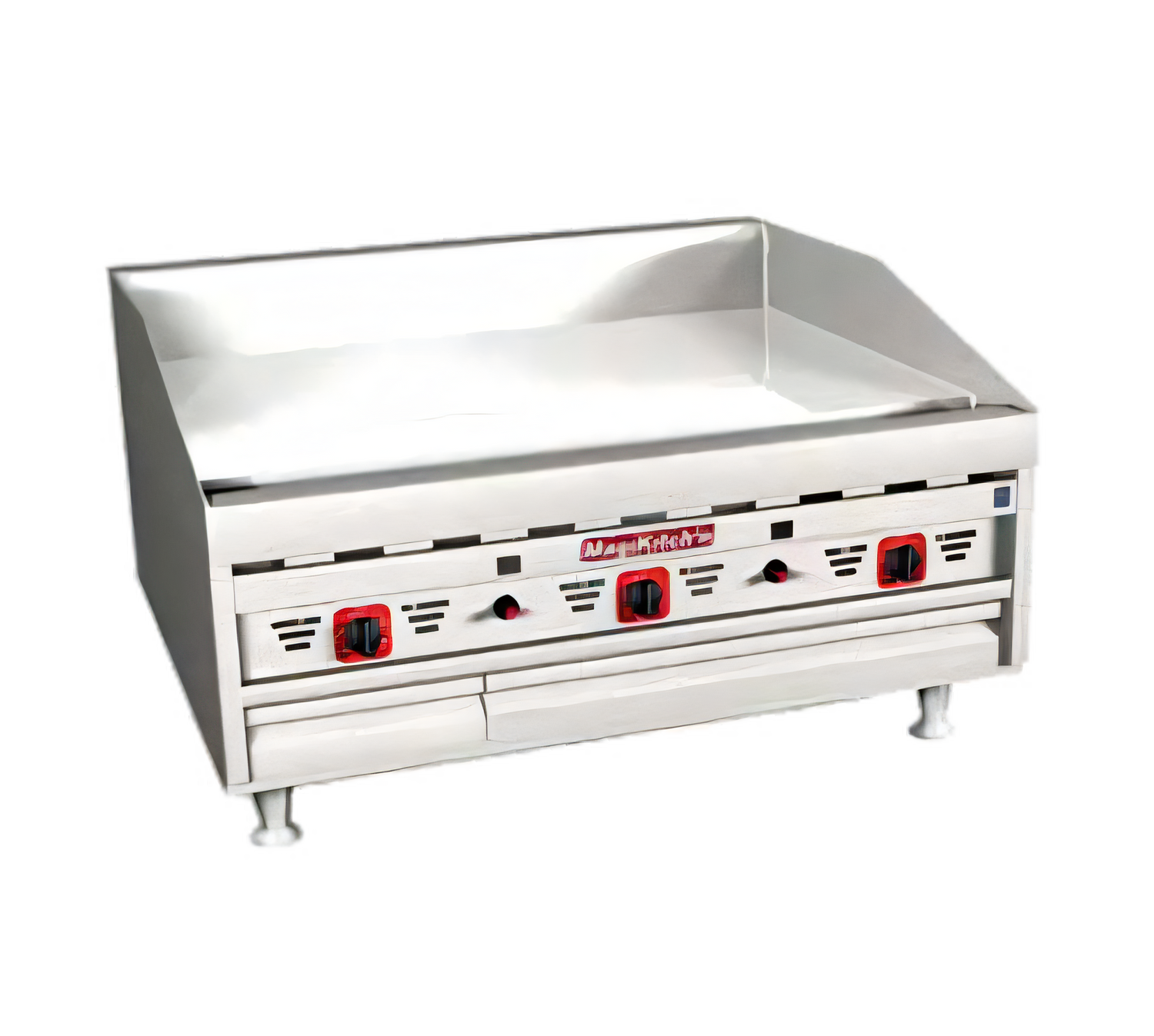

MagiKitch’n MKG36 Countertop Gas Griddle – 36"

Solid-State Thermostat • Matchless Electronic Ignition • 90,000 BTU

Built for demanding kitchens, the MKG36 gives you a generous 35-3/4" × 24" cooking surface, ultra-responsive temperature control and rugged stainless-steel construction – all in a compact countertop footprint. From breakfast rush to late-night service, this griddle is ready to perform shift after shift.

Why You’ll Love It

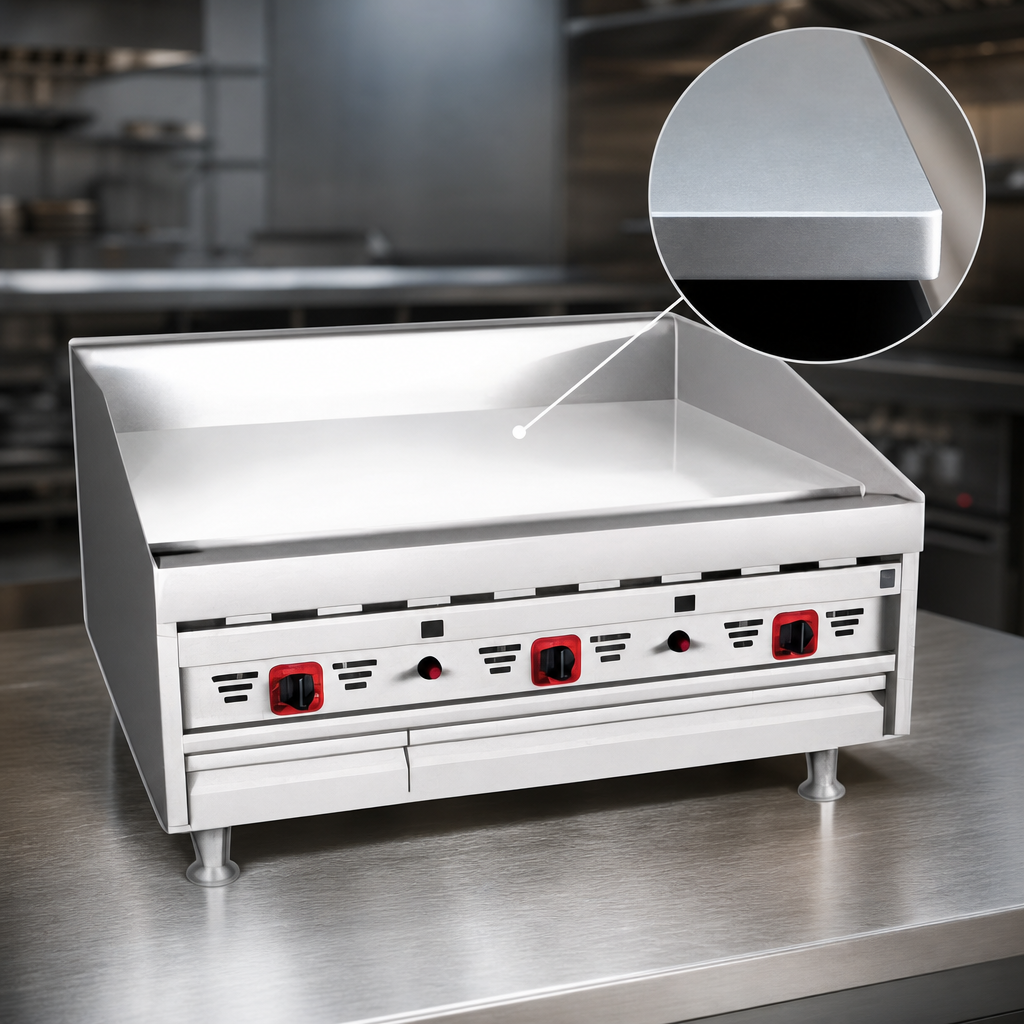

  • 1" thick polished steel plate stores and recovers heat fast for consistent sears.

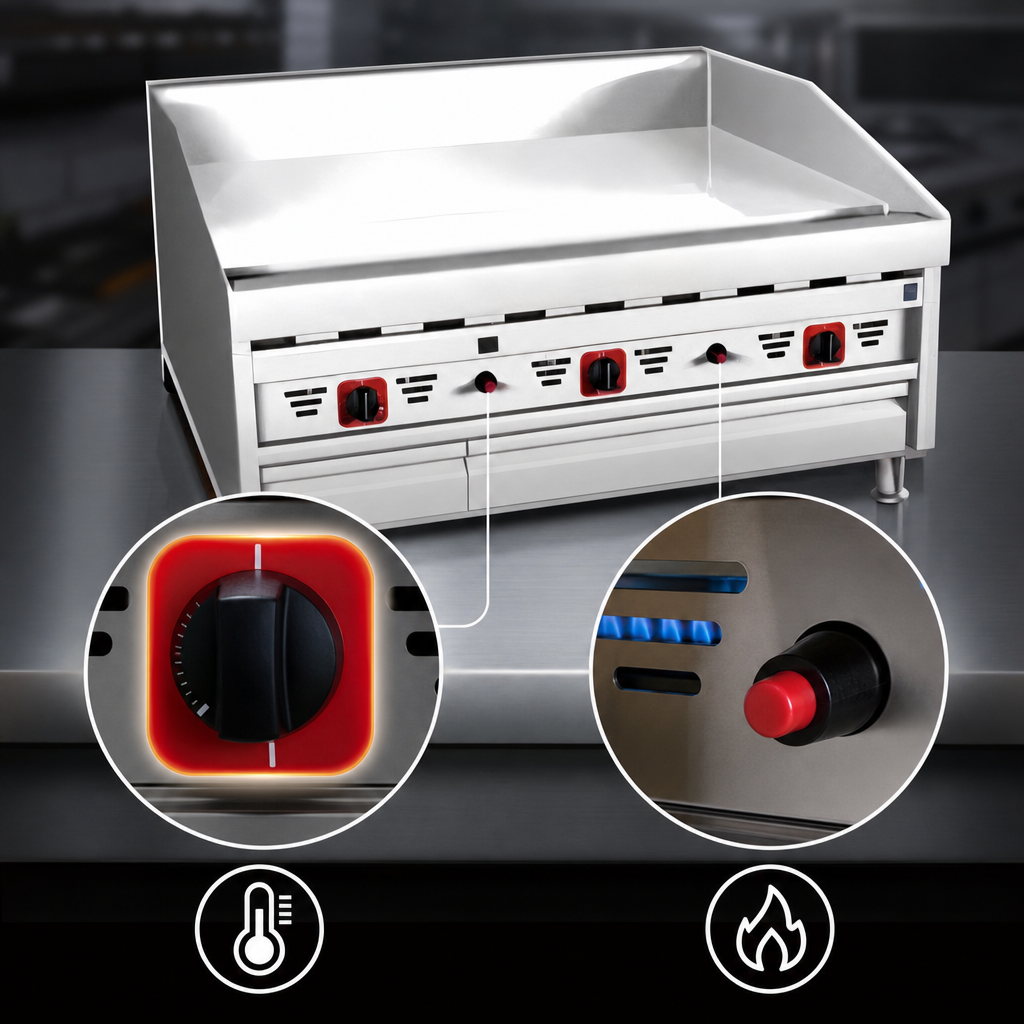

  • 3 solid-state thermostats (embedded in the plate) hold temps from 150 °F to 550 °F across three independent zones.
  • Matchless electronic ignition lights pilots automatically – no manual lighting or matches required.
  • Powerful stainless venturi burners deliver 15,000 BTU every 6" (total 90,000 BTU/h).
  • Full-width 3.5" front grease trough directs runoff to a welded chute and a 3.75-gal slide-out grease box for quick, mess-free cleaning.
  • Integrated 3" side splashes and tapered back splash keep splatter contained on busy lines.
  • Double-wall stainless-steel sides, smooth 11-ga skirt finish and no exposed fasteners simplify wipe-downs.
  • Factory-installed gas regulator, shut-off valve and safety pilot with flame-loss shut-off.
  • Ships with 4" adjustable/removable legs for countertop use.
  • CSA-gas & NSF-sanitation listed for worry-free code compliance.

At-a-Glance Specs

Cooking surface 35-3/4" W × 24" D (906 mm × 610 mm)
Plate thickness 1" (25 mm) polished steel
Controls / zones 3 solid-state thermostats, 150 °– 550 °F (65 °– 288 °C)
Ignition Matchless electronic pilot ignition with recessed piezo spark
Total input 90,000 BTU/h (26.4 kW)
Gas connection 3/4" NPT rear (natural or LP – specify at ordering)
Electrical 115 V / 50-60 Hz / 1-ph, 0.66 A, 6' cord, NEMA 5-15P
Grease management 3.5" trough & welded chute to 3.75 gal grease box (left side)
Construction Stainless front, sides & cabinet base; double-wall sides
Included 4" adjustable legs, gas regulator & shut-off, grease box
Certifications CSA, NSF
Shipping weight ≈ 520 lb (236 kg)

Popular Add-Ons (Sold Separately)

  • Chrome-plated griddle surface (includes scraper, spatula & brush)
  • Stainless service shelf (8", 10" or 12" deep) with optional pan cut-outs or towel bar
  • NSF stainless equipment stand with optional locking casters
  • 48" gas hose with quick disconnect

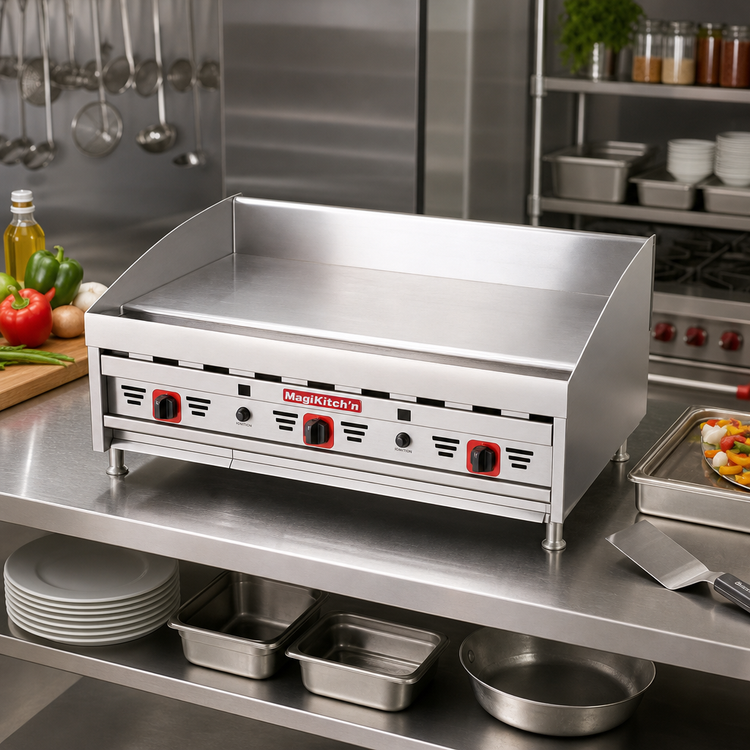

Image shown may include optional stand or accessories. Always consult your local codes for proper installation and venting.

Features & Specs

Manufacturer

Magikitch'n (Middleby)

Certifications

NSF, CSA

Height

23.28in

Width

36.0in

Depth

31.56in

Shipping Weight

465.0lbs

Cooking Surface Width (side - side)

31" - 36"

Griddle Plate Finish

smooth steel

Cooking Surface Depth (front - back)

24" - 29"

Controls

thermostat / solid state controls

Exterior Finish

all stainless steel exterior

Plate Thickness

1"

Specifications

Griddle, countertop, gas, 35-3/4" W x 24" D cooking surface, 1" thick polished griddle plate, solid state thermostat with matchless ignition, grease chute and box, front grease trough, 3" side splash, stainless steel, 4" removable legs, 90,000 BTU, 115v/50/60/1-ph, 0.66 amps, 6' cord, NEMA 5-15P, CSA, NSF
