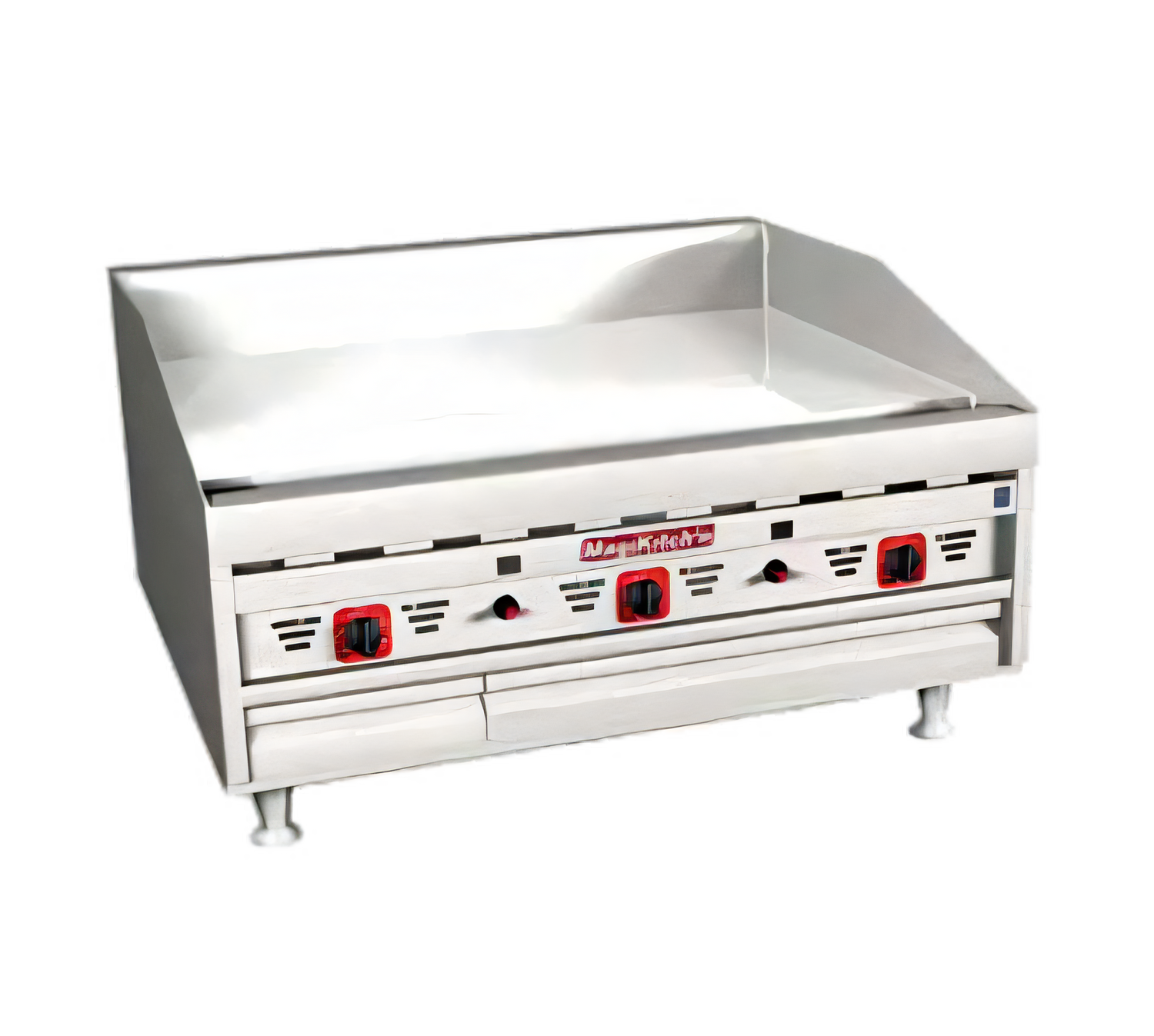

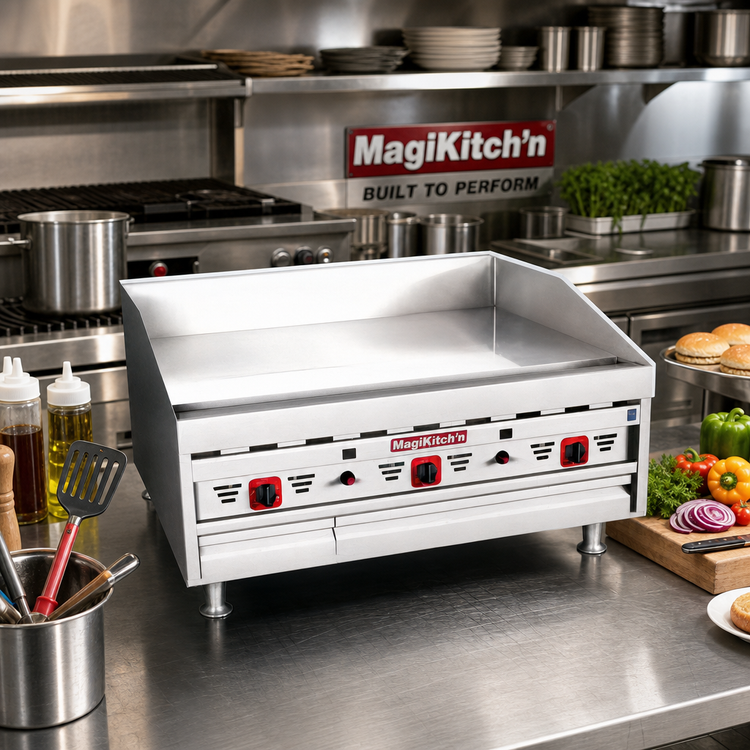

MagiKitch'n 36-Inch Countertop Gas Griddle with Electric Thermostat and Matchless Ignition

35-3/4" x 24" Cooking Surface, 1" Polished Steel Plate, 90,000 BTU

Built for high-volume griddle service, this countertop unit combines a thick polished steel cooking plate, precise electric temperature control, and easy grease management.

  • 35-3/4" x 24" cooking surface with a 1" thick polished steel griddle plate.
  • Electric thermostat with matchless ignition for convenient startup and temperature control.
  • 90,000 BTU output supports fast recovery and all-day cooking performance.
  • Front grease trough, welded grease chute, and large grease box simplify cleanup.
  • Stainless steel construction with 3" side splashes and removable 4" legs.
  • 115V electrical connection with 6' cord and NEMA 5-15P plug.

Overall Dimensions:

36.0"W x 31.56"D x 23.28"H

Product Weight:

465.0 lb

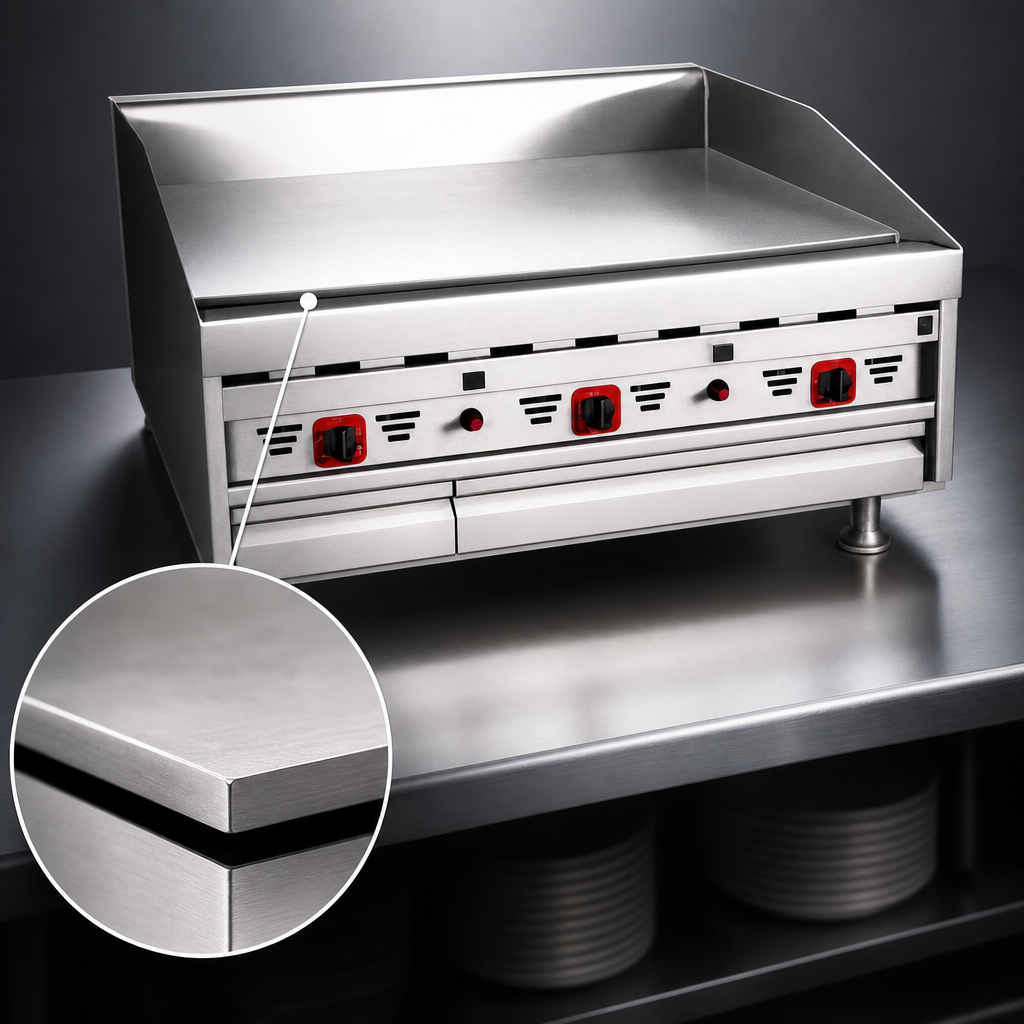

1-Inch Polished Steel Griddle Plate

Thick polished steel plate provides durability and excellent heat retention for consistent cooking.

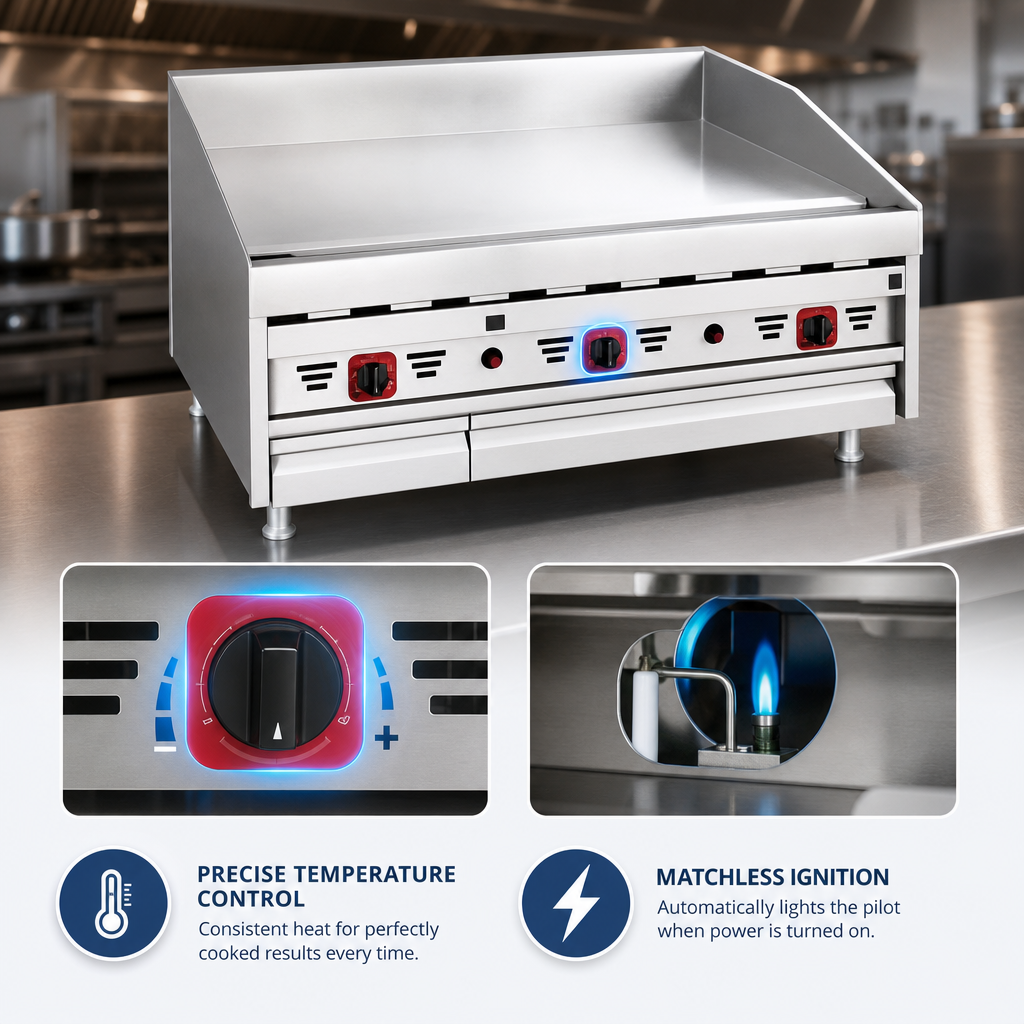

Electric Thermostat With Matchless Ignition

Provides precise temperature control and automatically lights the pilot when power is turned on.

90,000 BTU Burner Output

High-output gas heat is designed for demanding commercial cooking applications.

Grease Management System

Front grease trough, fully welded grease chute, and grease box help direct and collect runoff for easier cleanup.

Stainless Steel Construction

Stainless steel exterior and double-walled sides offer durability and a clean professional appearance.

3-Inch Side Splashes

Side splashes help contain food and grease during cooking.

4-Inch Removable Legs

Legs provide counter use support and can be removed for installation flexibility.

Power Cord And Plug Included

Ships with a 6-foot power cord and NEMA 5-15P plug for the ignition/control system.

Safety Pilot With Flame-Loss Shutoff

Adds an extra layer of safety by shutting off fuel if the flame is lost.

Type Gas Griddle
Style Countertop
Installation Type Countertop
Controls Electric Thermostat
Temperature Range 200°F to 550°F
Cooking Surface Width 35-3/4 Inches
Cooking Surface Depth 24 Inches
Plate Thickness 1 Inch
Griddle Plate Finish Polished Steel
BTU 90,000 BTU/Hr
Voltage 115 Volts
Amps 0.66 Amps
Hertz 50/60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 6 Feet
Gas Connection Size 3/4 Inch NPT
Material Stainless Steel
Shipping Width 36 Inches
Shipping Depth 32 Inches
Shipping Height 24 Inches
Shipping Weight 465 Pounds
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download PDF Installation & operation (6/01/03 to 7/31/05) PDF Download PDF Middleby financial flyer PDF Download PDF Parts manual PDF Download PDF Service manual PDF Download PDF Installation & operation (post 8/01/05) PDF Download PDF Installation & operation (pre 6/01/03) PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The cooking surface measures 35-3/4 inches wide by 24 inches deep.
It uses a 115V, 50/60 Hz, single-phase connection with a 6-foot cord and NEMA 5-15P plug.
Yes. It includes 4-inch removable legs for counter use.
Grease is directed into a front grease trough, welded grease chute, and large grease box for easier cleanup.
The electric thermostat maintains temperatures from 200°F to 550°F.
