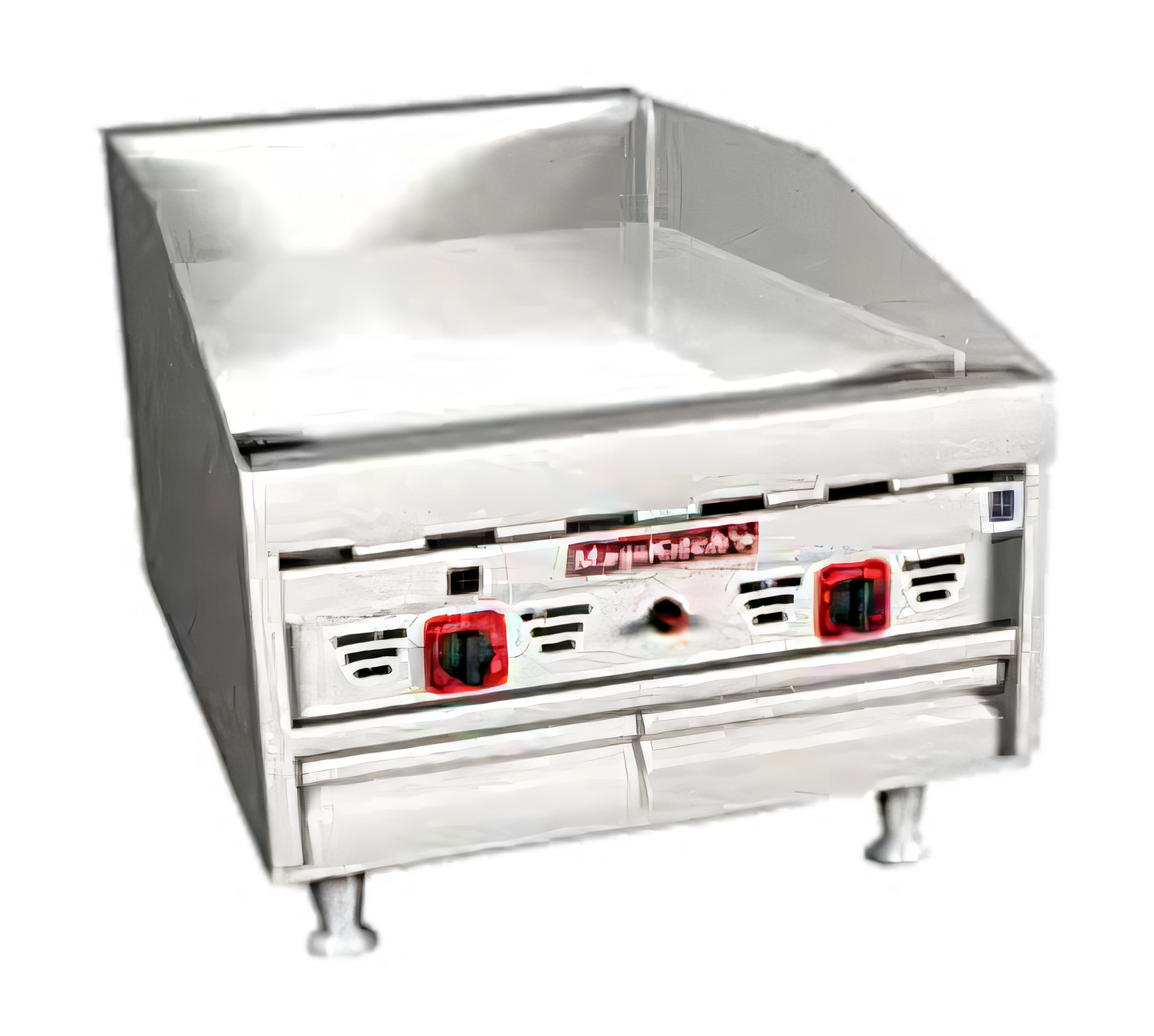

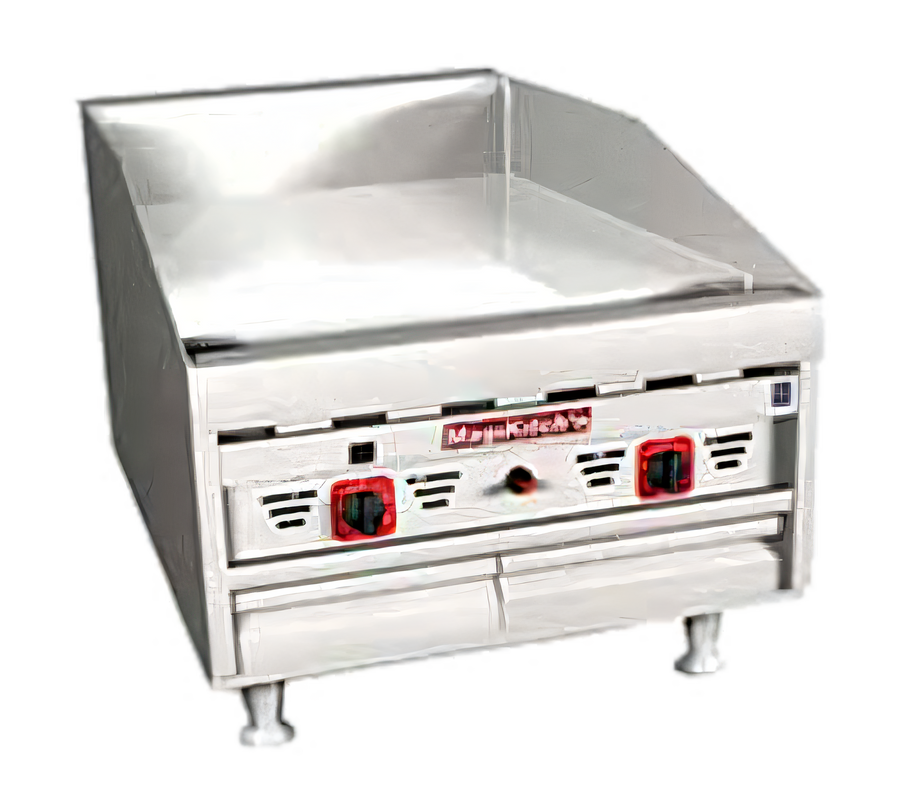

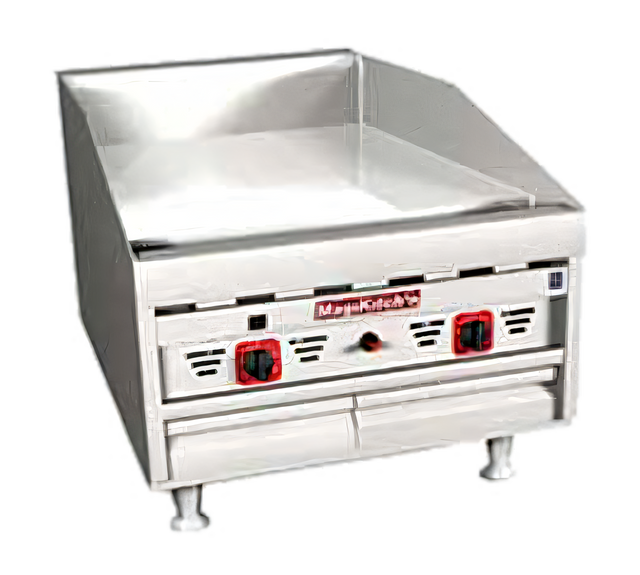

MagiKitch'n MKG24 24-Inch Countertop Gas Griddle with Solid State Thermostat

SKU: MKG-24-ST
$16,650.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Griddles Commercial Grills Gas Griddles Griddles & Flat Tops Magikitch'n (Middleby) New Arrivals Restaurant Equipment

MagiKitch'n MKG24 24-Inch Countertop Gas Griddle with Solid State Thermostat

24" x 23-3/4" Cooking Surface, Matchless Ignition, 60,000 BTU

A compact, heavy-duty griddle that pairs precise solid-state control with easy-clean grease management for busy commercial kitchens.

  • 24" x 23-3/4" cooking surface with a 1" polished steel griddle plate.
  • Solid state thermostat with matchless ignition for dependable, precise heat control.
  • 60,000 BTU output delivers strong preheat and fast recovery during service.
  • Front grease trough, welded chute, and large grease box simplify cleanup.
  • Stainless steel construction and double-walled sides help the unit stand up to daily use.
  • Includes 4" removable legs and a 115V ignition circuit with 6' cord and NEMA 5-15P plug.

Overall Dimensions:

24.0"W x 31.56"D x 23.28"H

Product Weight:

309.0 lb

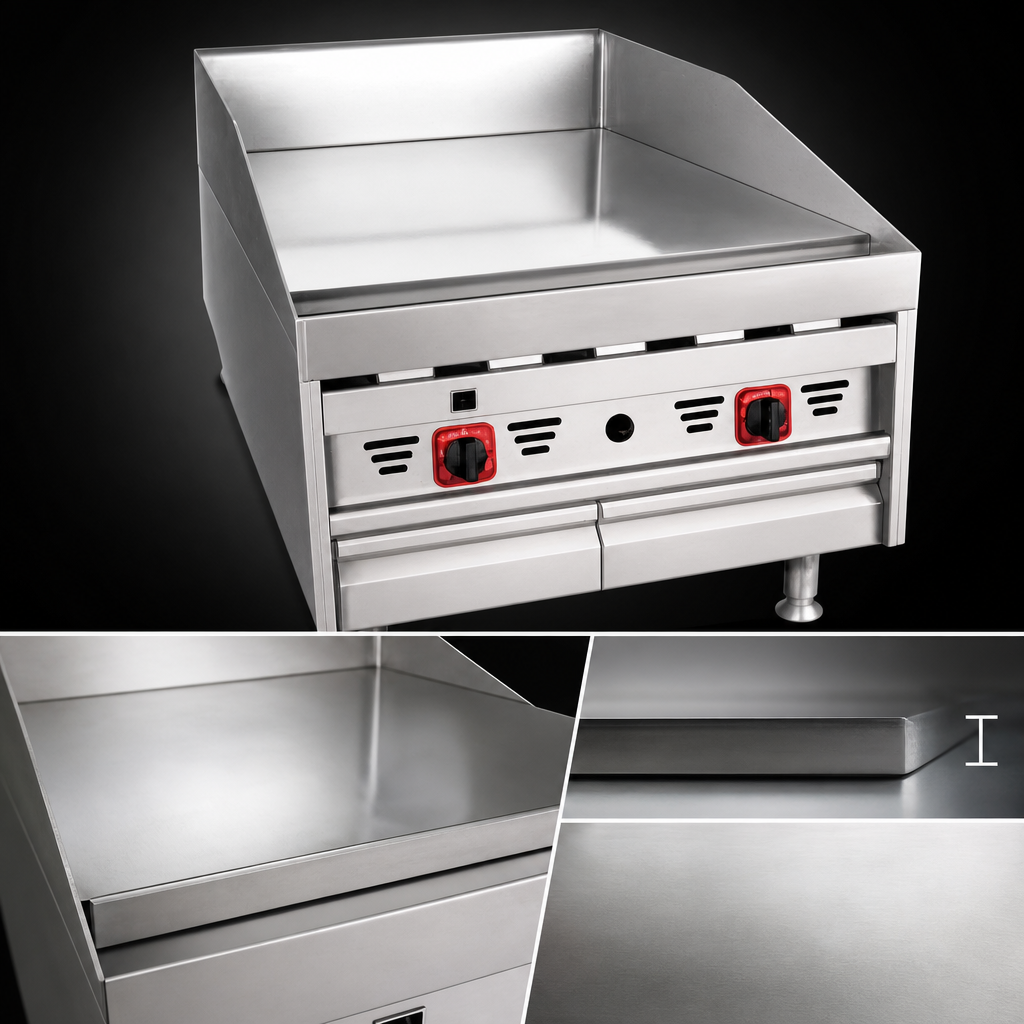

1-Inch Polished Griddle Plate

Heavy-duty steel cooking plate promotes even heat distribution and reliable high-volume performance.

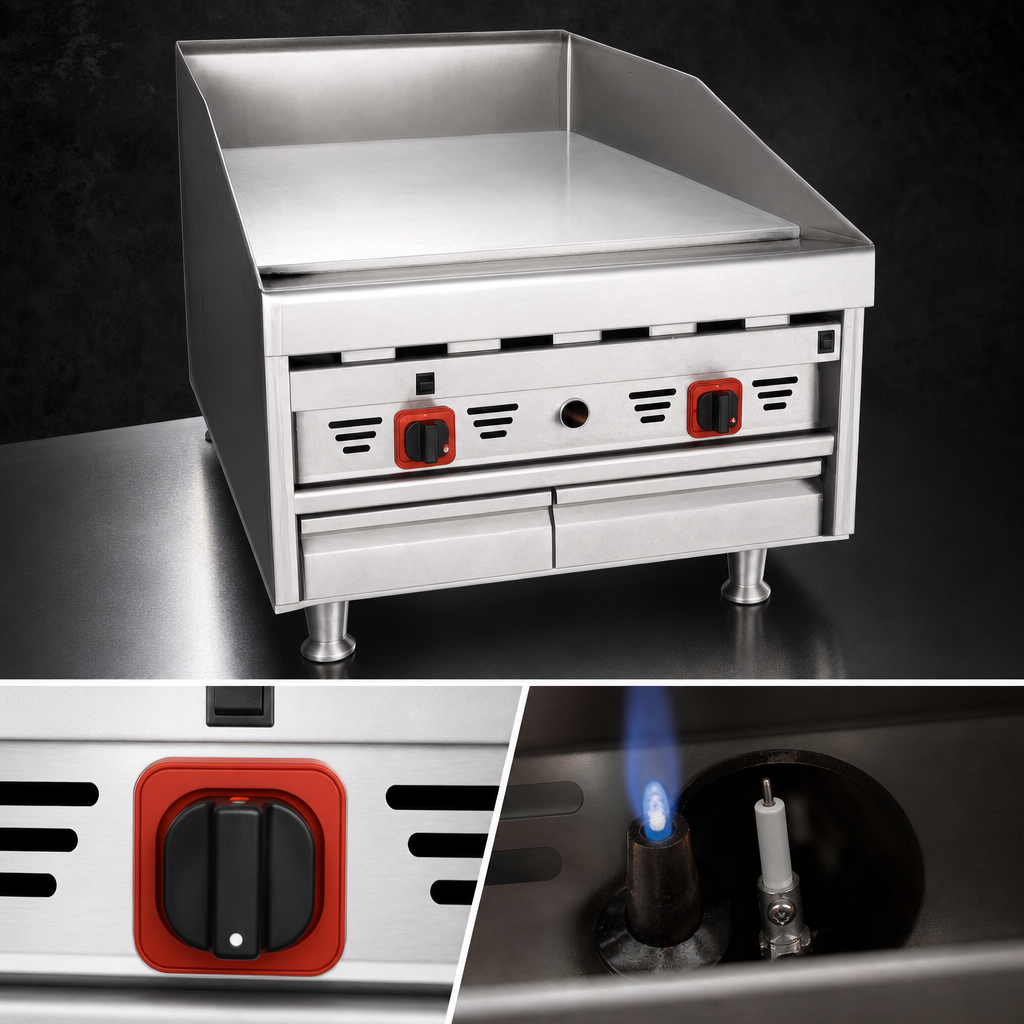

Solid State Thermostat with Matchless Ignition

Electronic temperature control and automatic pilot lighting help deliver accurate, convenient startup and operation.

60,000 BTU Output

Provides strong heat for quick preheat and consistent recovery under load.

Front Grease Trough and Welded Chute

Wide front trough and fully welded chute channel grease away from the cooking surface for easier cleanup.

Large Grease Box

Grease box helps collect runoff and reduce mess during service.

Stainless Steel Construction

Stainless steel exterior with double-walled sides supports durability and easier cleaning.

4-Inch Removable Legs

Removable legs provide countertop installation flexibility and make leveling easier.

Safety Pilot with Flame-Loss Shutoff

Safety feature helps shut off gas if the pilot flame goes out.

Factory-Installed Gas Regulator and Shutoff

Regulator and shutoff are factory installed and recessed for closer wall installation.

115V Ignition Circuit

Matchless ignition models use a 6-foot cord and NEMA 5-15P plug.

Type Gas Griddle
Installation Type Countertop
Material Stainless Steel
Finish Polished Steel
Controls Solid State Thermostat
Temperature Range 150°F to 550°F
BTU 60,000 BTU
Voltage 115 Volts
Amps 0.44 Amps
Hertz 50/60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 6 Feet
Gas Connection Size 3/4 NPT
Cooking Surface Width 24 Inches
Cooking Surface Depth 23-3/4 Inches
Selling Unit Each
Units Per Case 1
Shipping Width 24 Inches
Shipping Depth 32 Inches
Shipping Height 24 Inches
Shipping Weight 309 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download PDF Mkg solid state control - calibration manual PDF Download PDF Service manual PDF Download PDF Middleby financial flyer PDF Download PDF Parts manual PDF Download PDF Installation & operation (post 8/01/05) PDF Download PDF Installation & operation (pre 6/01/03) PDF Download PDF Installation & operation (6/01/03 to 7/31/05) PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The cooking surface measures 24 inches wide by 23-3/4 inches deep.
Matchless ignition models use 115V, 50/60 Hz, 1-phase power at 0.44 amps with a 6-foot cord and NEMA 5-15P plug.
The solid state thermostat maintains a temperature range of 150°F to 550°F.
It includes a front grease trough, welded grease chute, and a large grease box for collection and cleanup.
Yes. The manual references an optional equipment stand and stand casters for installation flexibility.
