Magikitch'n (Middleby) FM-SMB-672 Gas Charbroilers
Description

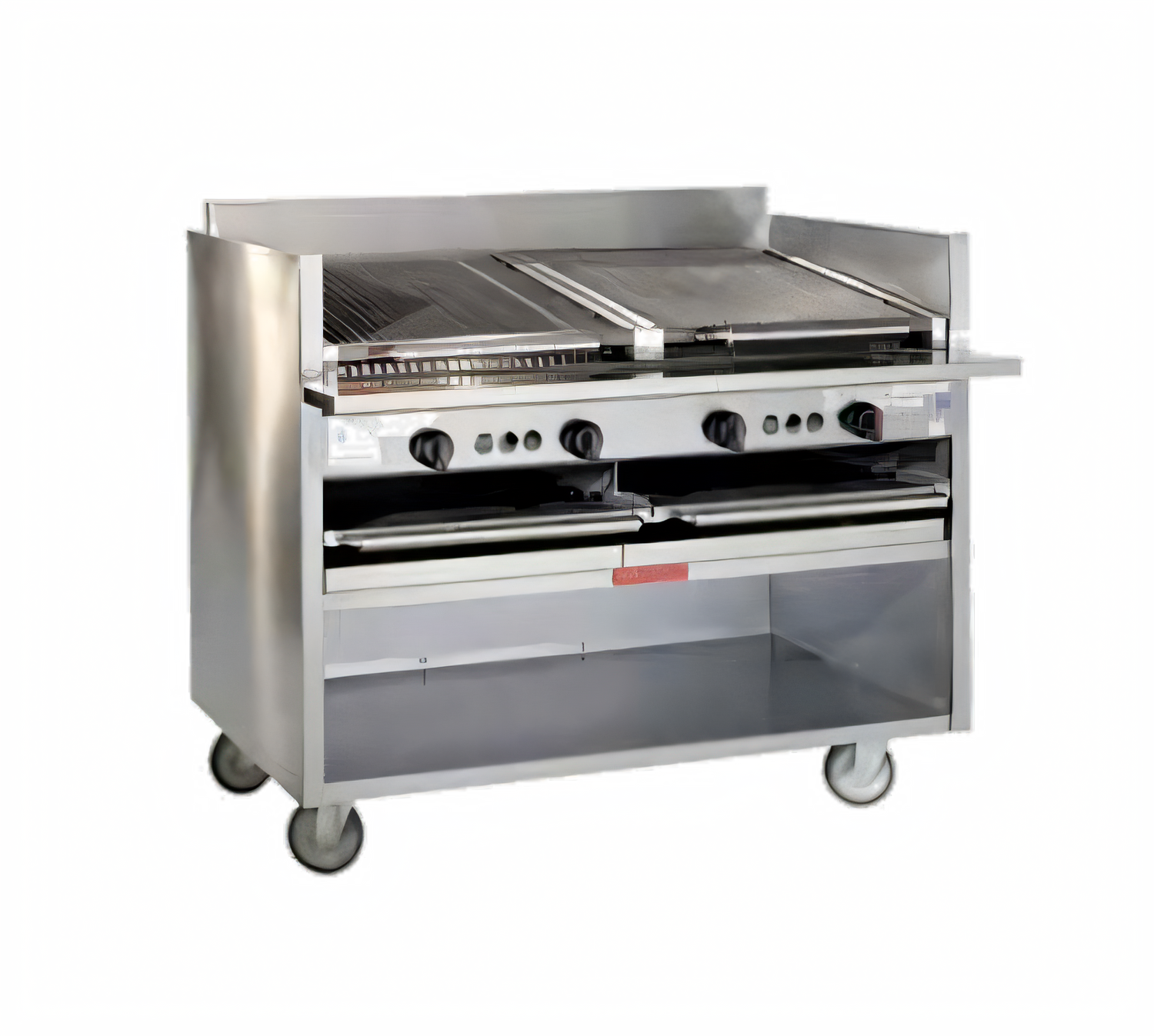

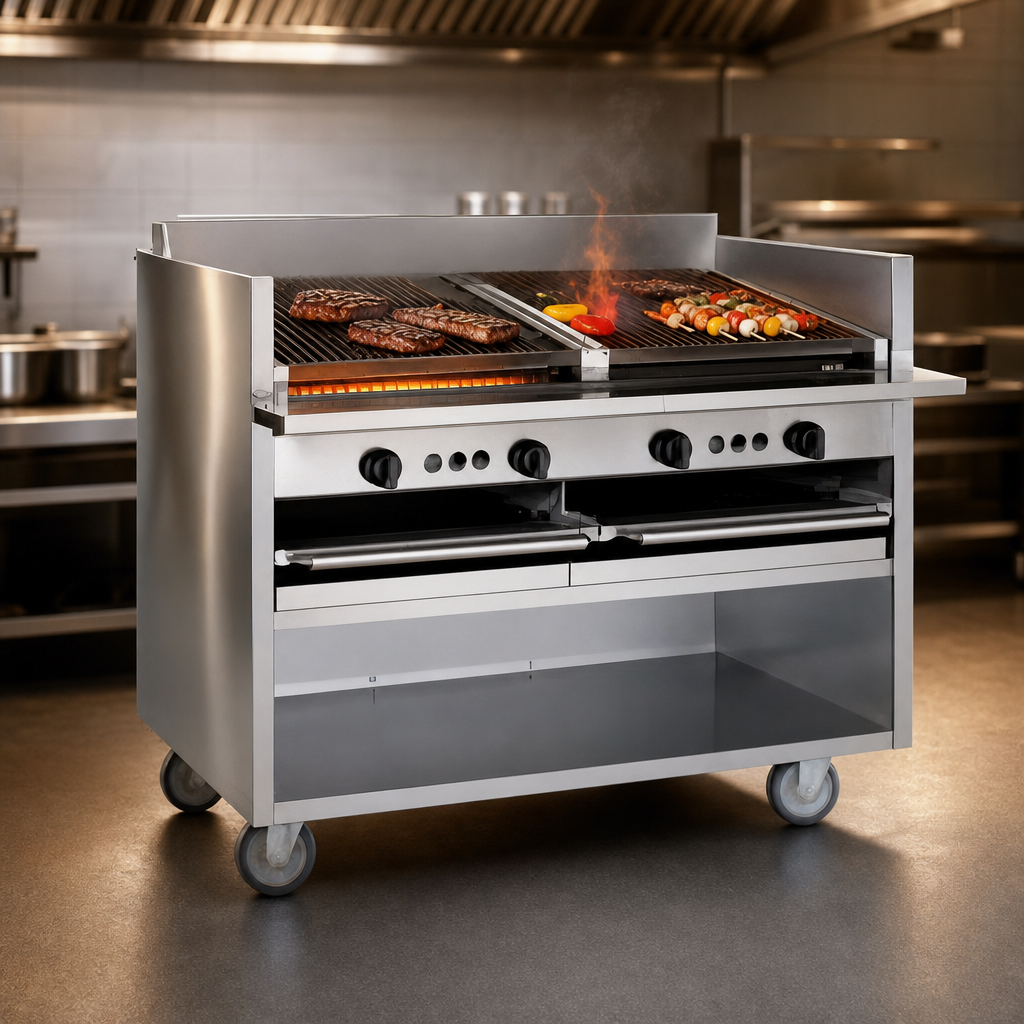

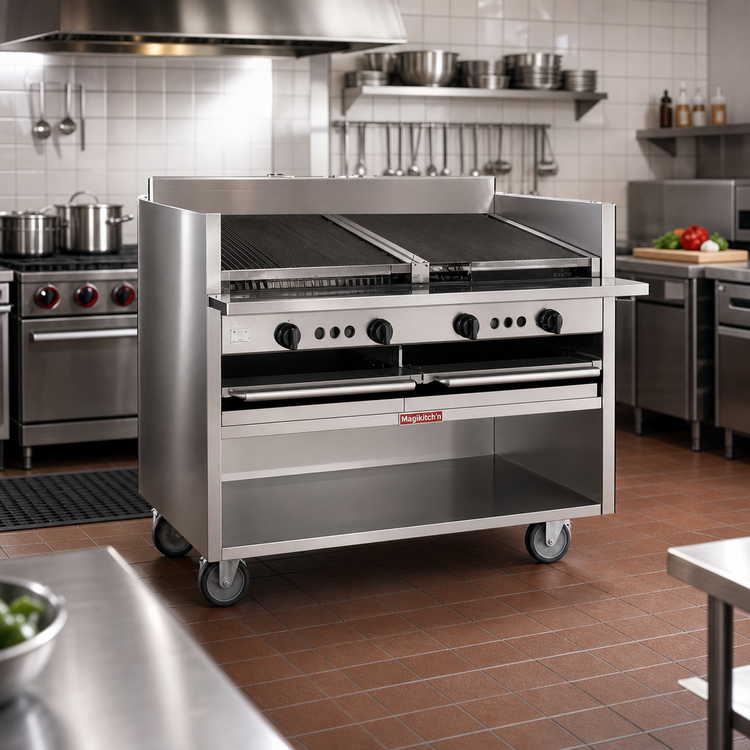

Magikitch’n FM-SMB-672 Coal Charbroiler, 72"
High-production floor model | 16 burners | 240,000 BTU (320,000 BTU optional)Turn out steakhouse-quality sear marks on your busiest nights with Magikitch’n’s flagship 72-inch coal charbroiler. The FM-SMB-672 combines a massive 1,704 in² cooking surface with ceramic briquette heat distribution, giving you even heat, intense flavor, and all-day reliability in one NSF-listed, CSA-approved package.
Key Features
- 72" W x 35-1/2" D x 39-1/2" H overall footprint – fits under standard exhaust hoods

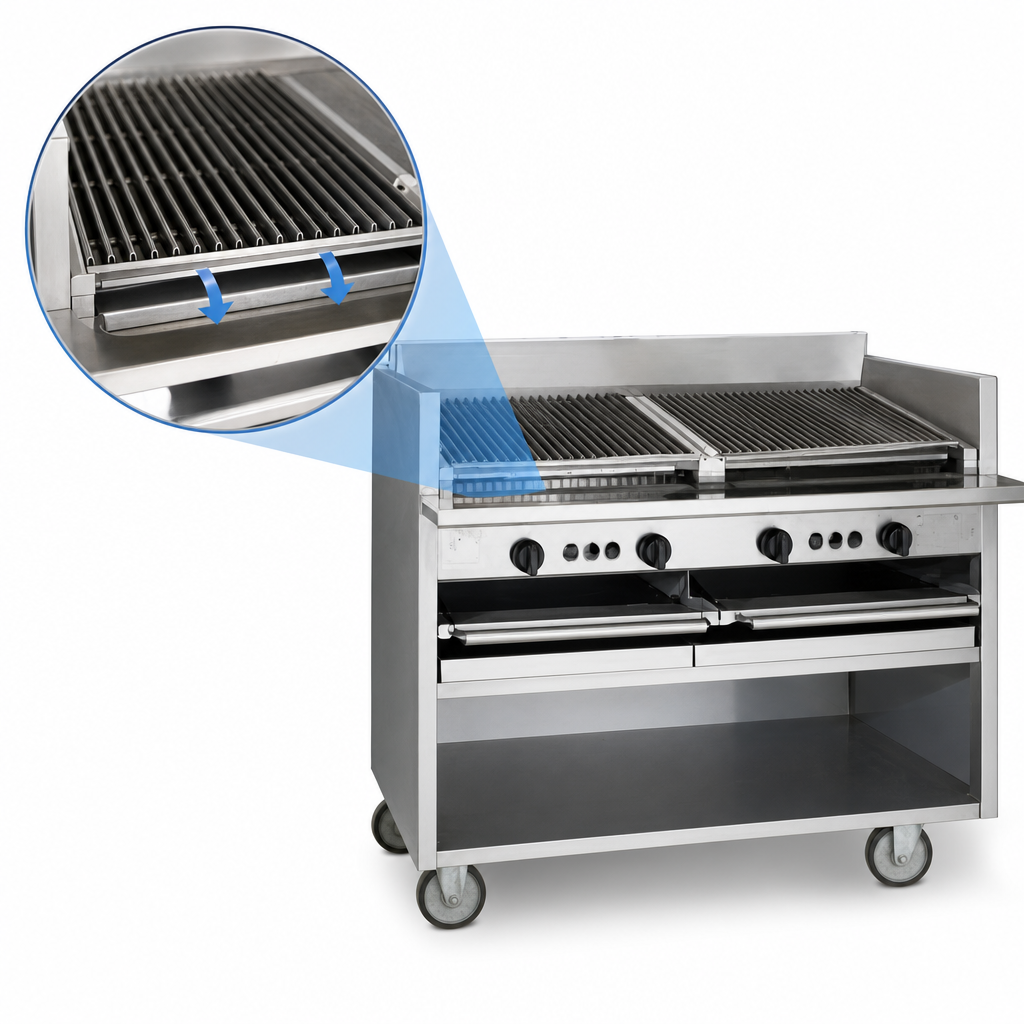

- Free-floating 1/2" round-rod grates expand & contract without warping
- E-Z Tilt™ grate design channels grease to a front trough for fast, safe cleanup
- Ceramic briquettes deliver authentic “coal-fired” flavor & even heat distribution
- 16 independent stainless-steel burners with standing pilots for quick zone control
- 6" stainless service shelf with utility/towel bar keeps tools and pans within reach
- Integrated water tubs help control flare-ups and simplify cleaning
- Open cabinet base for sheet pans, seasoning bins, or additional tools
- 6" adjustable stainless legs level the unit on uneven floors
- Includes heavy-duty top-grid scraper right out of the box
Performance & Productivity
- Standard output: 240,000 BTU/hr (natural or LP gas)
- Optional high-output model: 320,000 BTU/hr for extreme volume kitchens
- Runner-tube pilot system lights each burner instantly—no wasted prep time
- Front-mounted burner valves every 4" let you sear steaks on one end while holding veggies on the other
Sanitation & Safety Approvals
- CSA Flame
- CSA Star
- NSF Listed
Technical Specifications
| Model | FM-SMB-672 (coal/ceramic briquette) |
|---|---|
| Overall Dimensions (W × D × H) | 72" × 35-1/2" × 39-1/2" (183 × 90 × 100 cm) |
| Cooking Surface | 1,704 in² (11,001 cm²) |
| Burners | 16 stainless-steel, individually controlled |
| BTU/hr Output | 240,000 BTU (standard) | 320,000 BTU (high-output option) |
| Gas Connection | Single 3/4" NPT rear connection Natural 7-10" W.C. | LP 11-13" W.C. |
| Shipping Weight | Approx. 998 lb (453 kg) |
| Included Accessories | Water tubs, top-grid scraper, service shelf with utility bar |
| Warranty | 2-year parts & labor (factory authorized service network) |
What Ships in the Box
- FM-SMB-672 coal charbroiler on 6" adjustable legs
- Ceramic briquette kit (pre-installed)
- Water tubs (quantity 3)
- Stainless 6" service shelf & utility bar
- Top-grid scraper
- User/installation manual
