Magikitch'n (Middleby) FM-SMB-660 Gas Charbroilers
Description

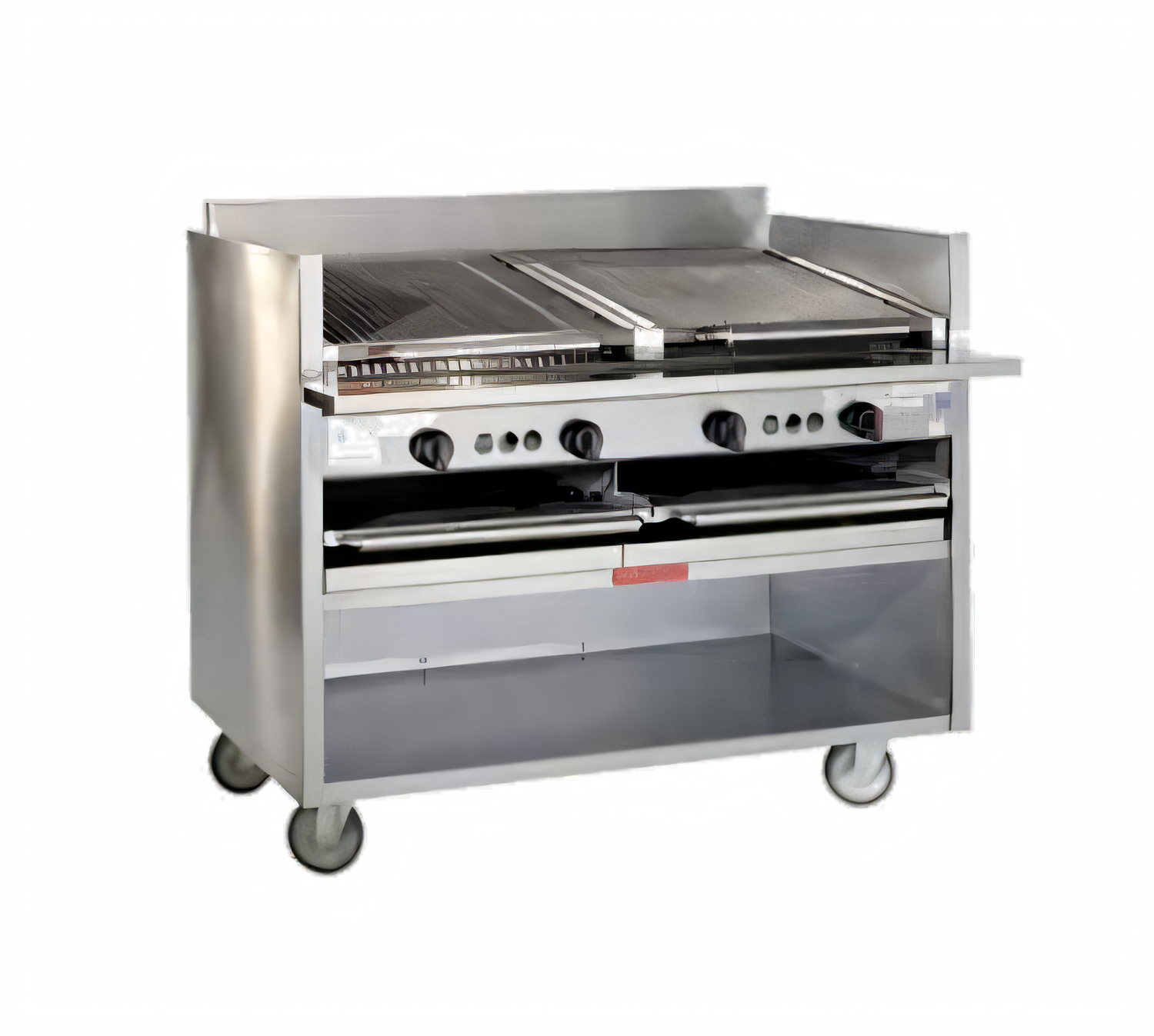

MagiKitch’n FM-SMB 660 60" Floor Model Coal Charbroiler
Ceramic coal heat • 195,000 BTU/hr • 1404 in² cooking areaTurn out perfectly seared steaks, burgers, chicken, and seafood during even the biggest dinner rushes. The FM-SMB 660 brings MagiKitch’n’s famous coal-fired flavor to a high-production, floor-standing platform that fits a full 5 feet of cooking power into just 35-1/2" of depth.
Why you’ll love it

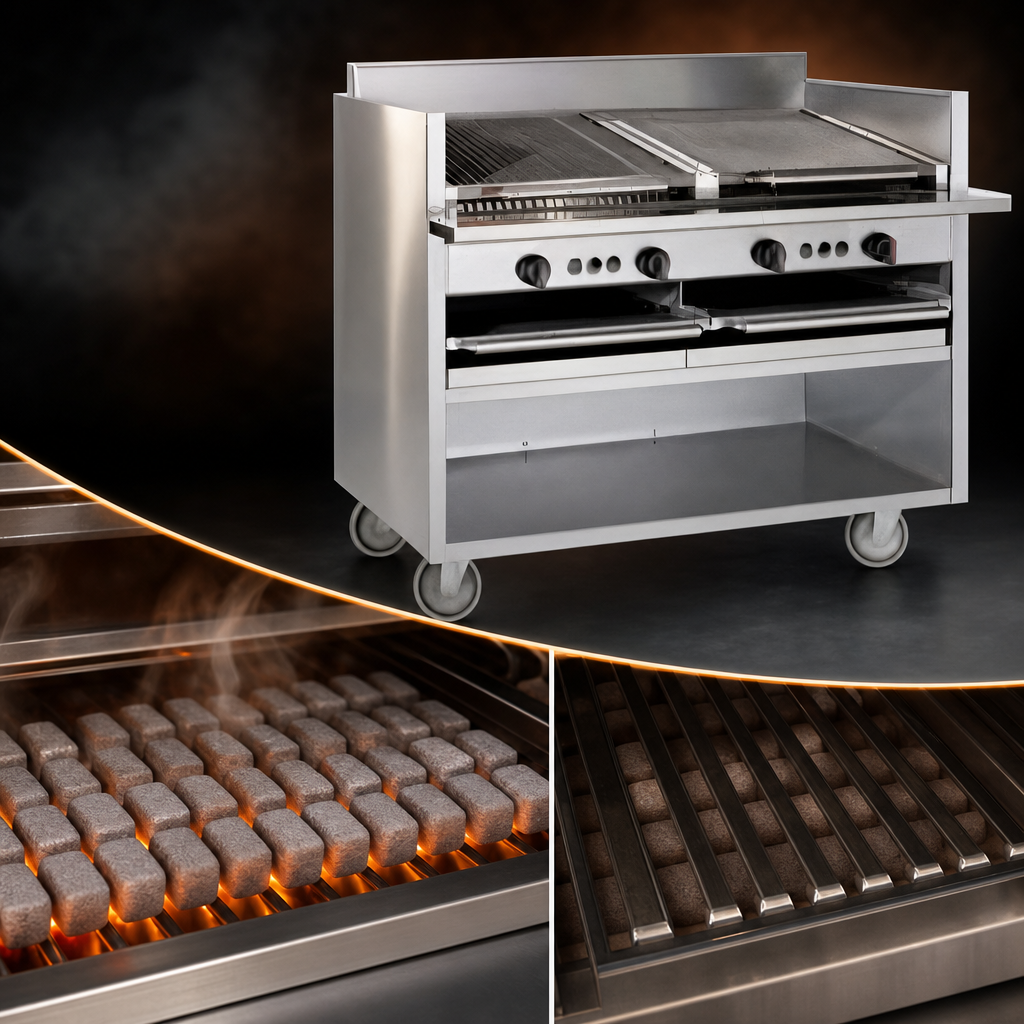

- Even, radiant heat – ceramic briquettes distribute and hold heat for consistent, juicy results.

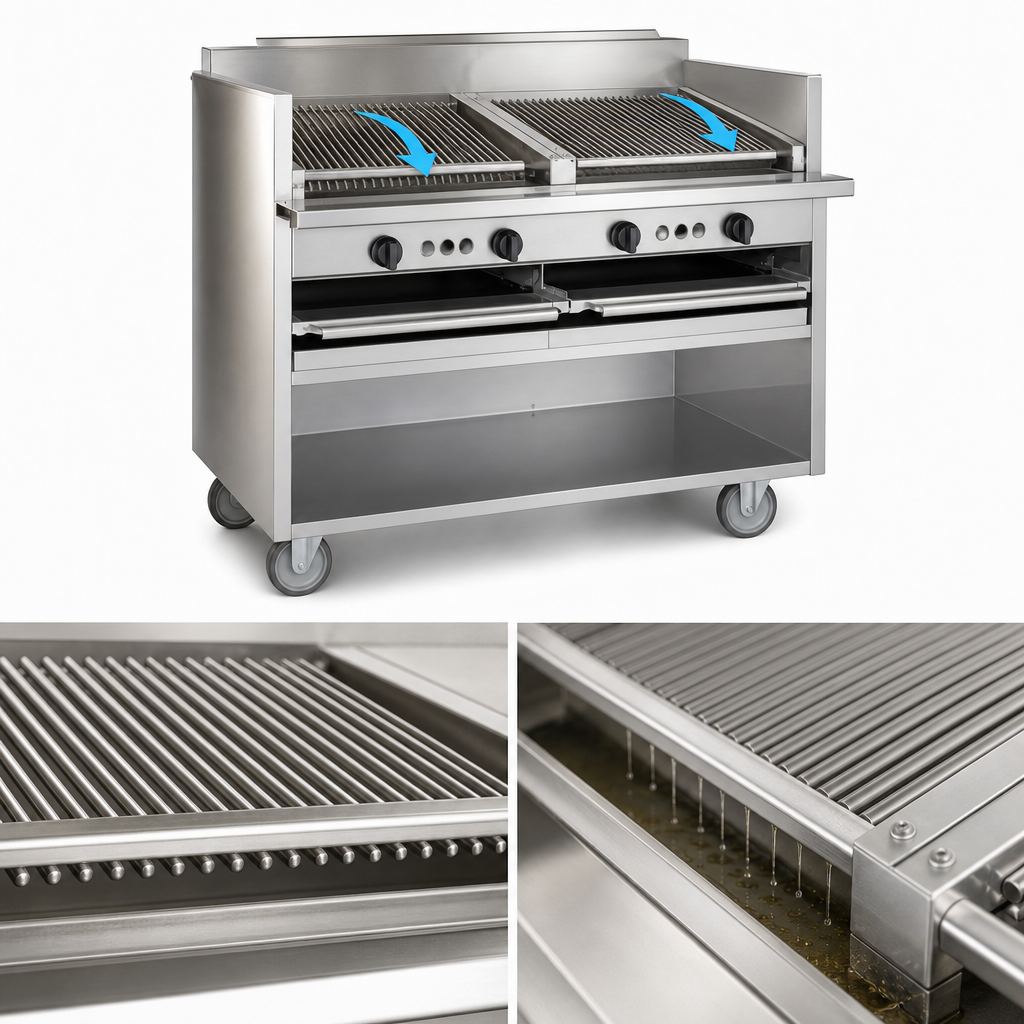

- Free-floating ½" round rod grate expands & contracts without warping and E-Z Tilt drains grease into the front trough.
- Massive production – 1404 in² (9 063 cm²) of cooking surface powered by 13 stainless steel burners.
- Operator-friendly service shelf – 6" stainless shelf with integrated utility/towel bar keeps tools within arm’s reach.
- Built-in water tubs add moisture, help control flare-ups, and make clean-up faster.
- Open cabinet base provides handy pan or utensil storage without increasing the footprint.
- Standing pilot with runner tube system for reliable lighting and quick recovery.
- All-stainless exterior, fully insulated double-wall cabinet, and 6" adjustable legs built for years of commercial abuse.
- Certified safe & sanitary – CSA Flame, CSA Star, and NSF listings.
What’s in the box
- FM-SMB 660 ceramic coal charbroiler
- Round-rod top grate with quick-lift handle
- Top grid scraper
- Water tubs (installed)
- Factory-installed 6" stainless service shelf & utility bar
- 6" adjustable stainless legs
- 2-year limited parts & labor warranty
Technical specifications
| Model | FM-SMB 660 (ceramic coal) |
|---|---|
| Overall dimensions | 60" W × 35-1/2" D × 39-1/2" H (152 × 90 × 100 cm) |
| Cooking surface | 1,404 in² (9,063 cm²) |
| Burners | 13 stainless steel tube burners |
| Gas output | 195,000 BTU/hr (standard)
260,000 BTU/hr (high-output option) |
| Gas type & pressure | Natural 7-10" W.C. / LP 11-13" W.C. |
| Gas connection | 3/4" NPT (single connection) |
| Ship weight | ≈ 900 lb (408 kg) |
| Certifications | CSA Flame, CSA Star, NSF |
| Warranty | 2-year parts & labor |
Installation notes
- Requires Type 1 exhaust hood – do not block rear flue opening.
- Minimum clearance to combustibles: 30" front • 4" floor • 0" sides/rear.
- Level the unit with adjustable legs before first use; optional casters available.
- Always install supplied gas regulator to maintain proper burner pressure.
Need a higher searing temperature? Order the high-output “-H” version for 260,000 BTU/hr performance.
