Magikitch'n (Middleby) FM-SMB-648 Gas Charbroilers
Description

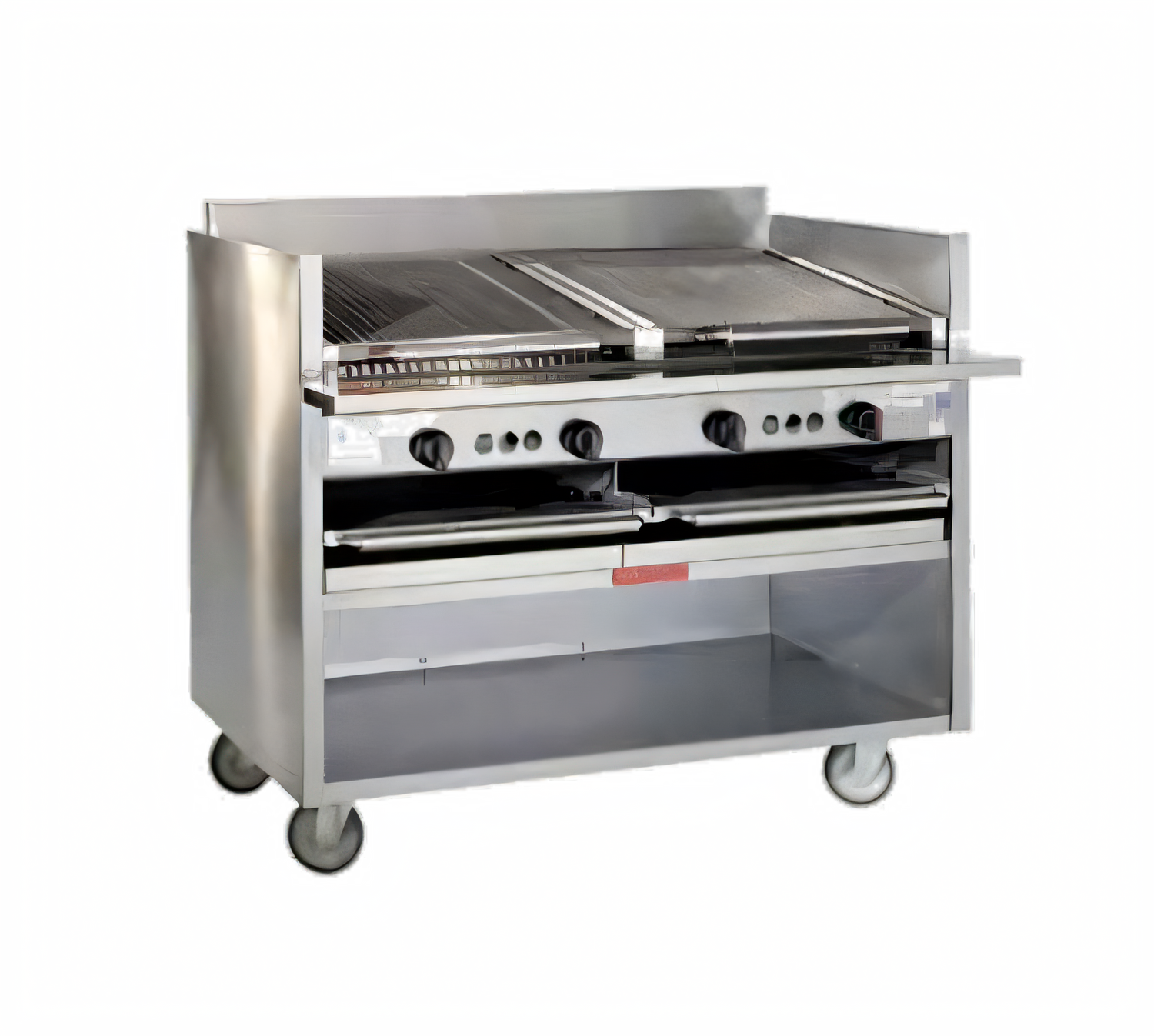

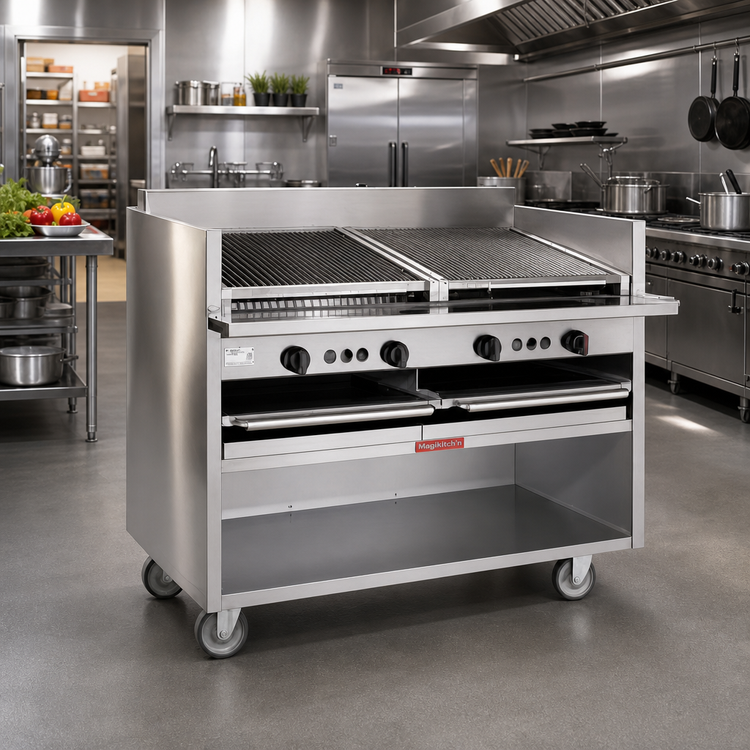

Magikitch'n FM-SMB-648 48" Floor-Model Coal Charbroiler
Ceramic Briquette Heat • 150,000 BTU Standard Output • Open-Base CabinetBuilt for busy steakhouses, burger bars and production kitchens, the Magikitch'n FM-SMB-648 delivers even, high-intensity heat across 48 inches of grill space while keeping day-to-day operation simple. Its ceramic briquette system locks in authentic char flavor and holds temperature, and the rugged, free-floating grate eliminates warping—even under heavy, continuous loads.
Top features & benefits
- 1,107 in² cooking surface handles steaks, chicken, burgers & more in one pass.

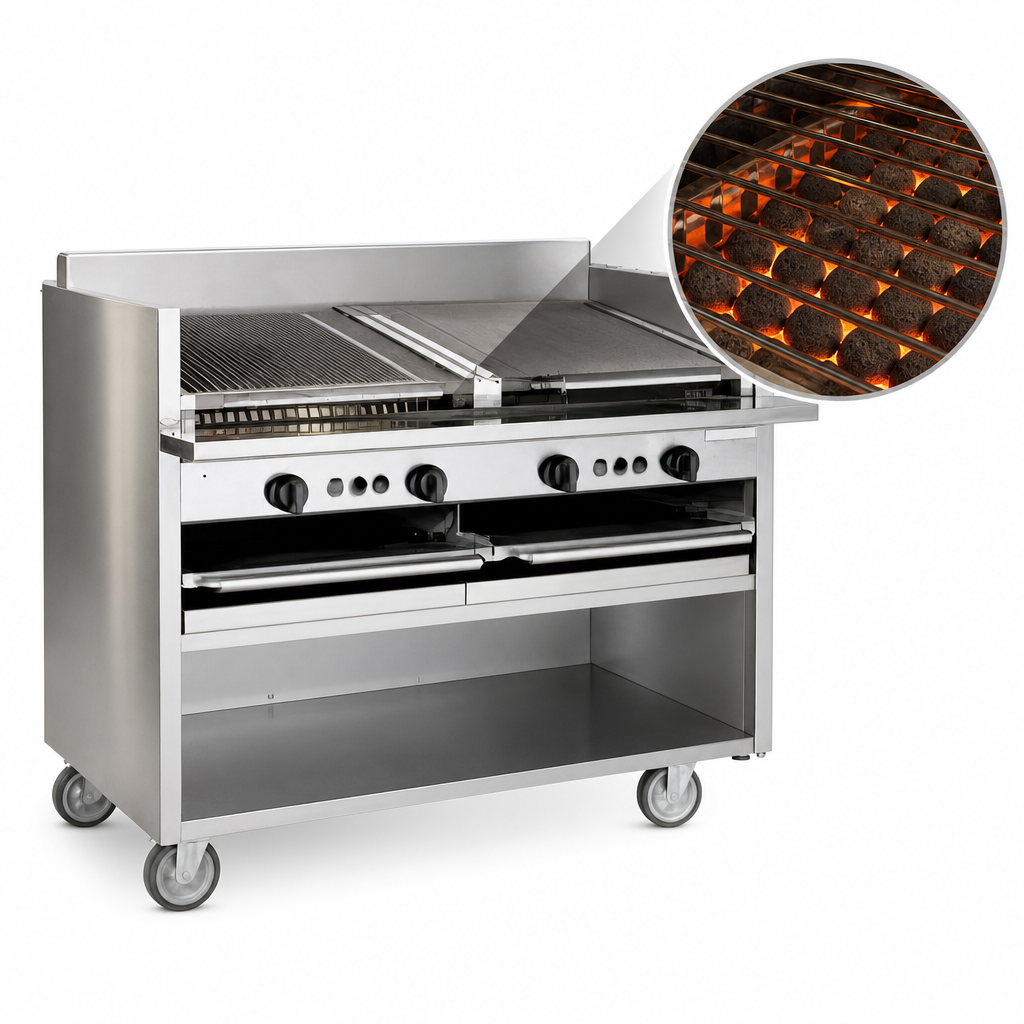

- Ceramic briquettes radiate intense, even heat while minimizing flare-ups.

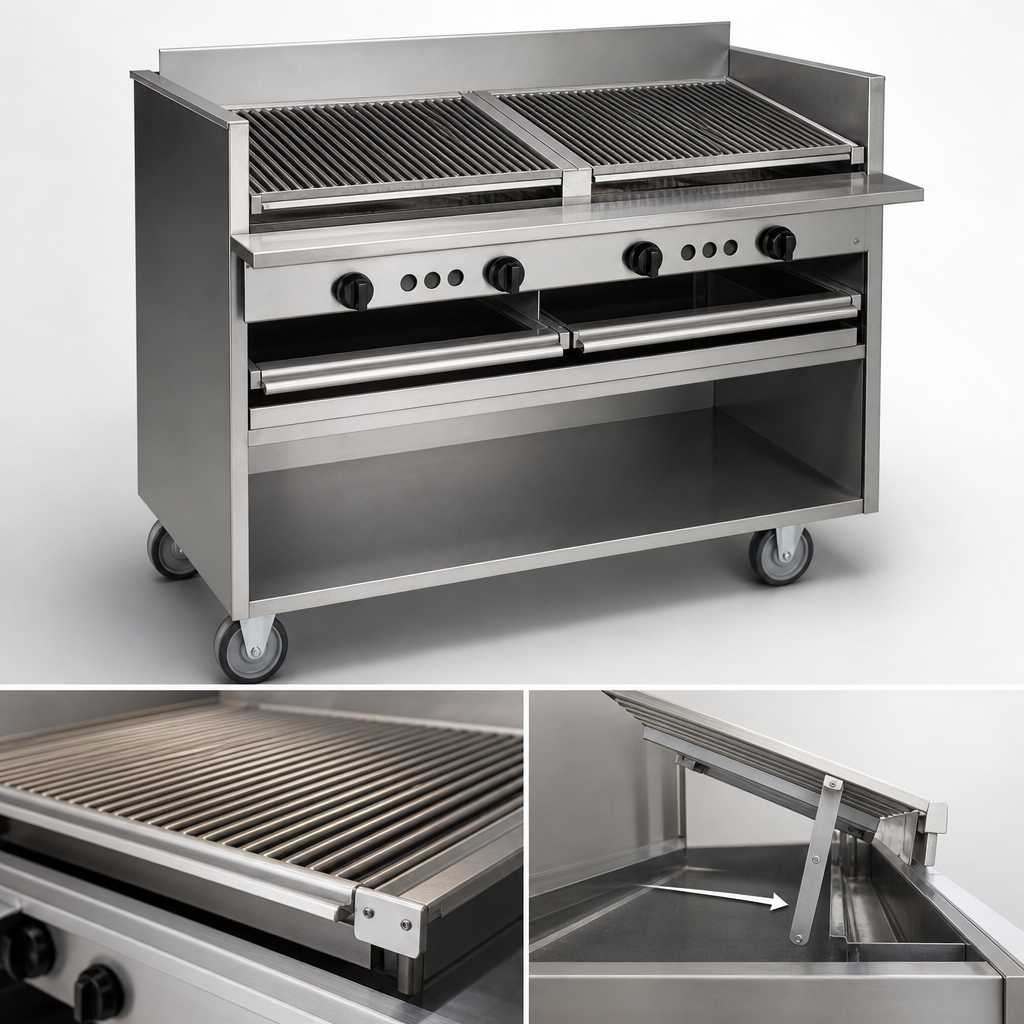

- ½" round-rod free-floating grate expands/contracts without stress and lifts out for cleaning.
- E-Z Tilt grate design sends grease straight to the full-width front trough for a cleaner cookline.
- 10 all-stainless burners with individual front-panel controls create multiple heat zones.
- Standing pilot & runner-tube ignition—no electric connection required.
- 6" stainless service shelf with utility/towel bar keeps utensils and pans within reach.
- Water tubs add humidity, help control grease and speed end-of-shift clean-up.
- Open cabinet base offers convenient under-broiler storage.
- 6" adjustable stainless legs level the unit on uneven floors.
What’s included
- FM-SMB-648 coal charbroiler (natural or LP)
- Standard-spacing round-rod top grate
- Ceramic briquettes & screens (factory installed)
- Top-grid scraper
- Removable water tubs
- Gas regulator & ½" NPT → ¾" adaptor
- Owner’s manual & quick-start guide
Technical specifications
| Model | FM-SMB-648 (Ceramic Coal) |
|---|---|
| Overall dimensions | 48" W × 35 ½" D × 39 ½" H |
| Cooking area | 48" W × 23 ⅛" D (1,107 in²) |
| Heat output | 150,000 BTU/hr standard (200,000 BTU/hr high-output model available) |
| Burners | 10 stainless steel, individually controlled |
| Gas connection | Single ½" NPT; regulator included |
| Supply pressure | Natural 7–10" W.C. | LP 11–13" W.C. |
| Manifold pressure | Natural 4" W.C. | LP 10" W.C. |
| Shipping weight | ≈ 685 lb (311 kg) |
| Certifications | CSA Flame • CSA Star • NSF |
| Warranty | 2-year parts & labor limited warranty |
Looking for extra searing power? Upgrade to the FM-SMB-648-H to jump to 200,000 BTU/hr. Contact us for details.
Why Magikitch'n?
- 80+ years of charbroiler expertise—made in the USA.
- Fully welded, double-wall stainless cabinet built for heavy-duty, high-volume kitchens.
- Nationwide network of factory-authorized service agencies.
