Magikitch'n (Middleby) FM-SMB-636 Gas Charbroilers
Description

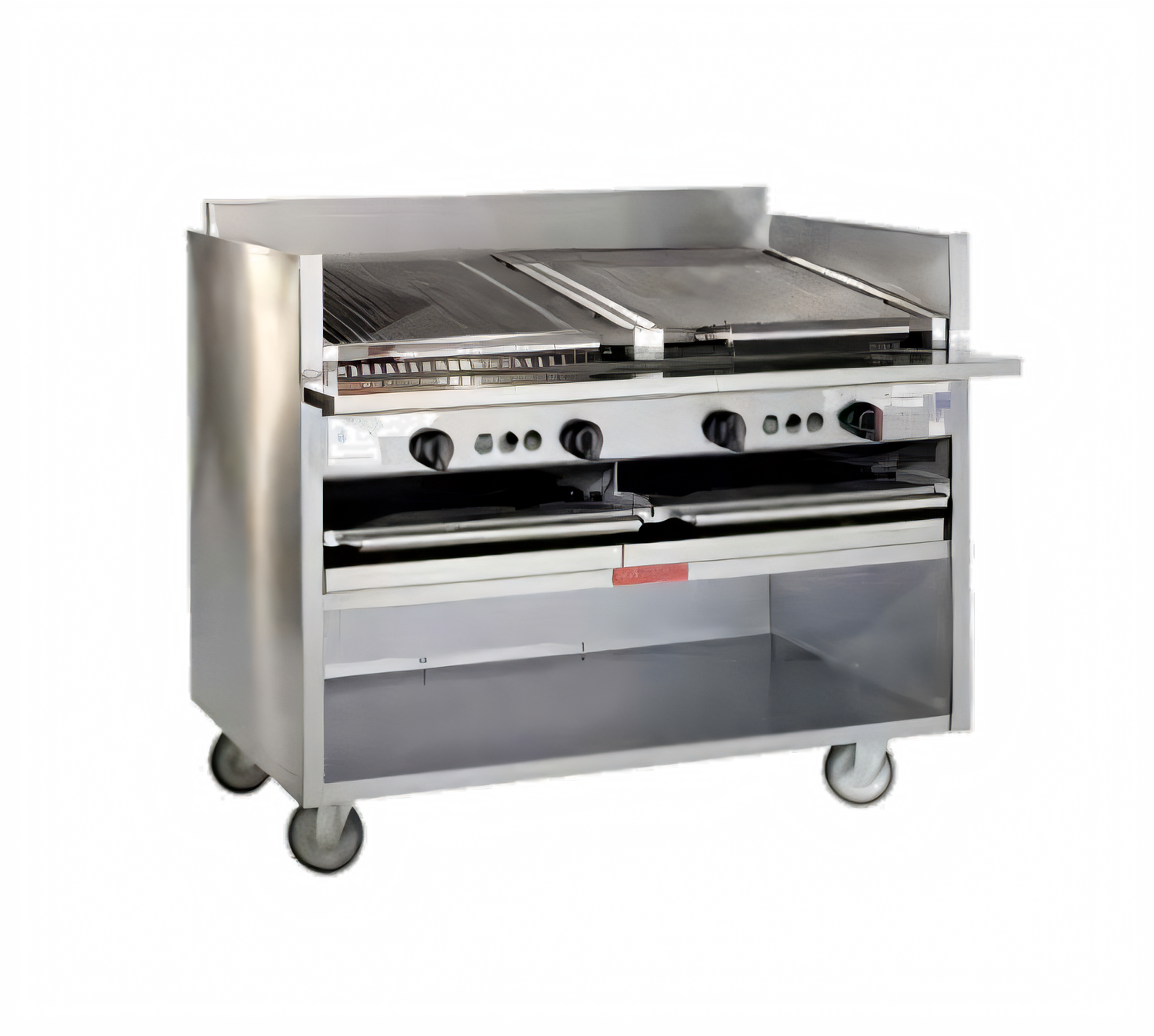

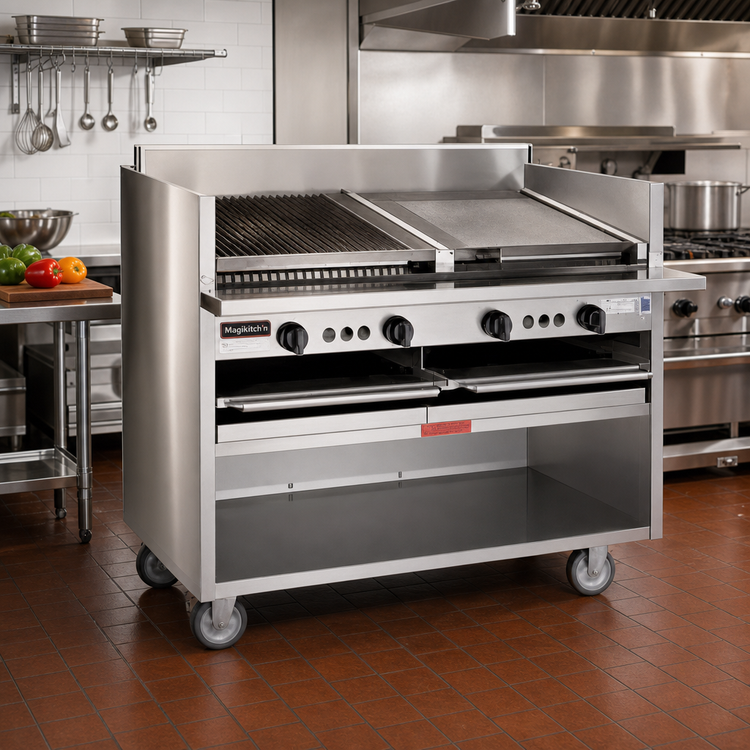

Magikitch’n FM-SMB-636 Ceramic Coal Floor Charbroiler – 36"
Authentic charcoal flavor, gas-fired consistencyEngineered for bustling steakhouses, burger joints, and seafood kitchens, the 36" Magikitch’n FM-SMB-636 pairs rugged stainless-steel construction with the unmistakable taste of live coals. Ceramic briquettes sit directly above seven stainless burners, allowing you to hit service temperatures fast while infusing every protein with that flame-kissed finish guests crave.
Why you’ll love it

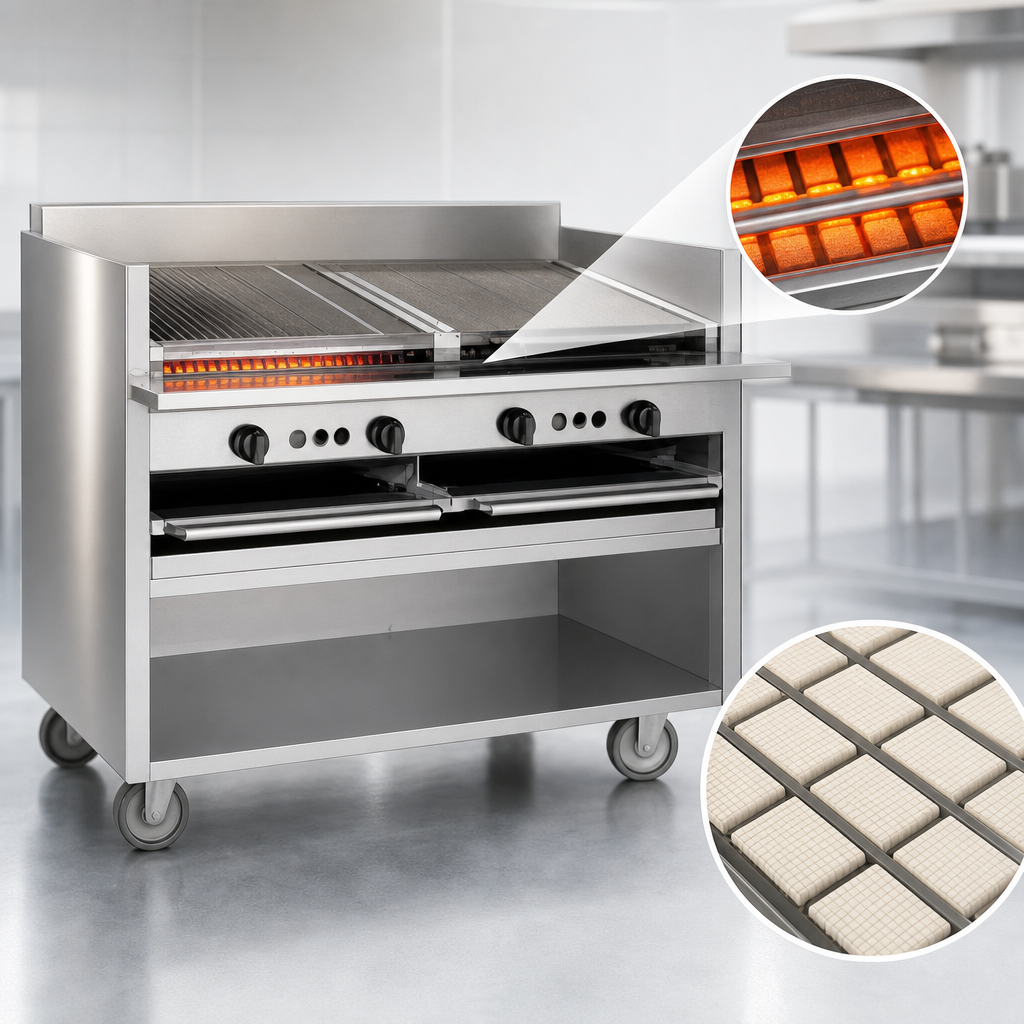

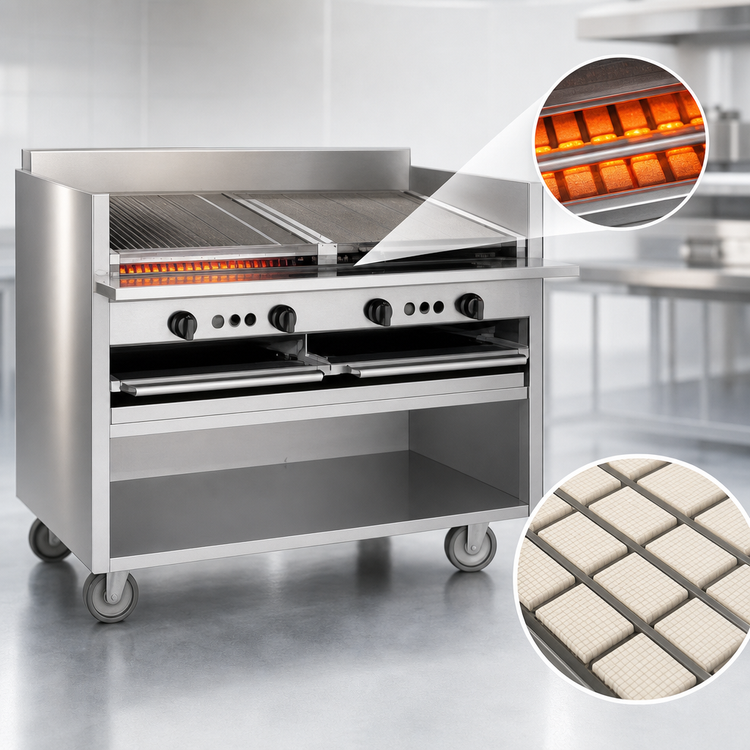

- Ceramic coal screen & briquettes deliver true charcoal char with rapid gas recovery.

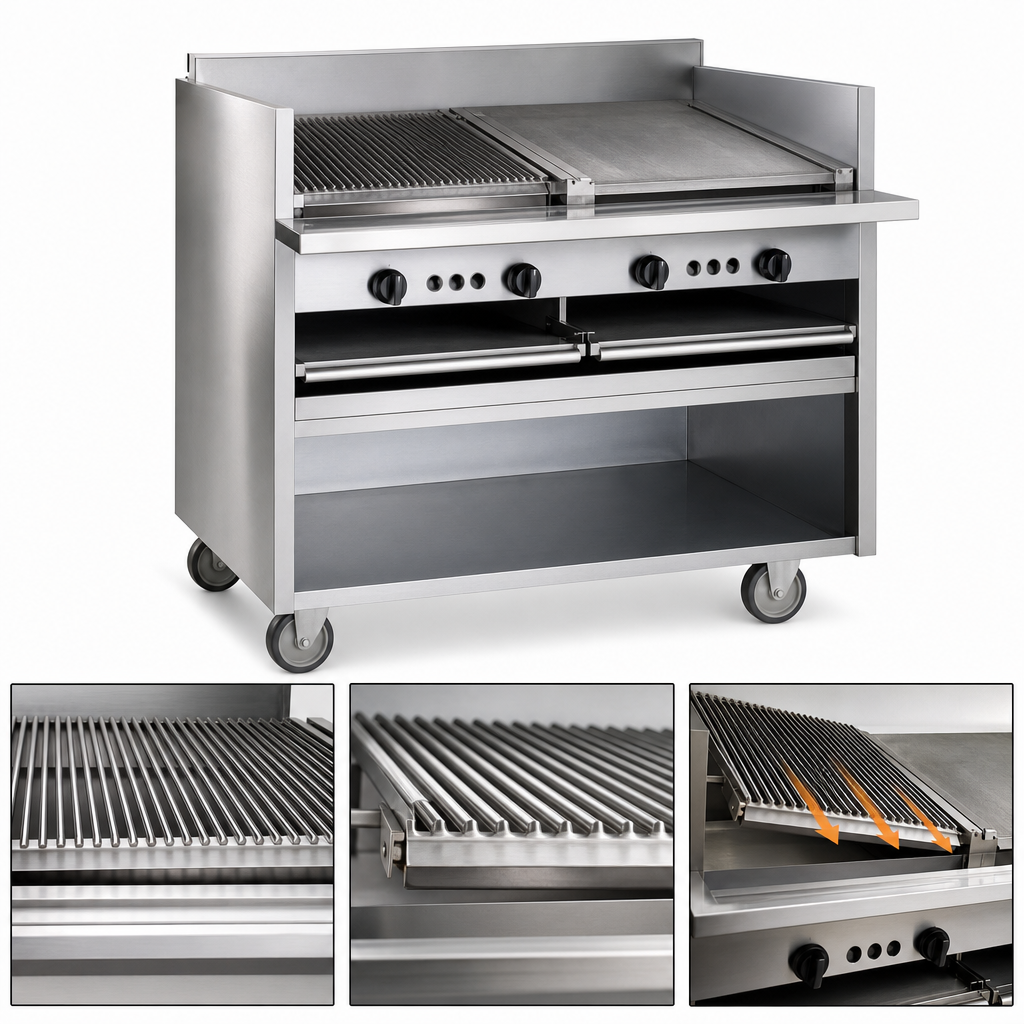

- Free-floating ½" round-rod top grate expands & contracts without warping.
- E-Z Tilt™ grate drains grease into a full-width front trough to minimize flare-ups.
- Individual front burner controls every 4 – 4½" for precise heat zoning.
- Standing pilot with runner tube system for swift, reliable ignition.
- 6" stainless service shelf with utility bar keeps pans, tongs, and seasoning close at hand.
- Water tubs add humidity, tame flames, and speed cleanup.
- Fully insulated, double-wall stainless cabinet with open base for extra storage.
- Includes heavy-duty top-grid scraper for end-of-shift maintenance.
- 6" adjustable stainless legs simplify leveling on uneven floors.
- Certified CSA Flame, CSA Star, and NSF for gas safety & sanitation.
Technical specifications
| Model | FM-SMB-636 (Ceramic Coal) |
|---|---|
| Fuel / Connection | Natural or LP gas | Single ½" NPT rear connection (regulator included) |
| Standard output | 105,000 BTU/hr (30.8 kW) | 7 stainless burners |
| Optional high output | 140,000 BTU/hr (41.0 kW) |
| Cooking surface | 810 in² (5,233 cm²) – free-floating round-rod grate |
| Exterior dimensions | 36" W × 35-½" D × 39-½" H (914 × 902 × 1,003 mm) |
| Service shelf | 6" deep with integrated utility/towel bar |
| Cabinet base | Open storage, fully welded stainless frame |
| Shipping weight | Approx. 555 lb (252 kg) | Crate 46" H × 45" W × 36" L |
| Certifications | CSA Flame, CSA Star, NSF |
| Warranty | 2-year parts & labor, backed by Magikitch’n’s nationwide service network |
Need even more throughput? A factory high-output version is available. Contact us for lead times, gas requirements, and optional accessories such as MagiKrome grids, smoker box, or back shelf.
