Magikitch'n (Middleby) FM-SMB-624 Gas Charbroilers
Description
Magikitch’n FM-SMB-624 Floor Model Coal Charbroiler – 24"
60,000 BTU | Ceramic Briquettes | GasServe authentic, flame-kissed flavor from a compact 24-inch platform. The Magikitch’n FM-SMB-624 coal charbroiler harnesses a full bed of ceramic briquettes and four independent stainless burners to deliver fast recovery, even heat and the signature grill marks your guests crave.
Key features

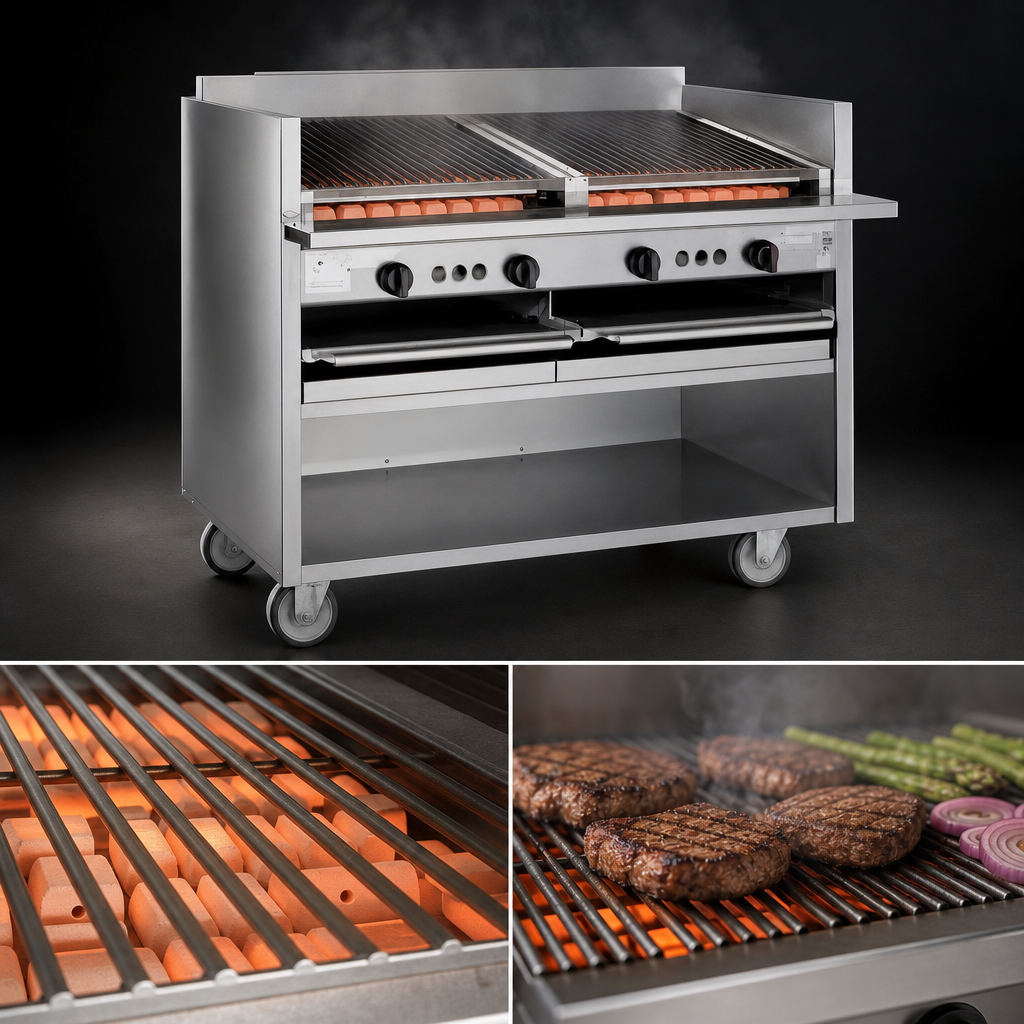

- Ceramic coal screen distributes heat evenly while adding classic char-broiled taste.

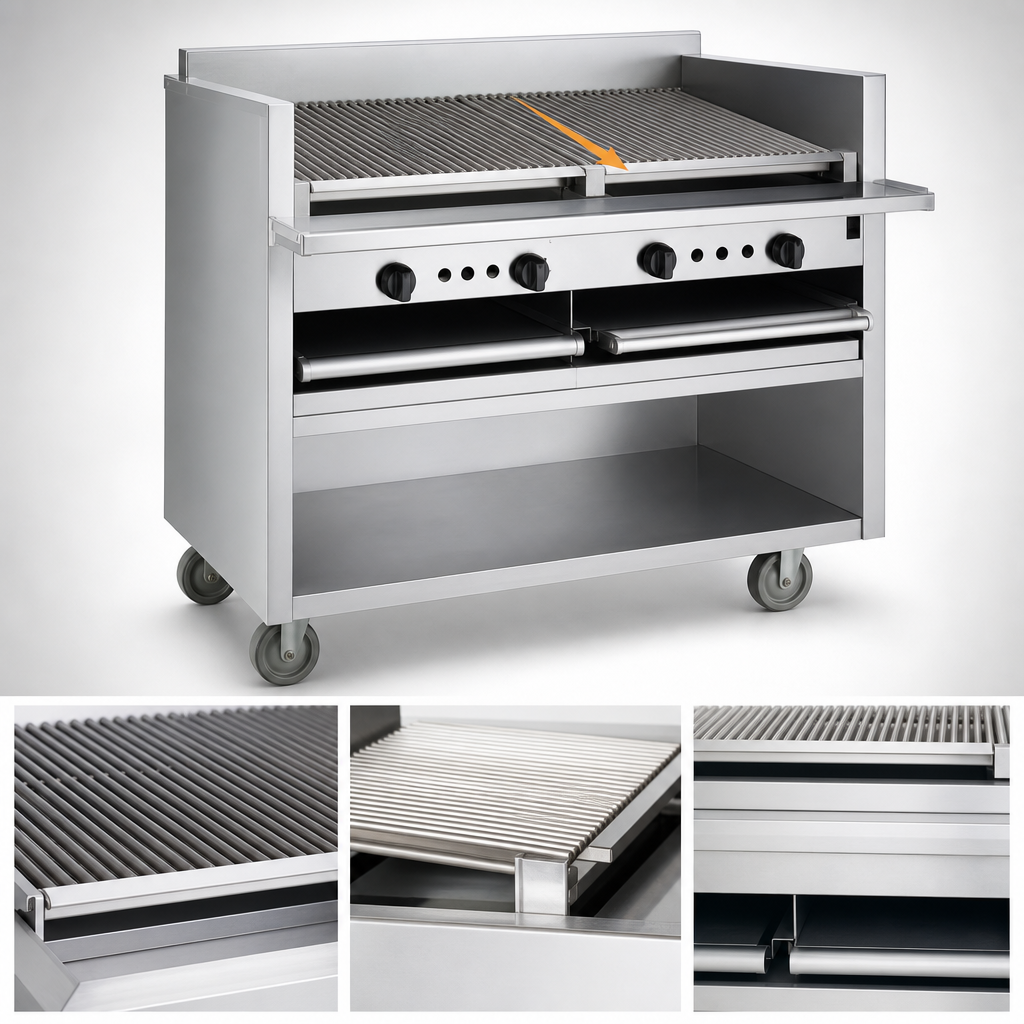

- Free-floating ½" round-rod grate resists warping and removes quickly for cleaning.
- E-Z Tilt™ grate channels grease forward into an oversized trough to minimize flare-ups.
- Four individually controlled stainless burners with standing pilots for instant ignition.
- 6" stainless service shelf with integrated utility/towel bar keeps tools and pans handy.
- Humidity-boosting water tubs reduce grease build-up and kitchen heat.
- Open cabinet base offers convenient storage; includes heavy-duty top-grid scraper.
- Fully insulated, double-walled stainless cabinet for a cooler exterior and energy savings.
- 6" adjustable stainless legs allow precise leveling and easy floor sanitation.
At-a-glance specs
| Model | FM-SMB-624 |
|---|---|
| Cooking method | Ceramic briquette (coal style) |
| Gas type | Natural or LP (field convertible) |
| Total BTU | 60,000 BTU/hr (17.6 kW) |
| Burners / controls | 4 burners with individual front valves & pilots |
| Cooking surface | 513 in² (24 ¾" W × 20 ¾" D) |
| Overall size | 24" W × 35-1/2" D × 39-1/2" H |
| Service shelf depth | 6" |
| Gas pressure | Nat 7–10" W.C. | LP 11–13" W.C. |
| Shipping weight | Approx. 401 lb (182 kg) |
| Connections included | ¾" regulator & ½"-to-¾" adapter |
| Certifications | CSA Flame • CSA Star • NSF |
Why chefs choose Magikitch’n
- All-stainless burners and cabinet stand up to years of high-volume service.
- Modular 600 Series platform—convert to radiant heat later with an optional kit.
- Backed by a 2-year parts & labor warranty and nationwide service network.
- Built in Smithville, TN, and approved for use in the USA & Canada.
Looking for more throughput? 600 Series coal charbroilers are also available in widths up to 72" and outputs up to 320,000 BTU. Contact us for details.
