Magikitch'n (Middleby) FM-RMB-624 Gas Charbroilers

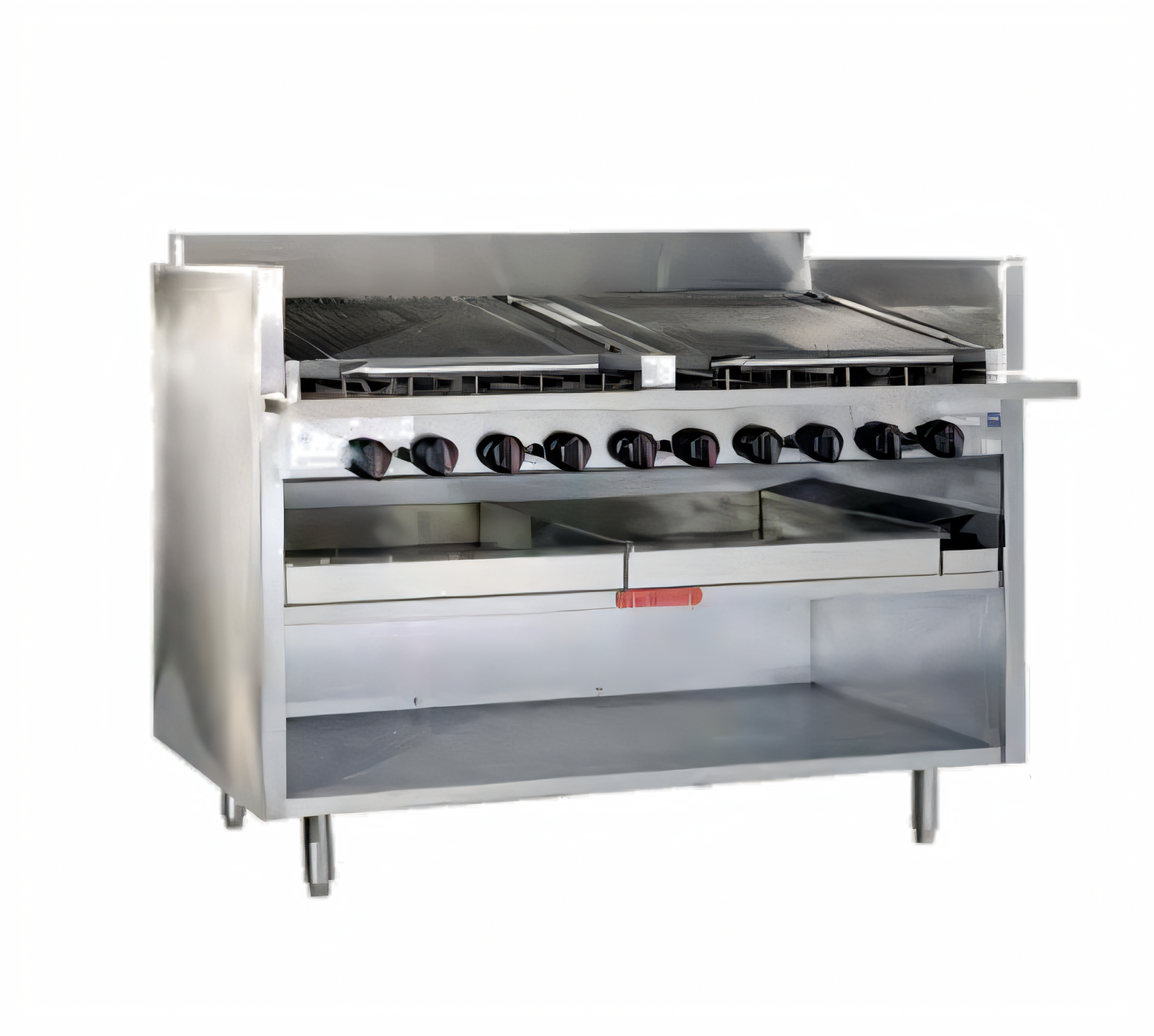

MagiKitch’n FM-RMB-624 24" Floor Model Radiant Gas Charbroiler

Bring steak-house level sear marks, smoky flavor and high-volume production to your line with MagiKitch’n’s legendary 600 Series floor charbroiler. The 24" FM-RMB-624 packs 60,000 BTU of even, radiant heat into a fully–stainless cabinet that’s built to thrive in the toughest kitchens.

Key benefits

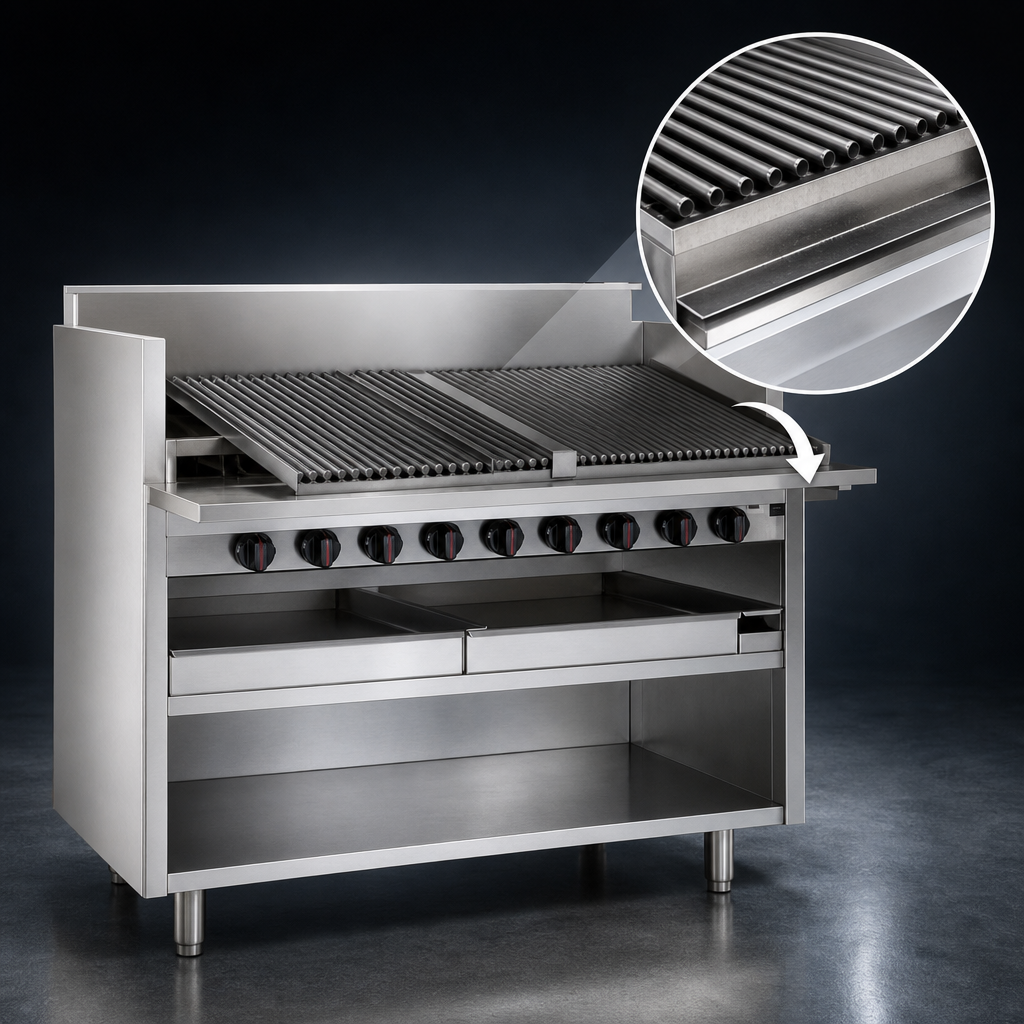

• Free-floating ½" round-rod grate resists warping and delivers beautiful branding.
• E-Z Tilt design channels grease into a full-width front trough, minimizing flare-ups.
• Four independent stainless burners (60,000 BTU/hr total) for precise zone control.

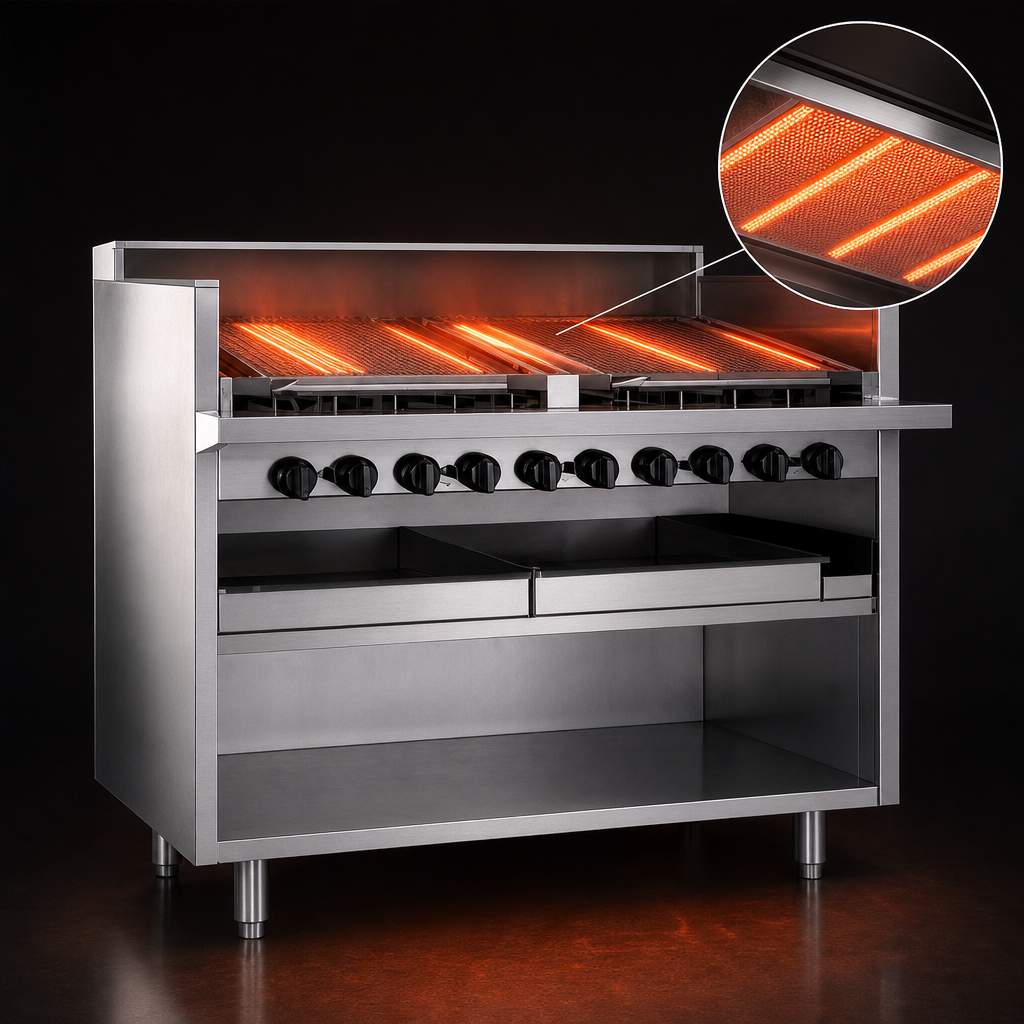

• V-shaped stainless steel radiants provide even heat distribution and long service life.
• Standing runner-tube pilot for fast, reliable ignition during peak rushes.
• 6" stainless service shelf with utility bar keeps seasonings & tools within arm’s reach.
• Water tubs add moisture, cut down on smoke and make clean-up easier.
• Open cabinet base offers convenient pan or utensil storage.
• Fully insulated, double-walled stainless steel body withstands daily abuse.

At-a-glance specs

Need extra power? High-output (80,000 BTU/hr) configuration available on request.

Installation & clearances

• Front: 30" minimum to combustibles  |  Floor: 4"
• No side or rear clearance required to non-combustible surfaces.
• Do not obstruct rear flue; install beneath an exhaust hood.

The MagiKitch’n edge

• Made in the USA with premium materials and craftsmanship.
• Convertible design—add an optional ceramic coal kit anytime for live-coal cooking.
• Backed by a nationwide network of factory-authorized service partners.
