Magikitch'n (Middleby) CM-SMB-624 Gas Charbroilers
Description

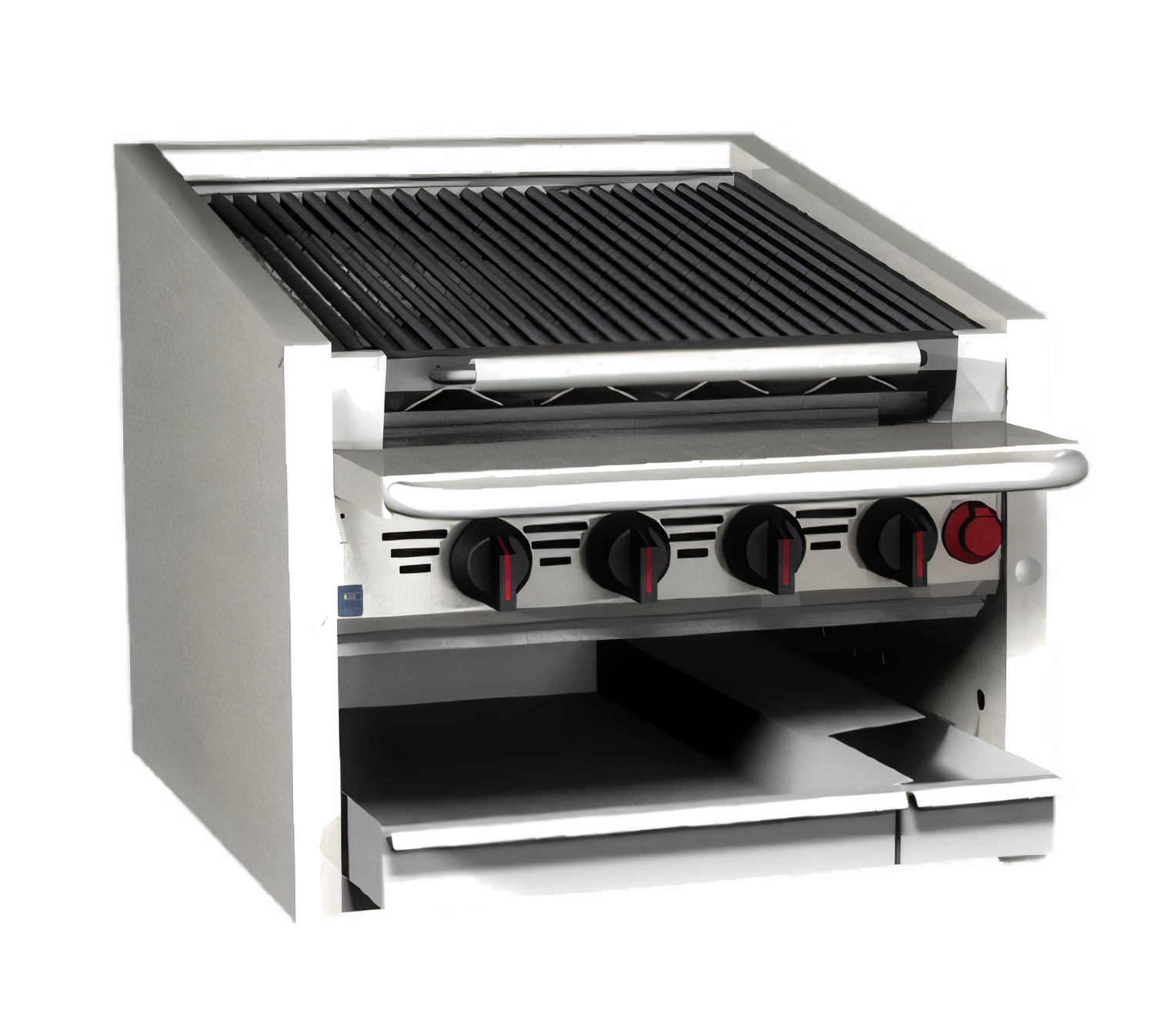

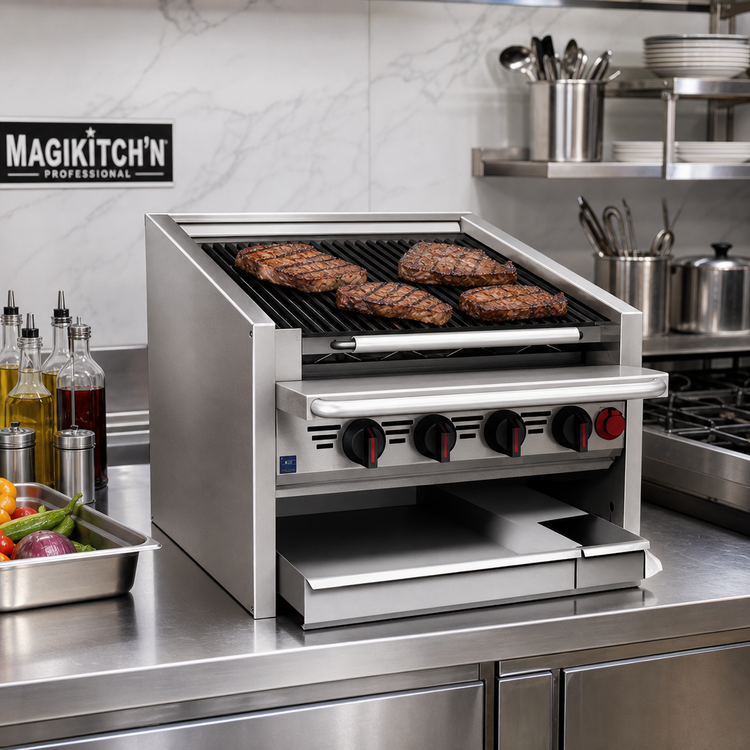

MagiKitch’n CM-SMB-624 24″ Countertop Coal Charbroiler
Ceramic briquettes • 60,000 BTU • Free-floating EZ-Tilt grateBring authentic char flavor to any cookline without sacrificing precious space. The MagiKitch’n CM-SMB-624 packs 60,000 BTU of ceramic coal power into a 24″ footprint, delivering steak-house sear marks, juicier product and faster ticket times for busy kitchens.
Key Features
- 60,000 BTU/hr ceramic coal heat (80,000 BTU high-output upgrade available)

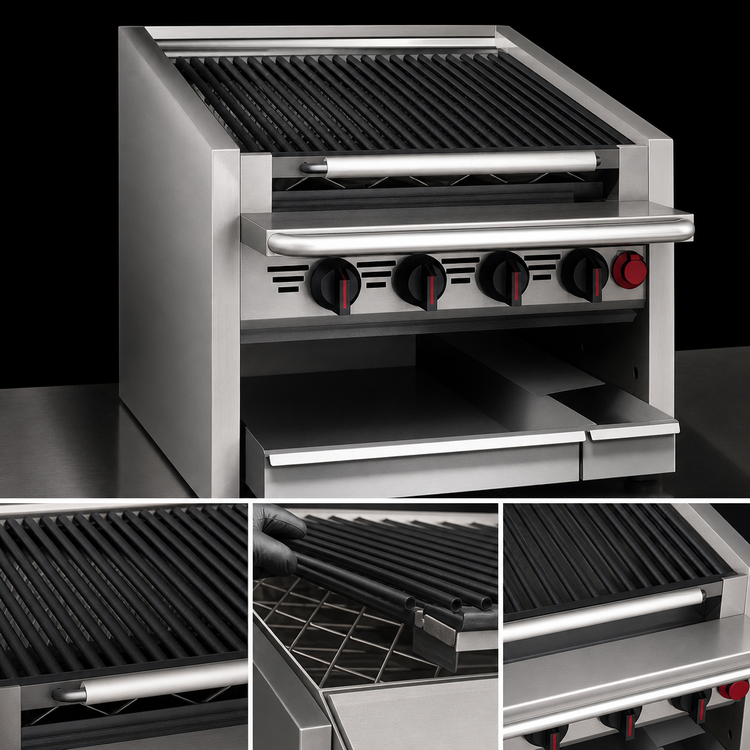

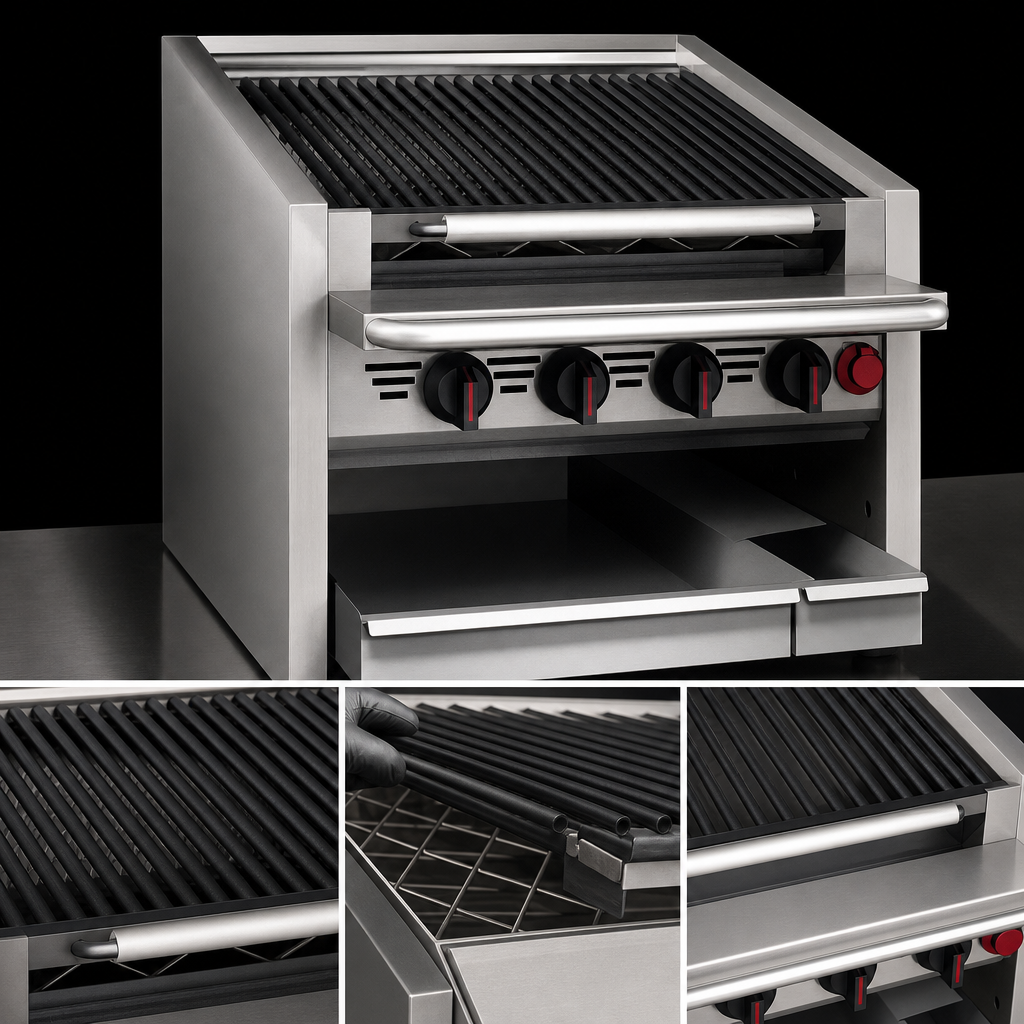

- Free-floating ½″ round-rod grate expands & contracts without warping
- EZ-Tilt grate channels grease into an oversized front trough to cut flare-ups
- Four individually controlled stainless burners—create hot & cool zones at will
- Water tubs add humidity for juicier results and simpler clean-up
- 6″ stainless service shelf with integrated utility/towel bar
- Double-wall, fully insulated stainless cabinet stays cooler and saves energy
- Includes top-grid scraper for fast nightly maintenance
- 4″ adjustable legs with bullet feet for a rock-solid, level installation
- CSA Flame, CSA Star & NSF certified for gas safety and sanitation
Built to Last
- All-stainless exterior resists corrosion and daily abuse
- Stainless burners & runner-tube pilot system for reliable ignition

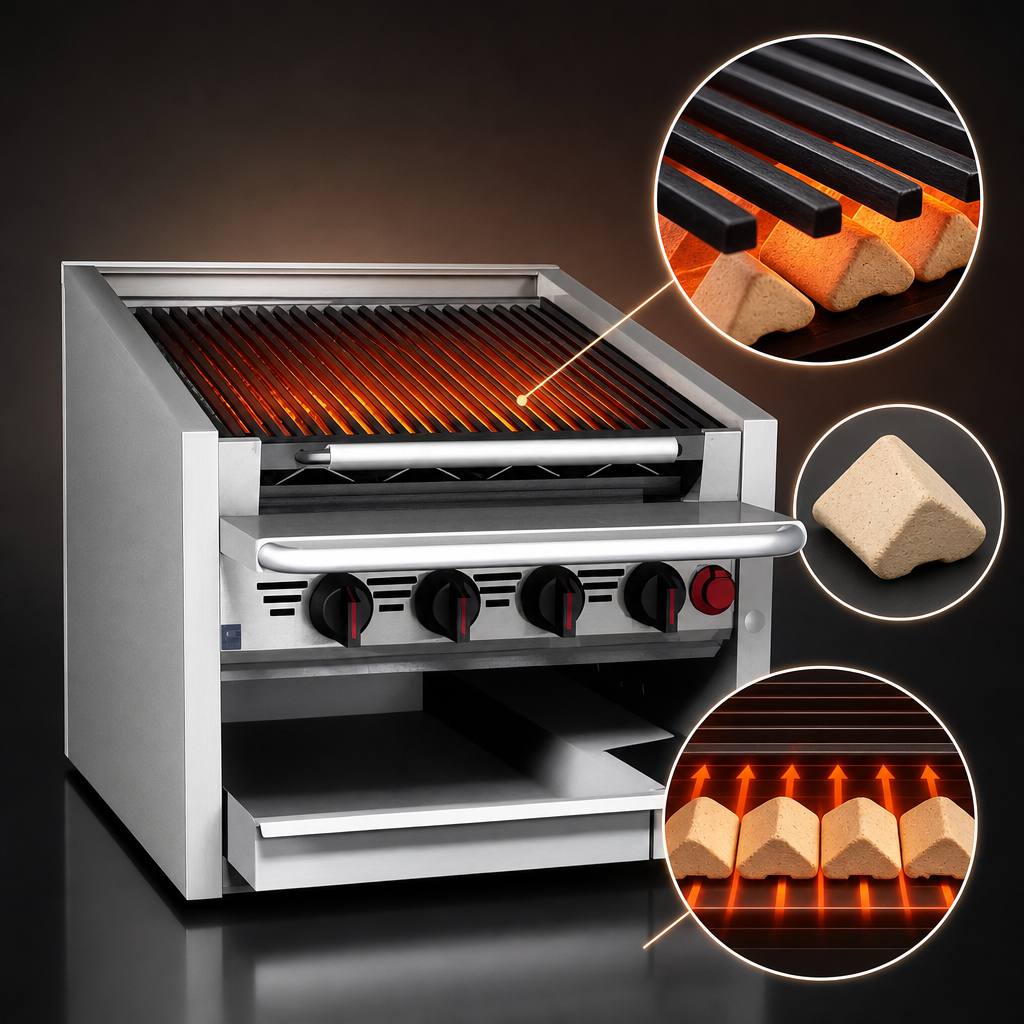

- Ceramic briquettes radiate even heat and are quick to replace when needed
Technical Specs
| Model | CM-SMB-624 (ceramic coal) |
|---|---|
| Cooking surface | 513 in² / 3,314 cm² |
| Overall dimensions | 24″ W × 35 ½″ D × 25 ⅜″ H (61 × 90 × 64.5 cm) |
| Burners | 4 stainless steel, individually valved |
| Gas output | 60,000 BTU/hr (17.6 kW) — optional 80,000 BTU/hr package |
| Fuel type | Natural Gas or Propane (field convertible) |
| Gas connection | Single ½″ NPT inlet, ¾″ regulator supplied |
| Operating pressure | NG 7–10″ W.C. | LP 11–13″ W.C. |
| Shipping weight | Approx. 412 lb / 186.9 kg |
| Certifications | CSA Flame, CSA Star, NSF |
| Standard accessories | Water tubs, top-grid scraper, 6″ service shelf & utility bar |
| Warranty | 2-year parts & labor (limitations apply) |
Popular Options & Accessories
- MagiKrome™ or scround rod grates (standard or fish spacing)
- Reversible cast-iron grates for bold sear marks
- MagiGriddle™ plate for all-day breakfast or flat-top items
- Back shelf or lower rack for extra staging space
- 48″ quick-disconnect gas hose & lanyard kit
- Slip-on stainless cover to protect grates overnight
- Smoker box for signature wood-smoke flavor
- Stainless equipment stand to free up counter space
Factory options ship loose for field installation unless noted.
Specifications are subject to change without notice. Contact your MagiKitch’n dealer for altitude or custom elevation inquiries.
