Magikitch'n (Middleby)  |  SKU: CM-RMB-648CR

Magikitch'n (Middleby) CM-RMB-648CR Gas Charbroilers

$14,140.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Installation & operation Brochure Middleby financial flyer Warranty sheet
Related Searches
Charbroilers & Grills Gas Charbroilers

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

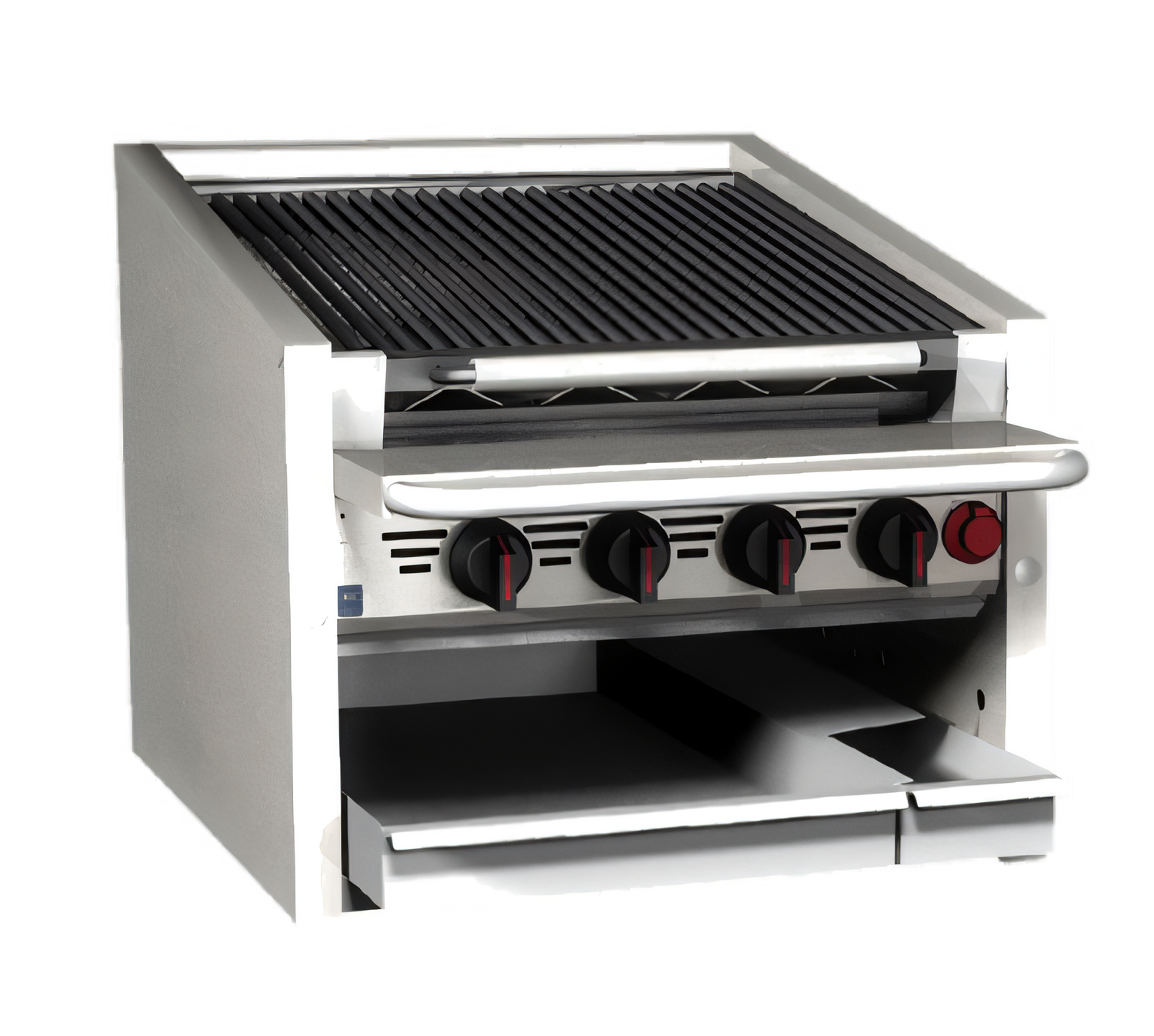

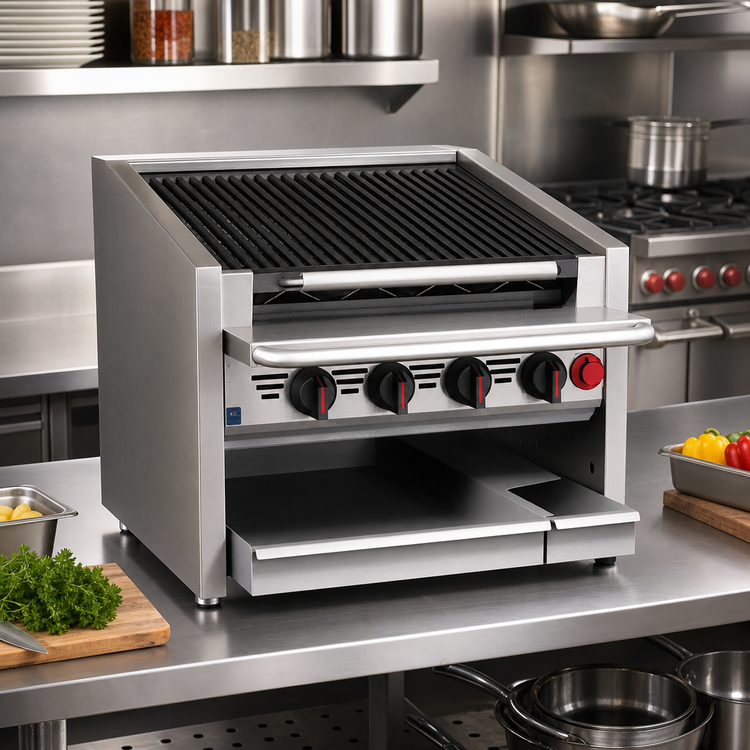

MagiKitch’n CM-RMB-648 Countertop Gas Radiant Charbroiler – 48"

High-production grilling power in a compact, all-stainless footprint

Engineered for demanding kitchens, the CM-RMB-648 delivers steak-house sear marks and consistent heat across a generous 48" cooking surface. Its free-floating round-rod grate, cast-iron radiants and fully insulated 95 % stainless cabinet make it the go-to charbroiler for restaurants that refuse to compromise on performance or durability.

Key Features

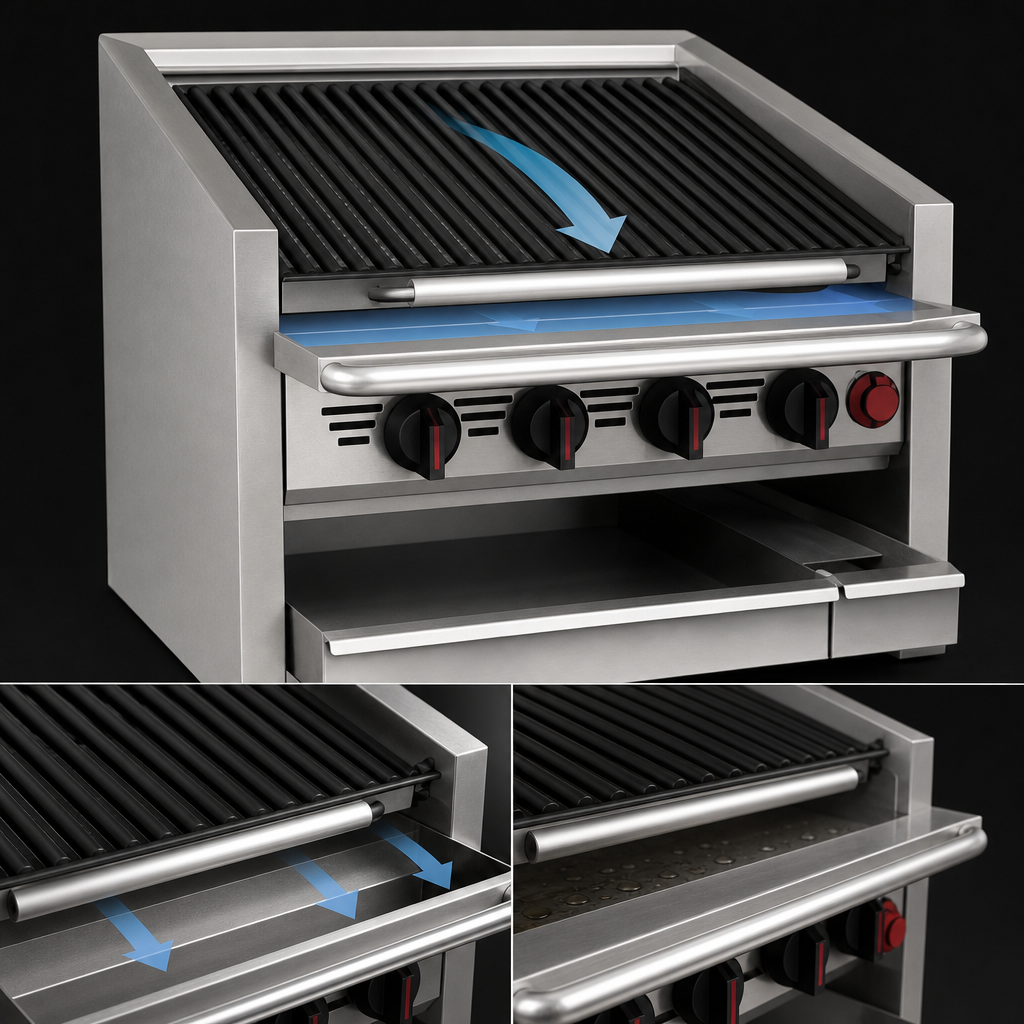

  • Free-floating ½" round-rod grate with E-Z Tilt design drains grease forward into the wide front trough to minimize flare-ups.
  • Ten independent stainless-steel burners (spaced every 4") deliver precise zone control.

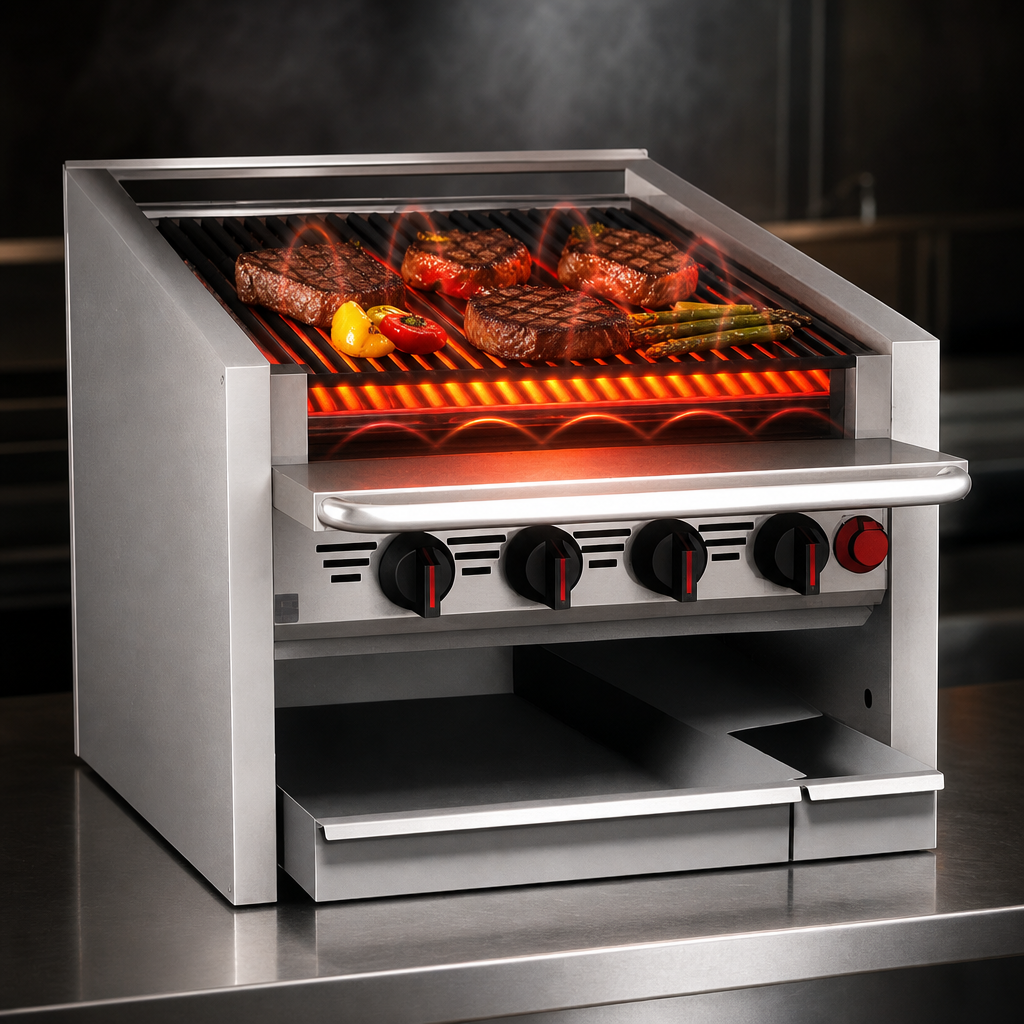

  • Heavy V-shaped cast-iron radiants concentrate heat and vaporize drippings for authentic char flavor.
  • Water tubs below the grate reduce smoke and simplify cleanup.
  • 6" deep stainless service shelf with integrated utility bar keeps tools and hotel pans within arm’s reach.
  • Top-grid scraper included for fast end-of-shift maintenance.
  • 4" adjustable legs with bullet feet for quick, rock-solid leveling on any countertop.
  • Convertible design – optional kit lets you switch to ceramic coal style grilling when menus change.
  • Single ¾" NPT rear gas connection with regulator (supplied) streamlines installation.

Performance Highlights

  • Standard Output: 150,000 BTU/hr (44 kW)
  • High-Output Option: 200,000 BTU/hr (58.6 kW) – perfect for ultra-high-volume operations
  • Cooking area: 1,107 in² – handles up to 132 quarter-pound burgers per load*

*Capacity based on 3¼" (8 cm) diameter patties.

Specifications

Model CM-RMB-648 (Standard) / CM-RMB-648-H (High-Output)
Heat source Natural or LP gas  |  Radiant (cast-iron)
Burners 10 stainless-steel, individually controlled
Total BTU/hr 150,000 BTU (standard) / 200,000 BTU (high)
Cooking surface 48" W × 23" D  |  1,107 in² (7,145 cm²)
Overall dimensions 48" W × 35-1/2" D × 17-1/2" H (122 × 90 × 44.5 cm)
Gas connection ¾" NPT (regulator supplied, field installed)
Gas pressure Natural 7–10" W.C.  |  LP 11–13" W.C.
Clearances 0" sides & rear (non-combustible)  |  30" front (combustible)
Shipping weight Approx. 668 lb (303 kg)
Construction Double-wall, 95 % stainless steel with full insulation
Certifications NSF  |  ETL Sanitation  |  CE (with safety pilot)
Warranty 2-year parts & labor limited warranty

Ideal Applications

  • Steakhouses, burger bars & BBQ concepts
  • High-volume QSR and fast-casual kitchens
  • Hotel, resort & casino food courts
  • Catering commissaries and ghost kitchens
Installation notice: A licensed gas professional must connect the supplied regulator and verify gas type & pressure before start-up.

Looking for easy budgeting? Middleby Equipment Financing can turn this charbroiler into predictable monthly payments.

Features & Specs

Manufacturer

Magikitch'n (Middleby)

Height

17.5in

Width

48.0in

Depth

33.5in

Shipping Weight

668.0lbs

Width (side - side) OA

43 - 48"

Heating Source

radiant

Control Type

manual controls

Specifications

Radiant Charbroiler, countertop, gas, 48" wide, 17-1/2" high, free floating round rod top grate with EZ tilt to front grease trough, cast iron radiants, 95% stainless steel unit, 6" service shelf with utility bar, water tubs, top grid scraper, 4" legs with bullet feet
