Magikitch'n (Middleby) APM-SMB-672 Gas Charbroilers
Description

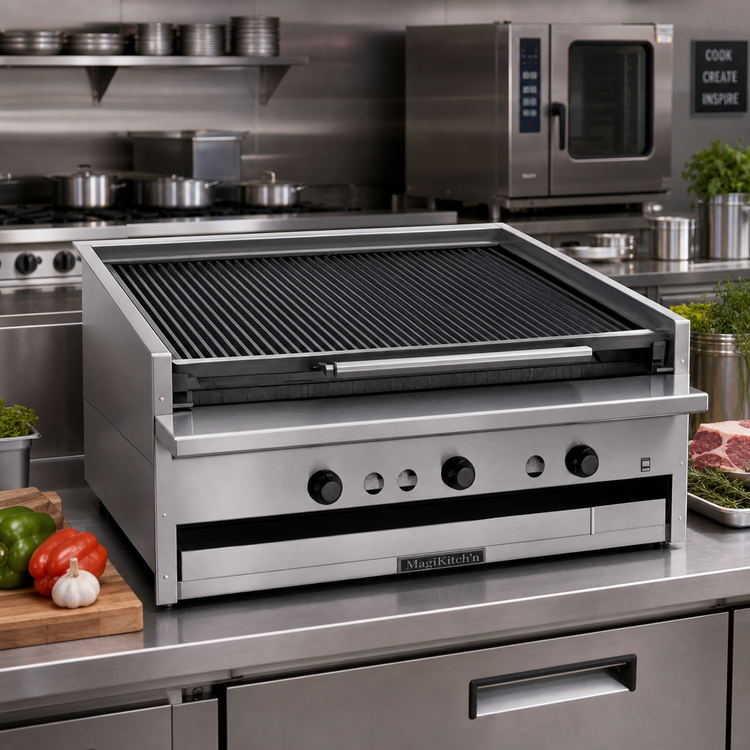

Magikitch’n APM-SMB-672 Low-Profile 72″ Gas Ceramic Coal Charbroiler
240,000 BTU/hr standard output • Countertop, high-production designGive your kitchen true char-flavor performance without sacrificing precious line space. The 72-inch Magikitch’n APM-SMB-672 brings ceramic coal heat, a free-floating EZ-Tilt grate and full stainless-steel durability together in a compact, low-profile package that drops straight onto a worktable or refrigerated base.
Top Features

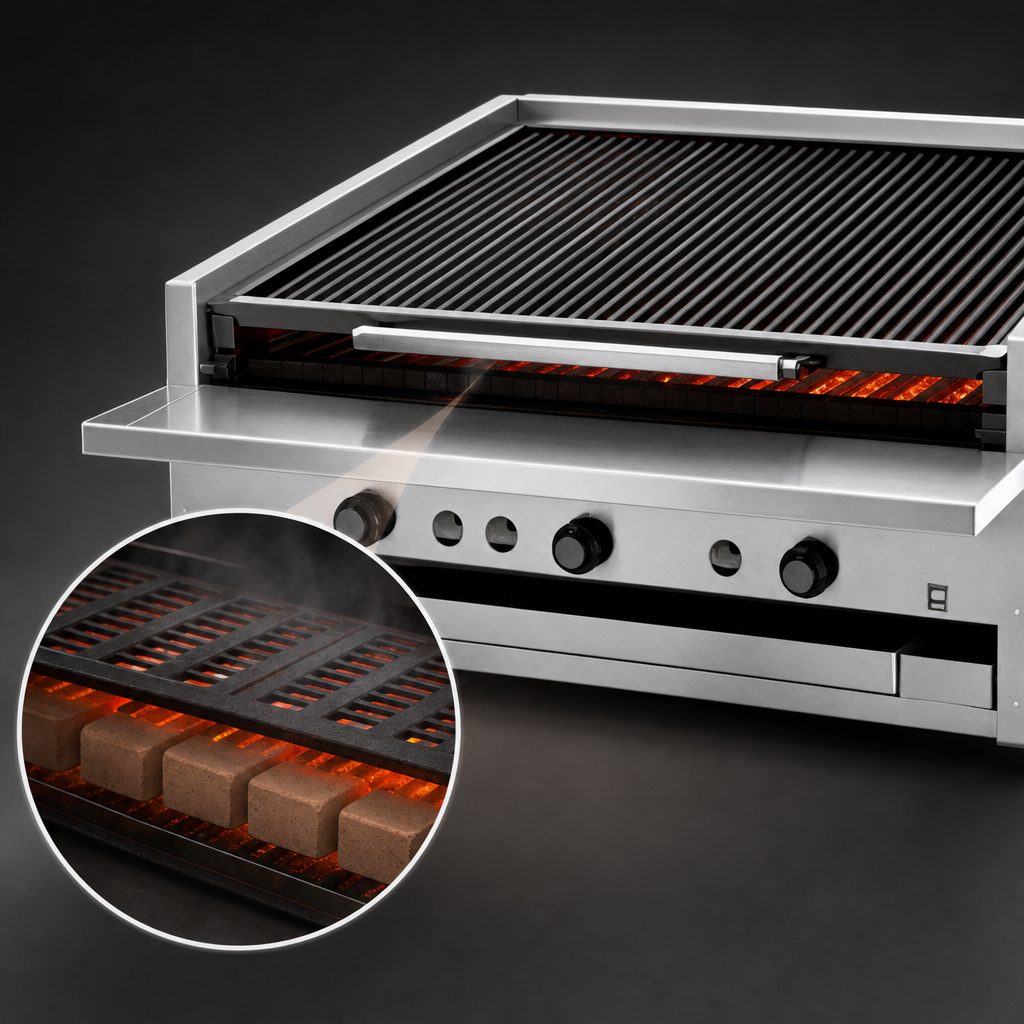

- Authentic ceramic coal cooking – ceramic briquettes deliver even heat and steak-house sear marks.
- Massive 1,704 in² cooking surface fed by 16 stainless-steel burners with individual front controls.

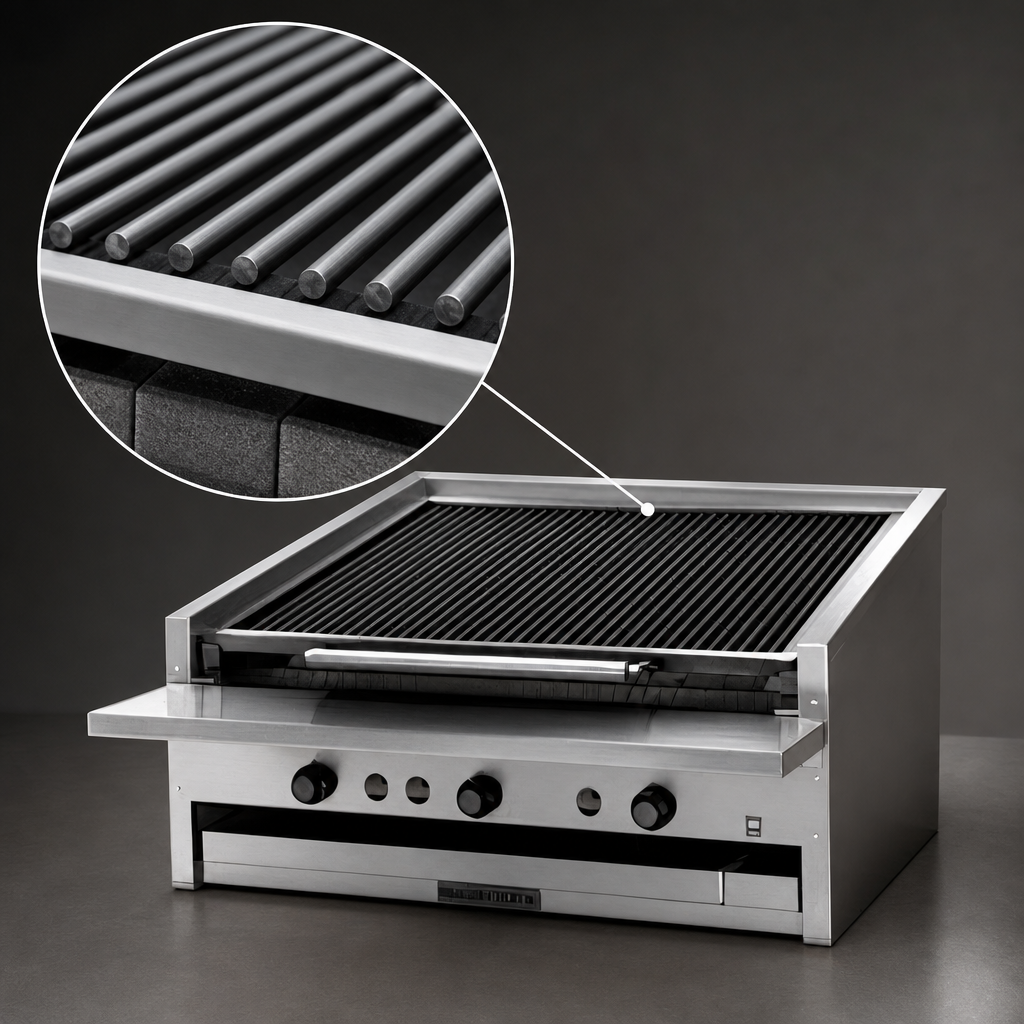

- Free-floating ½″ round-rod grate resists warping and EZ-Tilt design channels grease into the front trough to keep flare-ups down.
- Low-profile 21-3/8″ height lets the broiler live comfortably on counters, chef bases or equipment stands.
- Double-wall, fully insulated cabinet clad in stainless steel on all four sides for maximum heat retention and simple wipe-down cleaning.
- 6″ stainless service shelf with towel bar keeps seasonings, trays and utensils within arm’s reach.
- 4″ adjustable legs with bullet feet level the unit on uneven surfaces.
- Runner-tube pilot system and single ½″ gas connection simplify installation.
- Includes heavy-duty top-grid scraper for end-of-shift cleanup.
- Safety & sanitation certifications: CSA Flame, CSA Star & NSF.
Key Specifications
| Model | APM-SMB-672 (Ceramic Coal) |
|---|---|
| Total BTU/hr (Natural or LP) | 240,000 (Standard) | 320,000 (High-Output option) |
| Burners | 16 stainless-steel, individually controlled |
| Cooking Area | 1,704 in² (11,001 cm²) |
| Overall Dimensions (W × D × H) | 72″ × 35-1/2″ × 21-3/8″ (183 × 90 × 54 cm) |
| Gas Connection | Single ¾″ NPT (regulator supplied loose) |
| Manifold Pressure | Natural 7-10″ WC | LP 11-13″ WC |
| Shipping Weight | 1,050 lb (476 kg) |
| Approvals | CSA Flame, CSA Star, NSF |
| Warranty | 2-year parts & labor, factory-authorized service network |
Included With Your Broiler
- Free-floating round-rod top grate
- 6″ stainless service shelf with towel bar
- Top grid scraper
- Three removable crumb trays
- Adjustable 4″ bullet-style legs
- ¾″ gas pressure regulator (loose)
Popular Options & Accessories
- High-output burner package (adds 80,000 BTU/hr)
- MagiKrome or cast-iron grates – standard or fish spacing
- MagiGriddle plate for all-purpose flat-top cooking
- Side/back extensions or slip-on stainless cover
- 48″ quick-disconnect hose & restraint kit
- Equipment stand with undershelf
Need help spreading out the cost? Middleby Equipment Financing offers fast credit decisions and fixed monthly payments.
Specifications are subject to change without notice. For full installation instructions, clearance requirements and optional accessories, refer to the official Magikitch’n spec sheet available on magikitchn.com.
