Magikitch'n (Middleby) APM-SMB-648 Gas Charbroilers
Description
Magikitch’n SMB-648 Low-Profile 48" Ceramic Coal Charbroiler
Big-league char flavor from a space-saving countertop powerhouseEngineered for heavy-duty, high-volume grilling, the Magikitch’n SMB-648 brings the unmistakable flavor of live coals to your line—without giving up precious floor space. Its 48-inch cooking width, free-floating round-rod grate and ceramic briquette bed deliver consistent heat and beautiful branding, while the stainless-steel, low-profile cabinet slides easily onto a worktable, refrigerated base or chef’s counter.
Key Features & Benefits
- 48" Wide Cooking Zone – 1,107 in² of usable grill surface for steaks, burgers, seafood and veggies.

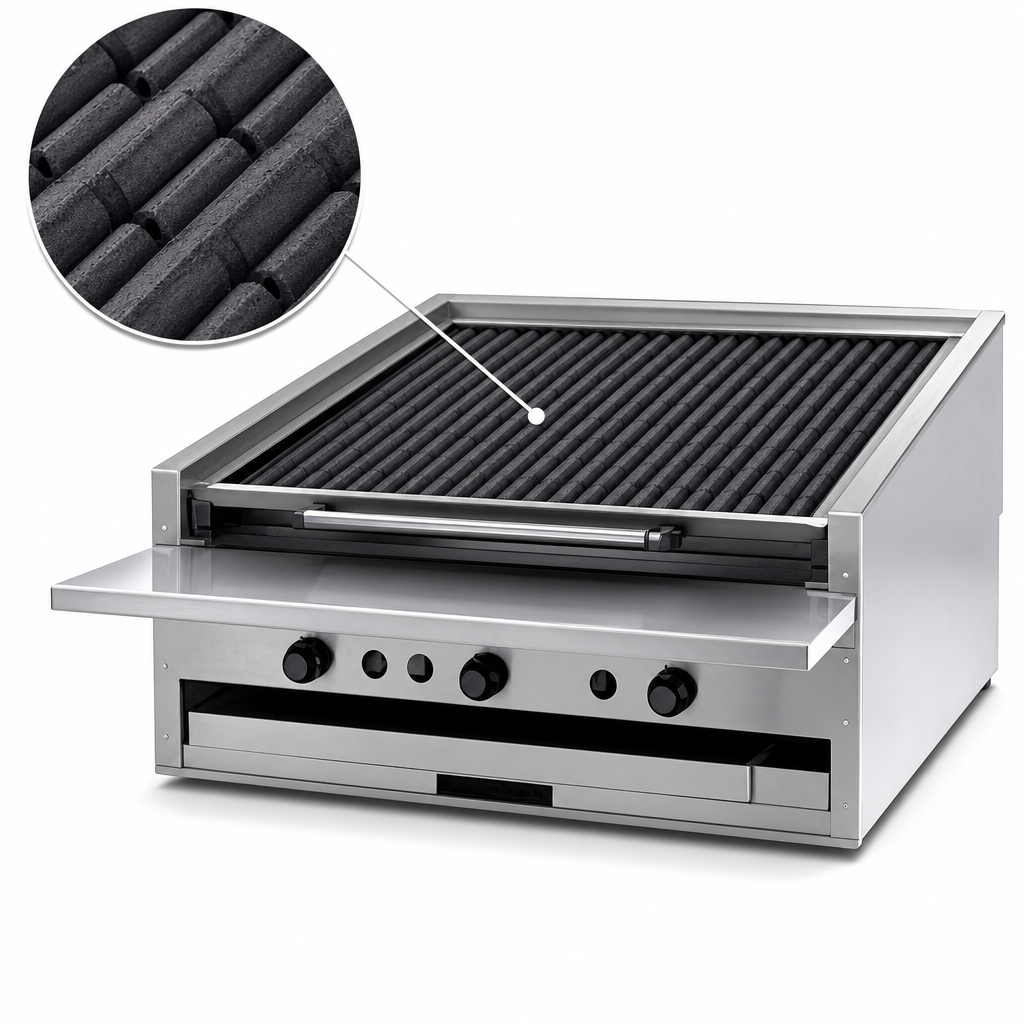

- Ceramic Briquette Heat – Holds and radiates intense, even heat for true coal-fired flavor.

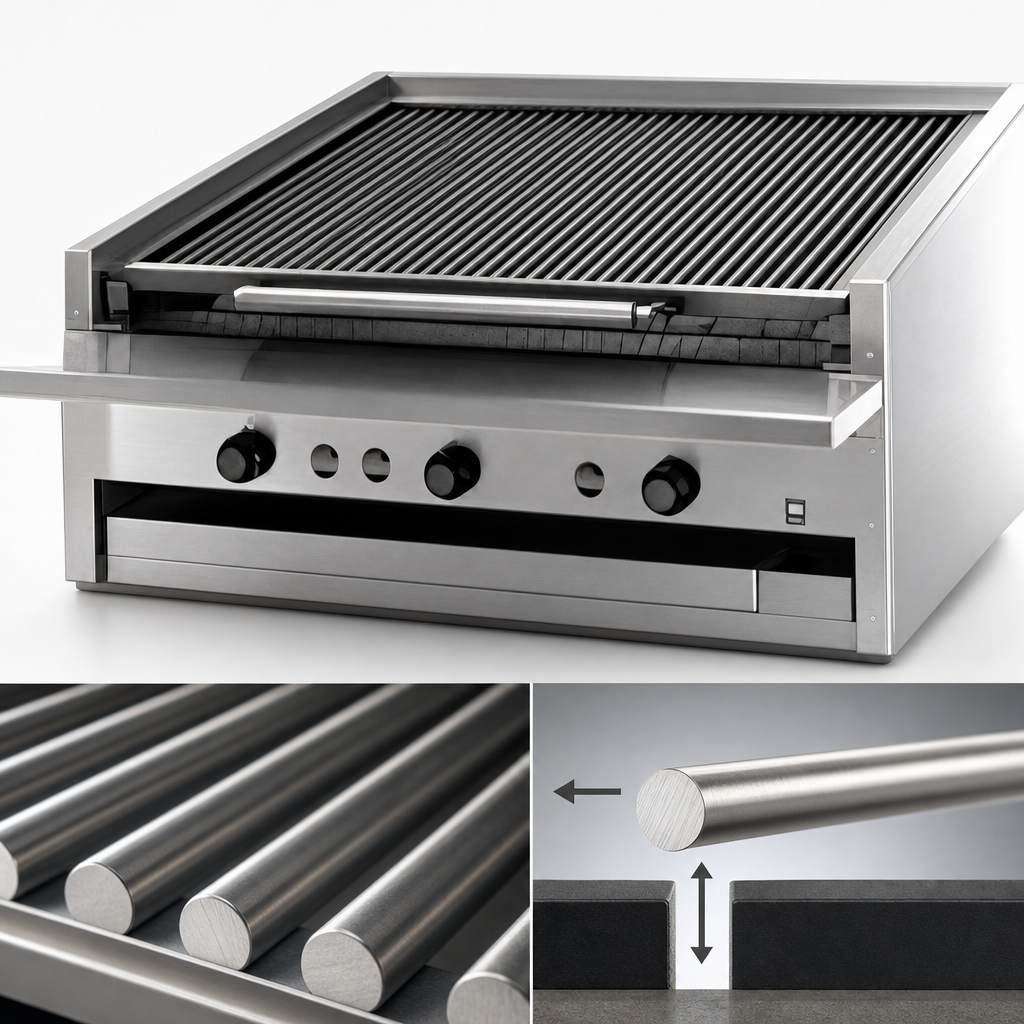

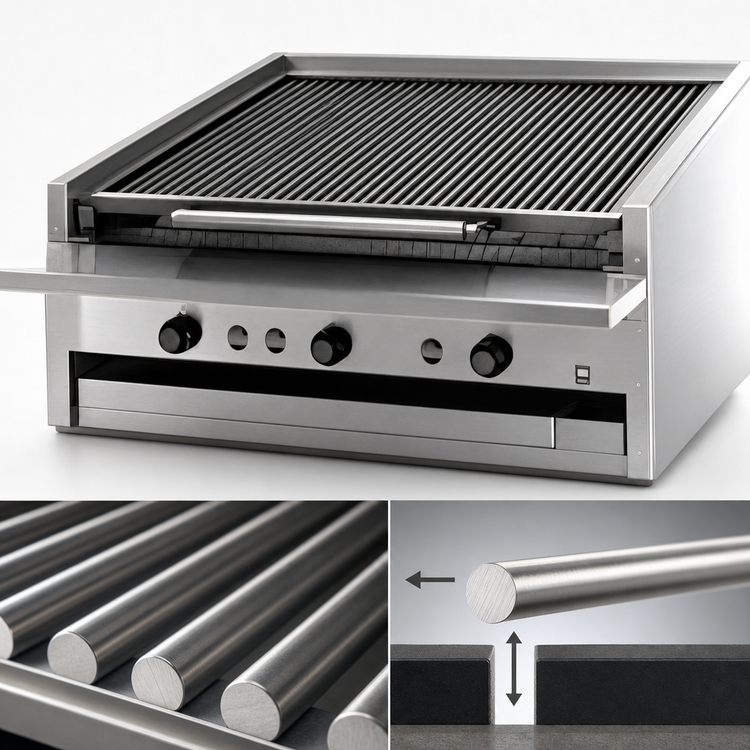

- Free-Floating ½" Round-Rod Grate – Expands & contracts without warping; quick-lift EZ-Tilt design channels grease into a front trough for safer, cleaner operation.
- 10 Individually Controlled Stainless Burners – 150,000 BTU/h* of precise, zone-by-zone heat.
- Fully Insulated, All-Stainless Cabinet – Double-walled construction keeps heat where it belongs and stands up to daily commercial abuse.
- Built-in 6" Service Shelf with towel bar for plating, resting or mise-en-place.
- 4" Bullet-Foot Legs provide stability and clearance for sanitation.
- Included Top-Grid Scraper for fast clean-downs between shifts.
- Field-Upgradeable – Convert to radiant style or high-output (200,000 BTU/h) with optional kits.
- Certified & Compliant – CSA Flame, CSA Star and NSF listings simplify health-department approvals.
Technical Specifications
| Model | SMB-648 (Ceramic Coal) |
|---|---|
| Overall Dimensions | 48" W × 35 ½" D × 21 ⅜" H (121.9 × 90.2 × 54.1 cm) |
| Cooking Surface Area | 1,107 in² (7,145 cm²) |
| Burners | 10 stainless steel, individually valved |
| Gas Output | 150,000 BTU/h* (44.0 kW) |
| Gas Connection | Single ½" NPT (gas regulator supplied loose) |
| Heat Medium | Ceramic briquettes on coal screen |
| Grate Style | Free-floating ½" round rods with EZ-Tilt front trough |
| Standard Accessories | 6" service shelf, top-grid scraper, 2 crumb trays, 4" bullet-foot legs |
| Construction | Fully insulated, double-walled stainless steel on all sides |
| Certifications | CSA Flame, CSA Star, NSF |
| Shipping Weight | ≈ 668 lb (303 kg) |
*High-output configuration (200,000 BTU/h) available by special order.
Perfect For
- Steak & chop houses craving signature char marks
- High-volume casual dining and sports bars
- Hotel, resort and casino production kitchens
- Ghost kitchens adding a live-fire station without extra hood space
Peace-of-Mind Warranty
Your investment is protected by Magikitch’n’s 2-year parts & labor warranty when installed and maintained according to factory guidelines.
