Magikitch'n (Middleby) APM-SMB-636 Gas Charbroilers
Magikitch'n (Middleby) APM-SMB-636 Gas Charbroilers is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Magikitch'n (Middleby) APM-SMB-636 Gas Charbroilers
Description
MagiKitch’n APM-SMB-636 Low-Profile Coal Charbroiler – 36"
Countertop | Gas | Ceramic Briquettes | 105,000–140,000 BTU/hrServe steakhouse-quality sear marks and true charcoal flavor from a space-saving countertop unit. The 36" MagiKitch’n APM-SMB-636 Coal Charbroiler uses a ceramic coal bed and fully floating steel rod grate to deliver even heat, quick recovery and easy clean-up—perfect for busy restaurants, caterers and ghost kitchens that refuse to compromise on taste.
Why you’ll love it

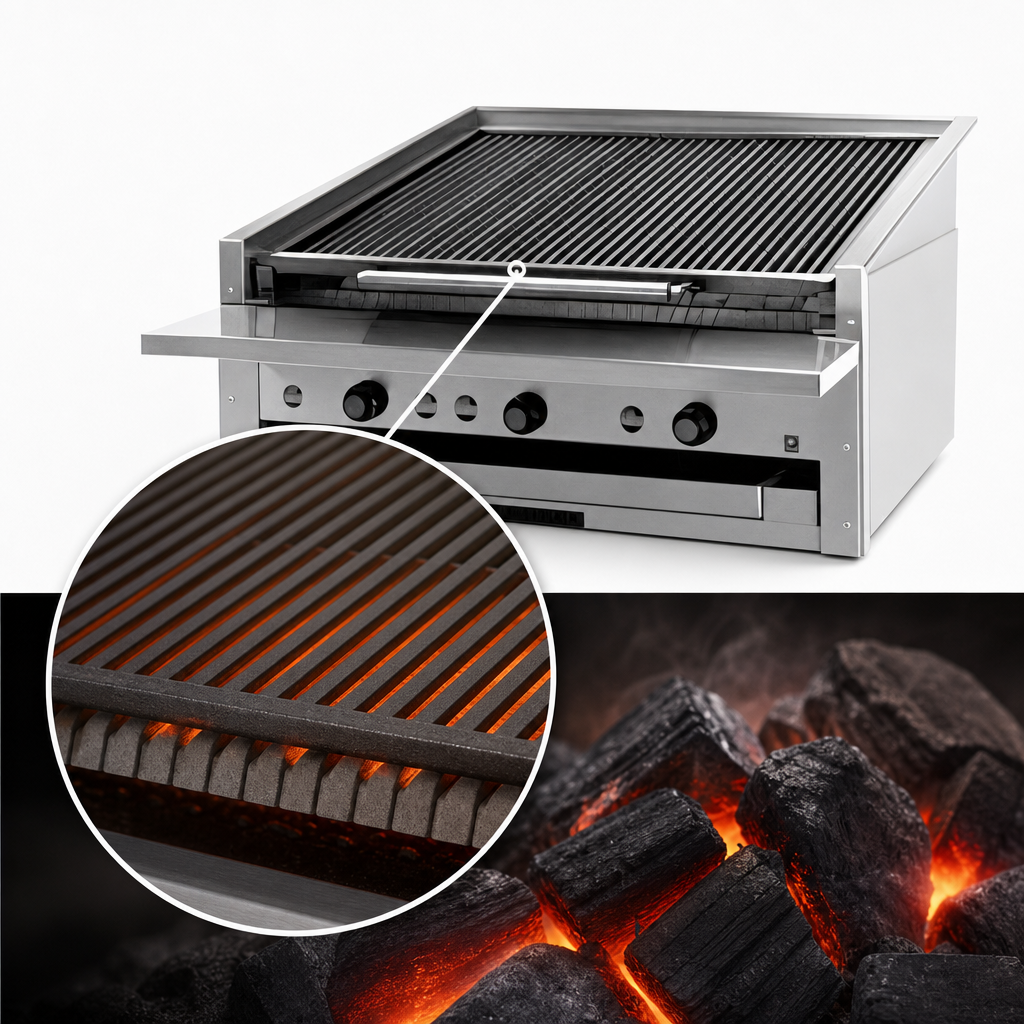

- Authentic coal cooking – Ceramic briquettes radiate intense, even heat while adding distinctive char-grilled flavor.

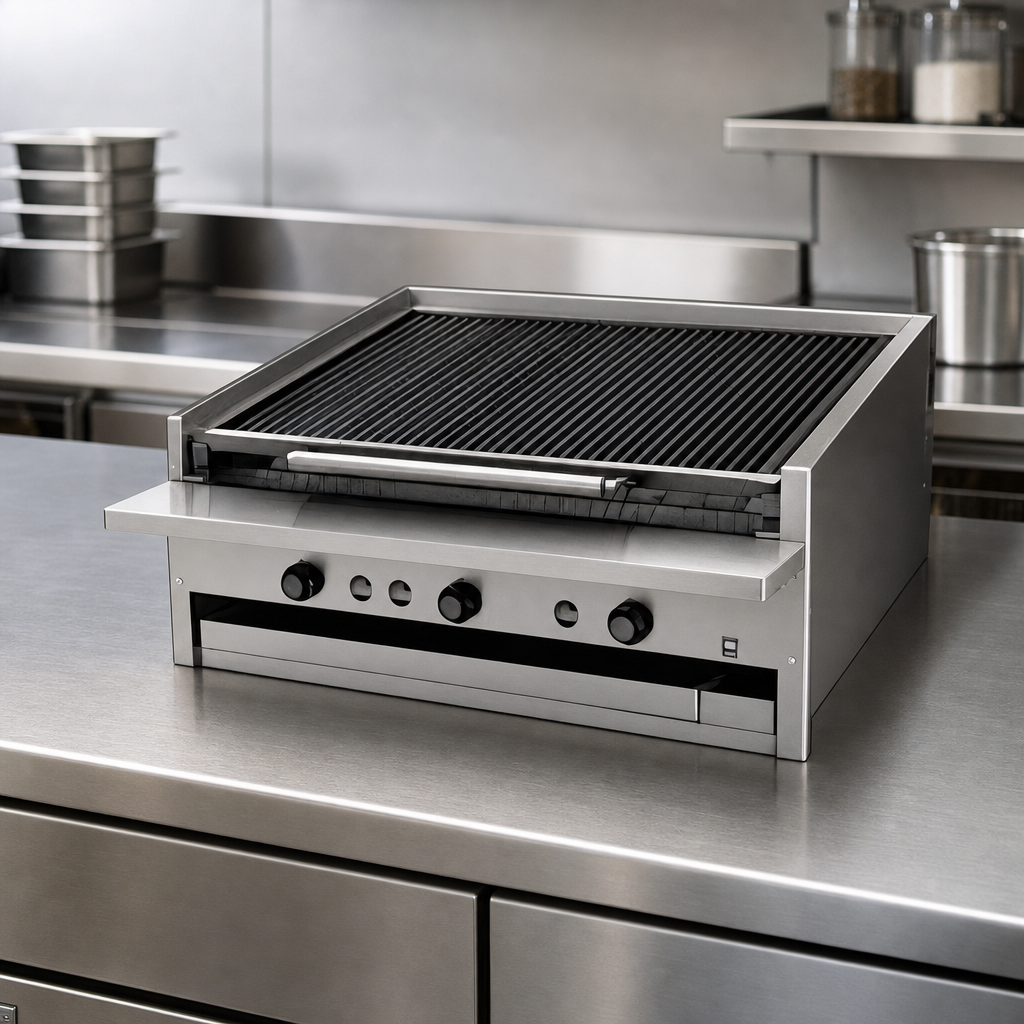

- Low-profile, high capacity – Sits just 21-3/8" high yet offers 810 sq in of cooking real estate.
- Free-floating round-rod grate – ½" steel rods expand & contract without warping and E-Z Tilt sends grease straight to the front trough.
- Independent burner controls – Seven stainless burners spaced every 4–4½" let you create dedicated heat zones.
- All-stainless exterior – Double-wall, fully-insulated cabinet is clad in stainless on all four sides for durability and a clean line look.
- Chef-friendly details – 6" service shelf with towel bar, crumb tray, top-grid scraper and 4" adjustable bullet feet come standard.
- Simple gas hook-up – Single ¾" NPT connection; natural or LP gas; runner-tube pilot system.
- Safety & compliance – CSA Flame, CSA Star and NSF certified.
At-a-glance specs
| Model | APM-SMB-636 (Standard) APM-SMB-636-H (High Output) |
|---|---|
| Heat source | Ceramic briquettes over stainless tube burners |
| Total BTU/hr | 105,000 BTU (Standard) 140,000 BTU (High Output) |
| Burners | 7 stainless steel burners |
| Cooking area | 810 in² / 5,233 cm² |
| Overall dimensions | 36"W × 35-1/2"D × 21-3/8"H (91 cm × 90 cm × 54 cm) |
| Gas connection | ¾" NPT, single point |
| Gas pressure | Natural 7–10" WC | LP 11–13" WC |
| Shipping weight | Approx. 585 lb / 265 kg |
| Certifications | CSA Flame, CSA Star, NSF |
| Warranty | 2-year parts & labor, limited |
What’s in the box
- 6" front service shelf with integrated towel bar
- Top-grid scraper
- Removable crumb tray
- 4" adjustable bullet feet
- Operator’s manual & warranty
Popular factory options
- High-output (-H) burner package
- Alternative top grids: MagiKrome™, scround, cast-iron or fish spacing
- 48" gas quick-disconnect hose kit
- Back shelf, slip-on cover, equipment stand & side/back extensions
Ask us about Middleby equipment financing—fast credit decisions and affordable fixed payments.
Looking for a different footprint? MagiKitch’n 600-Series coal charbroilers are also available in 24", 48", 60" and 72" widths.
