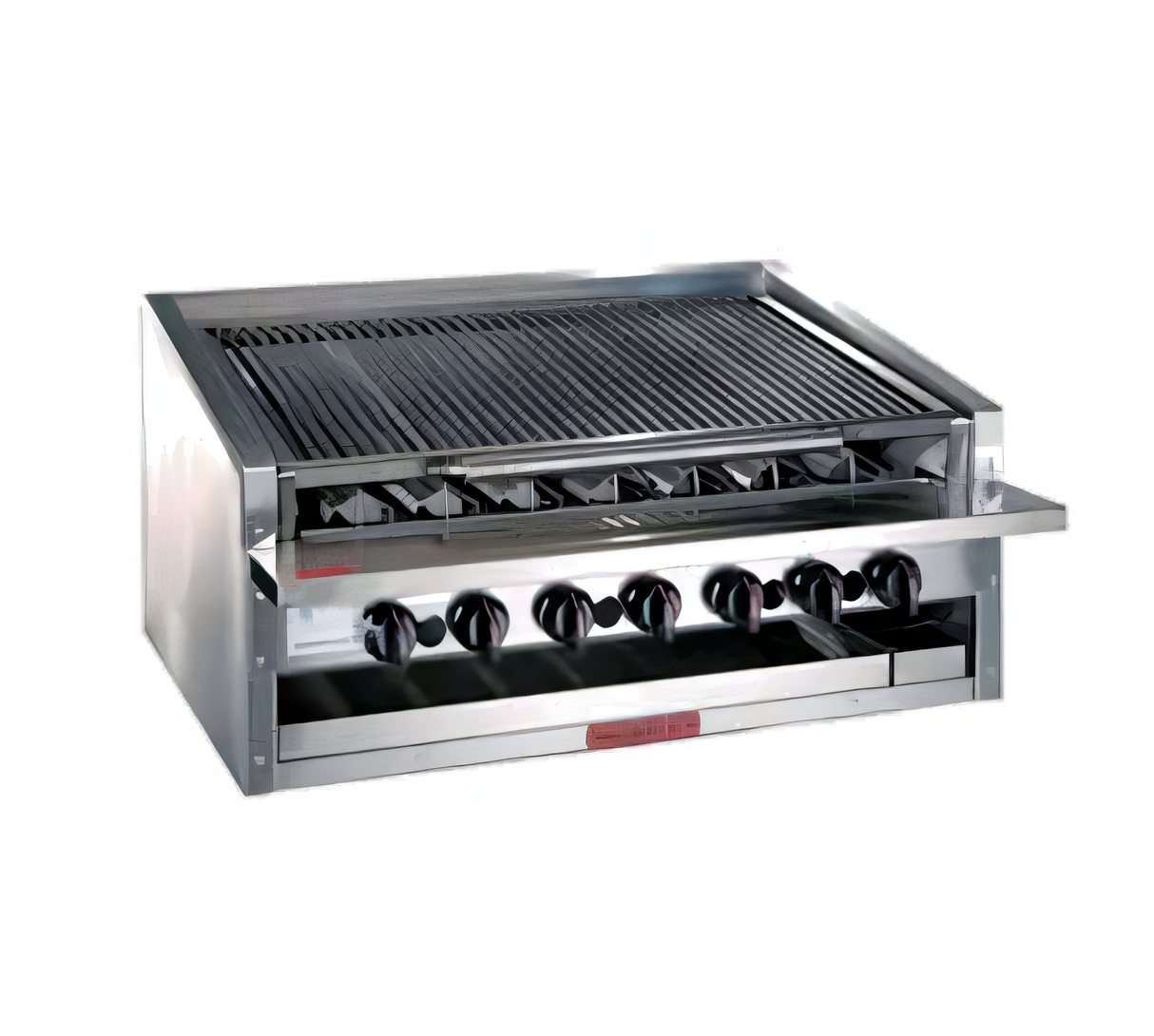

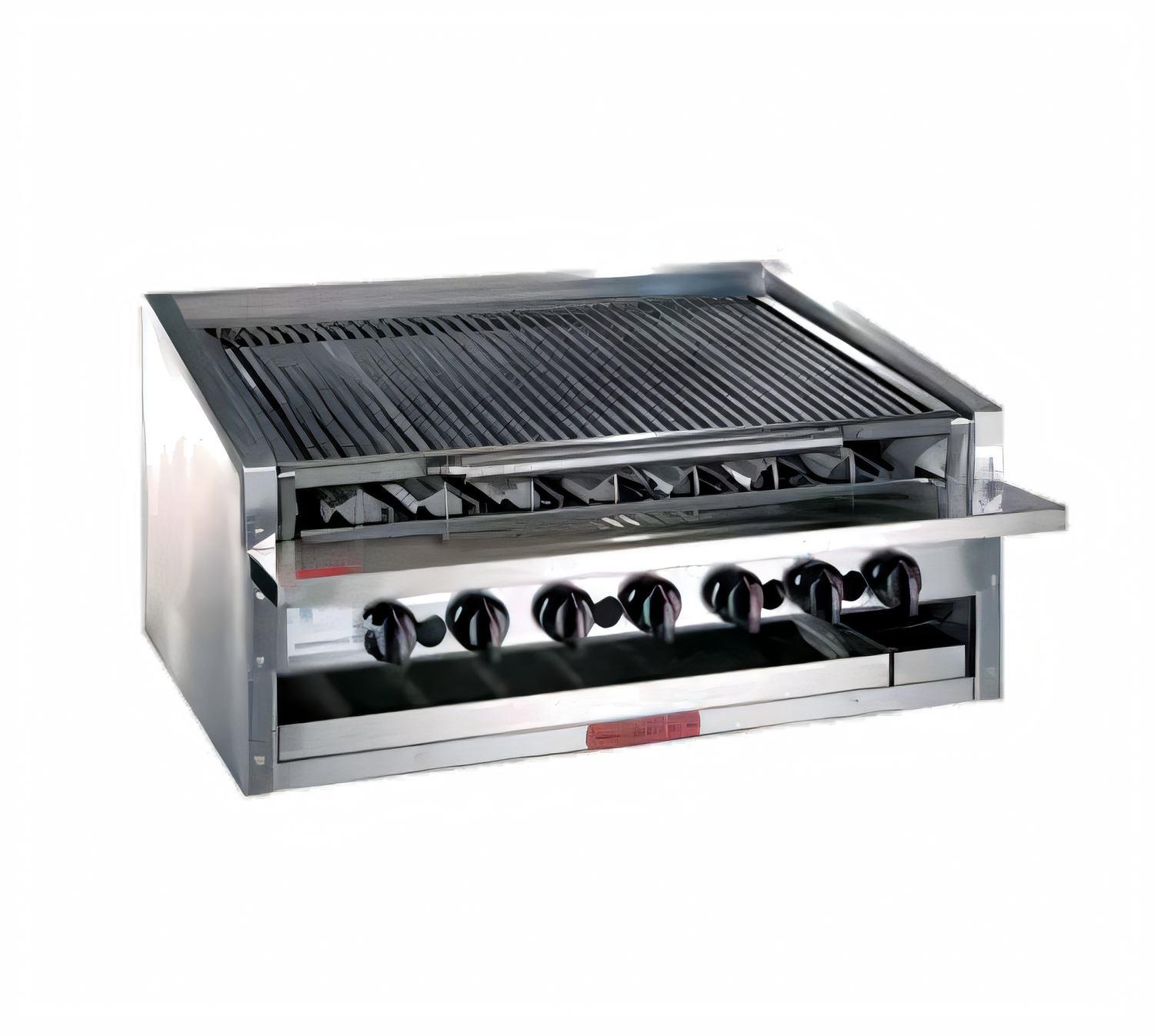

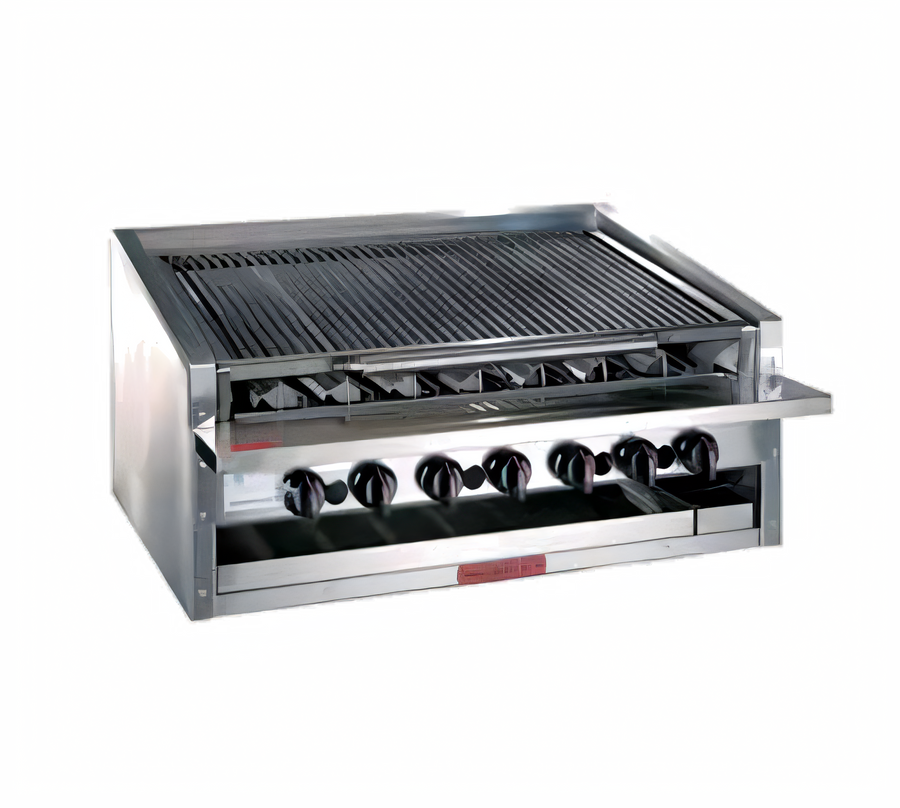

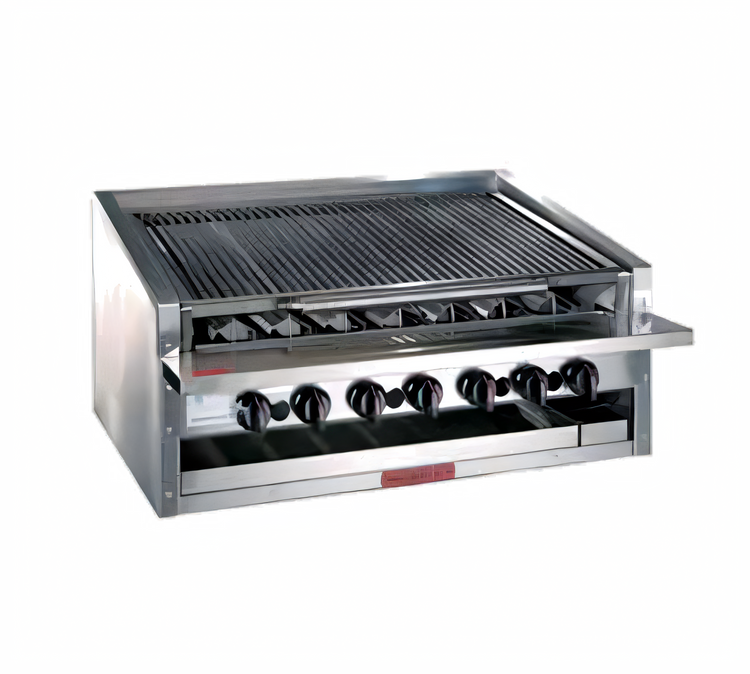

MagiKitch'n APM-RMB-672 72 Inch Low Profile Radiant Gas Charbroiler

SKU: APM-RMB-672
$16,632.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Charbroilers Charbroilers & Grills Commercial Grills Gas Charbroilers Magikitch'n (Middleby) New Arrivals Restaurant Equipment

MagiKitch'n APM-RMB-672 72 Inch Low Profile Radiant Gas Charbroiler

Countertop, Manual Controls, Stainless Steel, 240,000 BTU/hr

This space-saving 72-inch radiant charbroiler delivers high-production cooking with a free-floating grate, precise front burner controls, and easy grease management.

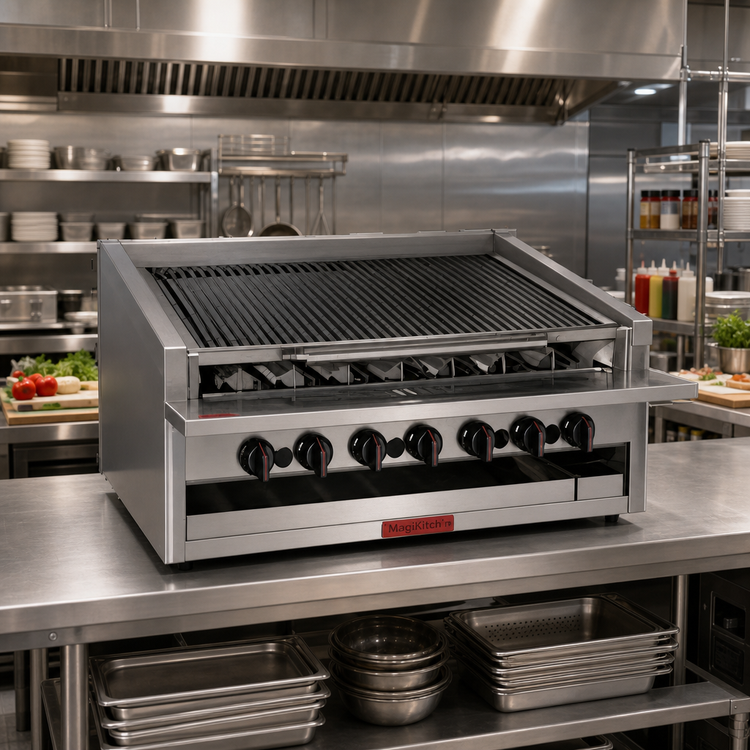

  • Low-profile countertop design is ideal for work tables, counters, or properly insulated refrigerated/freezer bases.
  • 16 burners deliver 240,000 BTU/hr standard output for demanding kitchen throughput.
  • Free-floating round rod top grate with E-Z Tilt design drains grease into the front trough.
  • Double-walled, fully insulated stainless steel construction adds durability and heat retention.
  • Includes a 6-inch stainless steel service shelf with towel bar, crumb tray, and top grid scraper.
  • 4-inch legs with bullet feet provide stable support and working clearance.

Overall Dimensions:

72.0"W x 35.5"D x 21.5"H

Product Weight:

1050.0 lb

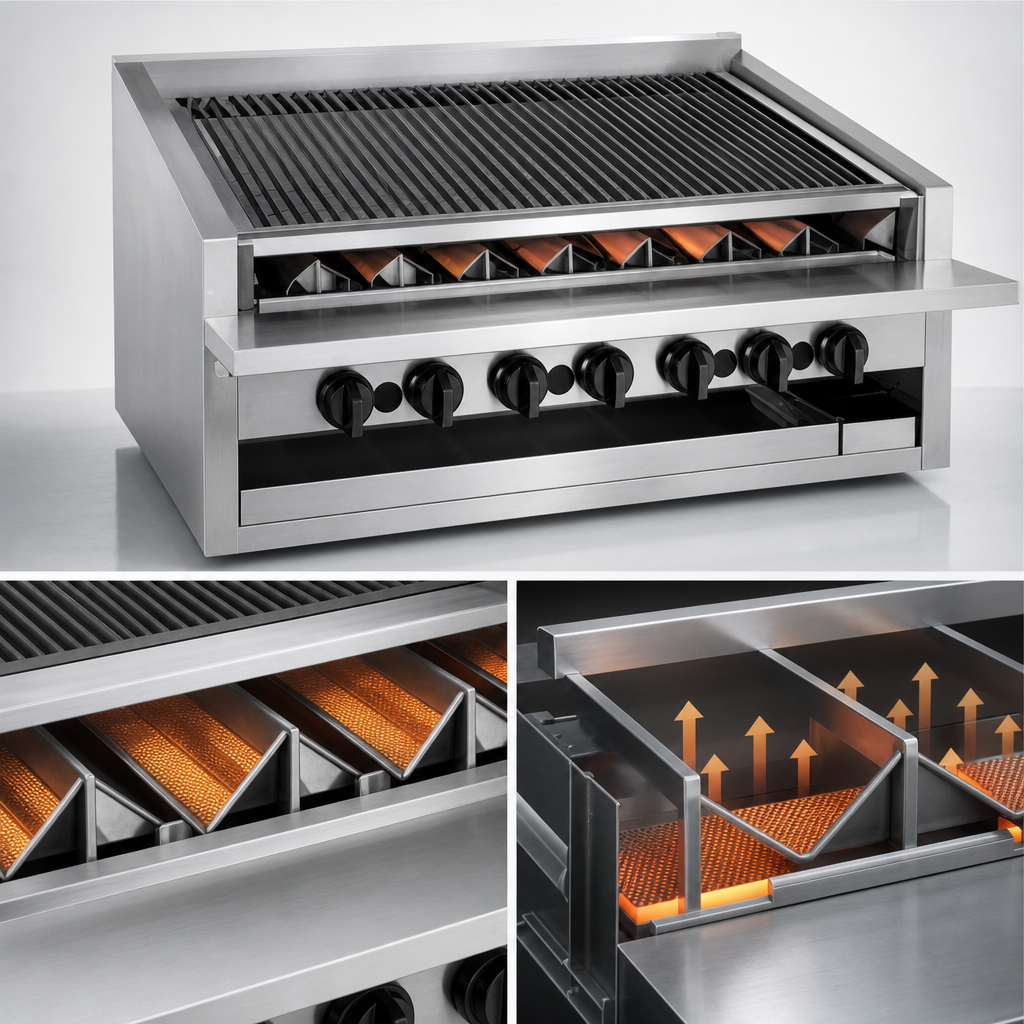

Radiant Burner System

Stainless steel radiants provide even heat distribution across the cooking surface.

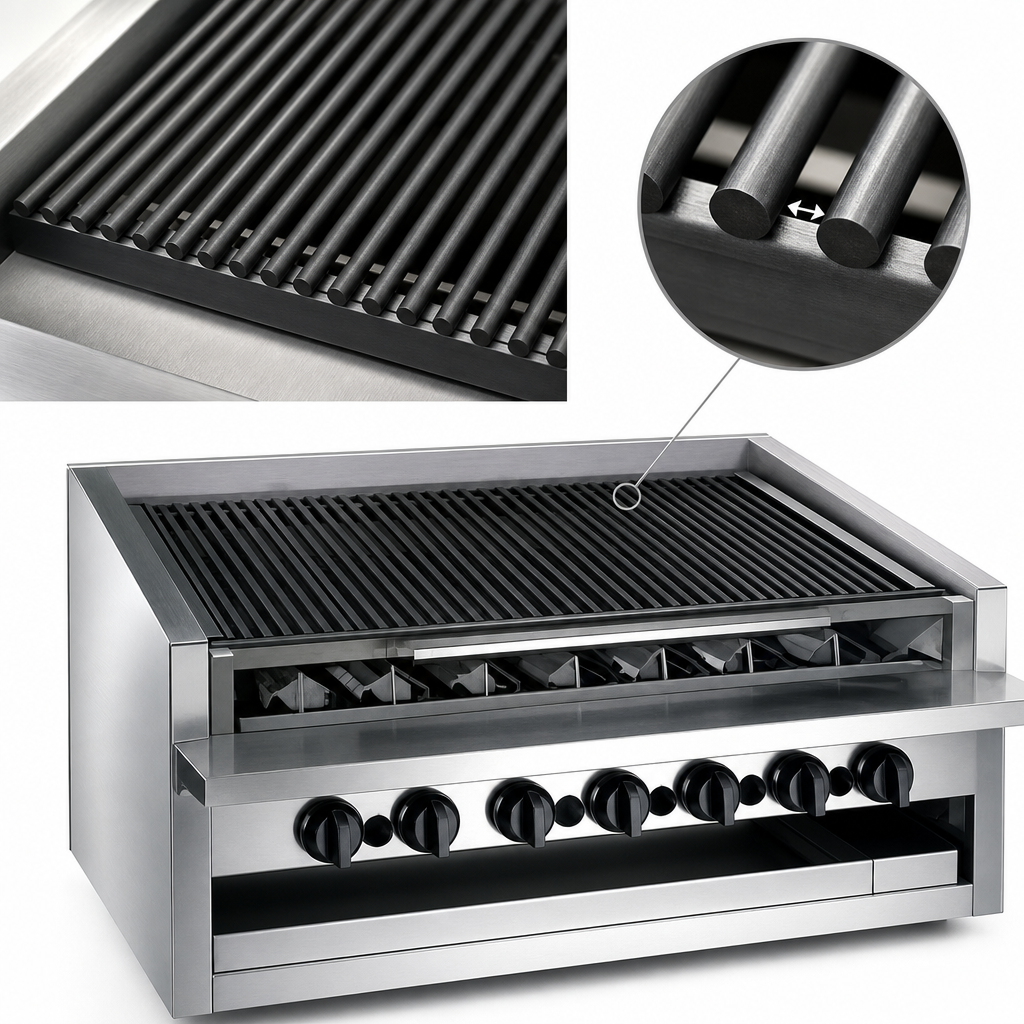

Free-Floating Round Rod Grate

1/2-inch steel rods allow expansion and contraction without warping.

E-Z Tilt Grease Drainage

The top grid tilts grease into the front trough for easier cleanup.

Stainless Steel Construction

Double-walled, fully insulated cabinet with stainless steel on all four sides for durability.

Independent Burner Controls

Individual front controls allow precise heat management across cooking zones.

Service Shelf and Cleanup Accessories

Standard 6-inch stainless service shelf with towel bar, plus crumb tray and top grid scraper.

4-Inch Legs with Bullet Feet

Raised base provides stability and helps create working clearance.

Type Charbroiler
Style Radiant
Installation Type Countertop
Controls Manual
Material Stainless Steel
BTU 240,000 BTU/hr
Burners 16
Cooking Area 1,704 Square Inches
Shipping Width 72 Inches
Shipping Depth 36 Inches
Shipping Height 22 Inches
Shipping Weight 1,050 Pounds
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download PDF Installation & operation PDF Download PDF Brochure PDF Download PDF Middleby financial flyer PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It is a low-profile counter-height charbroiler designed for countertop, worktable, or properly insulated refrigerated/freezer base installation.
The free-floating top grate uses an E-Z Tilt design to drain grease into the front trough, and the unit also includes a crumb tray.
Standard features include stainless steel radiants, a 6-inch stainless service shelf with towel bar, a top grid scraper, and a crumb tray.
Yes. The series offers optional grid styles including round rod fish grates, MagiKrome, Scround, cast iron, and diamond (waffle) options.
Yes. The series includes a 672-H high-output model listed at 320,000 BTU/hr.
The cut sheet lists gas pressure requirements for both natural gas and LP gas, and notes that a gas regulator is supplied and must be installed before operation.
