Magikitch'n (Middleby) APM-RMB-660 Gas Charbroilers
Magikitch'n (Middleby) APM-RMB-660 Gas Charbroilers is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Description

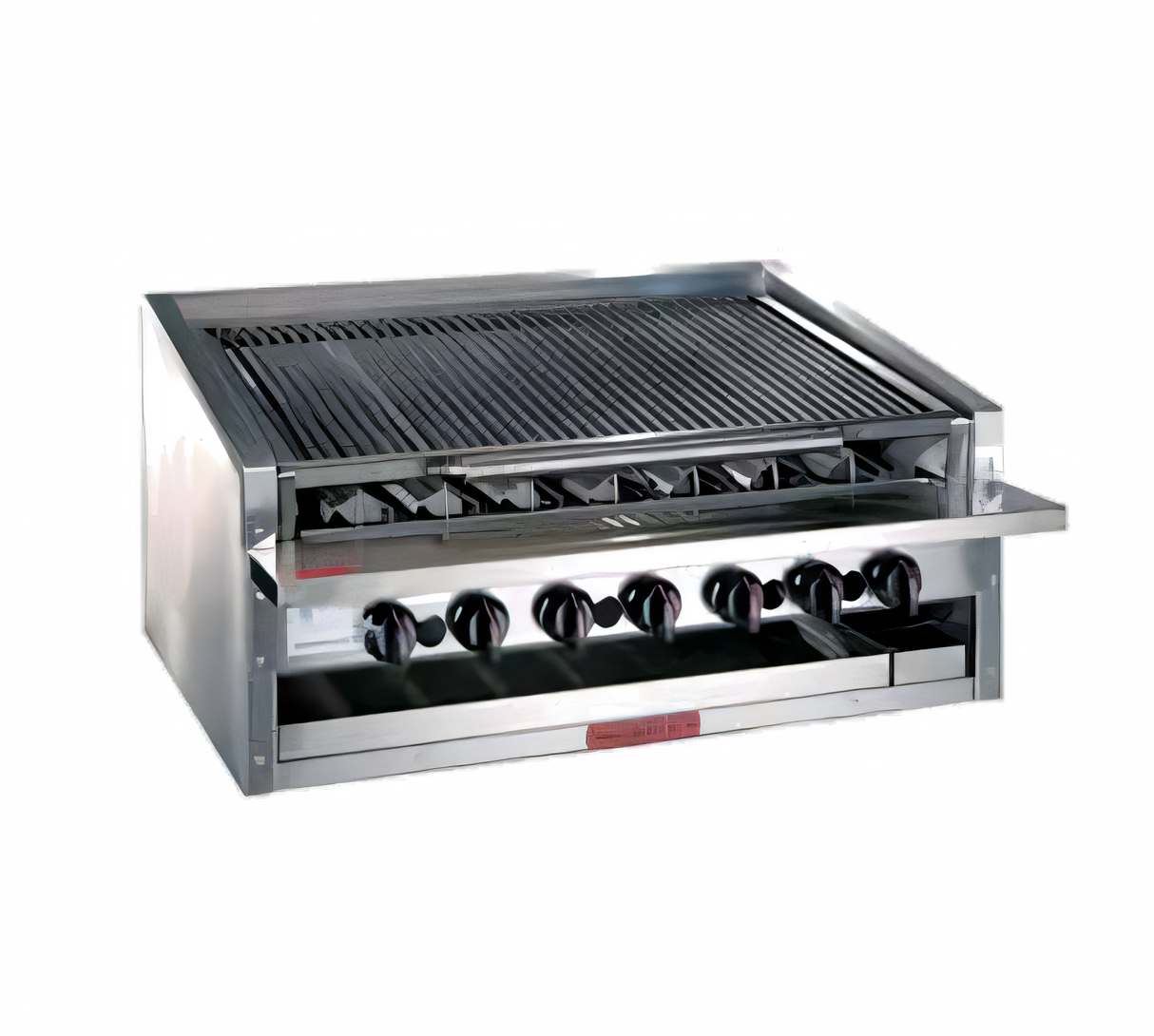

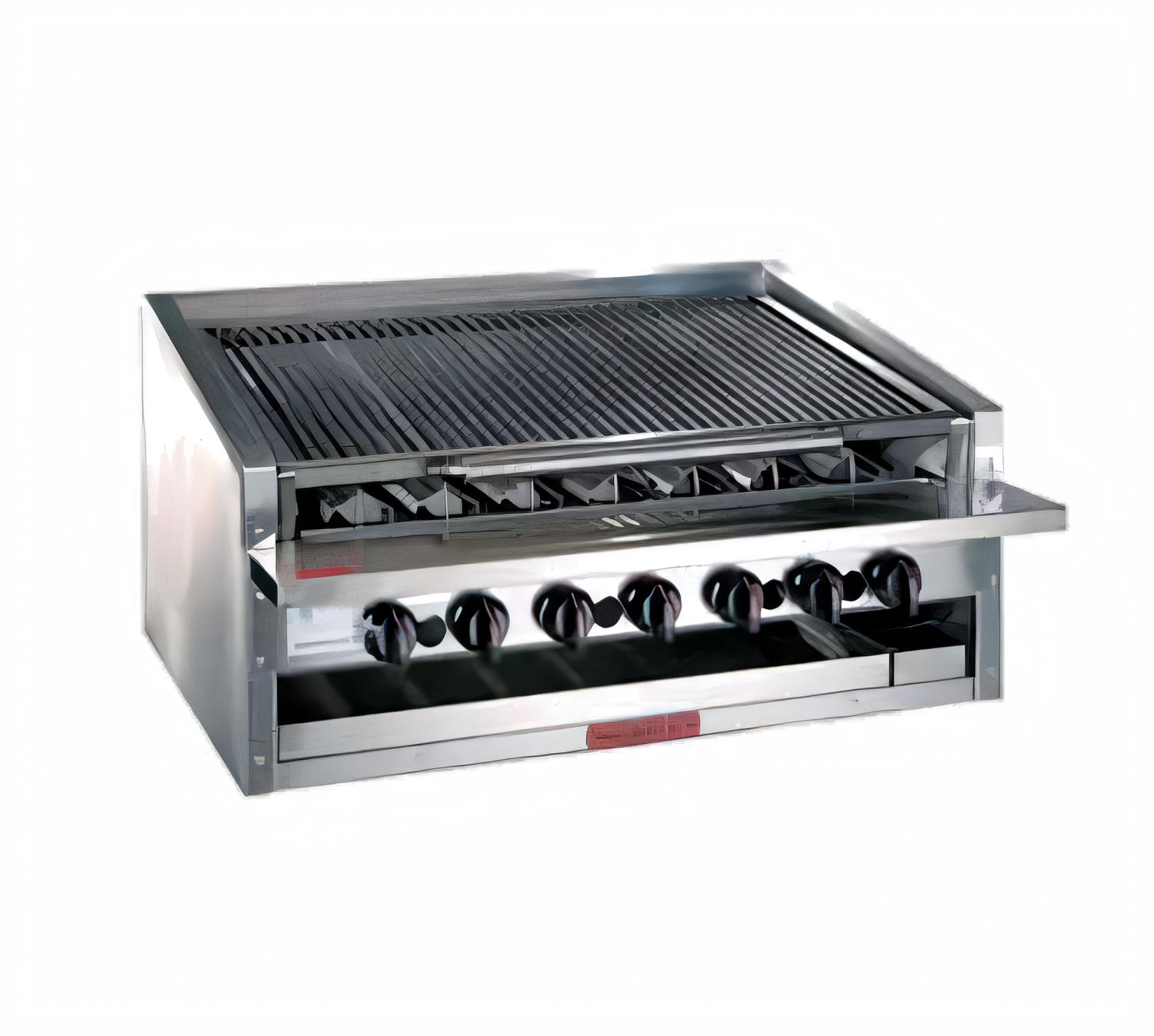

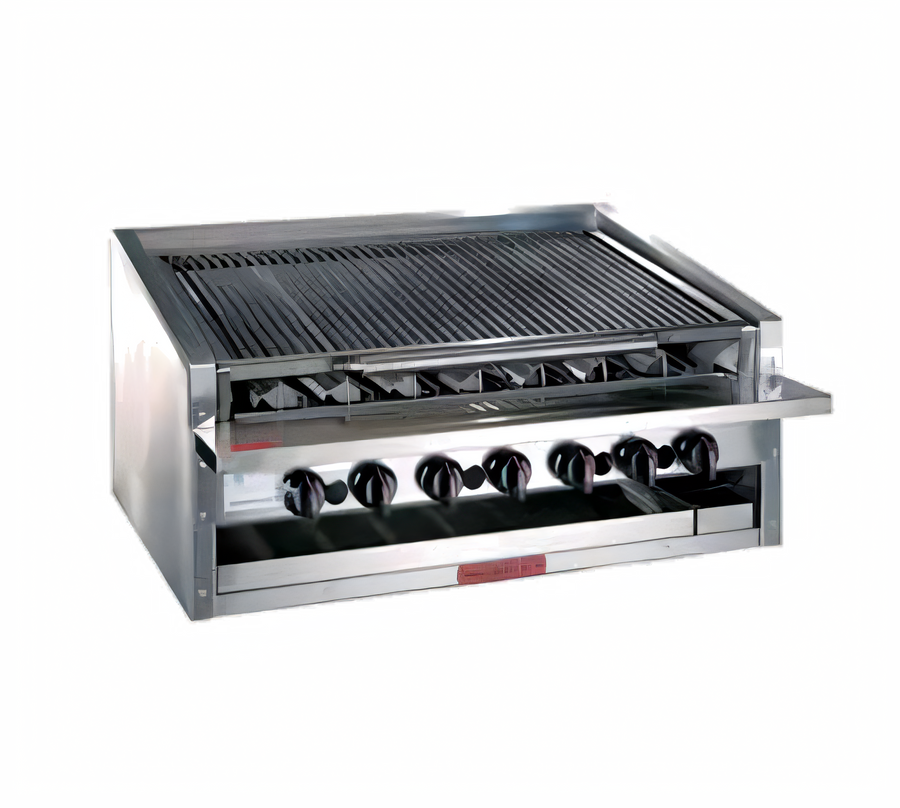

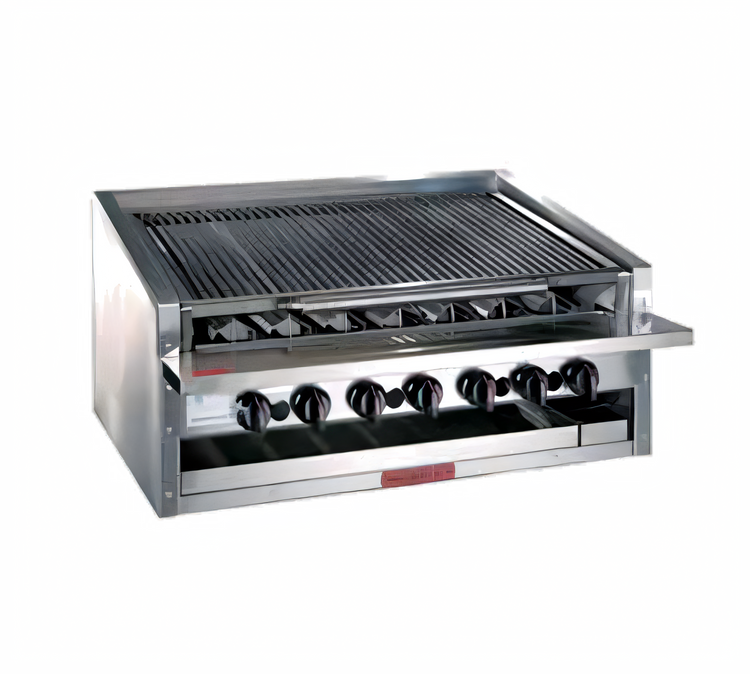

Magikitch'n APM-RMB-660 Low-Profile Gas Radiant Charbroiler – 60"

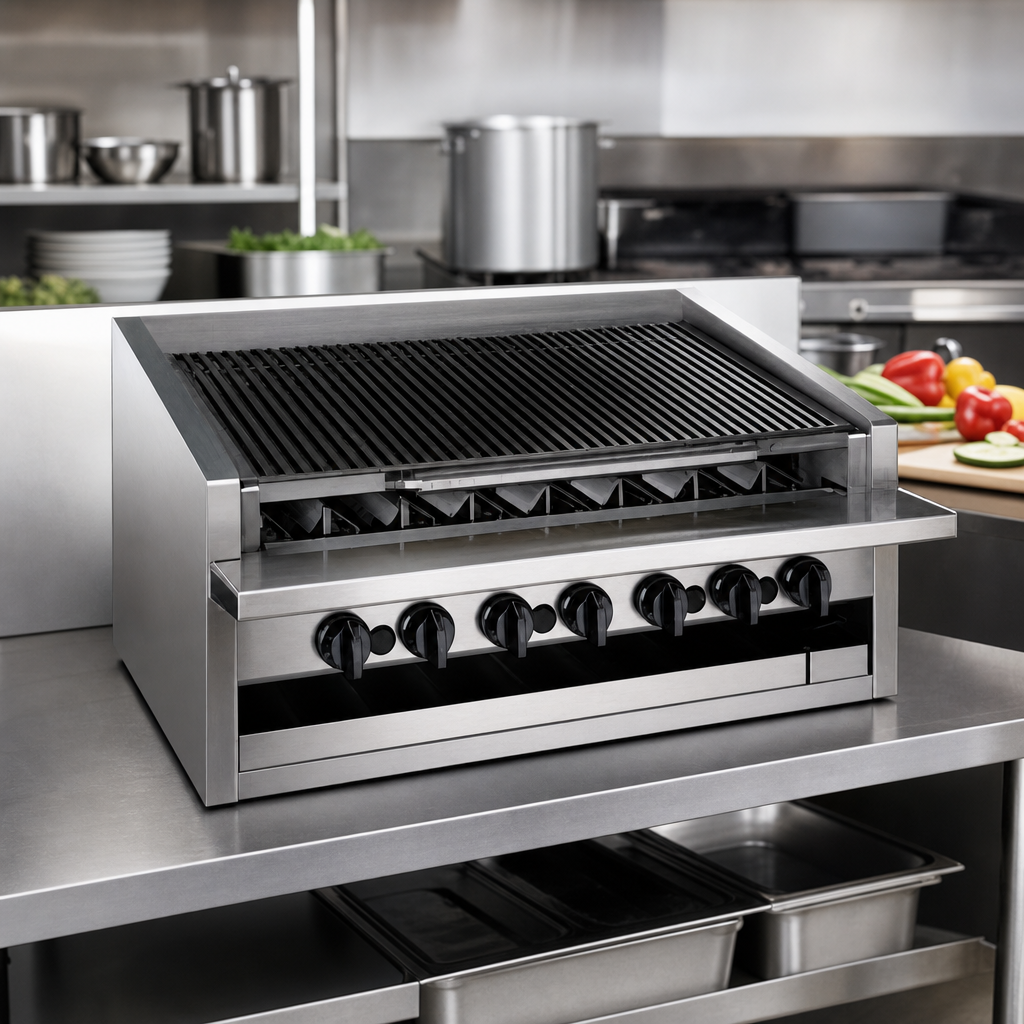

High-capacity countertop broiler with stainless-steel radiants & free-floating gratePut steak-house marks and smoky flavor on hundreds of portions every service without tying up valuable floor space. The Magikitch'n APM-RMB-660 packs 13 stainless burners and a full 60 inch wide cooking surface into a low-profile, all-stainless cabinet that drops right onto your worktable, chef’s base, or refrigerated stand.
Why You’ll Love It
- Massive production – 1,404 in² (9,063 cm²) of grilling area driven by 195,000 BTU/hr (260,000 BTU/hr option).
- Precision & efficiency – 13 independently controlled burners for true zone cooking.

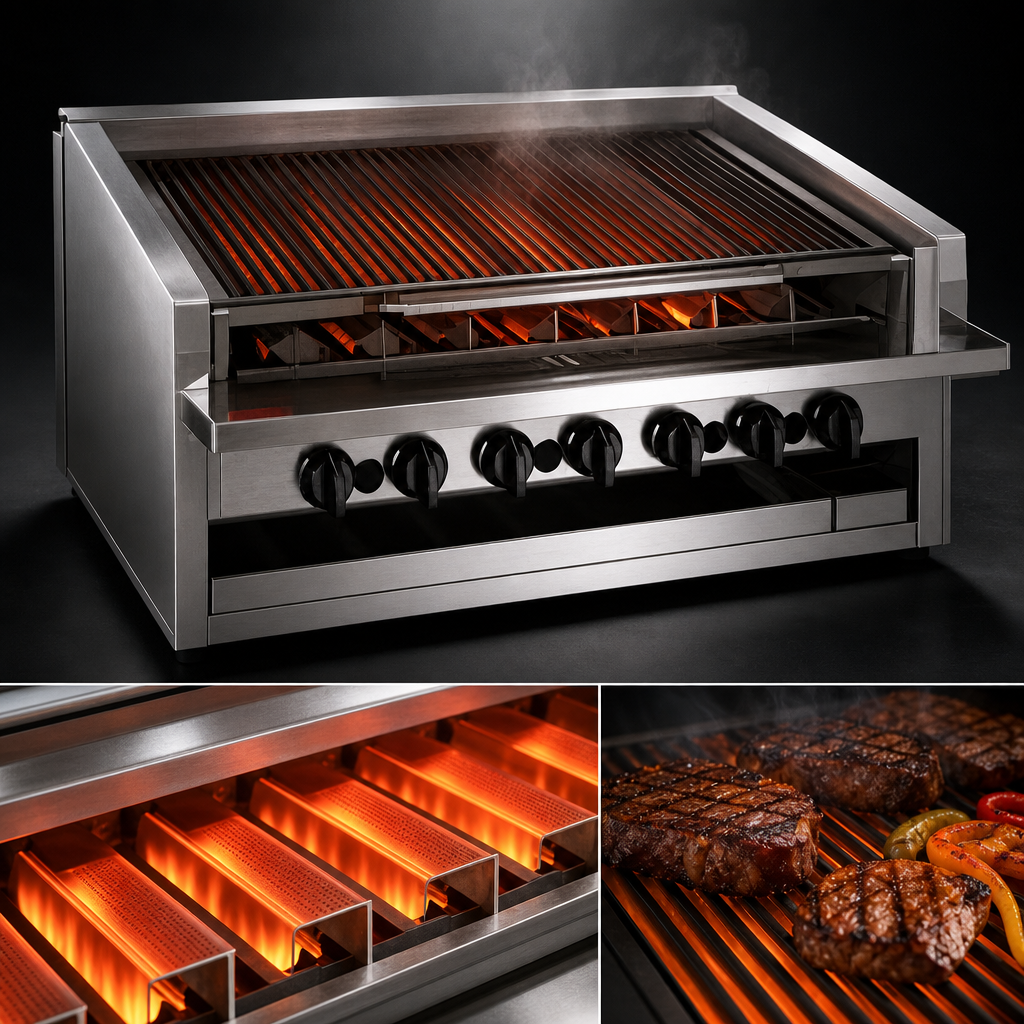

- Stainless-steel V radiants over every burner deliver even heat and cut flare-ups.
- Free-floating ½" round-rod grate expands and contracts without warping and E-Z Tilt drains grease into a wide front trough.
- Quick-lift handle and included top-grid scraper speed daily cleaning.
- Built for the line – fully insulated, double-walled stainless cabinet with 4" bullet feet keeps exterior surfaces cool.
- 6" stainless service shelf with towel bar holds plates, pans & seasonings within easy reach.
- Single ¾" rear gas connection with factory-mounted regulator simplifies installation.
- Runner-tube pilot system lights fast and stays lit.
- CSA Flame, CSA Star & NSF certified for gas safety and sanitation.
Specifications
Model | APM-RMB-660 (Radiant) |
---|---|
Overall Dimensions | 60"W × 35 1⁄2"D × 21 3⁄8"H (152 × 90 × 54 cm) |
Cooking Surface | 1,404 in² / 9,063 cm² |
Burners | 13 stainless-steel tube burners |
Gas Output | 195,000 BTU/hr (standard) | 260,000 BTU/hr (high-output option) |
Gas Connection | ¾" NPT (regulator supplied, field installed) |
Required Gas Pressure | Natural 7–10" W.C. | LP 11–13" W.C. |
Certifications | CSA Flame, CSA Star, NSF |
Shipping Weight | ≈ 910 lb / 413 kg |
Warranty | 2-year parts & labor limited warranty |
Warranty covers normal commercial use when installed and maintained in accordance with the Magikitch'n owner’s manual. See full warranty document for exclusions and details.
