Magikitch'n (Middleby)  |  SKU: APM-RMB-648CR

Magikitch'n (Middleby) APM-RMB-648CR Gas Charbroilers

$13,024.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Installation & operation Brochure Middleby financial flyer Warranty sheet
Related Searches
Charbroilers & Grills Gas Charbroilers

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

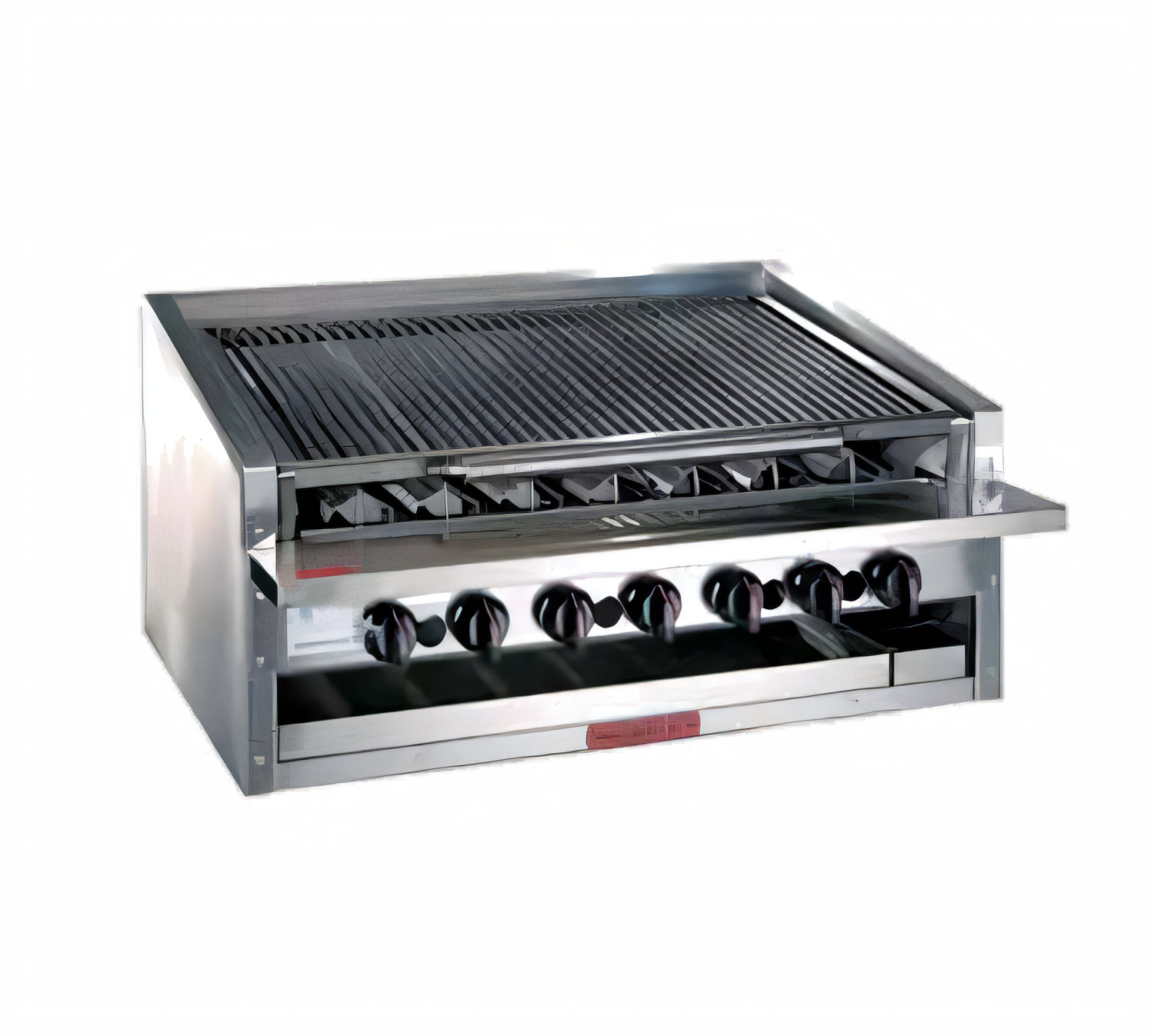

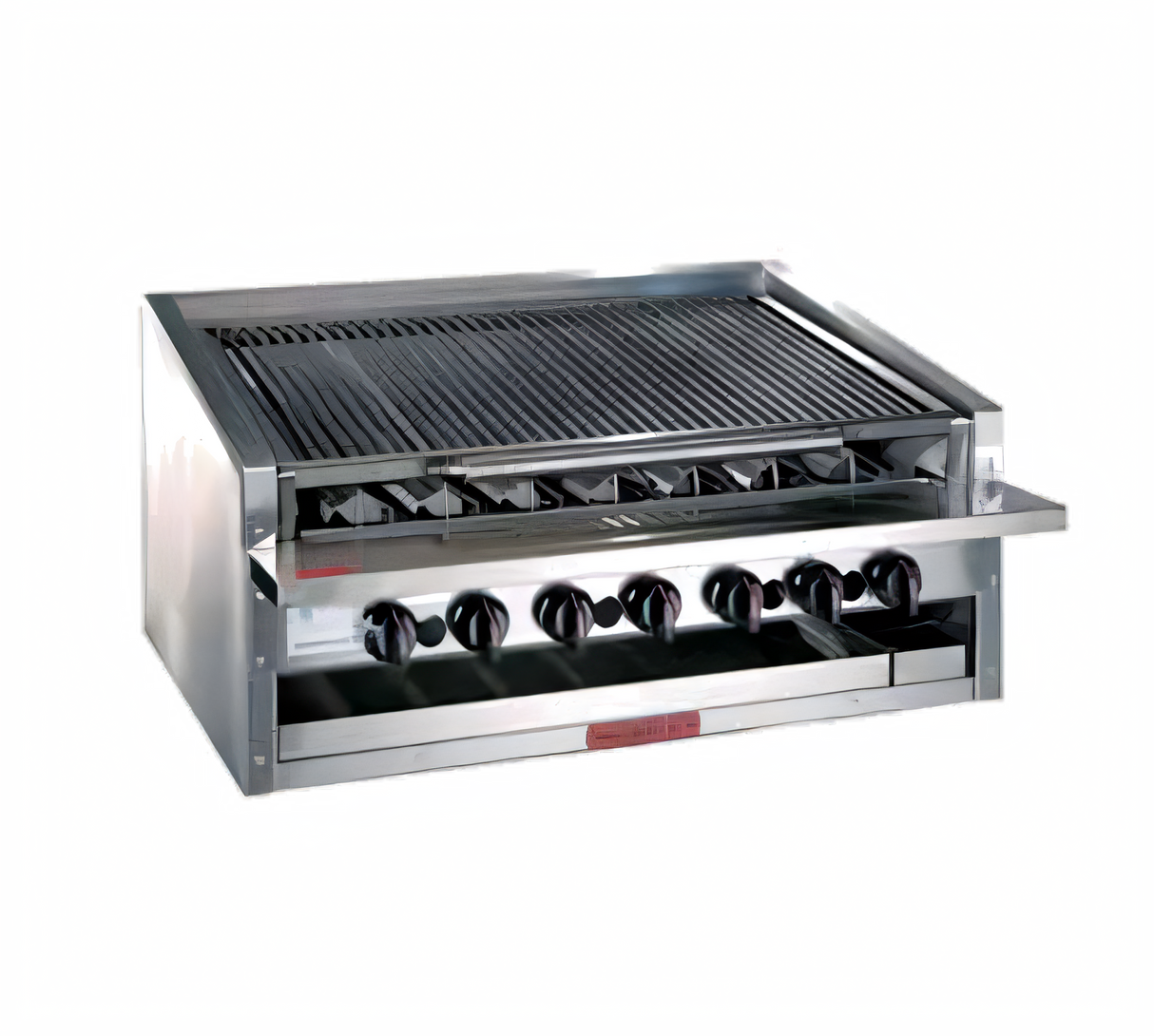

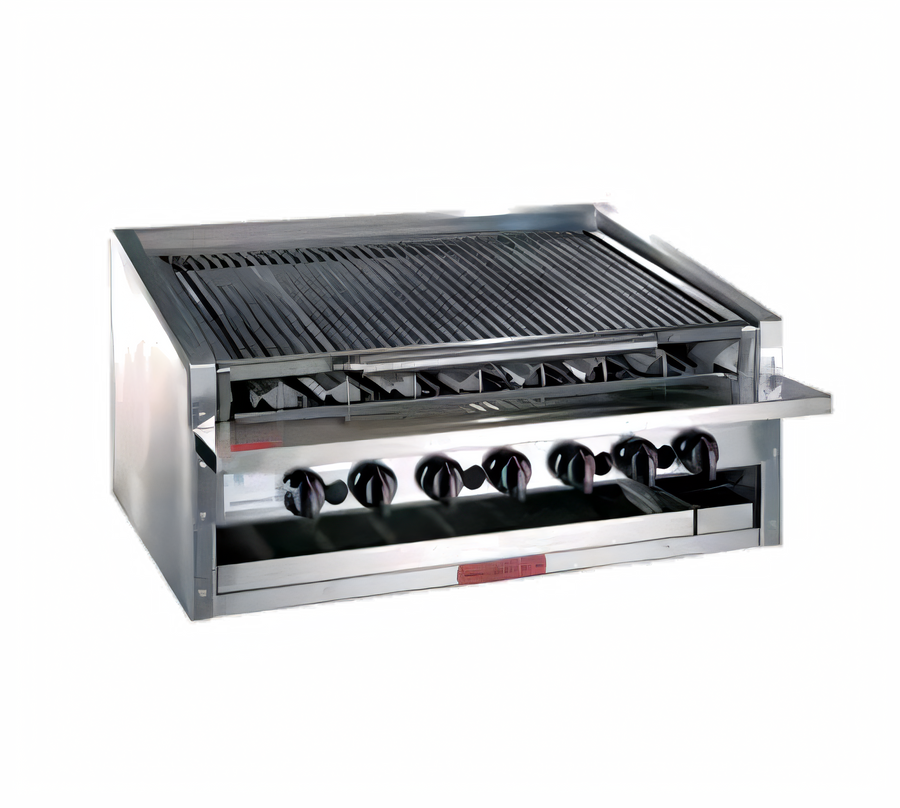

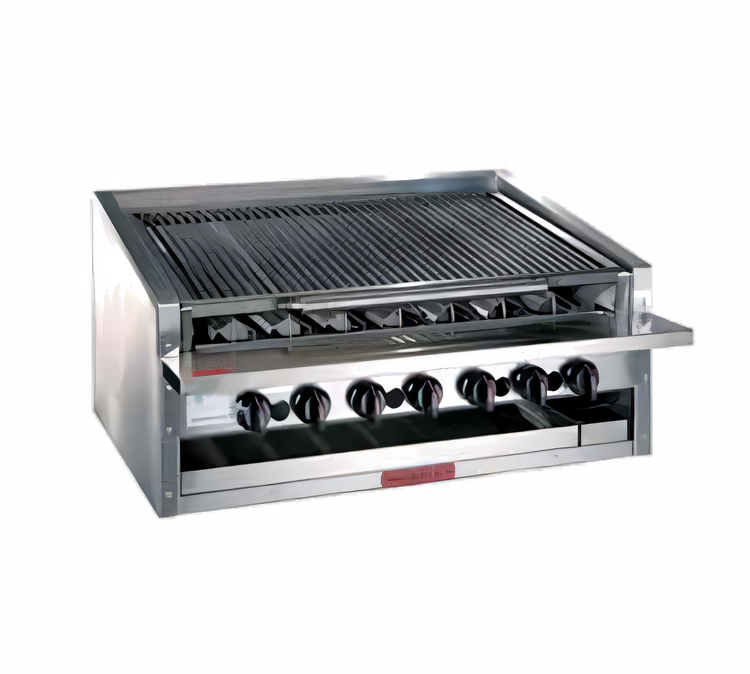

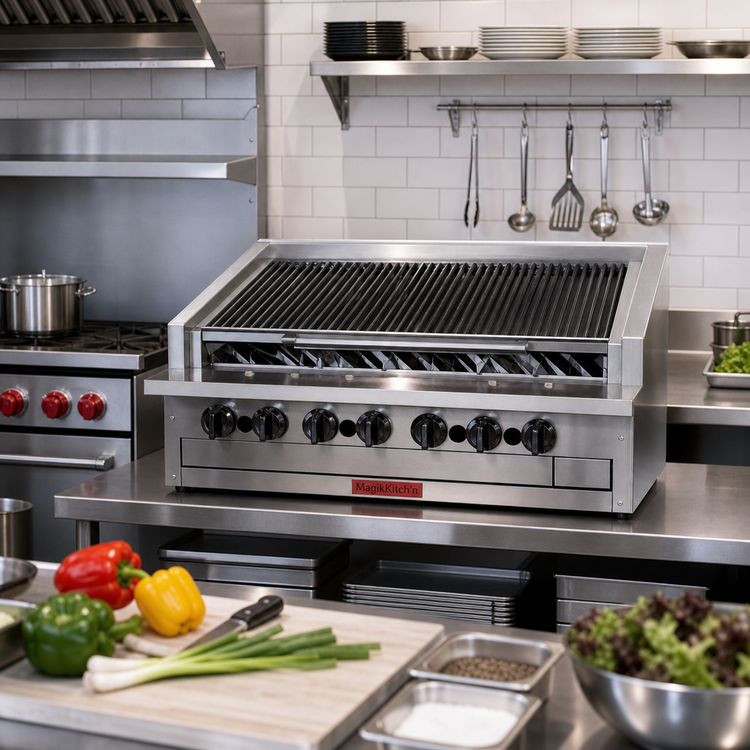

MagiKitch’n APM-RMB-648 Low-Profile Radiant Gas Charbroiler – 48"

Countertop powerhouse with EZ-Tilt grate & stainless steel cabinet

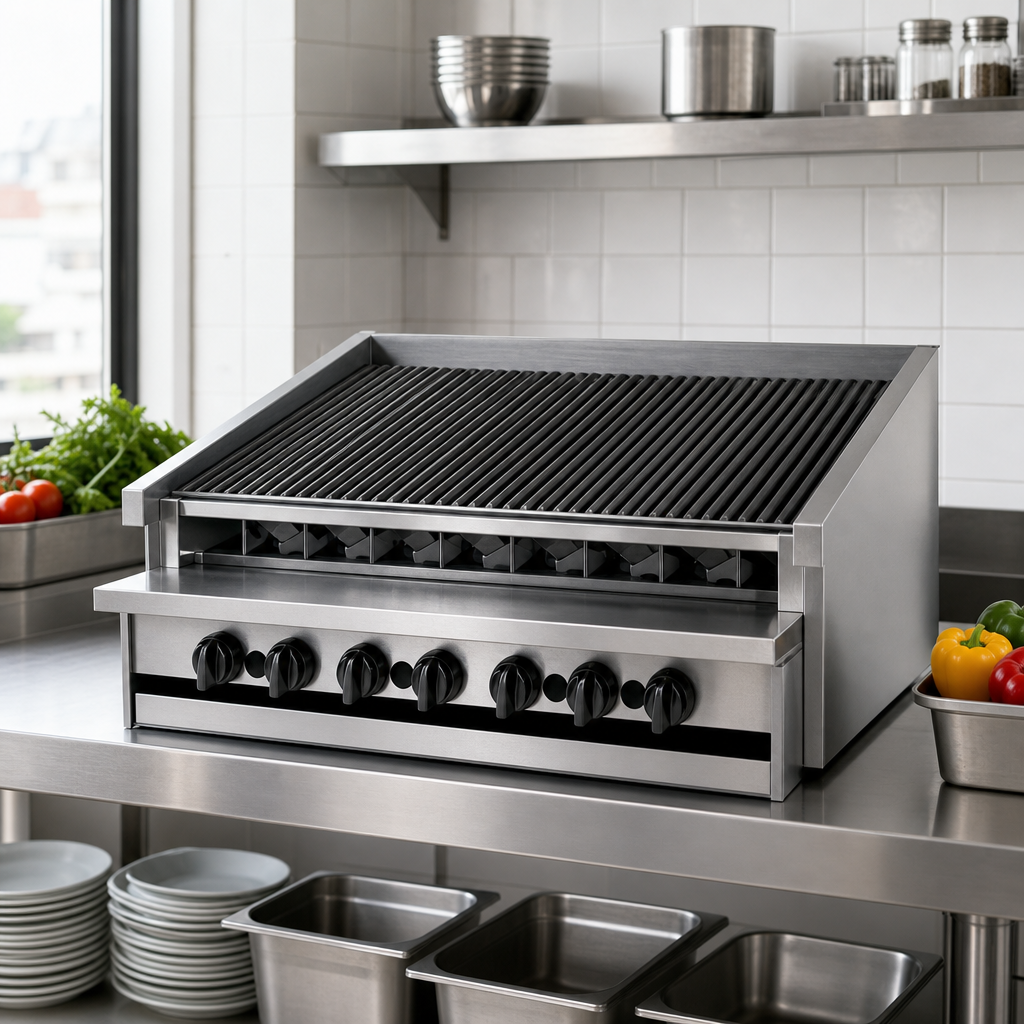

Deliver steak-house quality char marks from a sleek 13-inch-high unit that fits anywhere you have 48 inches of counter space. The MagiKitch’n APM-RMB-648 harnesses up to 200,000 BTU/hr of searing heat while keeping your line cooler and cleaner thanks to smart, labor-saving design details.

Why you'll love it
  • Free-floating ½" round-rod cooking grate resists warping and lifts off effortlessly for cleaning.
  • Patented EZ-Tilt™ design channels grease into the front trough—no flare-ups, no mess.

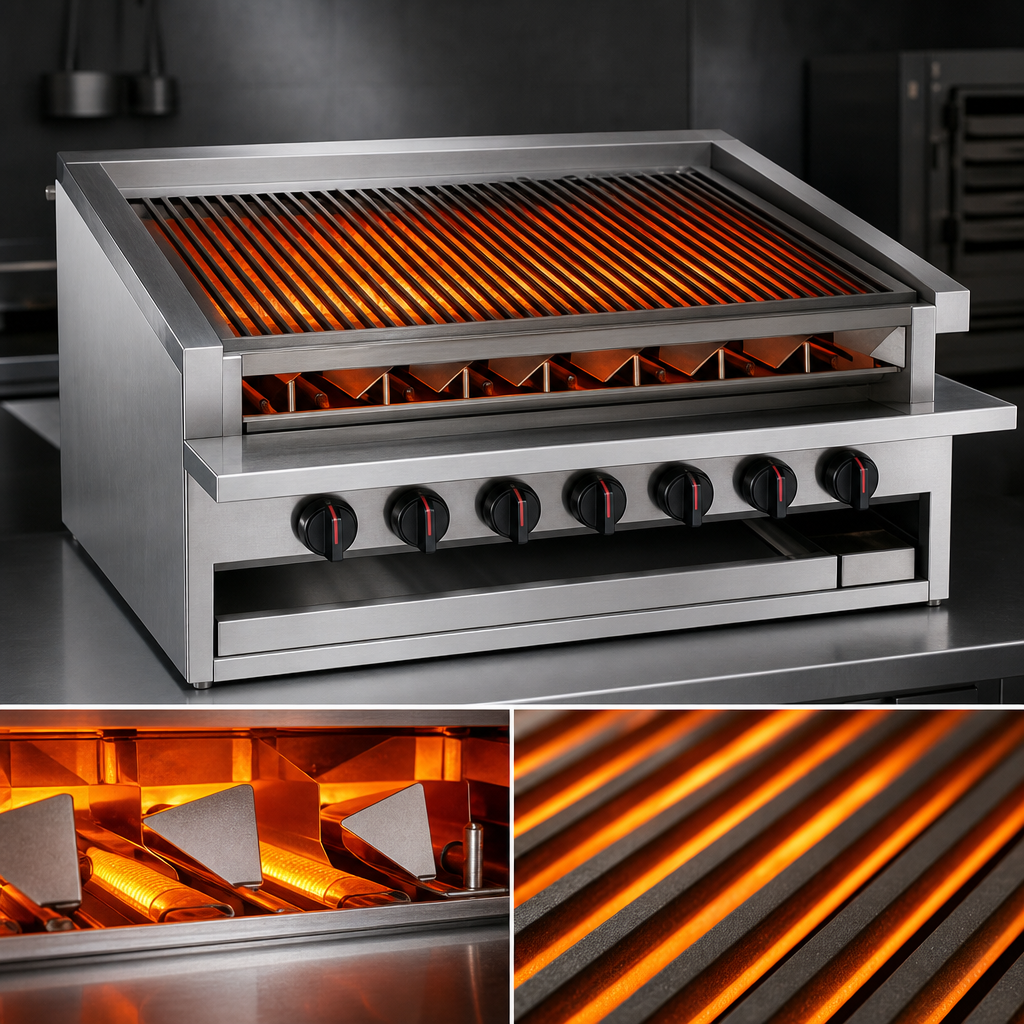

  • V-shaped cast-iron radiants over stainless burners deliver even, intense heat.
  • Ten independent burner controls every 4 – 4½" create precise multi-zone grilling.
  • Fully insulated, double-walled stainless steel cabinet stays cool to the touch.
  • 6" stainless service shelf with towel bar keeps tools and seasonings within arm’s reach.
  • Includes top-grid scraper, removable crumb tray and 4" adjustable bullet feet for fast daily clean-up.
  • Single ½" NPT rear gas connection with regulator—plug, test and grill.
  • Choose standard (150,000 BTU/hr) or high-output (200,000 BTU/hr) configuration.
Built for volume
  • Cooking surface: 1,107 in² (45" × 24.75")
  • 10 stainless burners / 10 cast radiants
  • Reliable runner-tube pilot system for quick starts
  • Optional grids: MagiKrome™ round-rod, scround or reversible cast-iron steak/fish
Specifications
Model APM-RMB-648 (Radiant)
Gas type Natural or LP (field convertible)
BTU/hr 150,000 standard | 200,000 high-output
Burners 10
Overall width 48" (122 cm)
Overall depth 35.5" (90 cm)
Overall height 13" (33 cm) body | 17" (43 cm) with shelf
Cooking area 1,107 in² (7,145 cm²)
Gas connection ½" NPT rear (regulator supplied)
Shipping weight ≈ 668 lb (303 kg)
Certifications NSF, ETL, CE (with safety pilot)
Install beneath a properly sized ventilation hood. See spec sheet for clearance and pressure requirements.
What’s included
  • 48" low-profile radiant charbroiler
  • 6" stainless service shelf & towel bar
  • Top-grid scraper & removable crumb tray
  • Pressure regulator & ½"→¾" adaptor
  • 4" adjustable bullet feet
  • Two-year limited parts & labor warranty
Need financing? Turn this purchase into predictable monthly payments with Middleby Equipment Financing. Apply online in minutes ›

Upgrade your kitchen with MagiKitch’n’s legendary sear, reliability and low-profile convenience—order the APM-RMB-648 today!

Features & Specs

Manufacturer

Magikitch'n (Middleby)

Height

13.0in

Width

48.0in

Depth

33.5in

Shipping Weight

668.0lbs

Width (side - side) OA

43 - 48"

Heating Source

radiant

Control Type

manual controls

Specifications

Radiant Charbroiler, low profile countertop, gas, 48" wide, 13" high, free floating round rod top grate with EZ tilt to front grease trough, cast iron radiants, stainless steel on all sides, 6" service shelf, top grid scraper, 4" legs with bullet feet
