Magikitch'n (Middleby) APM-RMB-648 Gas Charbroilers
Description

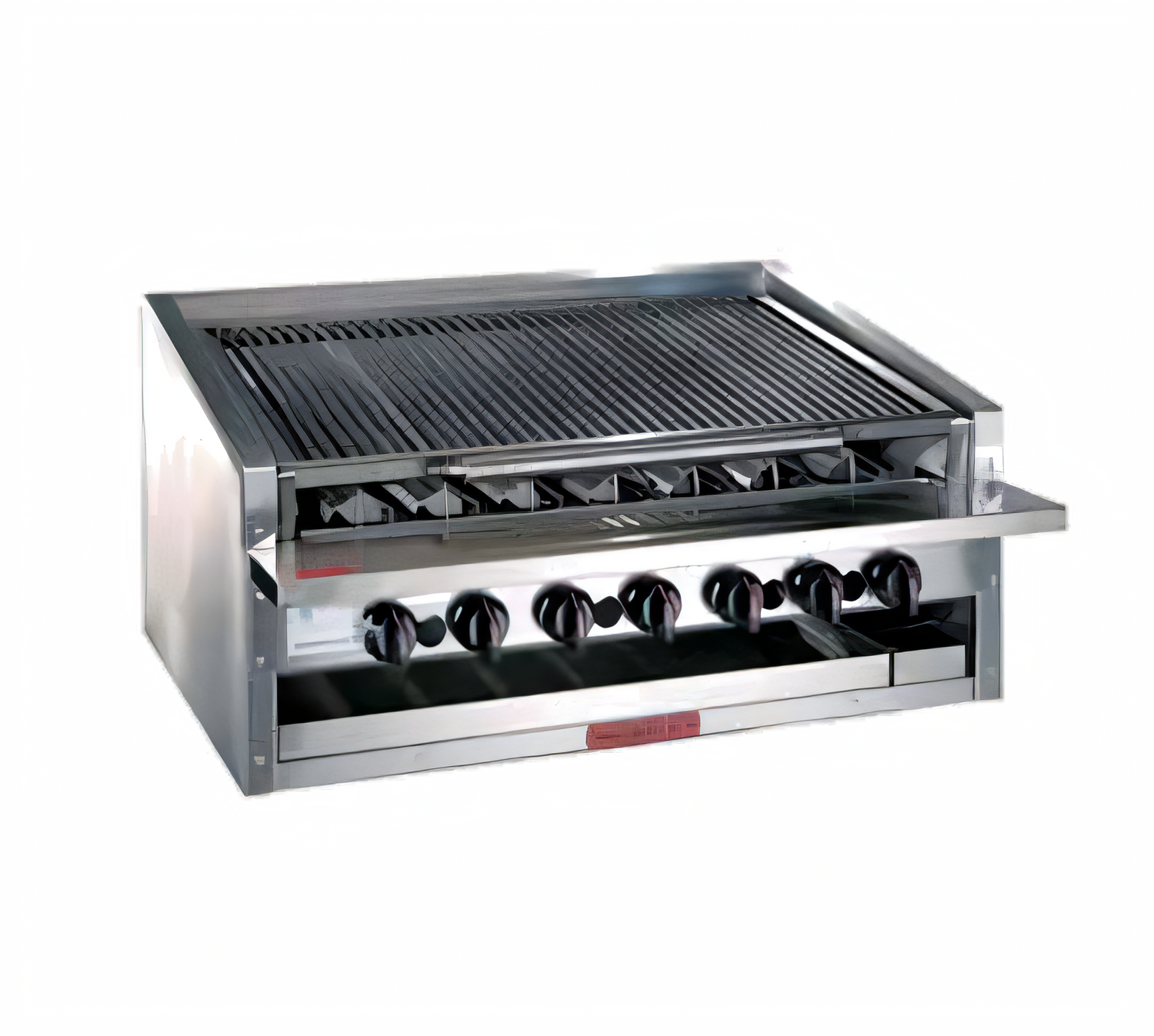

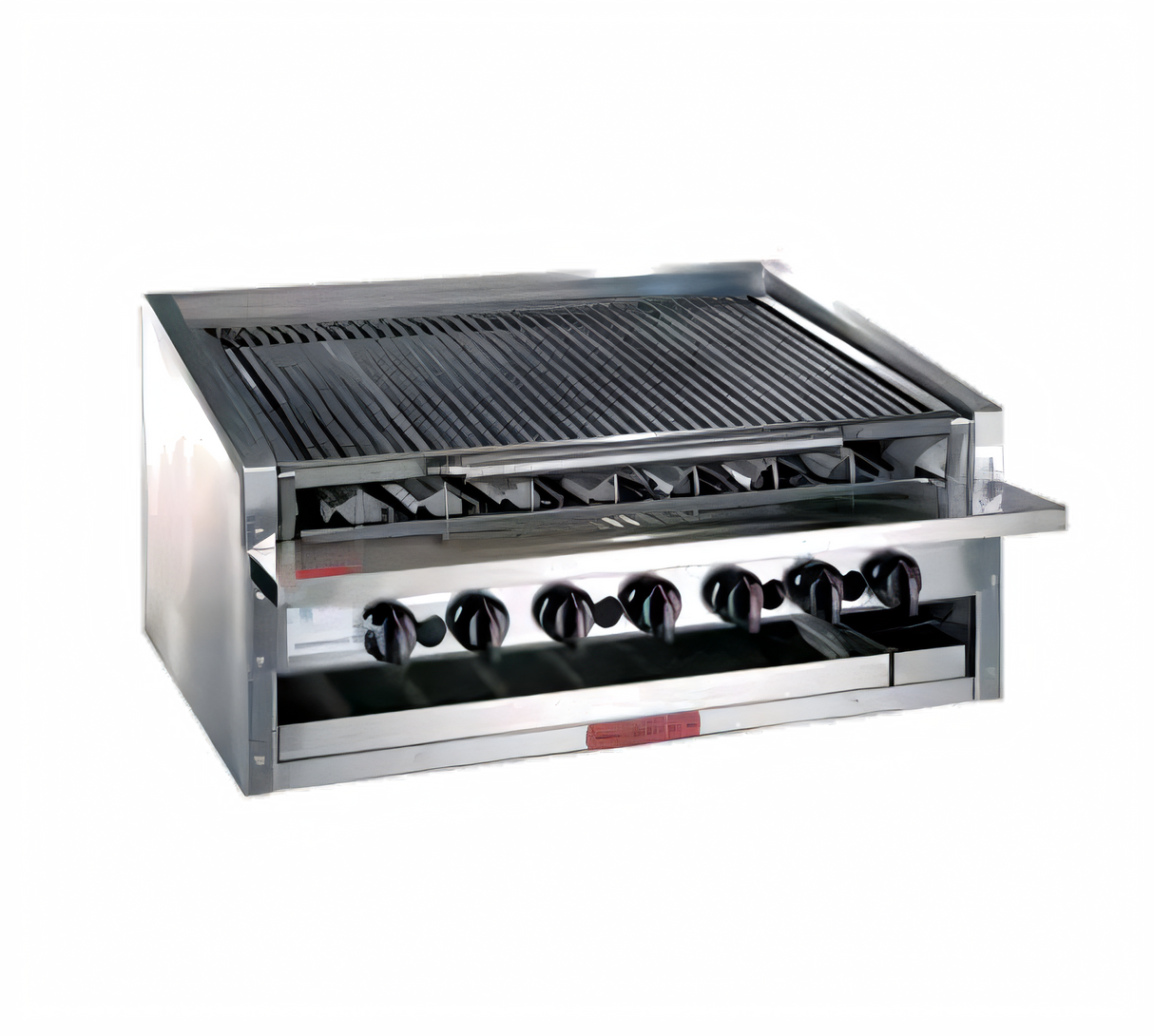

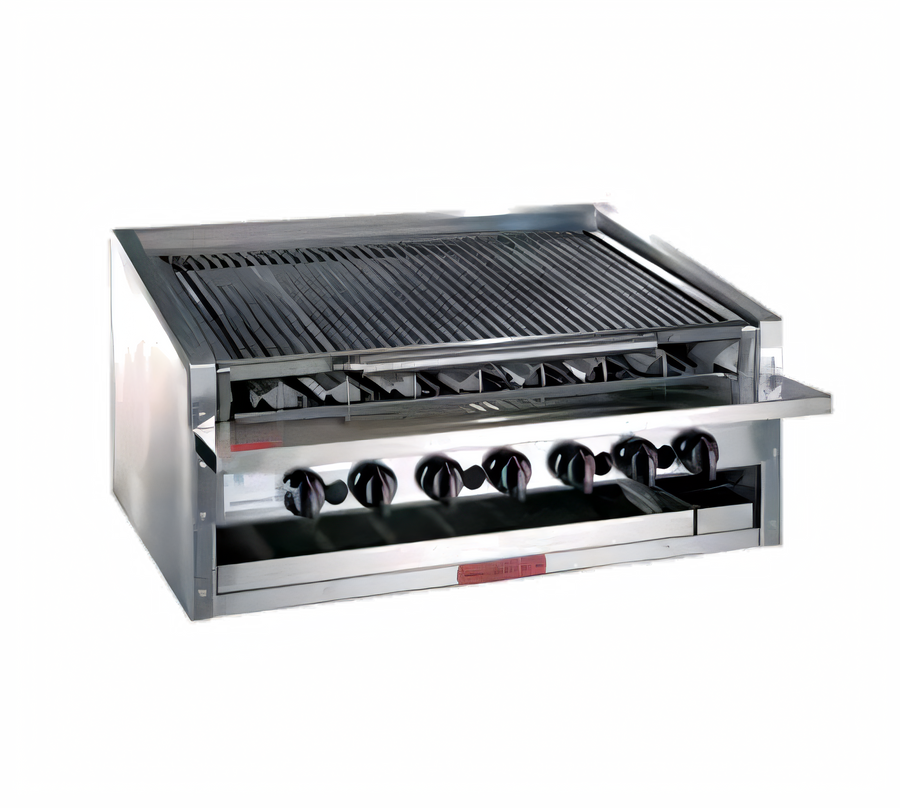

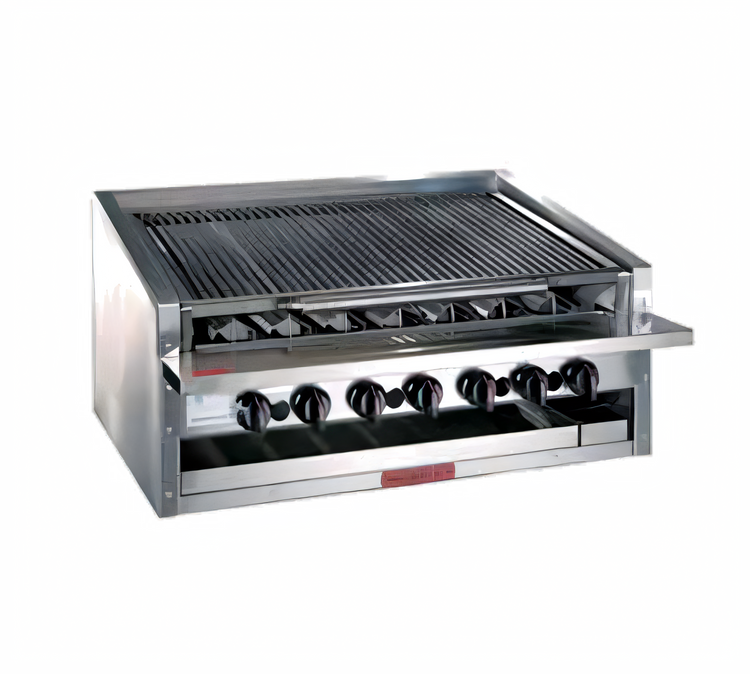

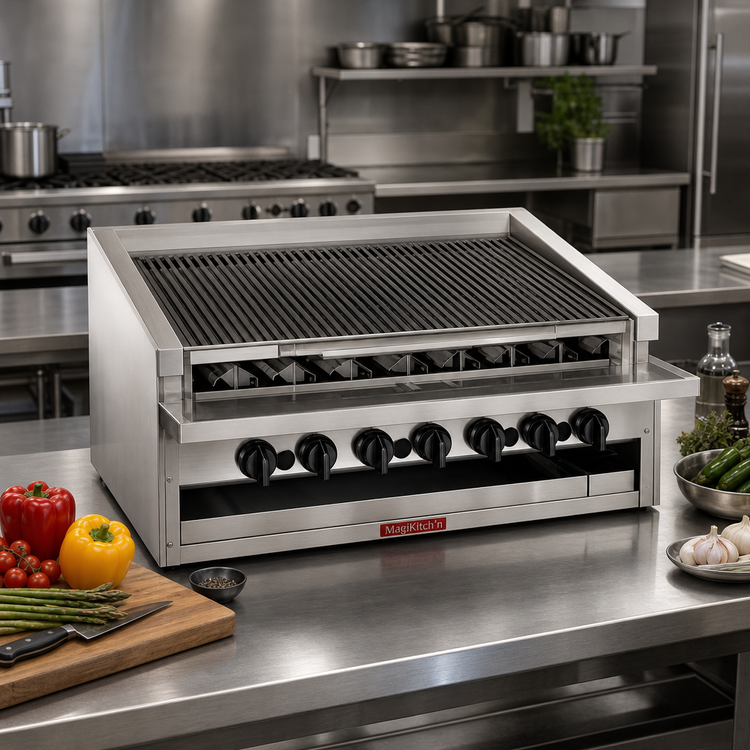

Magikitch’n APM-RMB-648 48" Low-Profile Radiant Gas Charbroiler
150,000 BTU/hr • Countertop • Stainless Steel • NSF & CSA CertifiedBuilt for kitchens that demand serious production without sacrificing space, the 48-inch Magikitch’n APM-RMB-648 delivers steak-house sear marks, even heat distribution and dependable day-to-day performance. Its low-profile design slips neatly under standard hoods while stainless steel radiants and free-floating grates take the punishment of a busy line.
Performance & Convenience Highlights

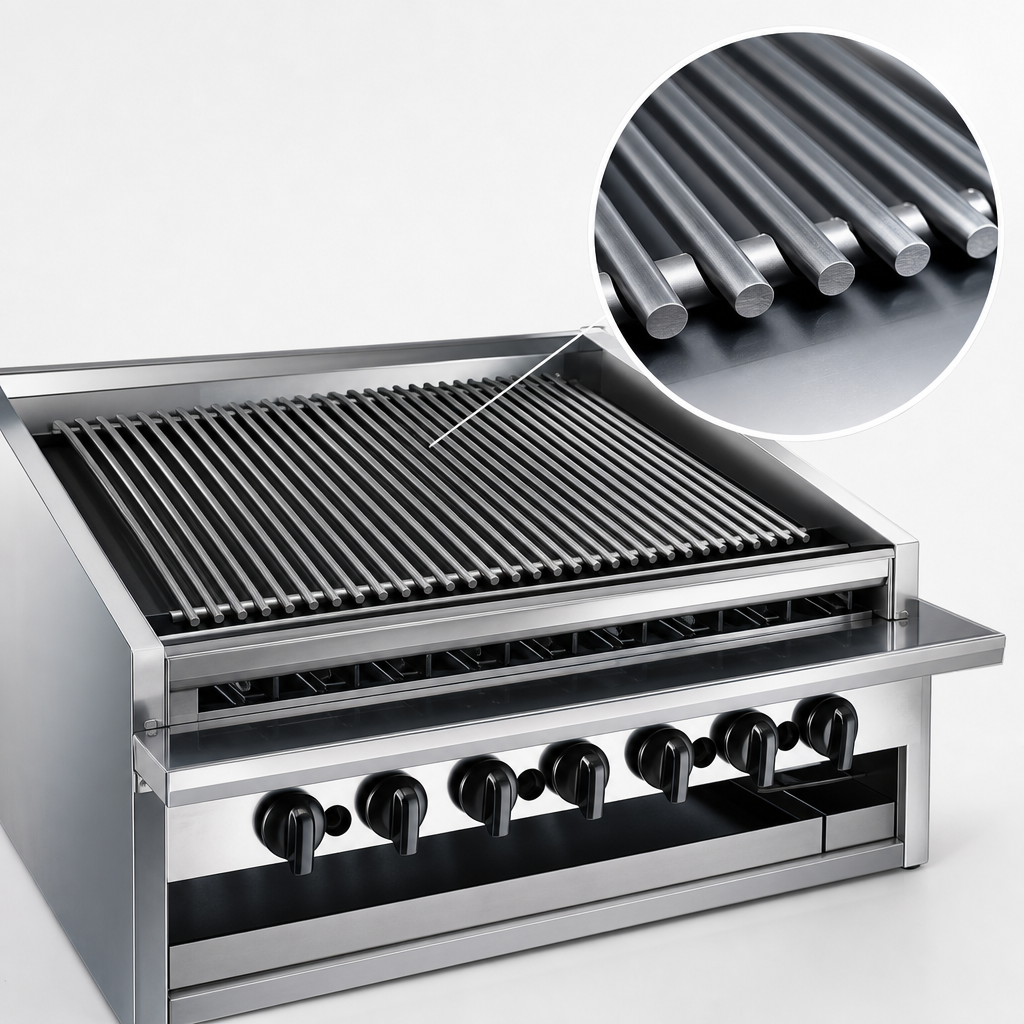

- Free-floating ½" round-rod top grate expands & contracts without warping.
- E-Z Tilt™ grate lifts forward, channeling grease into an extra-wide front trough for faster cleanup and fewer flare-ups.

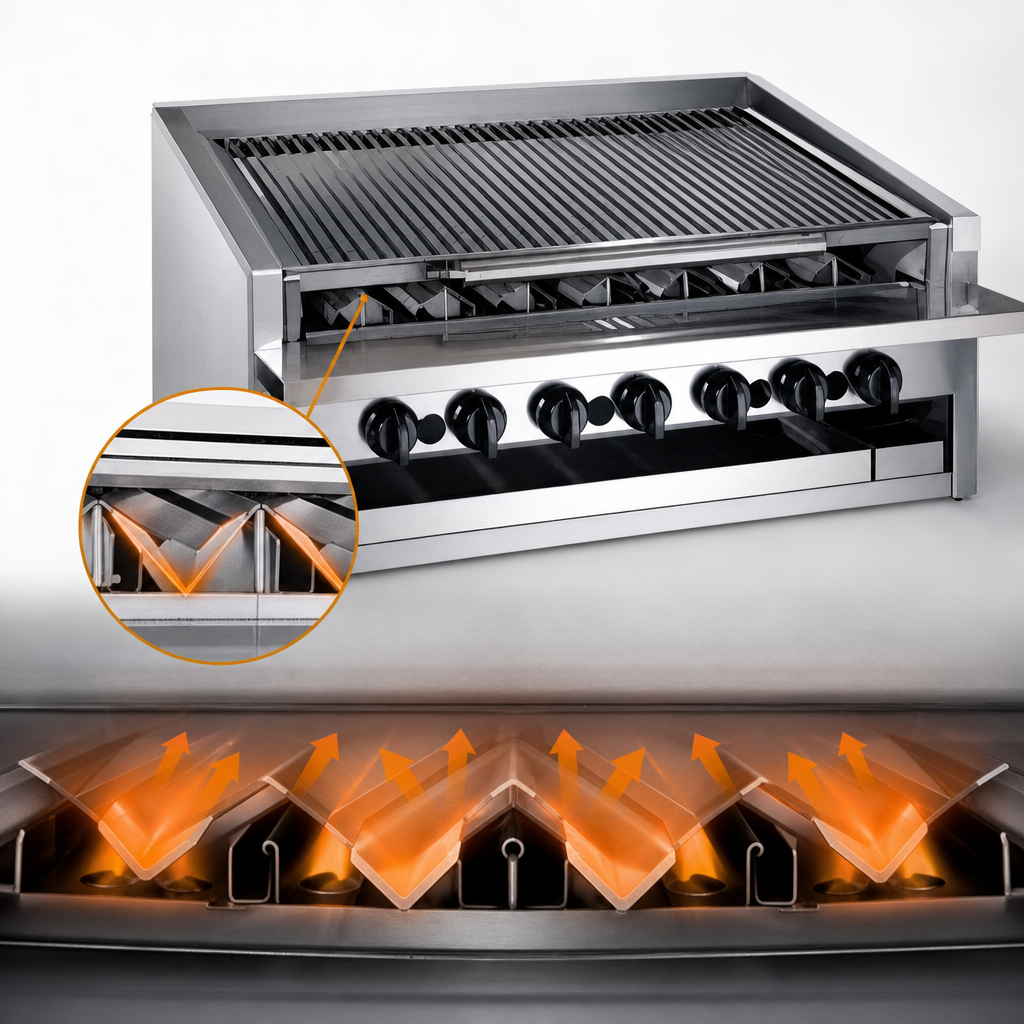

- V-shaped stainless steel radiants assure intense, even heat across the entire 1,107 in² cooking surface.
- Ten individually controlled stainless burners (every 4–4½") create multiple temperature zones.
- All-stainless, double-walled cabinet is fully insulated to keep side panels cool and energy inside.
- Runner-tube pilot system ignites the whole grill quickly and reliably.
- 6" stainless service shelf with towel bar keeps seasonings, pans and tools within arm’s reach.
- 4" adjustable bullet feet make leveling on any countertop simple.
- Includes two crumb trays and a heavy-duty top-grid scraper.
Technical Specifications
| Model | APM-RMB-648 (Radiant) |
|---|---|
| Cooking Surface | 48" W × 24 ¾" D • 1,107 in² (122 × 62.9 cm) |
| Overall Dimensions | 48" W × 35 ½" D × 21 ⅜" H (122 × 90 × 54.1 cm) |
| Total BTU/hr | 150,000 (standard) | 200,000 BTU high-output option |
| Burners | 10 stainless steel, individually valved |
| Gas Type | Natural 7–10" WC or LP 11–13" WC |
| Gas Connection | Single ½" NPT (regulator supplied) |
| Included Items | 6" service shelf, (2) crumb trays, top-grid scraper, 4" bullet feet |
| Certifications | CSA Flame, CSA Star, NSF |
| Warranty | 2-year parts & labor, factory-authorized service network |
Popular Accessories (Sold Separately)
- MagiKrome® round-rod, scround or fish-spacing grates
- Reversible cast-iron grates (standard or fish spacing)
- MagiGriddle drop-in plate for all-purpose flat-top cooking
- Back shelf, side & back extensions, or slip-on cover
- 48" quick-disconnect gas hose & lanyard kit
- Equipment stands & refrigerated bases for flush mounting
Photos may show optional accessories. Contact us for custom grate configurations, high-output models or other factory-installed options.
