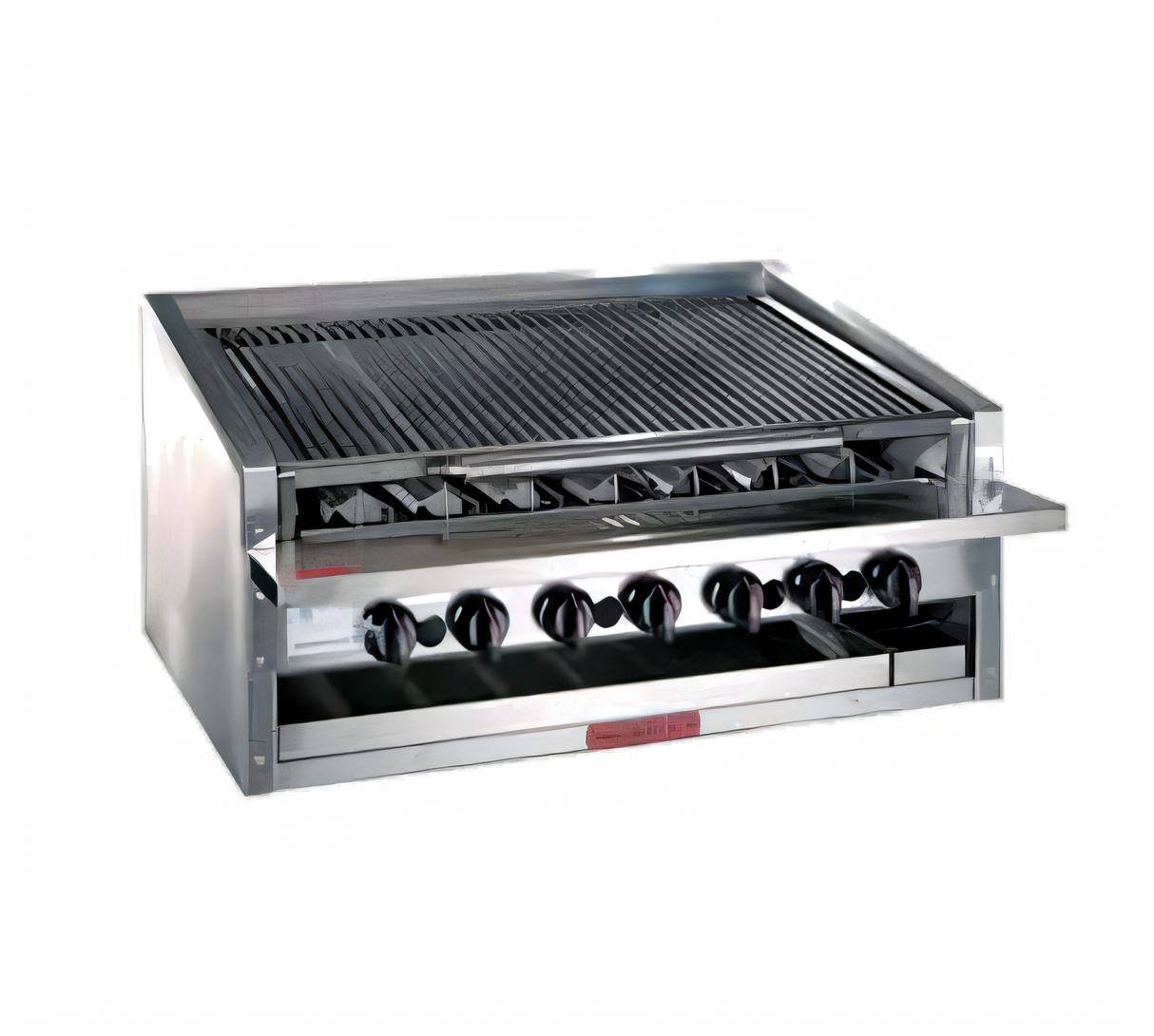

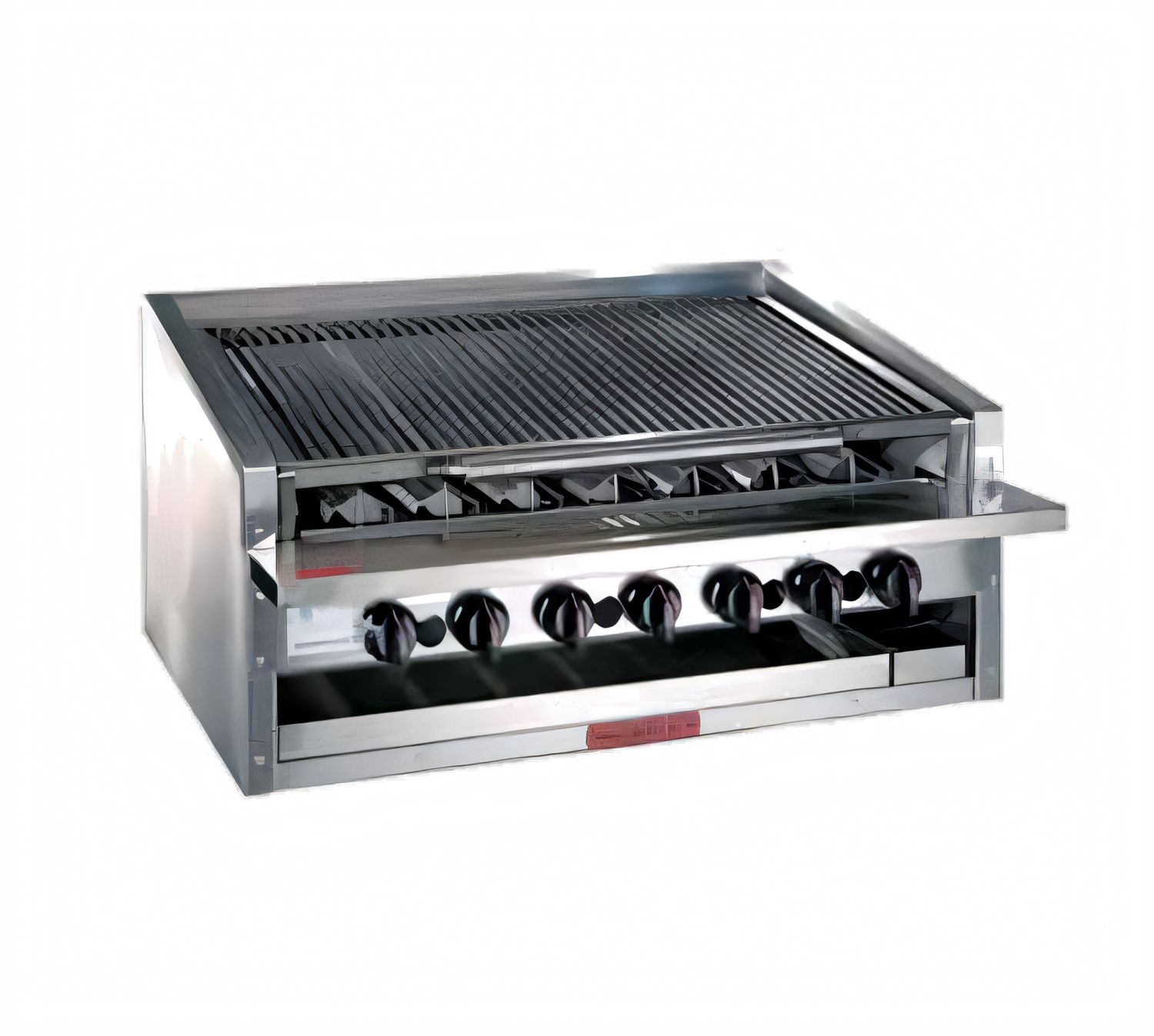

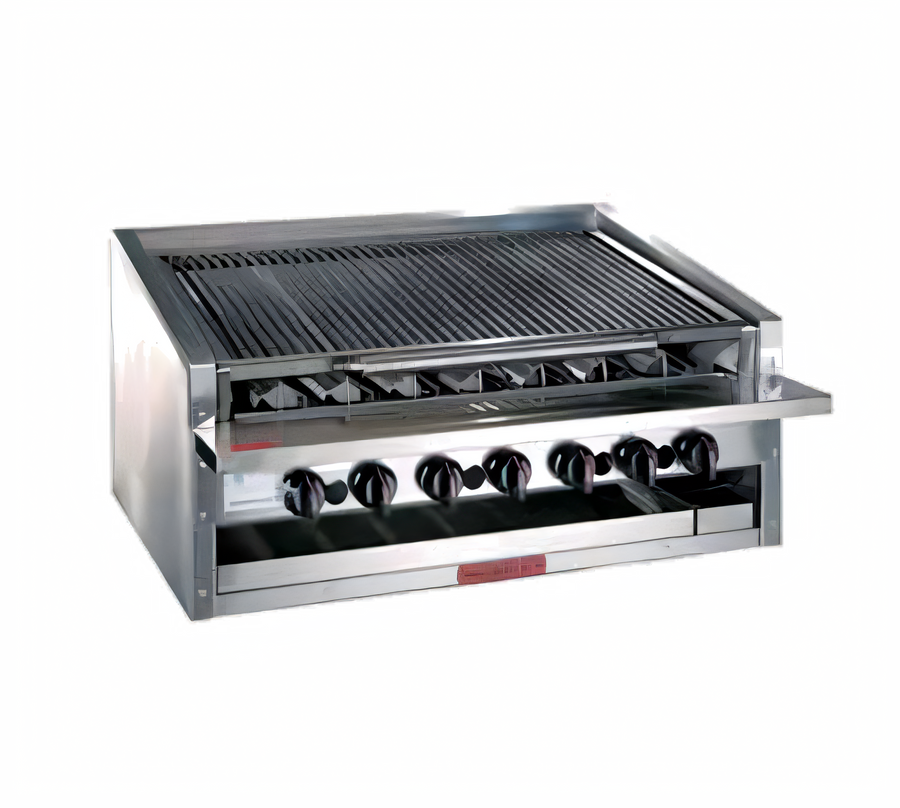

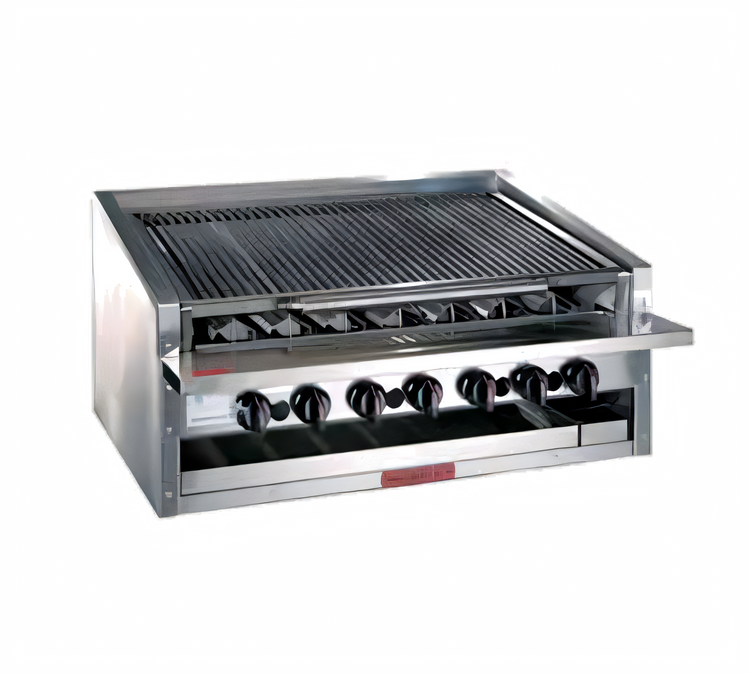

Magikitch'n (Middleby) APM-RMB-636CR Gas Charbroilers
Magikitch'n (Middleby) APM-RMB-636CR Gas Charbroilers is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Magikitch'n (Middleby) APM-RMB-636CR Gas Charbroilers
Description
Magikitch’n APM-RMB-636 Low-Profile Radiant Gas Charbroiler – 36″

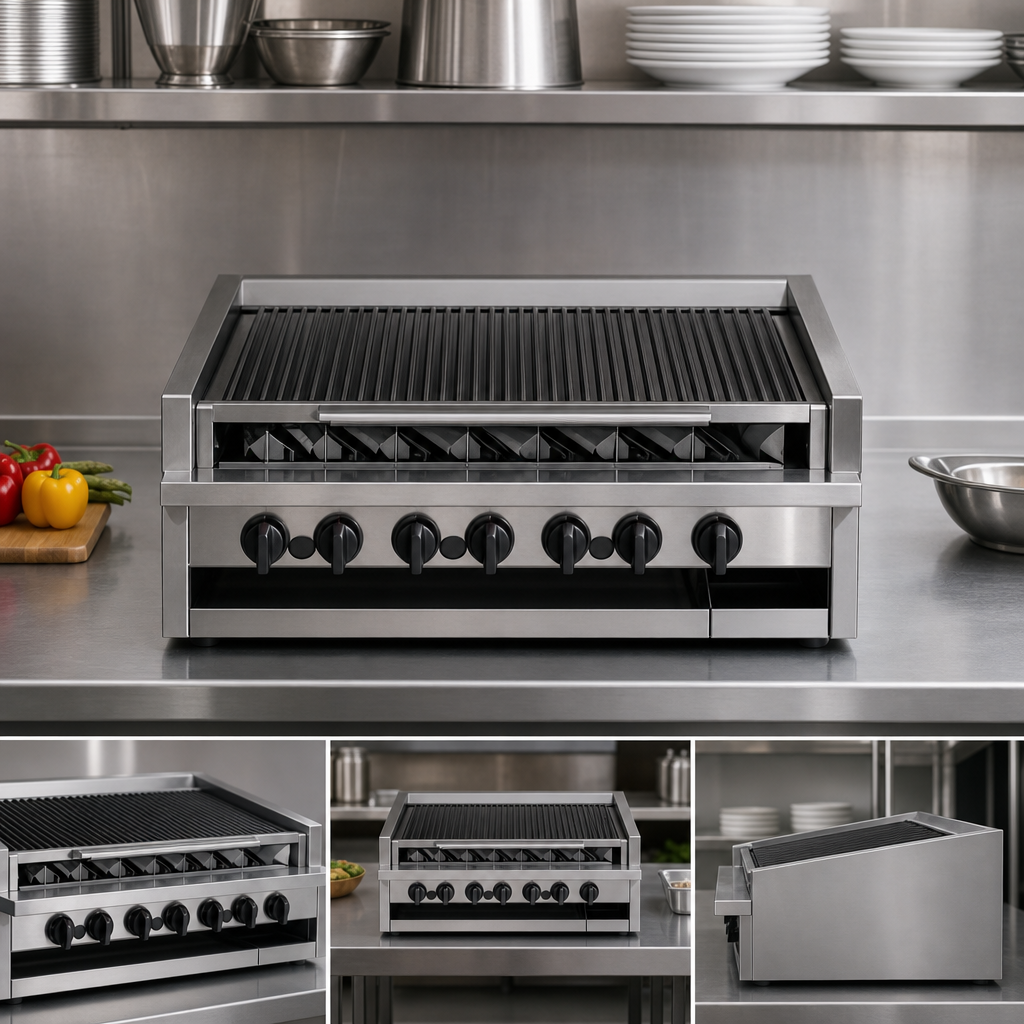

Free-floating rod grate • EZ-Tilt grease trough • 105,000–140,000 BTUPut authentic char-grilled flavor on your countertop. At just 13″ tall, the APM-RMB-636 delivers Magikitch’n’s legendary performance in a space-saving footprint that’s perfect for cooklines, chef’s counters, and refrigerated bases.
Key features
- Seven stainless-steel burners produce 105,000 BTU/hr (standard) or an optional 140,000 BTU/hr (high-output).

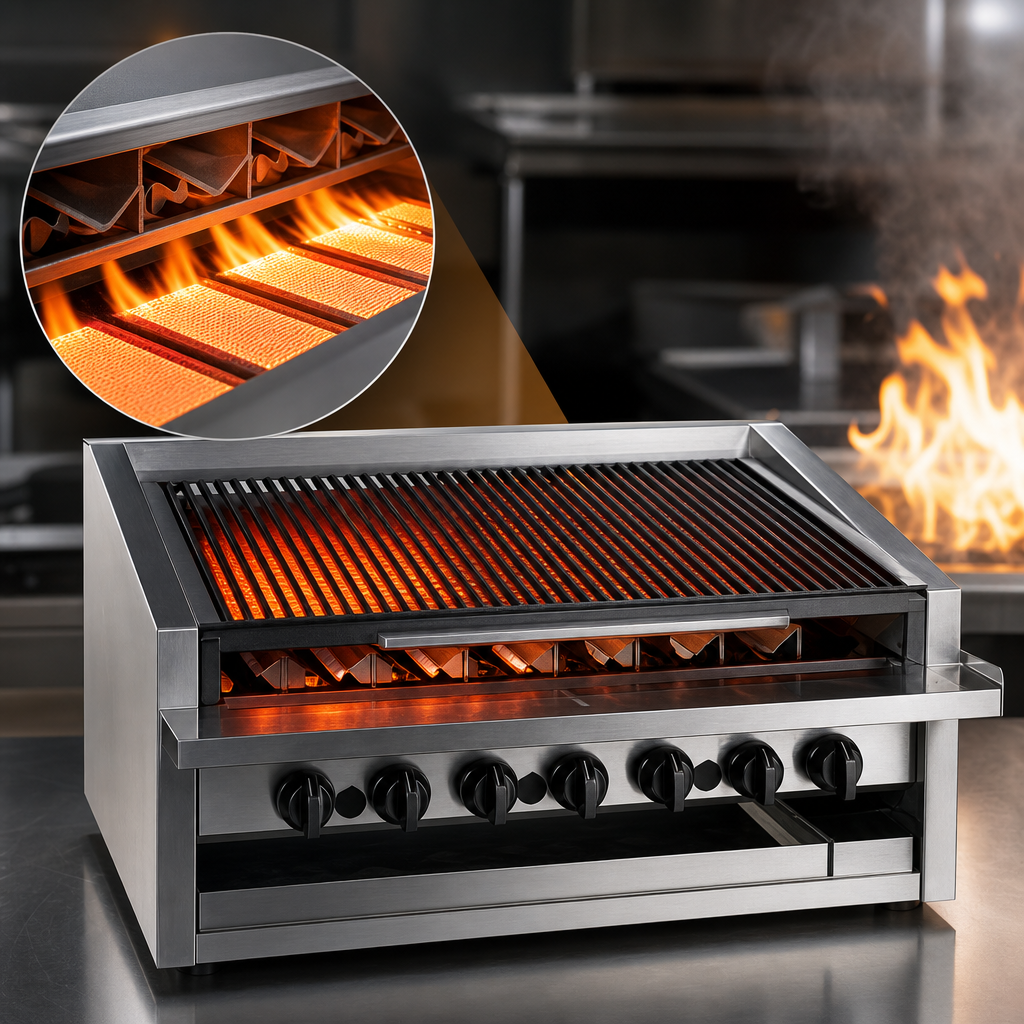

- Durable, V-shaped cast-iron radiants intensify heat and channel drippings for that classic charbroiled taste.
- Free-floating ½″ round-rod grate resists warping and flips forward with EZ-Tilt to drain grease into the full-width front trough.
- Fully insulated, double-wall stainless-steel cabinet—all four sides—for a cool exterior and quick cleanup.
- Independent burner controls every 4–4½″ let you run multiple temperature zones at once.
- Includes 6″ stainless service shelf with towel bar, removable crumb tray, and a top-grid scraper.
- Ships on 4″ adjustable bullet feet; compatible with optional equipment stands and slip-on covers.
- Single ½″ NPT gas connection (¾″ adaptor & regulator supplied) for natural or LP gas.
- Backed by a 2-year parts & labor warranty.
At-a-glance specs
| Model | APM-RMB-636 (Radiant) |
|---|---|
| Overall width | 36″ / 914 mm |
| Overall height | 13″ body + 4″ legs |
| Depth | 35 ½″ / 902 mm |
| Cooking surface | 810 in² (5,233 cm²) |
| Burners | 7 stainless-steel |
| Gas input | 105,000 BTU/hr or 140,000 BTU/hr (high-output) |
| Gas pressure | Natural 7–10″ WC • LP 11–13″ WC |
| Connection | ½″ NPT (¾″ adaptor & regulator included) |
| Shipping weight | Approx. 585 lb / 265 kg |
| Clearances | 0″ sides & rear • 30″ front to combustibles |
Perfect for
- Steak houses & BBQ concepts
- High-volume burger lines
- Hotel & banquet production
- Ghost kitchens & food-truck commissaries
Need fish-spacing grates, a ceramic coal deck, or an equipment stand? Ask about factory-installed options and accessories.
Specifications are subject to change without notice. Refer to the owner’s manual for complete installation, operation, and warranty details.
