Magikitch'n (Middleby) APM-RMB-636 Gas Charbroilers
Description

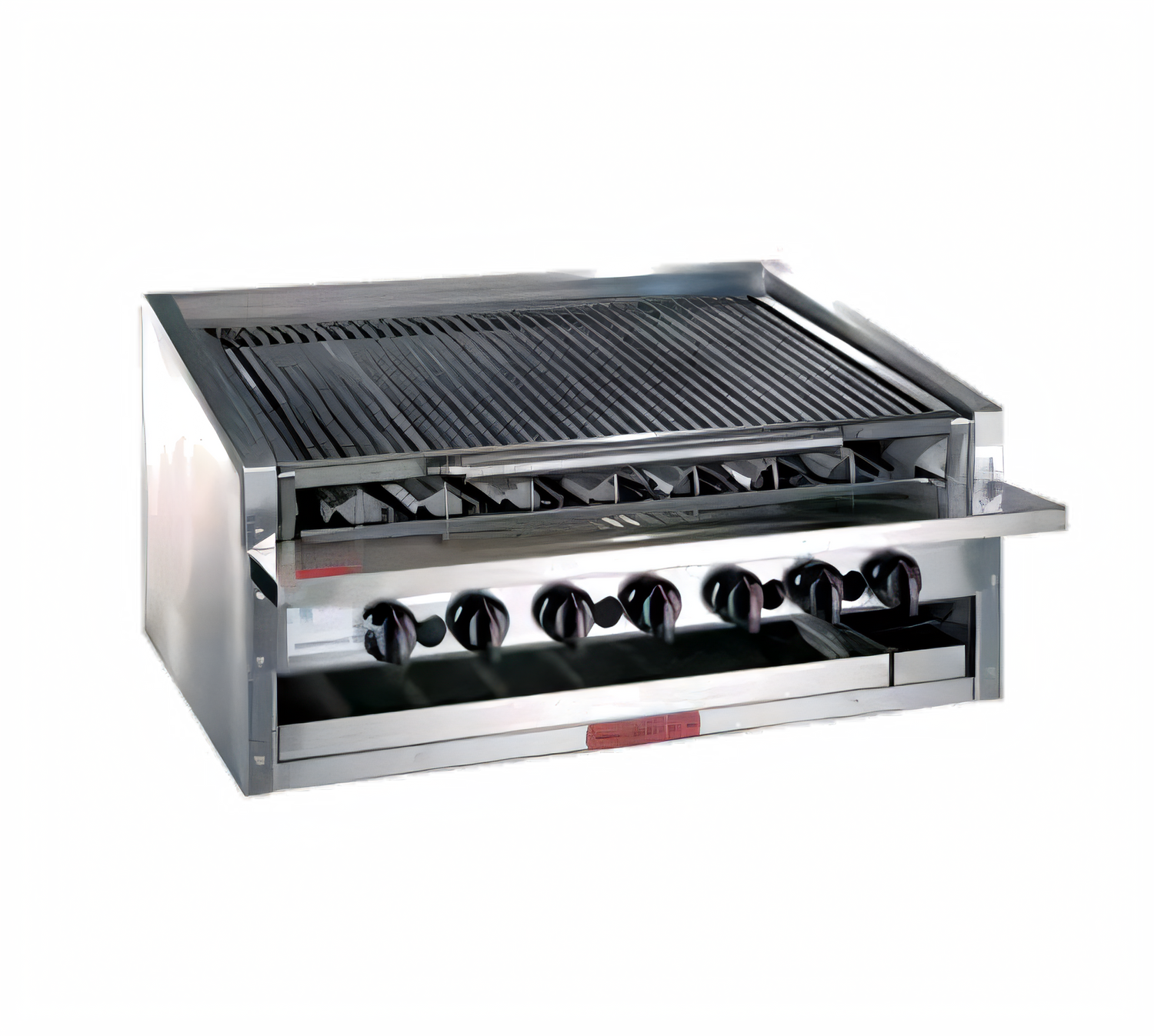

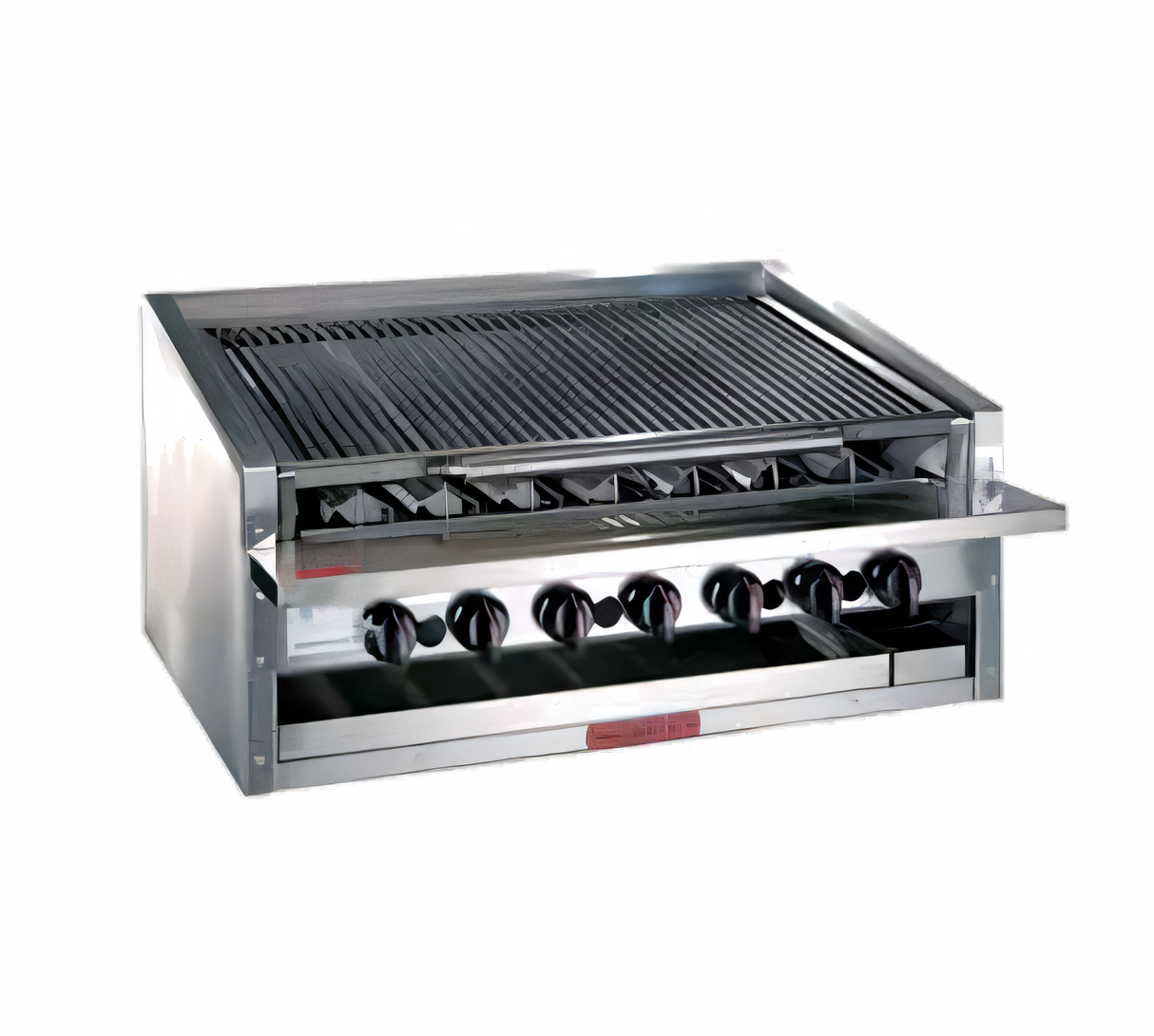

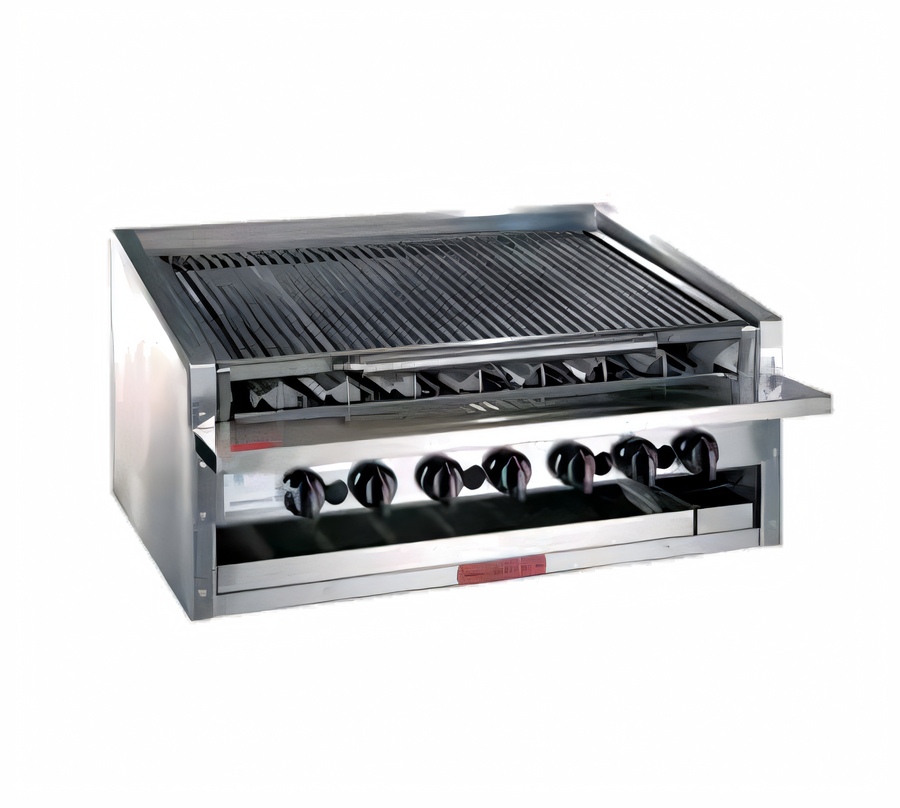

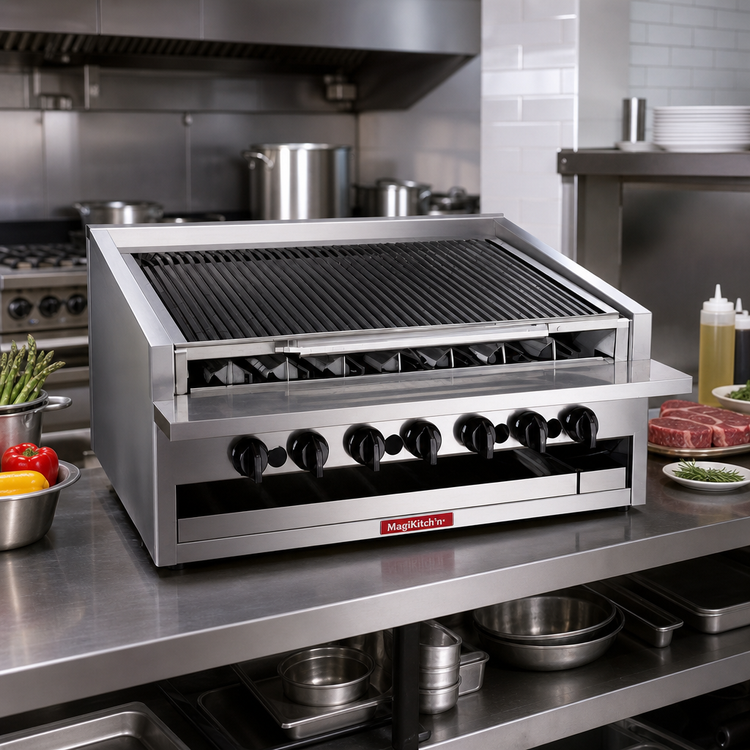

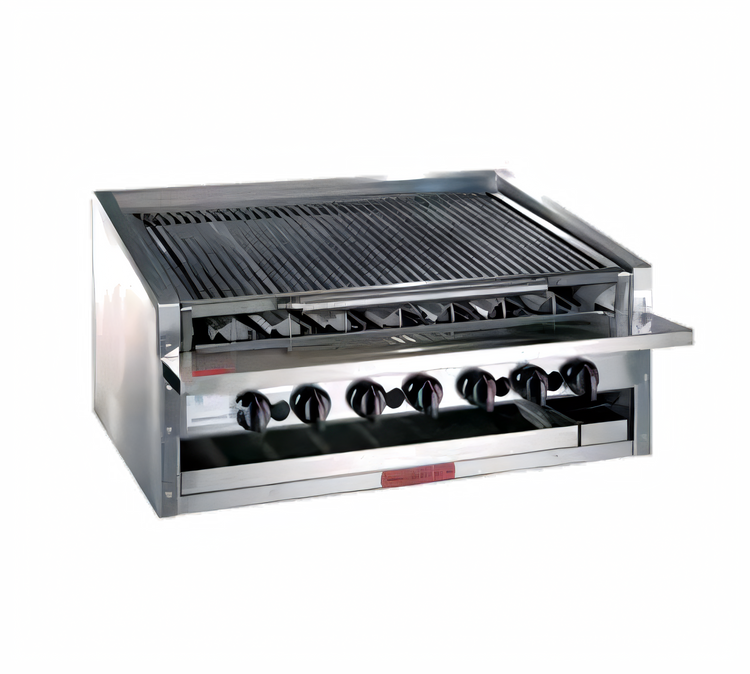

MagiKitch’n APM-RMB-636 Low-Profile 36" Gas Radiant Charbroiler
High-volume performance in a compact, countertop footprintBring steakhouse-quality sear marks and unmistakable charbroiled flavor to your menu. The 36" MagiKitch’n APM-RMB-636 couples 105,000 BTU of gas-fired power with a rugged, all-stainless build that thrives on busy lines, food trucks, and concession stands alike.
Key advantages

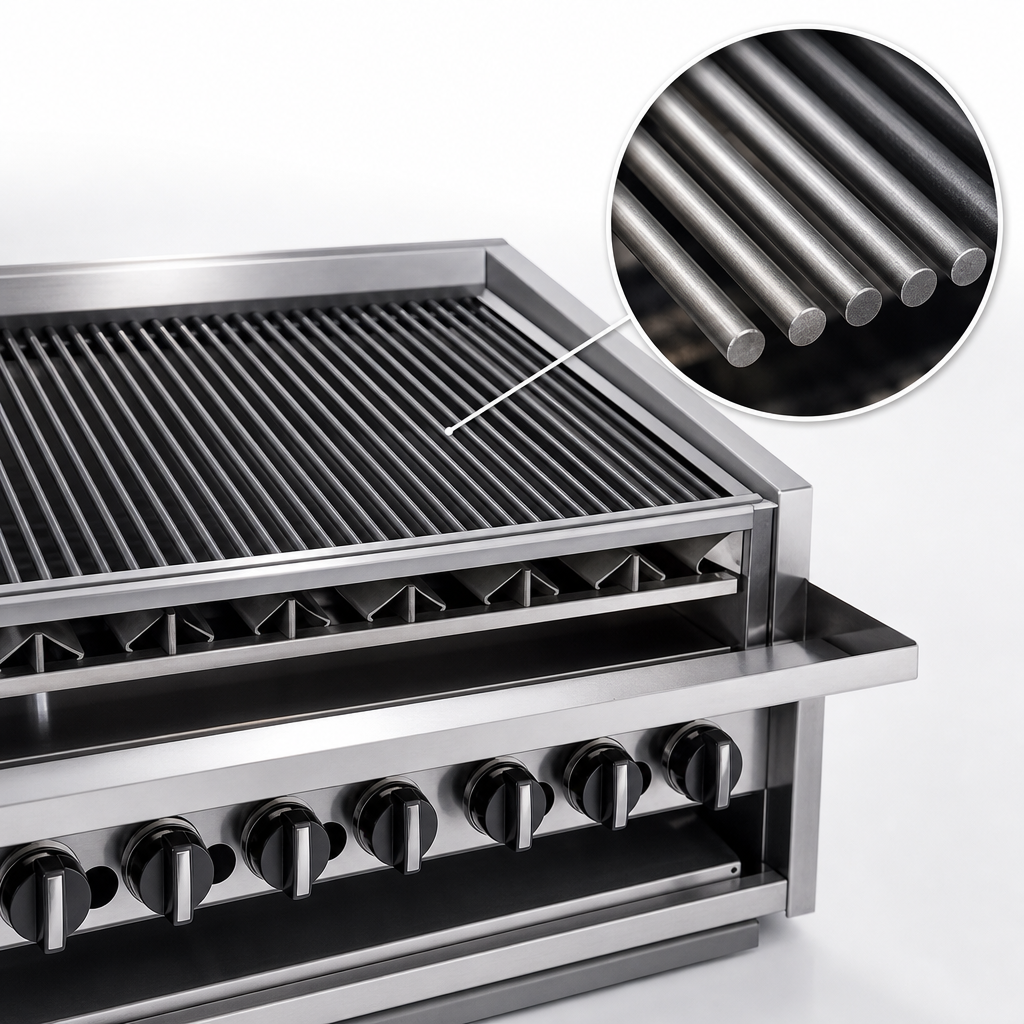

- Free-floating round-rod grate expands & contracts without warping and lifts off in seconds for cleaning.

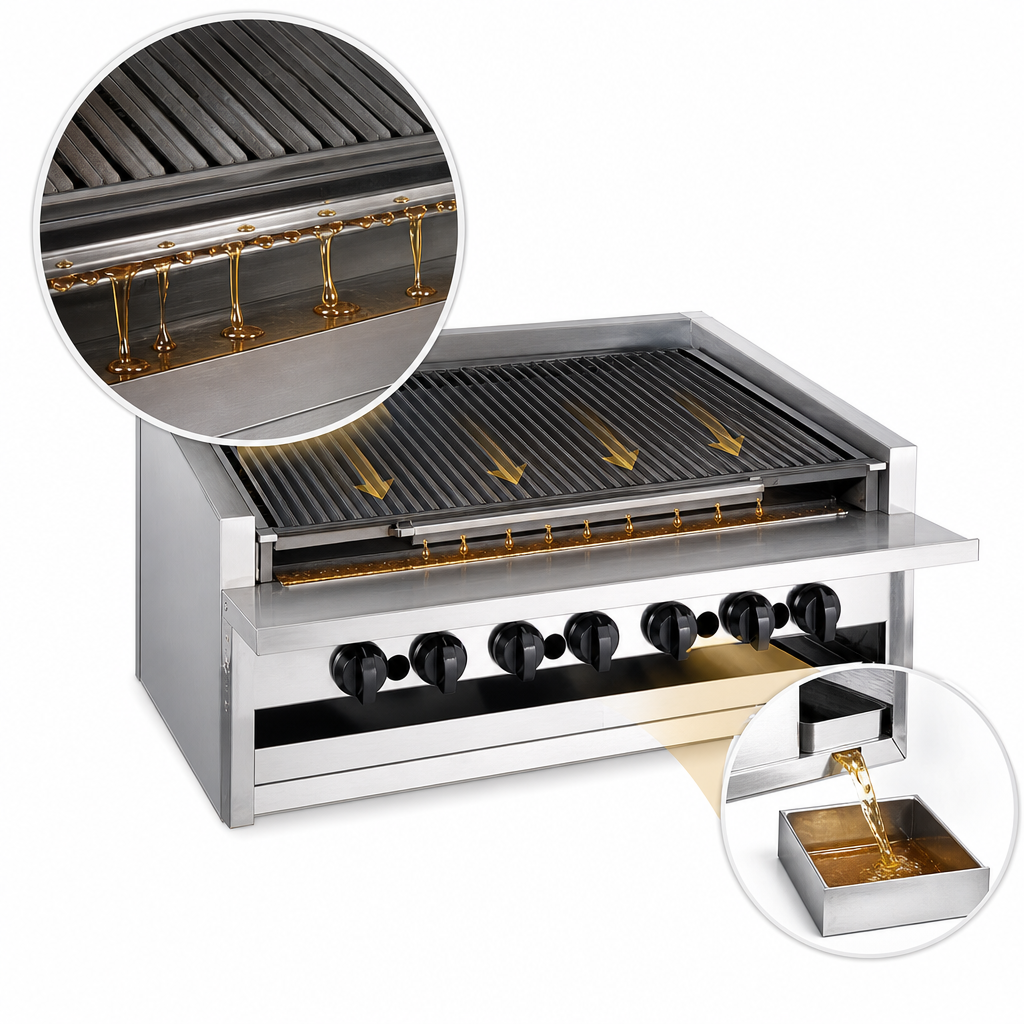

- E-Z Tilt™ design directs grease into the full-width front trough, helping reduce flare-ups.
- V-shaped stainless-steel radiants per burner channel intense, even heat to the cooking surface.
- Seven independent stainless burners (every 4″–4 ½″) let you create multiple heat zones for perfect menu flexibility.
- Fully insulated, double-walled stainless cabinet stands up to daily abuse and holds heat inside the unit—not your kitchen.
- Factory-installed 6″ stainless service shelf with towel bar keeps seasoning pans and utensils within reach.
- Includes top-grid scraper for fast end-of-shift cleanup.
- 4″ adjustable bullet feet for quick leveling on any counter.
- Certified safe & sanitary: CSA Flame, CSA Star & NSF listed.
Built for serious output
- Standard model: 105,000 BTU/hr
- Optional High-Output version: 140,000 BTU/hr for ultra-fast recovery on heavy production lines
- 810 in² total cooking area—enough for 30 burgers (¼ lb) at once
Specifications
| Model | APM-RMB-636 (Radiant) |
|---|---|
| Overall Dimensions | 36″ W × 35 ½″ D × 21 3⁄8″ H |
| Cooking Surface Area | 810 in² (52 dm²) |
| Burners / Controls | 7 stainless steel – individually valved |
| Total BTU/hr | 105,000 BTU (std) / 140,000 BTU (high-output option) |
| Gas Connection | Single ½″ NPT inlet (¾″ regulator supplied) |
| Grate Style | Free-floating ½″ round rod steel, EZ Tilt front trough |
| Standard Accessories | 6″ service shelf, crumb tray, grid scraper |
| Legs | 4″ stainless bullet feet (adjustable) |
| Shipping Weight | ≈ 585 lb (265 kg) |
| Certifications | CSA Flame, CSA Star, NSF |
| Warranty | 2-year parts & labor, factory authorized service |
Popular options & accessories
- High-Output burner package (140 k BTU)
- MagiKrome™ or Cast-Iron grate sets (standard or fish spacing)
- MagiGriddle™ flat griddle plate
- 48″ quick-disconnect gas hose & restraining kit
- Equipment stand or back shelf
Gas pressure must meet 7–10″ W.C. natural or 11–13″ W.C. LP at the appliance under full load. Always verify local code requirements before installation.
