Magikitch'n (Middleby)

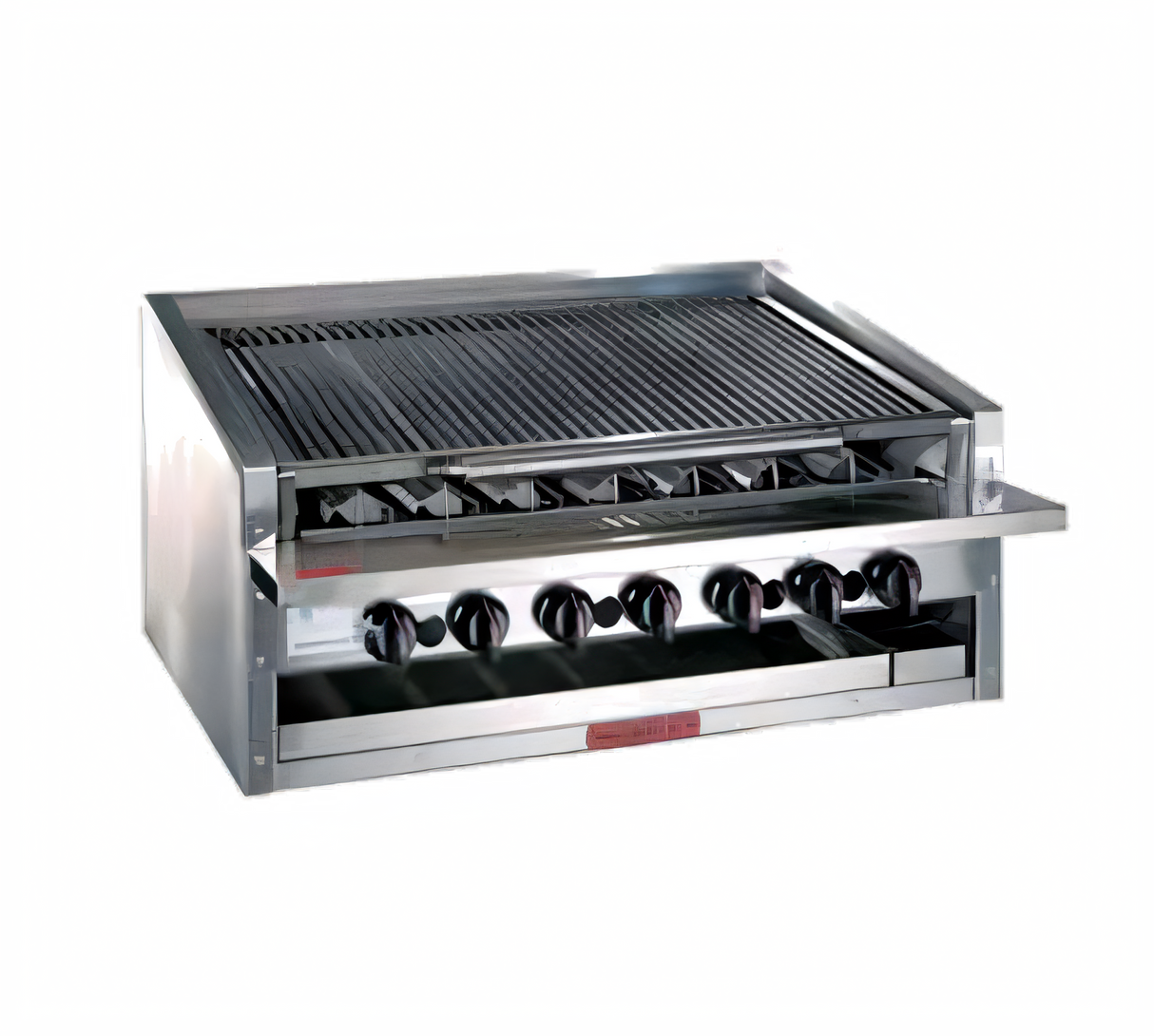

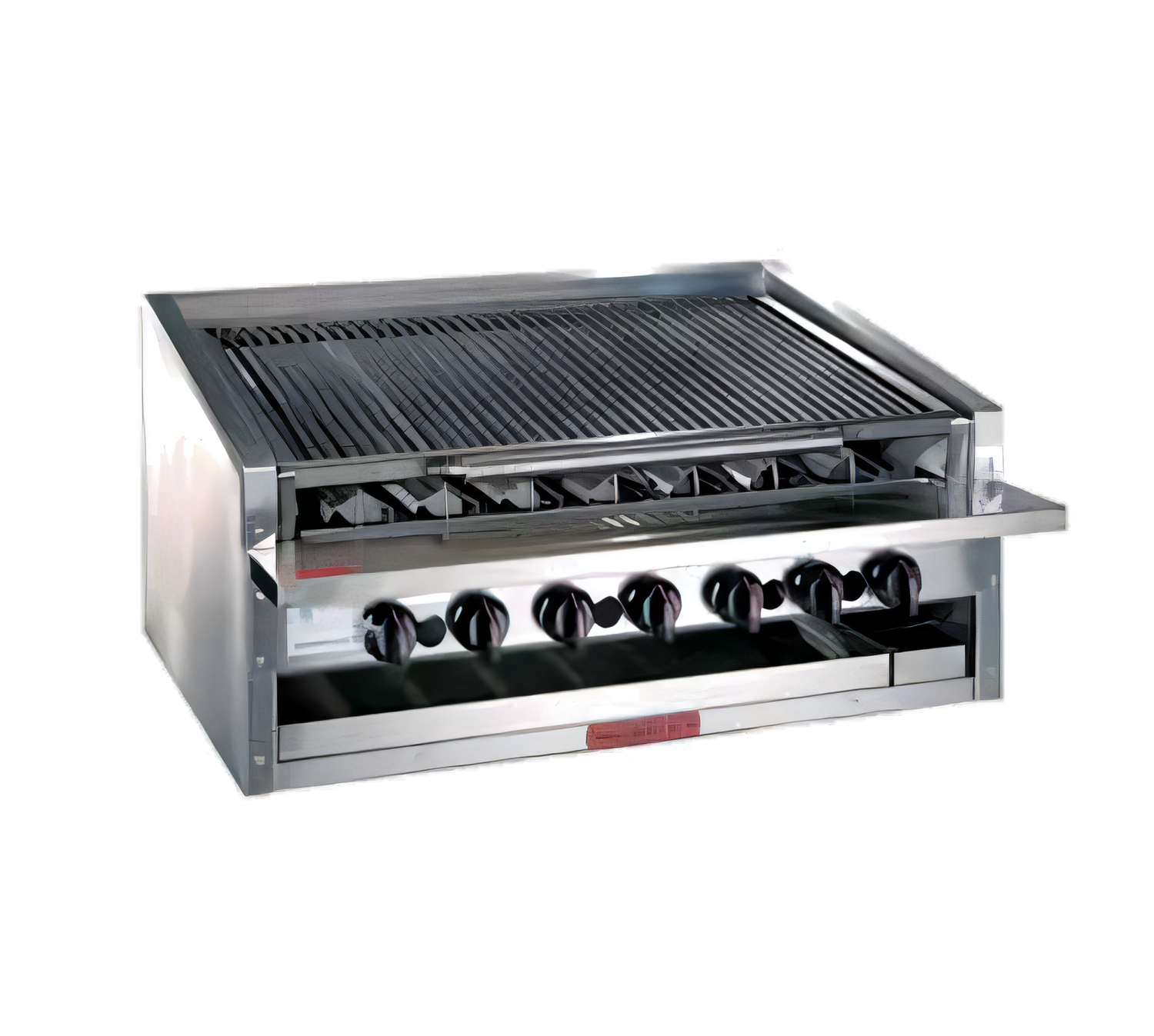

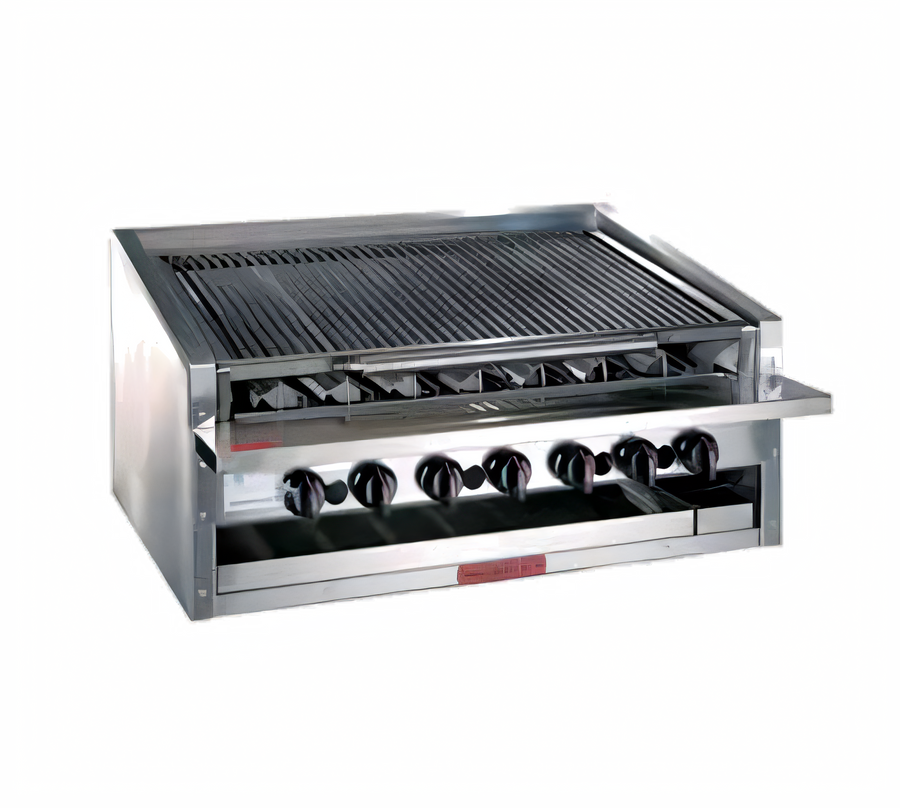

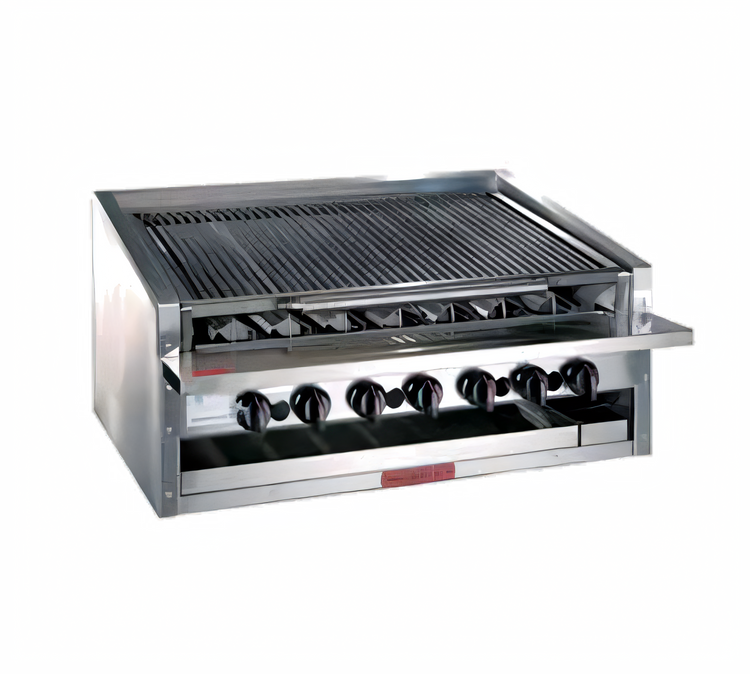

MagiKitch'n APM-RMB-624CR 24-Inch 4-Burner Low Profile Countertop Radiant Gas Charbroiler, 60,000 BTU/hr

SKU: APM-RMB-624CR
$8,192.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Charbroilers Charbroilers & Grills Commercial Grills Gas Charbroilers Magikitch'n (Middleby) New Arrivals Restaurant Equipment

MagiKitch'n APM-RMB-624CR 24-Inch 4-Burner Low Profile Countertop Radiant Gas Charbroiler, 60,000 BTU/hr

Free-floating round rod grate, E-Z tilt front trough, cast iron radiants, and 6-inch service shelf

Built for space-conscious kitchens, this low-profile radiant charbroiler delivers even heat, easy grease management, and rugged stainless-steel durability.

  • 24-inch low-profile countertop design fits work tables, counters, and properly insulated bases.
  • 4 burners and 60,000 BTU/hr standard output deliver dependable grilling performance.
  • Free-floating round rod top grate with E-Z tilt drains grease into the front trough.
  • Cast iron radiants and radiant heat help promote even cooking and strong grill marks.
  • Stainless steel construction with double-wall insulation improves durability and heat retention.
  • Includes a 6-inch stainless service shelf, top grid scraper, crumb tray, and 4-inch legs with bullet feet.

Overall Dimensions:

24.0"W x 33.5"D x 13.0"H

Product Weight:

421.0 lb

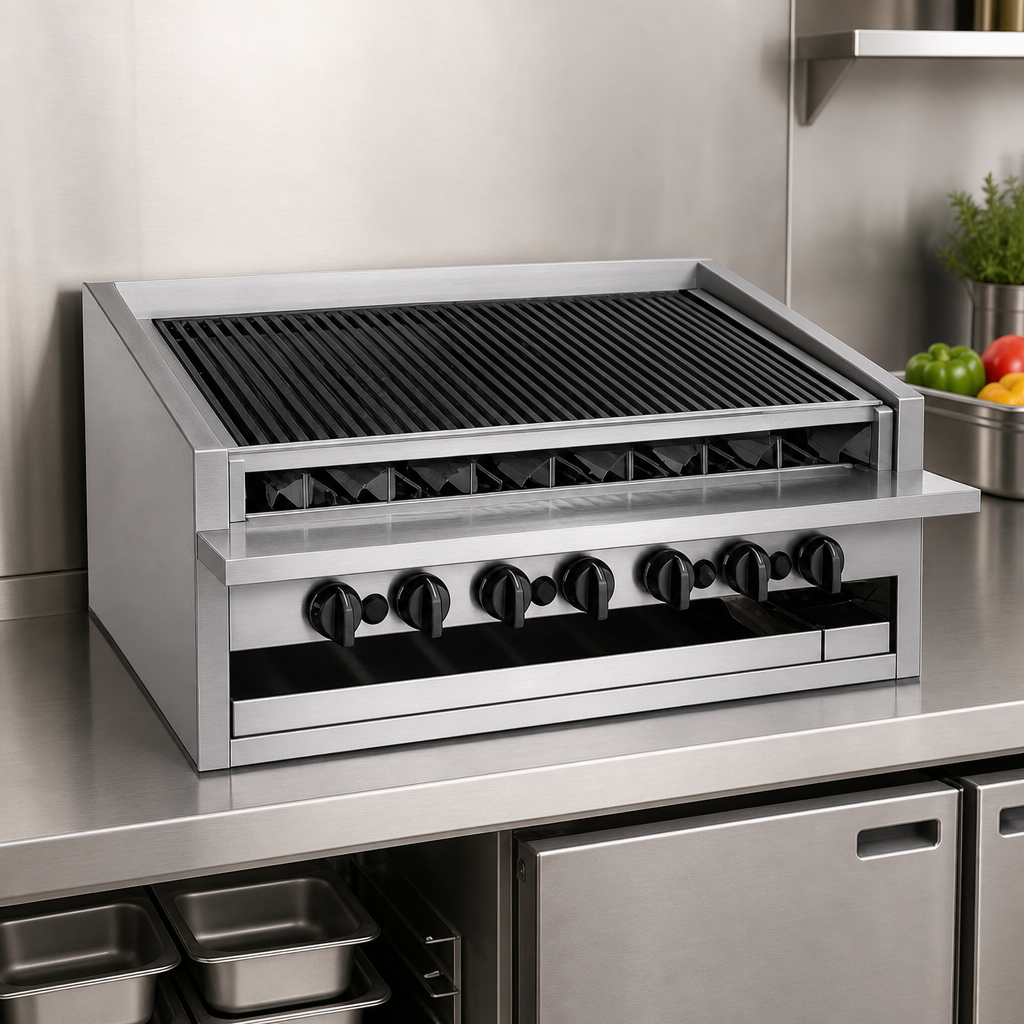

Low-Profile Countertop Design

Space-saving charbroiler intended for installation on work tables, counters, or properly insulated bases.

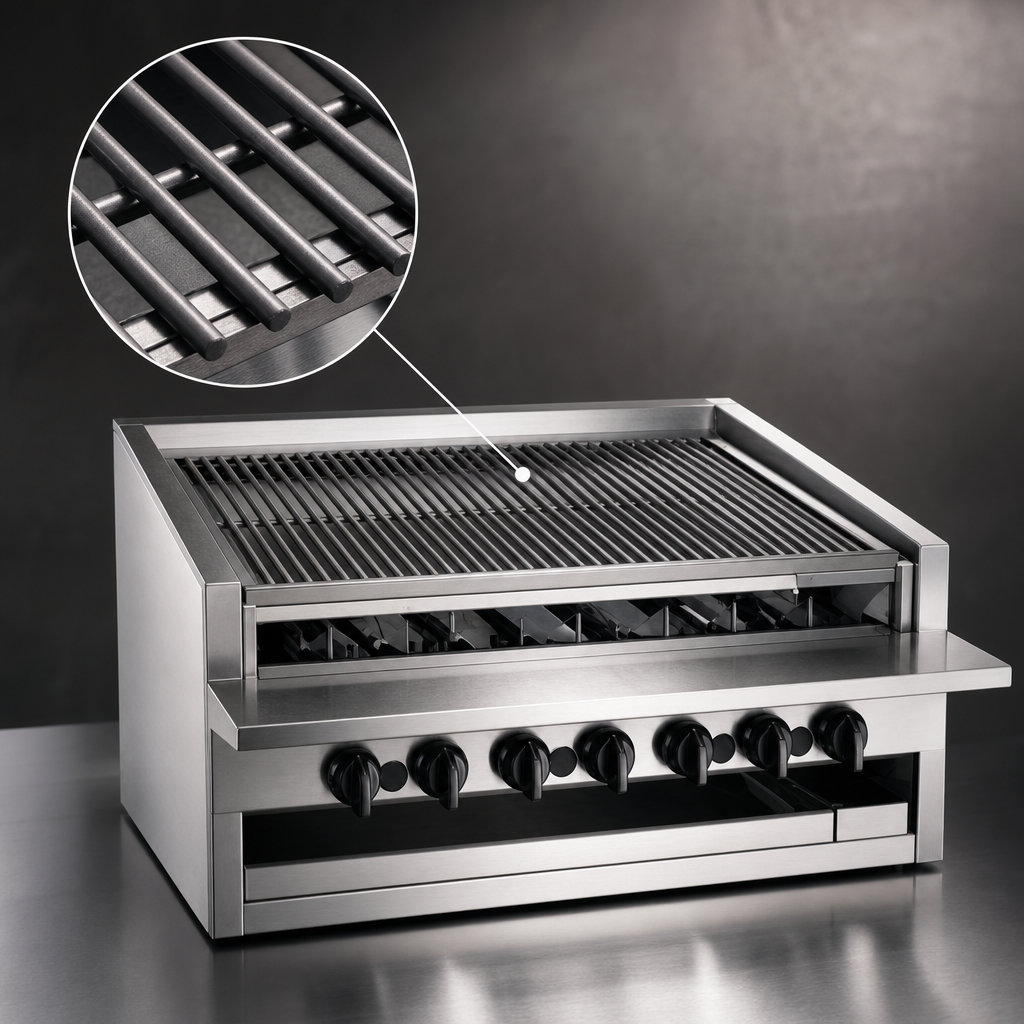

Free-Floating Round Rod Top Grate

1/2-inch steel rod grid allows expansion and contraction without warping.

E-Z Tilt Grease Drainage

Tilted grate directs grease into the front trough for easier cleanup.

Cast Iron Radiants

Heavy-duty radiants help spread heat evenly across the cooking surface.

Stainless Steel Double-Wall Cabinet

Stainless steel construction on all sides with full insulation supports durability and heat retention.

6-Inch Stainless Service Shelf

Provides additional staging space and includes a towel bar.

Manual Front Burner Controls

Independent controls allow precise heat adjustment across the unit.

Cleanup Accessories

Includes a crumb tray and top grid scraper to simplify maintenance.

4-Inch Legs with Bullet Feet

Raises the unit for countertop use and provides stable placement.

Type Gas Charbroiler
Style Low Profile
Installation Type Countertop
Controls Manual
Material Stainless Steel
Burners 4
Cooking Area 513 Square Inches
Grid Type Round Rod
BTU 60,000 BTU/hr
Shipping Width 45 Inches
Shipping Depth 36 Inches
Shipping Height 26 Inches
Shipping Weight 421 lb.
Selling Unit Each
Units Per Case 1

Documents

PDF Cutsheet PDF Download PDF Installation & operation PDF Download PDF Brochure PDF Download PDF Middleby financial flyer PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

This is a low-profile radiant gas charbroiler in the APM-RMB 600 Series.
Yes. The cutsheet describes it as a low-profile counter charbroiler designed for work tables, counters, or properly insulated refrigerated/freezer bases.
The free-floating top grate uses an E-Z tilt design that drains grease into the front trough, and the unit also includes a crumb tray.
The standard 624 model is rated at 60,000 BTU/hr, and a high-output 624-H version is listed at 80,000 BTU/hr.
For combustible materials, the cutsheet calls for 30 inches front clearance and 0 inches on the sides and rear. Do not block or restrict the flue area.
