Lockwood Manufacturing CA55-PFIN-26CD-L Mobile Insulated Proof/Hold Cabinet, Intermediate Height, 25-Pan, Clear Left-Hinged Door

SKU: CA55-PFIN-26CD-L
$6,369.60
/each
Enter ZIP for a shipping estimate

Want to speak to an expert?

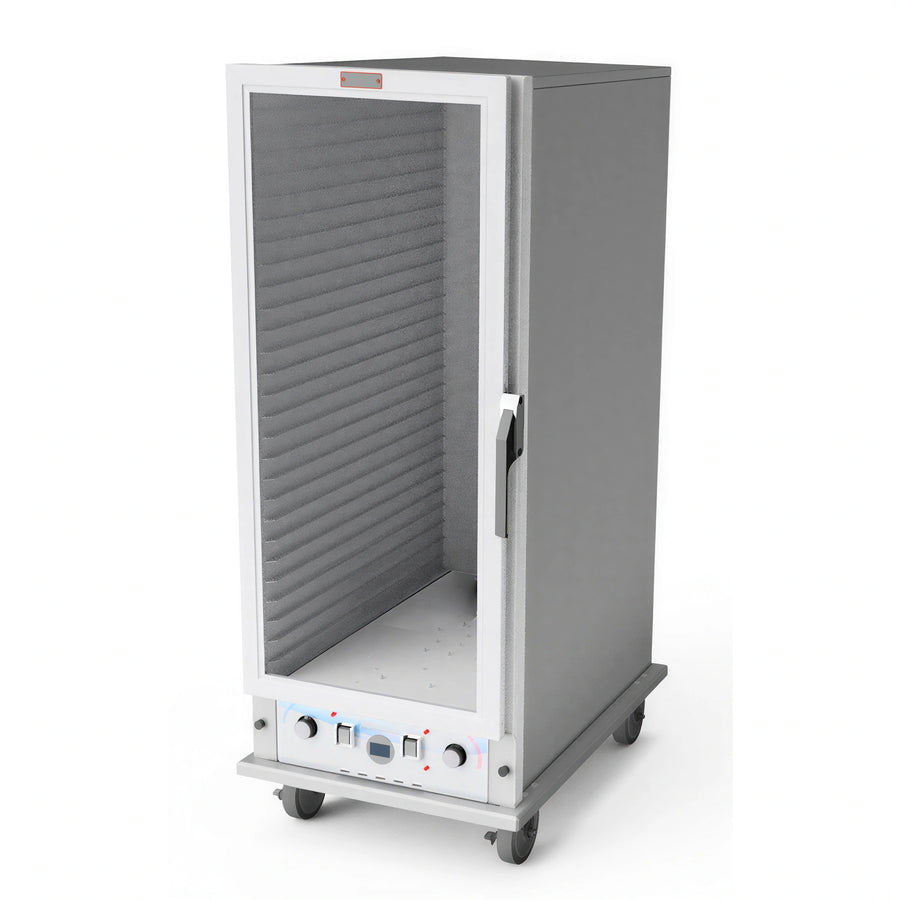

The CA55-PFIN-26CD-L is a mobile, insulated proof/hold cabinet with an intermediate-height design and a clear door hinged on the left.

It accommodates 25 18-inch x 26-inch pans on 1-1/2-inch fixed centers. Independent temperature and humidity controls support proofing or holding, with temperature adjustment up to 185°F and a digital thermometer display.

  • All-aluminum construction with an aluminum interior and exterior
  • Removable bottom-mounted heat unit
  • 5-inch swivel casters, including two with brakes
  • Requires a dedicated 15-amp circuit and receptacle for the NEMA 5-15P plug

Overall Dimensions:

22.38"W x 31.19"D x 55.88"H

Product Weight:

157.0 lb

Insulated proof/hold operation

Designed for proofing or holding with temperature adjustment up to 185°F.

25-pan capacity

Accommodates 25 18-inch x 26-inch pans on fixed 1-1/2-inch centers.

Clear left-hinged door

Features a clear door with the hinge on the left.

Independent controls

Provides separate temperature and humidity controls.

Digital thermometer display

Includes a digital thermometer display.

Removable heat unit

The bottom-mounted heat unit is removable.

Mobile construction

Uses 5-inch swivel casters, with two casters equipped with brakes.

Aluminum construction

Has an aluminum exterior and aluminum interior.

Product type Insulated proof/hold cabinet
Height class Intermediate height
Door Clear, left-hinged
Pan capacity 25 x 18-inch x 26-inch pans
Pan spacing 1-1/2-inch fixed centers
Temperature adjustment Up to 185°F
Controls Independent temperature and humidity controls
Thermometer Digital display
Heat unit Removable, bottom-mounted
Construction Aluminum
Insulation Insulated
Sections 1 section with 1 compartment
Casters 5-inch swivel casters; 2 with brakes
Electrical rating 120 V / 11.1 A / 60 Hz / 1 ph
Required circuit Dedicated 15 A circuit and receptacle
Plug NEMA 5-15P

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Warranty & Protection

Fully warranted.

Frequently Asked Questions

It has capacity for 25 18-inch x 26-inch pans on 1-1/2-inch fixed centers.
The clear door is hinged on the left.
The temperature is adjustable up to 185°F.
The cabinet requires a dedicated 15-amp circuit and receptacle to accommodate its NEMA 5-15P plug. Its rating is 120 V, 11.1 A, 60 Hz, single phase.
The provided product information states that this cabinet is fully warranted.
The intermediate-height, left-hinged cabinet is identified in the product information as custom and non-returnable.

Need Help Deciding?

Our equipment specialists can help you match specs to your kitchen layout, electrical capacity, and menu requirements.
