Lincoln Foodservice

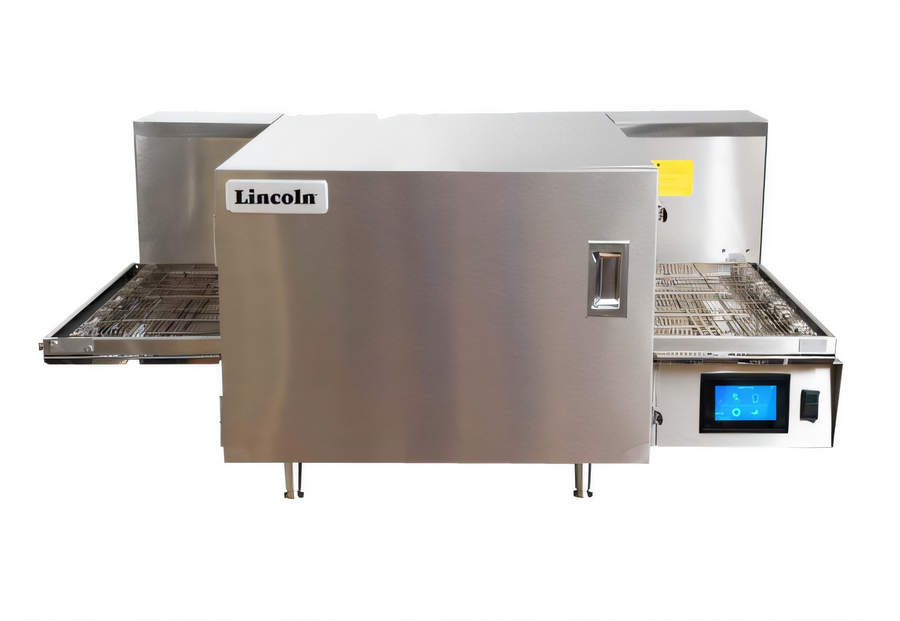

Lincoln Aperion 24 Series Ventless Electric Impinger Conveyor Oven with 16-Inch x 48-Inch Conveyor

SKU: 1624-SUV-
$16,357.55
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Ovens Commercial Pizza Ovens Conveyor Ovens Conveyor Ovens New Arrivals Ovens Restaurant Equipment

Lincoln Aperion 24 Series Ventless Electric Impinger Conveyor Oven with 16-Inch x 48-Inch Conveyor

208-240V, 3-Phase, Solid Door, 24-Inch Baking Chamber

A ventless impinger conveyor oven that delivers fast, consistent baking with easyTouch controls and a flexible stackable installation package.

  • Ventless electric design supports hoodless operation when permitted by local code.
  • 16-inch x 48-inch front-removable conveyor and 24-inch baking chamber are built for high-volume output.
  • easyTouch digital controls with 20 recipe presets simplify operation and repeatability.
  • Independent top and bottom airflow control helps deliver uniform bake results.
  • Stainless steel construction and removable door and finger assemblies make cleaning easier.
  • Includes countertop kit with 4-inch legs and ring mounts, plus an end stop and cleaner starter kit.

Overall Dimensions:

49.0"W x 31.75"D x 19.1"H

Product Weight:

330.0 lb

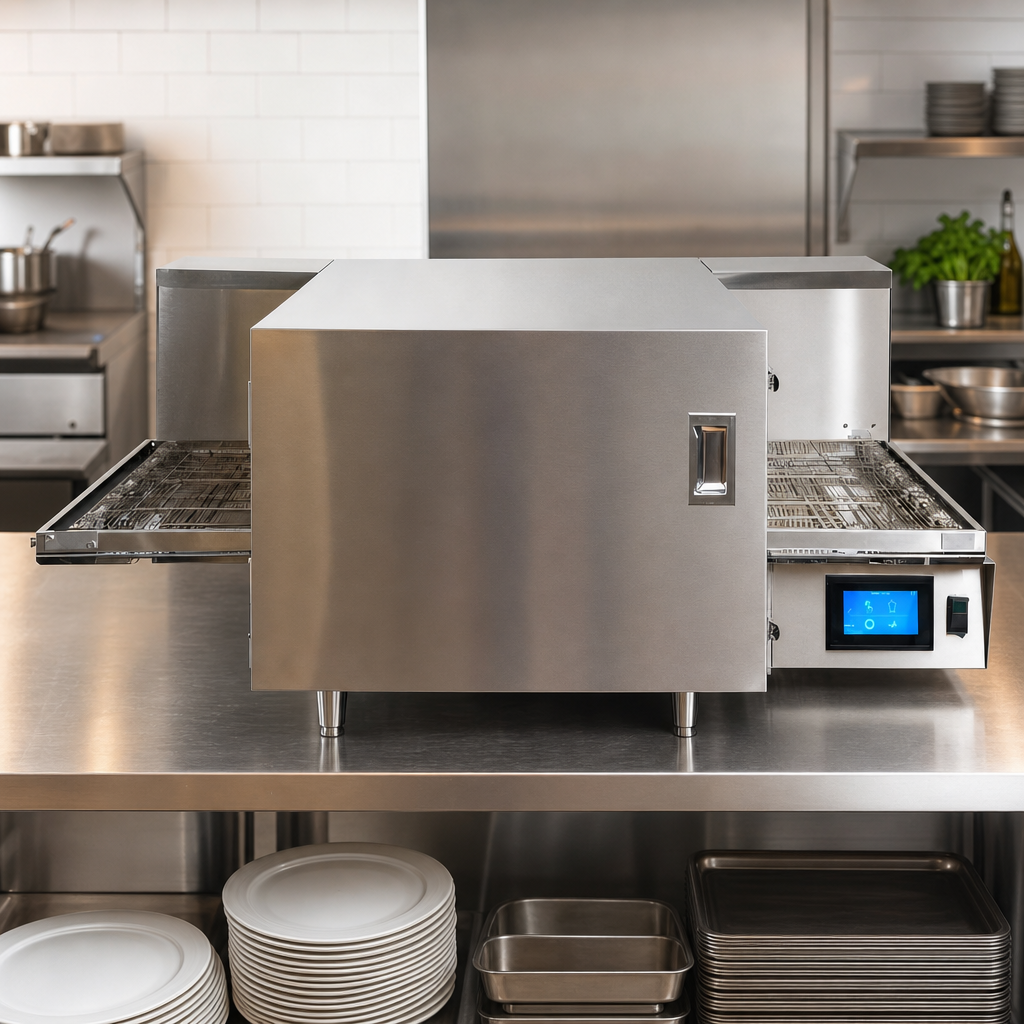

Ventless Electric Configuration

Designed for ventless operation on electric models when installed per applicable local codes.

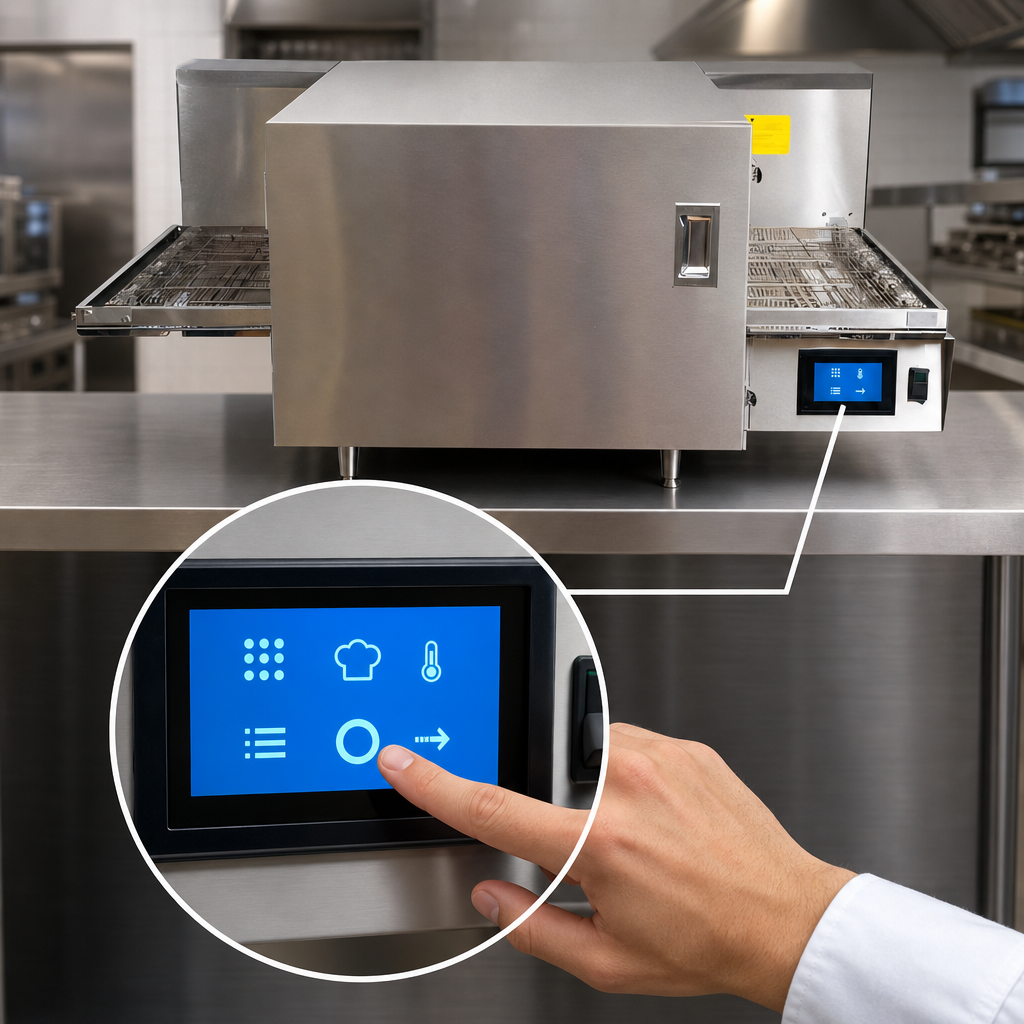

easyTouch Digital Controls

Front-located controls with 20 recipe presets and one-touch belt direction change for easier operation.

Independent Airflow Control

Adjustable top and bottom air control helps optimize bake results and product consistency.

Front-Removable Conveyor

The 16-inch wide x 48-inch long conveyor is front removable for easier servicing and cleaning.

Easy-Clean Stainless Construction

Stainless steel exterior and interior components, plus front-removable door and finger assemblies, simplify cleanup.

Included Countertop Kit

Includes 4-inch legs and ring mounts for single or double stack countertop configurations.

Stackable Design

Documentation notes that the 1624 models can be stacked in ventless and non-ventless operation.

Included Setup Items

One end stop and one cleaner starter kit are included with the oven.

Type Conveyor Oven
Style Impinger
Installation Type Countertop
Controls Digital
Voltage 208-240 Volts
Amps 38.5-44.3 Amps
Watts 13.9-18.5 kW
Hertz 60 Hz
Phase 3-Phase
Material Stainless Steel
Interior Finish Stainless Steel
Capacity 24-Inch Baking Chamber
Cooking Surface Width 16 Inches
Cooking Surface Depth 48 Inches
Temperature Range 250 to 600 Degrees F
Shipping Width 49 Inches
Shipping Depth 32 Inches
Shipping Height 20 Inches
Shipping Weight 330 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of UL Certified
UL Certified
Certified badge of CSA Certified
CSA Certified

Warranty & Protection

2-year parts and labor factory warranty

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

Yes. This is the electric ventless version of the 1624 Aperion impinger conveyor oven, intended for ventless operation when installed according to local codes.
It has a 16-inch wide x 48-inch long conveyor.
The baking chamber is 24 inches.
The oven is specified for 208-240V, 3-phase, 60 Hz service and draws 38.5 to 44.3 amps.
It includes a countertop kit with 4-inch legs and ring mounts, one end stop, and one cleaner starter kit.
The oven comes with a two-year parts and labor factory warranty from the date of install and approved start-up, and it must be installed within 18 months of the manufacture date.
