Lincoln Foodservice

Lincoln Aperion 24 Series 16-Inch x 48-Inch Lower Amp Electric Impinger Conveyor Oven, Solid Door, Hood Required

SKU: 1624-LUH
$15,539.70
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

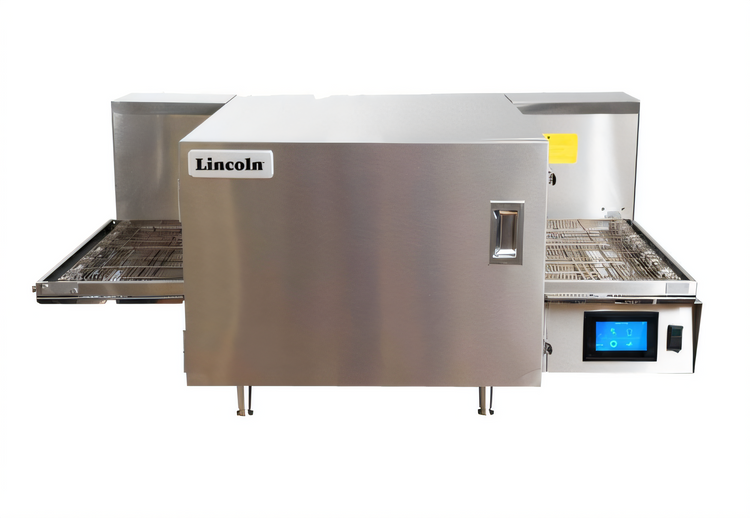

Lincoln Aperion 24 Series 16-Inch x 48-Inch Lower Amp Electric Impinger Conveyor Oven, Solid Door, Hood Required

Single Deck Floor Model, 208-240V, 60Hz

This hood-required lower-amp electric impinger conveyor oven delivers fast, even bake results with digital presets, independent airflow control, and a 16-Inch x 48-Inch conveyor.

  • Hood-required, non-ventless lower-amp electric model for vented commercial kitchen installations.
  • 16-Inch x 48-Inch front-removable conveyor and 24-Inch baking chamber support high-volume output.
  • easyTouch digital controls provide 20 recipe presets, one-touch belt reversal, and ECO mode.
  • Independent top and bottom airflow control helps produce more uniform bake results.
  • Stainless steel interior and exterior components plus front-removable door and finger assemblies simplify cleaning.
  • Includes countertop kit with 4-inch legs and ring mounts, one end stop, and a cleaner starter kit.

Overall Dimensions:

49.0"W x 31.75"D x 19.1"H

Product Weight:

380.0 lb

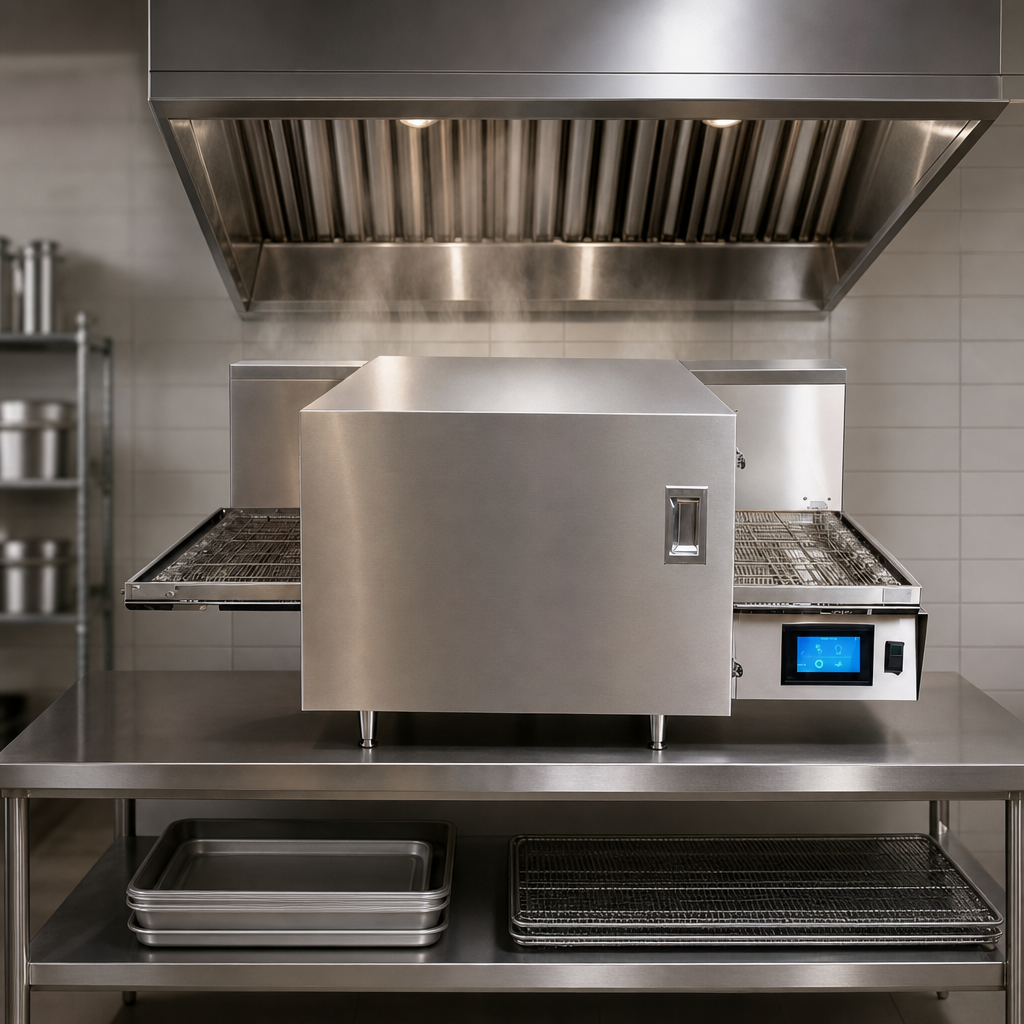

Hood-Required Electric Design

Non-ventless electric configuration designed for installations that require an exhaust hood.

Hood-Required Electric Design

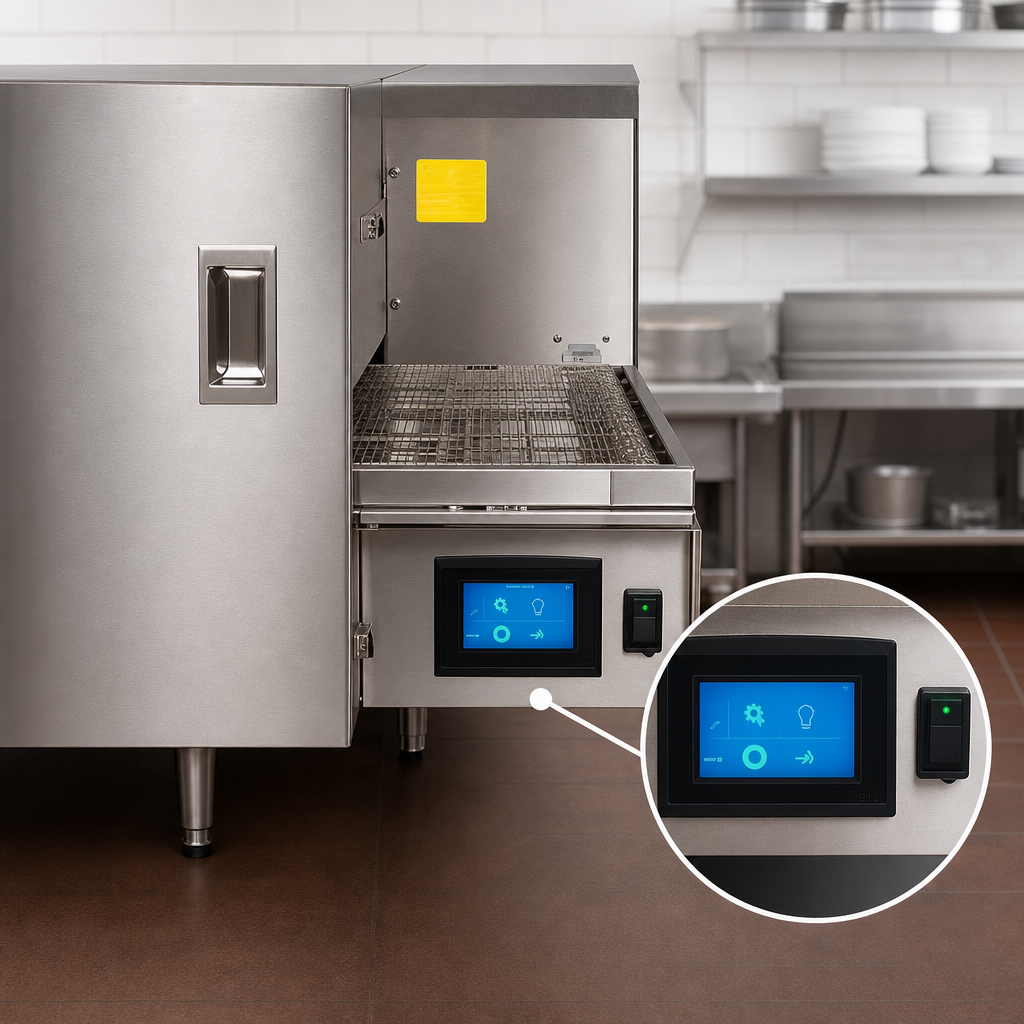

easyTouch Digital Controls

Front-located controls with 20 recipe presets and one-touch belt direction change for fast, repeatable operation.

easyTouch Digital Controls

Independent Airflow Control

Adjustable top and bottom air control helps optimize bake results and improve uniformity.

Front-Removable Conveyor

16-Inch x 48-Inch conveyor removes from the front for easier access, maintenance, and cleaning.

Easy-Clean Construction

Front-removable door and universal finger assemblies make cleaning easier; stainless steel components wipe down quickly.

Included Setup Kit

Includes countertop kit with 4-inch legs and ring mounts for single or double stack configurations, plus one end stop and one cleaner starter kit.

ECO Mode

One-touch ECO mode holds the oven at set temperature while helping minimize energy use during slower periods.

Type Conveyor Oven
Style Impinger
Installation Type Floor Model
Material Stainless Steel
Interior Finish Stainless Steel
Capacity 24-Inch Baking Chamber
Controls Digital
Temperature Range 250°F to 600°F
Cooking Surface Width 16 Inches
Cooking Surface Depth 48 Inches
Voltage 208 - 240 Volts
Amps 26 - 42.5 Amps
Watts 7.7 - 12.5 kW
Hertz 60 Hz
Phase 1-Phase or 3-Phase
Selling Unit Each
Units Per Case 1
Shipping Width 49 Inches
Shipping Depth 32 Inches
Shipping Height 20 Inches
Shipping Weight 380 Pounds

Certifications & Compliance

Certified badge of UL Certified
UL Certified
Certified badge of CSA Certified
CSA Certified

Warranty & Protection

2-year parts and labor factory warranty

Frequently Asked Questions

No. The LUH model is a hood-required, non-ventless electric oven.
The conveyor measures 16 inches wide by 48 inches long.
It operates from 250°F to 600°F.
It uses front-located easyTouch digital controls with 20 recipe presets and one-touch belt direction change.
It includes a countertop kit with 4-inch legs and ring mounts, one end stop, and one cleaner starter kit.
Yes. The 1624 series is designed for stackable configurations, and this model includes ring mounts for single or double stack setups.

Need Help Deciding?

Our equipment specialists can help you match specs to your kitchen layout, electrical capacity, and menu requirements.
