Legion  |  SKU: TWWT-80

Legion TWWT-80 Steam Kettles

$12,234.60
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Warranty sheet
Related Searches
Cooking Equipment Cooking Equipment Restaurant Equipment Steam Cooking Equipment Steam Cooking Equipment Steam Kettle Steam Kettles

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

Legion TWWT-80 80-Gallon Direct Steam Tilting Wall-Mount Kettle

2/3 Jacketed • 304 Stainless Steel • Made in USA

Engineered for high-volume, high-efficiency production kitchens, the Legion TWWT-80 delivers a full 80 gallons (303 L) of evenly heated capacity while freeing up valuable floor space. Seamless stainless construction, a smooth self-locking tilt and rugged wall mounting make this kettle a reliable, long-term workhorse for soups, sauces, stocks and more.

Key Features

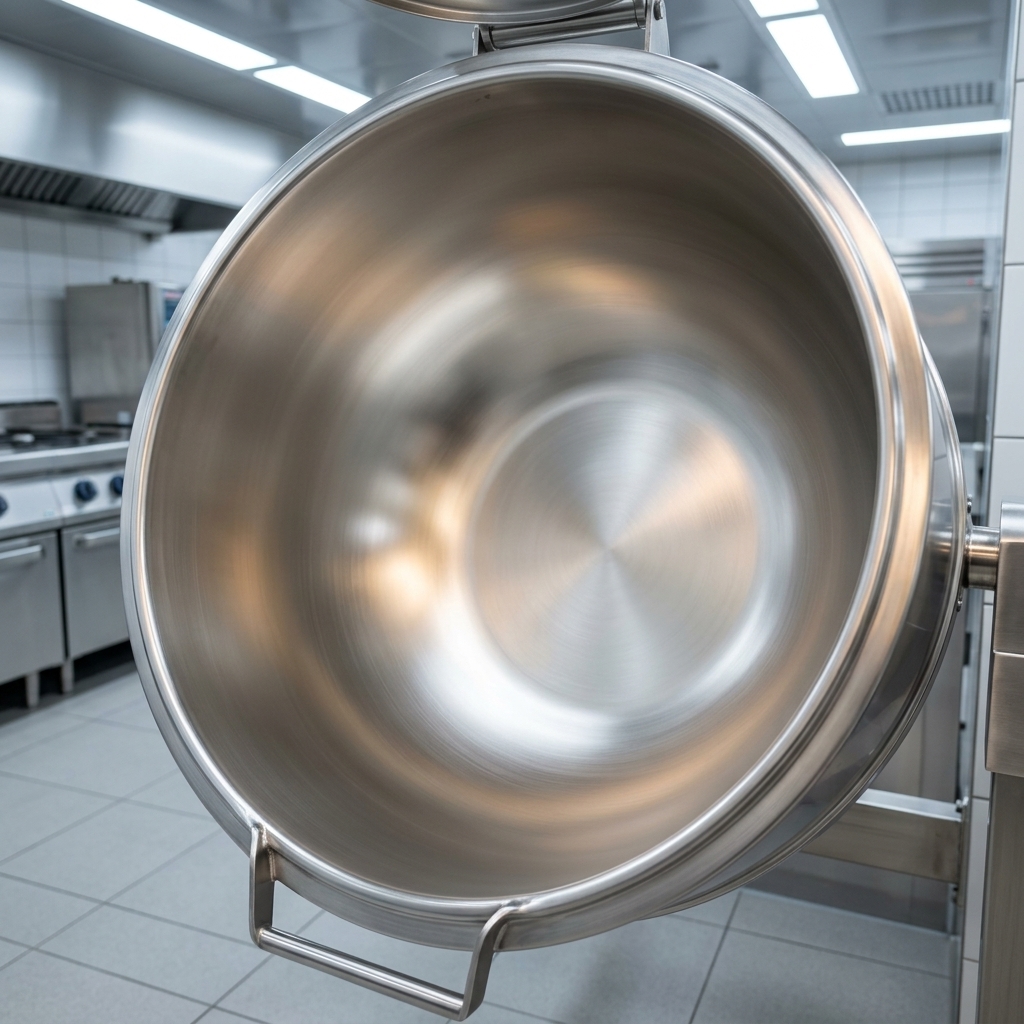

  • Seamless deep-drawn 304 stainless steel kettle liner resists pitting and simplifies cleanup

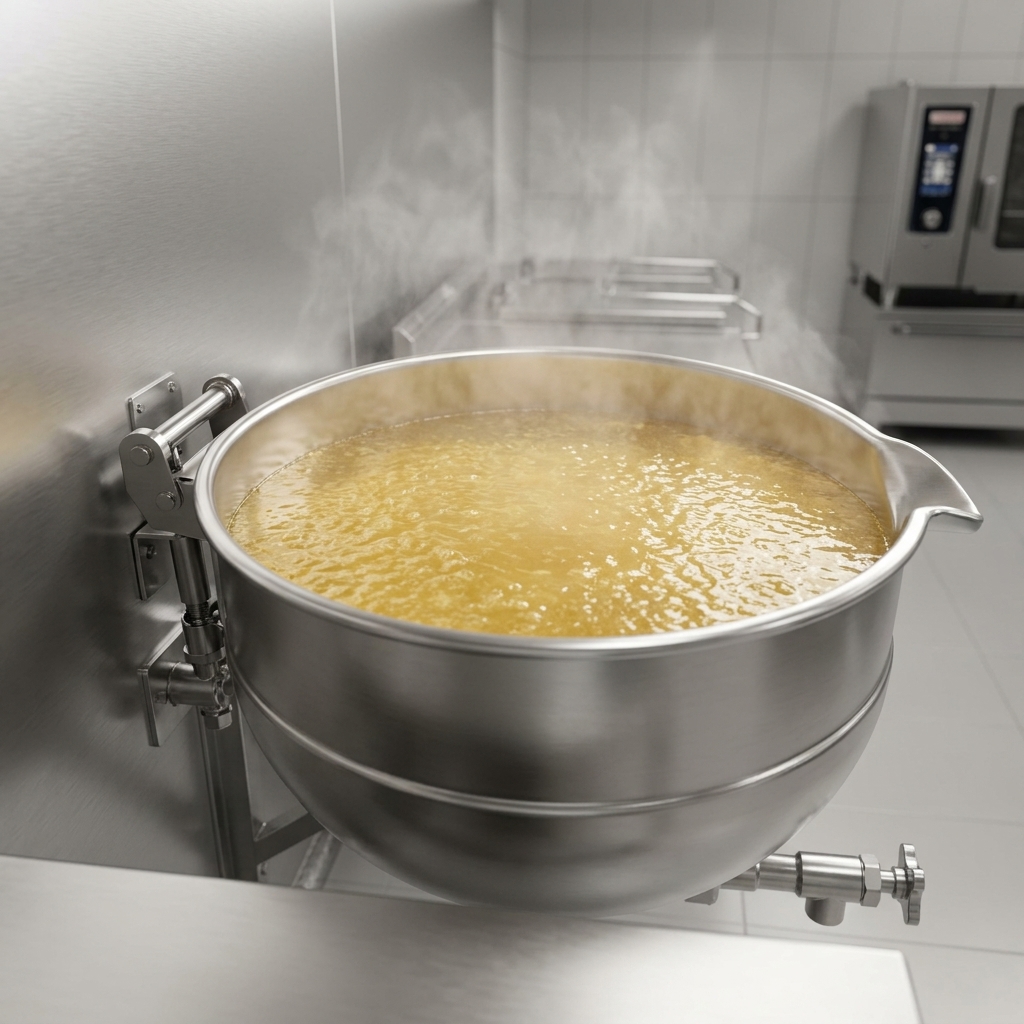

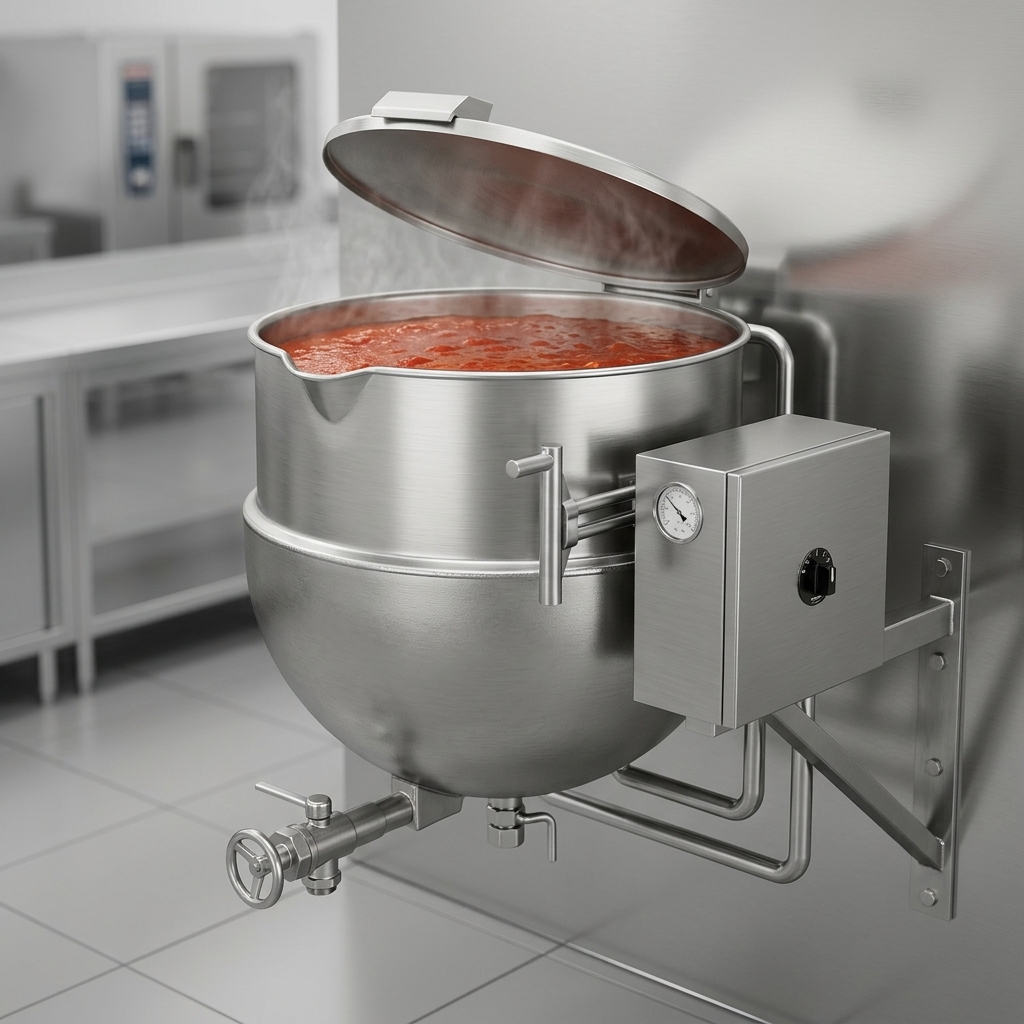

  • 304L stainless 2/3 jacket surrounds side & bottom for rapid, uniform direct-steam heating
  • Self-locking worm-gear tilt with reinforced 304 stainless gear box—smooth, controlled pouring
  • 304 stainless support arms seam-welded to jacket; wall-bracket mounting keeps floors clear
  • 30 psi operating pressure tackles demanding production schedules
  • Integrated stainless control console keeps controls protected and within reach
  • ASME-code constructed, NSF compliant & proudly built in Waynesboro, GA USA

Model-Specific Specifications

Model TWWT-80
Capacity 80 gal / 303 L
Mounting Wall-bracket, tilting
Jacket 2/3 jacketed, 304L stainless, direct steam
Operating Pressure 30 psi (max.)
Tilt Mechanism Self-locking worm gear with reinforced stainless gear box
Construction Seamless 304 stainless liner & exterior; stainless support arms
Steam Connections ¾″ NPT inlet & outlet
Approx. Dimensions* Inside Ø 32.5″ (A) • Inside Depth 27.6″ (B) • Overall Width 46.3″ (C) • Overall Height 53.3″ (F) • Min. Pour Path 40.5″ (Z)
Country of Origin USA

*Refer to spec sheet for complete dimensional data.

Popular Options & Accessories (Sold Separately)

  • Single or dual fill faucet with 12″ / 18″ swing nozzle
  • 48″ flexible spray hose assembly (vinyl or stainless)
  • 2″ or 3″ draw-off valve kits & installation tools
  • Automatic water fill meter
  • Lift-off or actuator-assisted cover
  • Basket, tri-basket & nylon bag inserts
  • Measuring strip, pour-lip pan holder & kettle care kit

Looking for something custom? Additional options—such as higher operating pressure, mixer/agitator or in-wall carrier—are available upon request.

Why Choose Legion?

  • Over 70 years of U.S. manufacturing expertise
  • ASME-stamped pressure vessels for uncompromising safety
  • 12-month parts & labor warranty with optional extended coverage
  • Factory-backed support and readily available replacement parts
Important: This kettle requires an external 30 psi direct-steam supply and secure wall anchoring (in-wall carrier recommended). Installation must be performed by qualified personnel in accordance with local codes.

Features & Specs

Manufacturer

Legion

Shipping Weight

451.0lbs

Kettle Liner

304 stainless steel

Base

wall mount

Kettle Jacket

partial jacket

Tilt

manual tilt

Capacity

80 - 150 gallon

Specifications

Direct Steam Tilting Wall-Mount Kettle, 80-gallon, 304 stainless steel liner, 2/3 jacket, self-locking worm gear tilt, stainless steel kettle, control console, stainless steel support arms seam welded to jacket, 30 psi
