Legion TWWT-60 Wall-Mounted Tilting Kettle with MV Mixer – 60 gal
Direct-Steam • 2/3 Jacket • 304 Stainless • 30 psi • Made in USAProduce perfectly blended soups, sauces, stews and fillings up to 60 gallons (227 L) in one seamless operation. The Legion TWWT-60 combines a space-saving wall-bracket design, a self-locking tilt mechanism and an integrated two-speed MV mixer to deliver fast, even cooking with unmatched batch consistency.
Why This Kettle Stands Out
- Seamless 304 stainless liner – deep-drawn for a smooth, crevice-free cooking surface that cleans in seconds.
- Energy-efficient 2/3 jacket – surrounds the product with steam for rapid, uniform heating.
- Self-locking worm-gear tilt – reinforced stainless gearbox delivers smooth, controlled pouring with no drift.
- Wall-bracket mount – frees up valuable floor space and simplifies wash-down around the work area.
- MV twin-shaft agitator – anchor agitator, nylon scrapers and counter-rotating beater keep product moving and prevent scorching.
- 30 psi ASME-rated jacket – handles everything from delicate custards to high-volume chowders.
- All welded 304 stainless support arms are seam welded to the jacket for maximum rigidity.
- Built and factory-tested in the USA to NSF, UL and other major agency standards.
Integrated Two-Speed MV Mixer
- Enclosed, balanced aluminum mixer bridge with totally enclosed gear motor.
- Two operating speeds • Main agitator 23 / 46 rpm • Secondary beater 60 / 120 rpm.
- 304 SS anchor agitator contoured to kettle wall; removable nylon blades scrape the entire surface.
- 304 SS counter-rotating beater improves product dispersion and eliminates hot spots.
- Bayonet-mount shafts lift out quickly for cleaning or for kettle use without the mixer.
- Actuator-assisted lift plus positive rim lock prevent accidental engagement or high-speed starts.
Technical Specifications
| Model | TWWT-60 (with MV Mixer) |
|---|---|
| Capacity | 60 gal | 227 L |
| Mounting | Wall-bracket; 304 SS arms seam-welded to jacket |
| Kettle Material | Seamless 304 SS liner, 304L jacket |
| Jacket Coverage | 2/3 of kettle body |
| Operating Pressure | 30 psi (ASME) |
| Tilt Mechanism | Manual hand wheel, self-locking worm gear, reinforced stainless gearbox |
| Mixer Drive | Twin-shaft, two-speed gear motor (15 : 1 ratio) |
| Steam Connections | ¾″ NPT inlet, ½″ NPT condensate outlet |
| Overall Width (A) | 29.5″ / 750 mm |
| Overall Depth (C) | 44.4″ / 1 128 mm |
| Height to Rim (F) | 49.6″ / 1 260 mm |
| Minimum Pour Path (X) | 30.1″ / 765 mm |
| Weight | Consult factory (varies with options) |
| Country of Origin | USA |

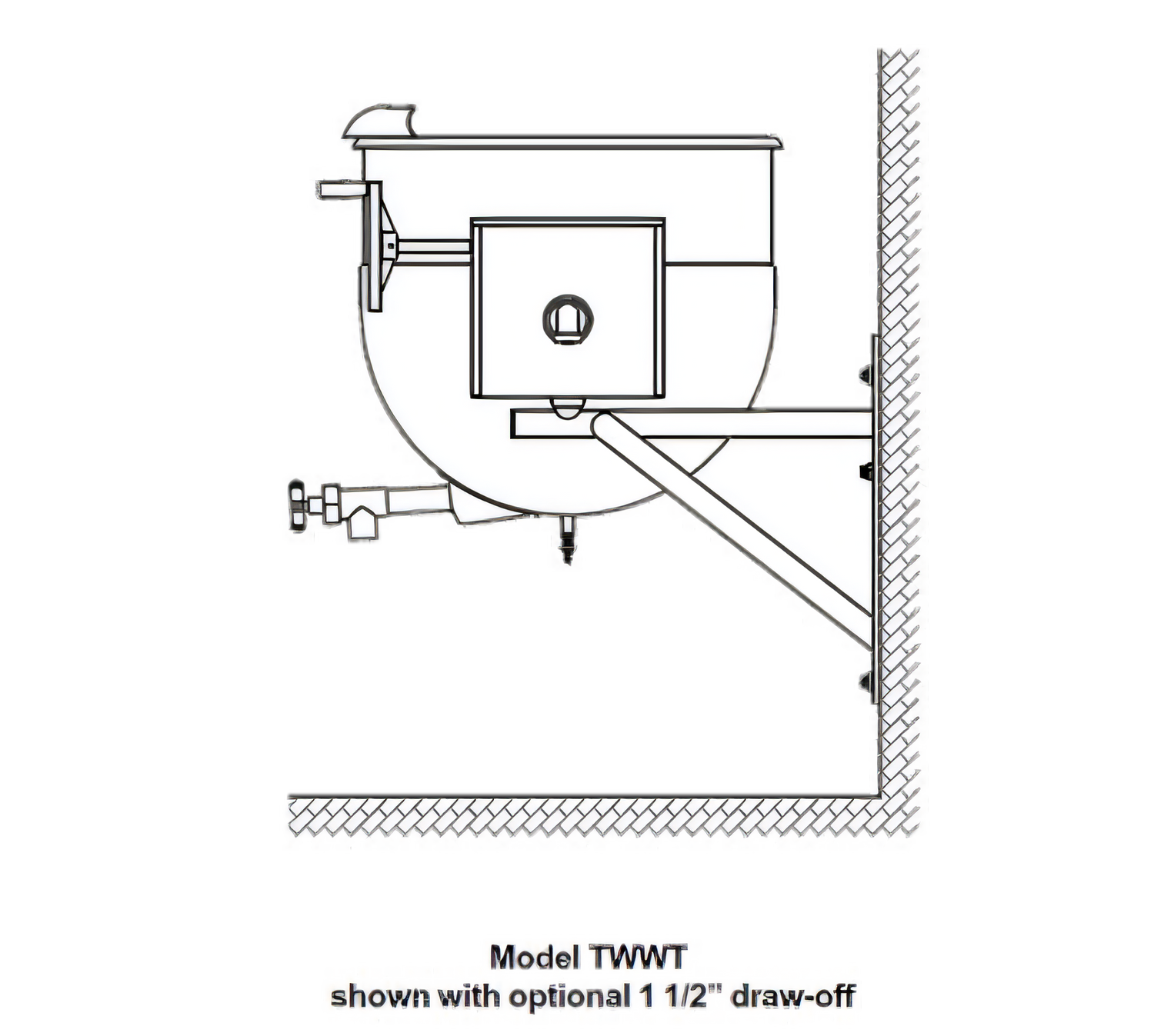

Dimension “H” (16.4″) will vary depending on the draw-off valve selected.
Popular Factory-Installed Options
- 2″ or 3″ sanitary draw-off valve (compression or ball type)
- Single or dual fill faucet with 12″ / 18″ swing nozzle
- 48″ flexible spray hose (vinyl or stainless)
- Automatic water-fill meter
- Lift-off or lockable cover
- Basket, tri-basket or nylon bag inserts
- In-wall carrier for reinforced installations
Product Weight:
