Legion TWWT-40 Direct Steam Tilting Wall-Mount Kettle with MV Mixer – 40 Gal

2/3 Jacketed • 304 Stainless • Twin-Shaft Agitator • 30 psi

Engineered for demanding commercial kitchens, the TWWT-40 delivers 40 gallons of fast, even steam-powered cooking while its integrated two-speed MV mixer keeps product moving, prevents scorching and slashes hand-stirring labor. Built in the USA from heavy-gauge stainless steel, this wall-mounted workhorse opens valuable floor space and tilts effortlessly for safe, controlled pouring.

Kettle Highlights
  • Seamless deep-drawn 304 stainless steel liner for maximum sanitation.
  • 2/3 jacketed 304L stainless shell provides rapid, uniform heat transfer.
  • Self-locking worm-gear tilt mechanism—smooth, precise & secure.
  • Rugged 304 stainless support arms seam-welded to jacket; wall-bracket mount frees floor space.
  • Reinforced stainless control console keeps steam and mixer controls at your fingertips.
  • Rated 30 psi operating pressure; ASME stamped.
  • Made in the USA to NSF & UL standards.
Integrated MV Twin-Shaft Mixer
  • Two-speed totally enclosed gear motor (High: 46 rpm main / 120 rpm secondary  •  Low: 23 rpm / 60 rpm).
  • 304 stainless anchor-style main agitator hugs kettle contour for full-body mixing.
  • Counter-rotating secondary beater boosts agitation and eliminates “dead” spots.
  • Removable nylon scraper blades continuously clean the kettle wall for superior heat exchange.
  • Bayonet-mount agitators lift out quickly for cleaning or non-mixing operation.
  • Actuator-assisted bridge lift with positive rim lock; built-in safety prevents high-speed starts when raised.
Perfect For
  • Soups, stews, chilis & chowders
  • High-volume sauces, gravies & roux
  • Custards, puddings & delicate creams
  • Confections, chocolate & sugar melts
Specifications
Model Legion TWWT-40 with MV Mixer
Capacity 40 gal / 151 L
Kettle Construction Seamless 304 stainless liner, 304L stainless 2/3 jacket
Mounting Wall-bracket, stainless support arms
Heating Source Direct steam (customer supplied)
Operating Pressure 30 psi (2.07 bar)
Tilt Mechanism Manual crank, self-locking worm gear
Overall Width (A) 25.5 in / 648 mm
Overall Depth (B) 22.3 in / 566 mm
Overall Height (F) 45.3 in / 1,151 mm*
Steam Inlet / Outlet ¾ in NPT / ½ in NPT
Mixer Motor High 2 HP • Low 1 HP, totally enclosed gear motor
Mixer Speeds High 46 rpm main / 120 rpm secondary
Low 23 rpm main / 60 rpm secondary
Electrical 115-, 208-, 230- or 460-V • 1- or 3-phase • 60 Hz

*Height will vary with mounting height and selected accessories.

What’s Included
  • 304 stainless tilting kettle with MV mixer assembly
  • Control console & crank handle
  • Wall-mounting bracket & hardware
  • ASME data plate & pressure gauge
  • Operator’s manual + one-year limited parts & labor warranty
Popular Factory Options

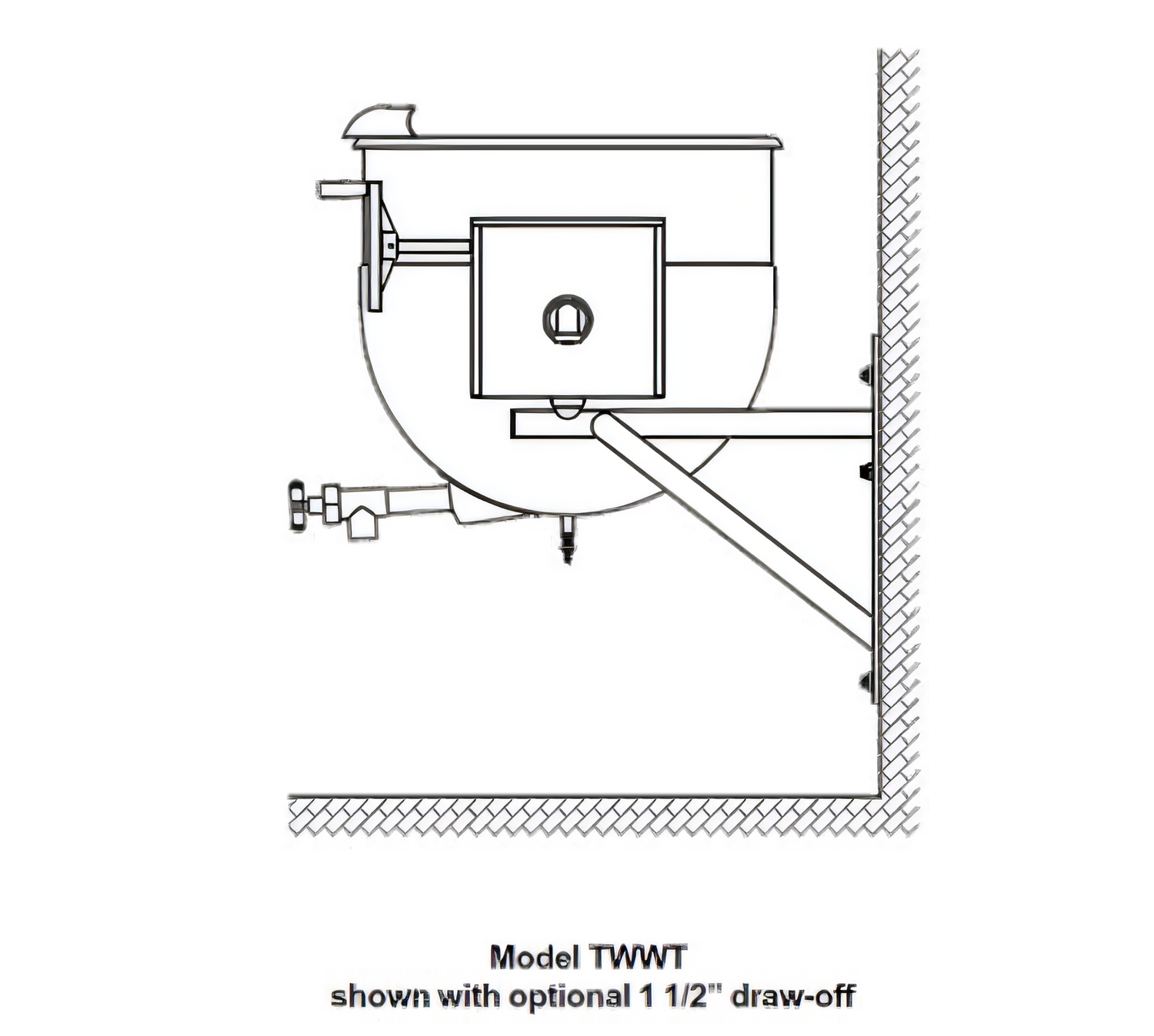

  • 2 in or 3 in draw-off valve (compression or ball type)
  • Single or dual water fill faucet with 12″/18″ swing nozzle
  • 48″ flexible spray hose assembly
  • Automatic water-fill meter
  • Higher operating pressure rating
  • Lockable lid, basket inserts & more—ask our team!
Installation Note: A plumbed steam supply, condensate return and dedicated electrical connection for the mixer are required and are not included with the kettle.

Product Weight:

659.0 lb
Manufacturer Legion
Shipping Weight 659.0lbs
Jacket 2/3 jacket
Capacity 40 gal
Base wall mount
Kettle Liner stainless steel
Type tilt
Specifications Direct Steam Tilting Wall-Mount Kettle, with mixer, 40-gallon, 304 stainless steel liner, 2/3 jacket, self-locking worm gear tilt, stainless steel kettle, control console, stainless steel support arms seam welded to jacket, 30 psi
