Legion  |  SKU: TWWT-40

Legion TWWT-40 Steam Kettles

$9,376.20
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Warranty sheet
Related Searches
Cooking Equipment Cooking Equipment Restaurant Equipment Steam Cooking Equipment Steam Cooking Equipment Steam Kettle Steam Kettles

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

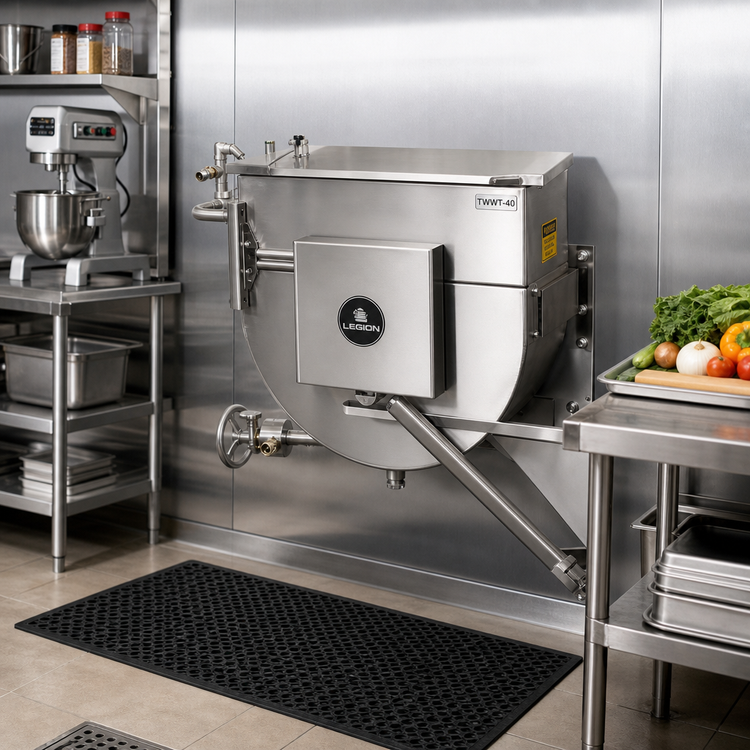

Legion TWWT-40 Direct Steam Tilting Wall-Mount Kettle

40 Gallon • 2/3 Jacketed • 304 Stainless • 30 psi

Built for demanding production kitchens, the Legion TWWT-40 delivers 40 gallons (151 L) of consistent, evenly-heated cooking capacity in a space-saving wall-mounted design. A seamless 304 stainless liner, rugged worm-gear tilt and full 2/3 steam jacket give chefs the speed, control and durability they need for high-volume soups, sauces, stocks and more.

Key Performance Features

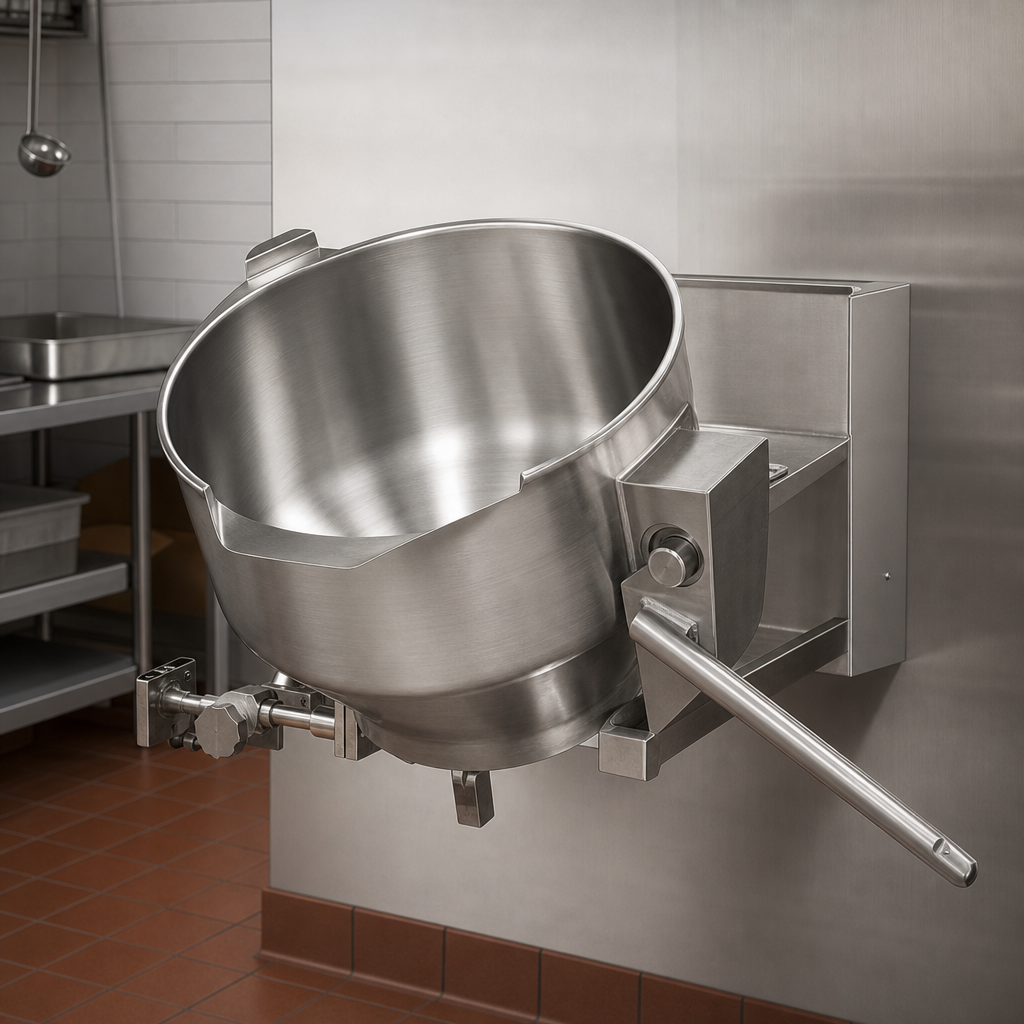

  • Seamless deep-drawn 304 stainless kettle liner—hygienic, easy to clean, non-reactive.

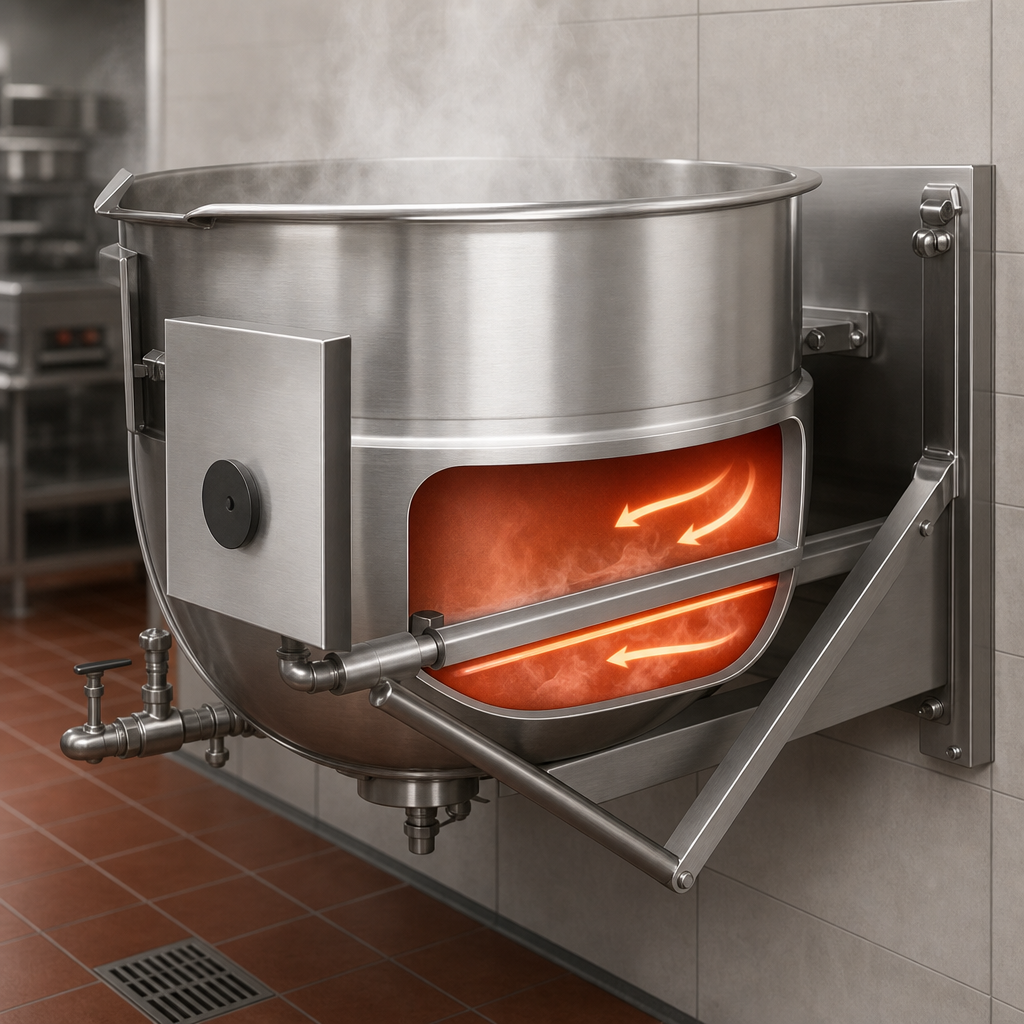

  • 2/3 steam jacket (304L) rated to 30 psi for rapid, uniform heat transfer.
  • Self-locking worm-gear tilt—smooth, precise pour control with no roll-back.
  • 304 stainless reinforced gear box & support arms, seam-welded to the jacket for maximum strength.
  • Wall-bracket installation keeps floors clear for carts and cleaning; set the working height that suits your staff.
  • Made in the USA; manufactured to meet or exceed ASME and NSF requirements.

Technical Specifications

Model TWWT-40
Capacity 40 gal / 151 L
Operating Pressure 30 psi (2.07 bar) max
Jacket Coverage 2/3 (bottom & side)
Construction Seamless 304 SS liner & 304L jacket
Mounting Heavy-duty wall bracket with stainless support arms
Tilt Mechanism Self-locking worm gear, hand crank
Steam Connection ¾ " NPT inlet / ½ " NPT condensate outlet
Overall Width (A) 25.5 in (648 mm)
Front-to-Back (C) 44.4 in (1,128 mm)
Overall Height (F) 45.3 in (1,151 mm)
Recommended Bracket Height (T) 7.3 in (186 mm) below bracket top

Popular Options & Accessories (Sold Separately)

  • Single or dual fill faucet with 12" or 18" swing nozzle
  • 48" flexible spray hose (vinyl or stainless)
  • Air eliminator or pressure reducing valve
  • 2" or 3" draw-off valve (compression or ball-type)
  • Mixer/agitator, 2-speed
  • Lift-off or actuator-assisted cover
  • Basket or bag inserts for pasta, soup & stock production
Installation Notice: This is a direct steam kettle. A 30 psi ASME-approved steam supply, condensate return and professional wall mounting are required. Follow all local codes and manufacturer instructions.

Looking for a different size? Legion TWWT kettles are available from 20 - 100 gallons.

Features & Specs

Manufacturer

Legion

Shipping Weight

259.0lbs

Kettle Liner

304 stainless steel

Base

wall mount

Kettle Jacket

partial jacket

Capacity

30 - 45 gallon

Tilt

manual tilt

Specifications

Direct Steam Tilting Wall-Mount Kettle, 40-gallon, 304 stainless steel liner, 2/3 jacket, self-locking worm gear tilt, stainless steel kettle, control console, stainless steel support arms seam welded to jacket, 30 psi
