Legion 20-Gallon Direct Steam Tilting Wall-Mount Kettle
with Integrated 2-Speed Mixer
Purpose-built for high-volume kitchens that demand speed, consistency, and uncompromising durability, the Legion TWWT-20 kettle with factory-installed MV mixer lets you cook, mix, and pour with absolute confidence—all while saving valuable floor space thanks to its wall-mount design.
Why This Kettle Rocks
- 20 gal. (76 L) capacity—ideal for soups, sauces, fillings, oatmeal, custards, and more.
- Direct-steam, 2/3 jacketed cooking surface delivers lightning-fast heat transfer for shorter batch times.
- Seamless 304 stainless steel liner & 304L jacket resist pitting, scorching, and flavor carryover.
- Self-locking worm-gear tilting mechanism—smooth, controllable pour every time.
- Stainless support arms are seam-welded to the jacket for rock-solid, long-term mounting.
- 30 psi operating pressure; ASME-coded and NSF listed for commercial duty.
- Made in the USA and backed by Legion’s 12-month parts & labor warranty.
Built-In 2-Speed MV Mixer
- Enclosed, balanced aluminum bridge with totally-enclosed gear motor.
- Two-speed drive: Low (23 RPM main / 60 RPM secondary) & High (46 / 120 RPM) for perfect agitation at any viscosity.
- 304 SS anchor-style main agitator hugs the kettle contour for even heat dispersion.
- Counter-rotating 304 SS beater plus removable nylon scraper blades keep product moving & eliminate burn-on.
- Bayonet-mount agitator & beater pop off in seconds for cleaning or when you want an open kettle.
- Actuator-assisted bridge lift with positive rim-lock and a safety interlock that prevents high-speed starts.
Specifications
| Model | TWWT-20 with MV Mixer |
|---|---|
| Capacity | 20 gal | 76 L |
| Operating Pressure | 30 psi (2.07 bar) |
| Kettle Construction | Seamless 304 SS liner, 304L SS 2/3 jacket, 304 SS support arms |
| Tilting Mechanism | Self-locking worm gear with reinforced stainless gearbox |

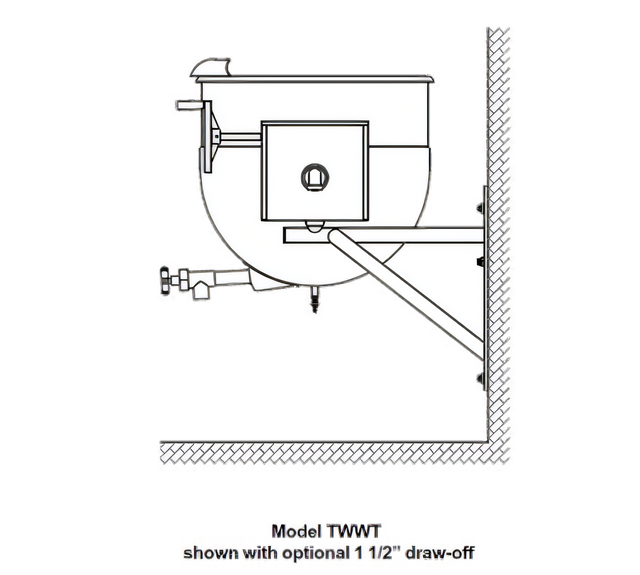

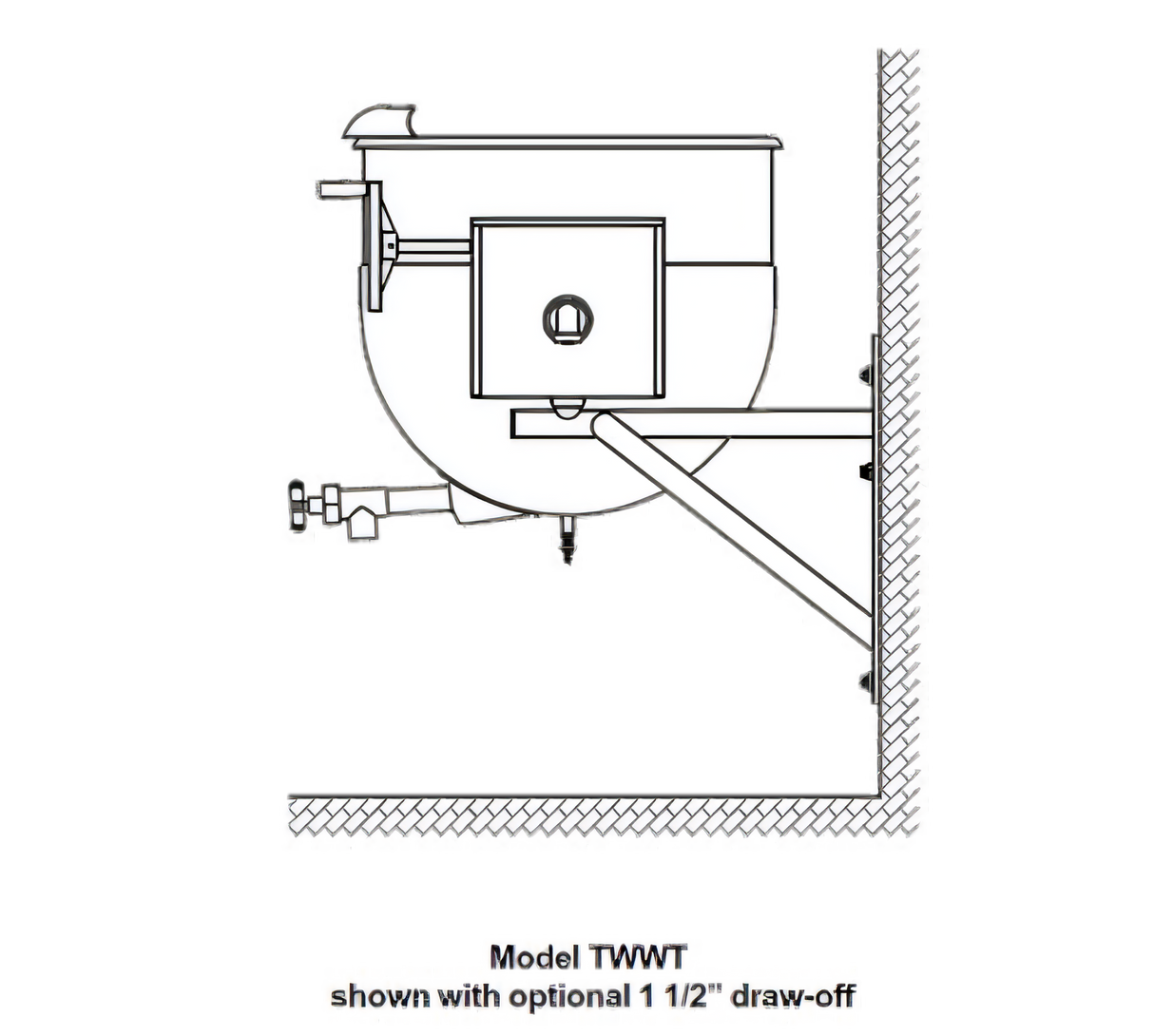

| Mounting | Wall-bracket; recommended height (T): 7.3 in / 185 mm |
| Steam Connections | ¾" NPT inlet | ½" NPT condensate outlet |
| Overall Width (A) | 22.0 in / 559 mm |
| Overall Height (F) | 40.8 in / 1 037 mm |
| MV Mixer Drive | ||
|---|---|---|
| Motor | Totally-enclosed, right-angle gear motor | |
| Horsepower | High: 1 HP | Low: ½ HP |
| Main Agitator RPM | High: 46 | Low: 23 |
| Secondary Beater RPM | High: 120 | Low: 60 |
| Electrical | 208/230/460 V, 60 Hz, 1 or 3-phase (specify when ordering) | |
What’s Included
- TWWT-20 20-gal direct-steam tilting kettle
- Factory-installed MV 2-speed mixer assembly
- Wall-mount bracket kit & hardware
- Operator’s manual & maintenance guide
- 12-month parts & labor warranty (See warranty statement for details)
Popular Options & Accessories
- Single or dual water fill faucets with 12" or 18" swing nozzles
- 48" flexible spray hose (vinyl or stainless)
- Air eliminator or pressure-reducing valve
- 2" or 3" draw-off valves and pour-lip pan holders
- Lift-off covers, lockable lids, basket inserts, & kettle care kits
Options are factory-installed; please contact us for lead-time and pricing.
