Legion TWWT-20 Steam Kettles
Description

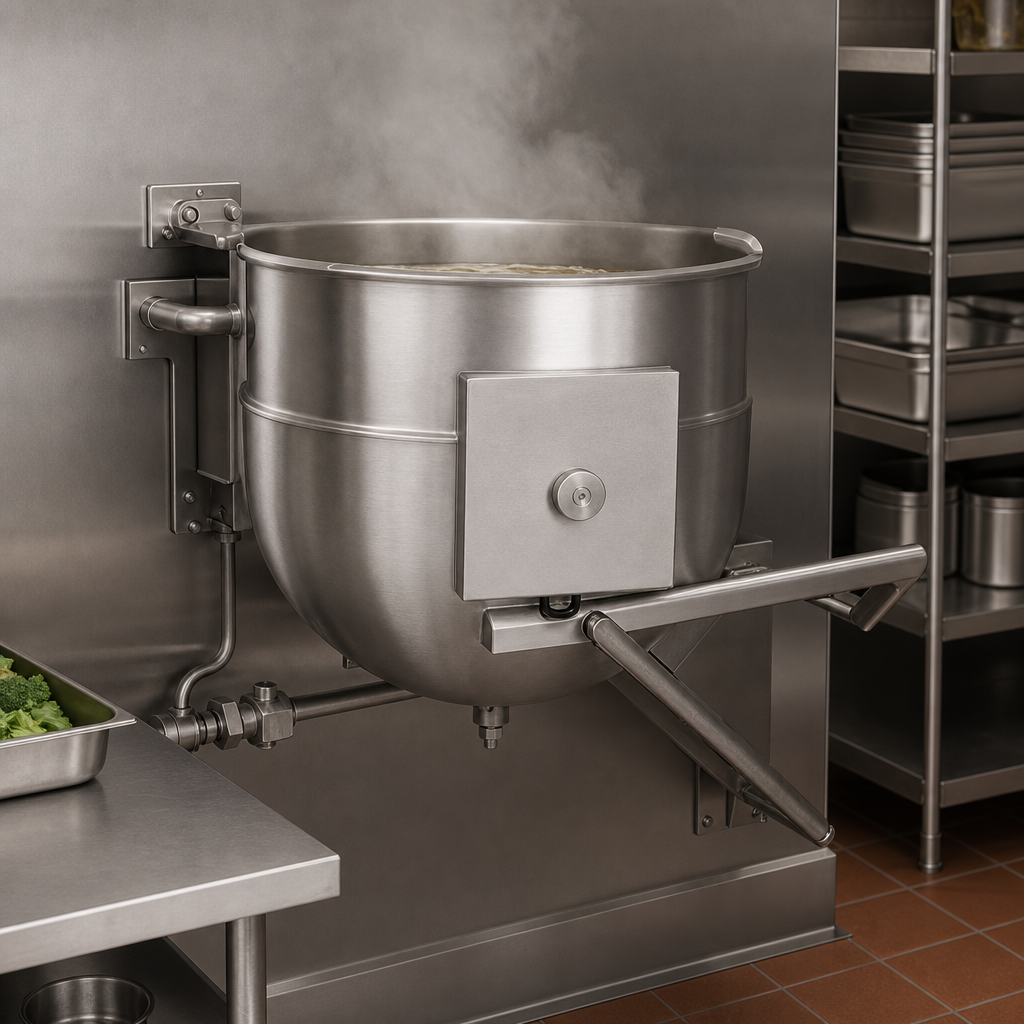

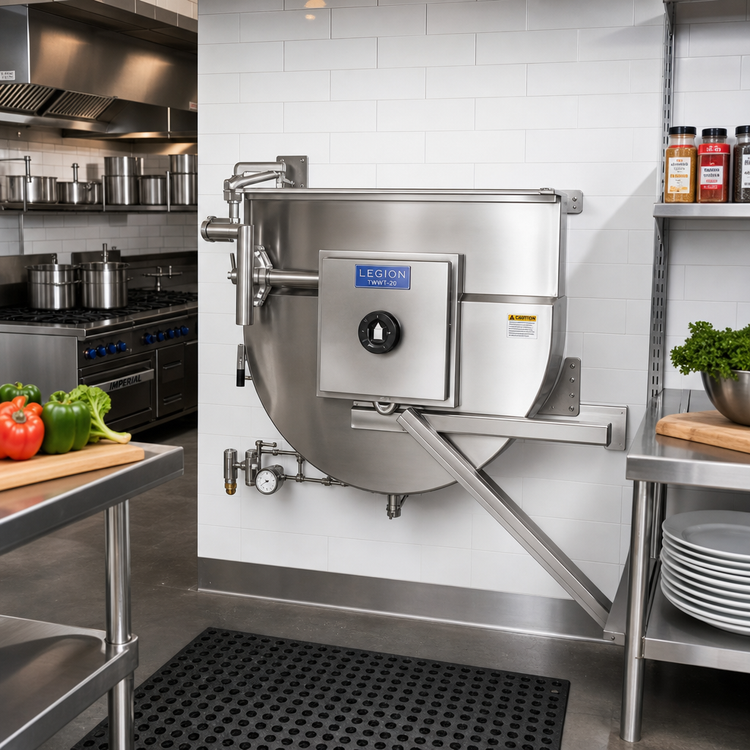

TWWT-20 Direct Steam Tilting Wall-Mount Kettle – 20 gal.
Legion • Made in the USA • 2/3-Jacketed • 30 psiEngineered for high-volume commercial kitchens, the Legion TWWT-20 gives you 20 gallons (76 L) of fast, even steam-powered cooking in a compact wall-mount package. A seamless 304 stainless liner, rugged self-locking tilt system and 30 psi operating pressure combine for years of trouble-free, energy-efficient performance.
Why You’ll Love It
- Deep-drawn 304 stainless liner — one-piece, crevice-free interior cleans up fast and resists pitting.
- 2/3 jacketed design heats side walls & bottom evenly for faster cook times and reduced scorching.
- 30 psi rating delivers higher steam temperature (274 °F) for rapid batch turnover.
- Self-locking worm-gear tilt allows smooth, controlled pouring with one hand and no drift.
- Stainless wall-mount arms are seam-welded to the jacket for rock-solid support and easy floor cleaning beneath the kettle.
- Reinforced control console houses the tilt gearbox and lasts in the busiest kitchens.
- ASME & NSF compliant — built and stamped to recognized food-service and pressure-vessel standards.
Cook More in Less Space

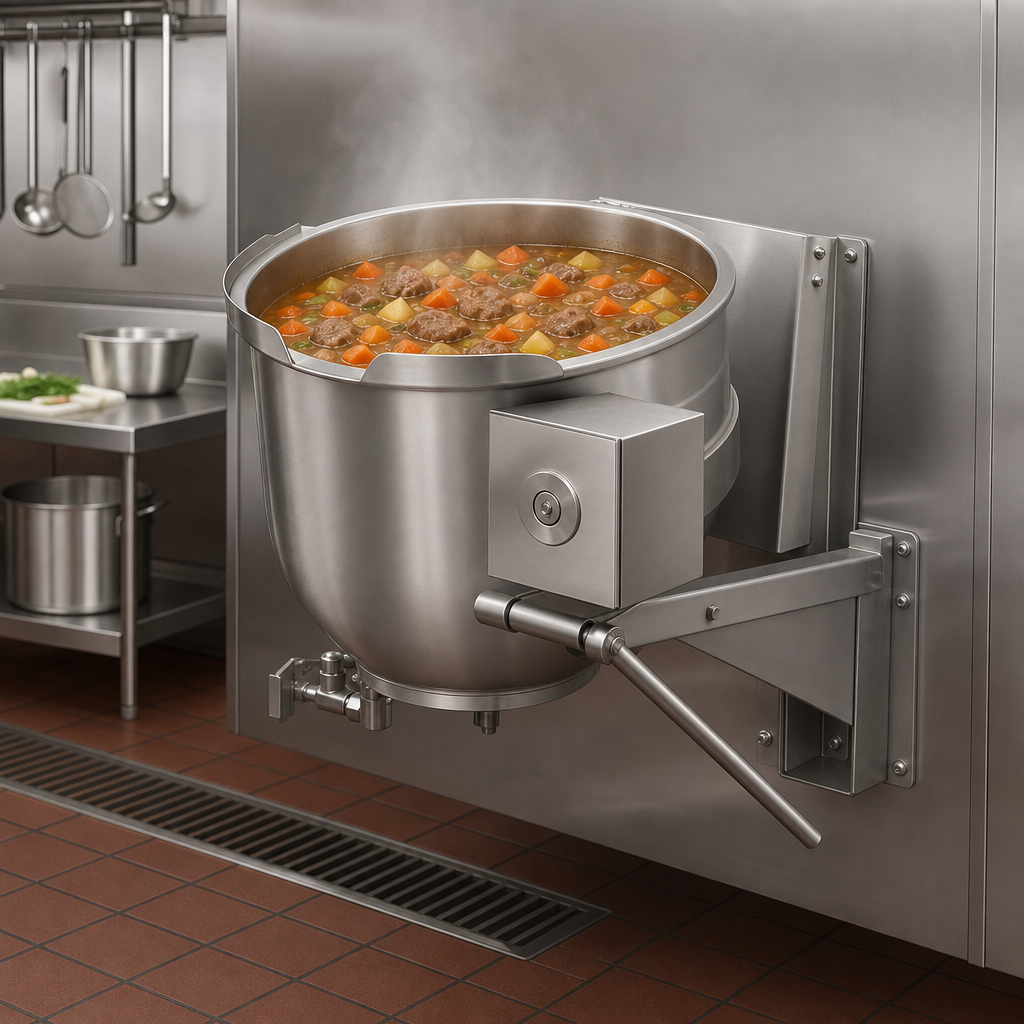

The 20-gallon bowl handles up to:
- 75 L of soup, sauce or stock
- ≈ 160 portions of 10 oz side dishes
- ≈ 90 lb of pasta or vegetables per batch
Technical Specs
| Capacity | 20 gal. / 76 L |
|---|---|
| Operating pressure | 30 psi (2 bar) |
| Liner material | Seamless 304 stainless steel |
| Jacket material | 304L stainless, 2/3 coverage |
| Mounting | Wall-bracket, stainless support arms |
| Tilt mechanism | Self-locking worm gear, hand-crank |
| Steam connection (inlet) | ¾" NPT |
| Steam condensate (outlet) | ½" NPT |
Dimensional Data — TWWT-20
| Ref. | Inches | Ref. | Inches |
|---|---|---|---|
| A (Dia.) | 22.0 | O | 21.4 |
| B | 16.0 | P | 18.0 |
| C | 41.9 | Q (Steam In) | 0.75 NPT |
| D | 14.6 | R (Steam Out) | 0.50 NPT |
| F | 40.8 | S | 13.0 |
| H* | 22.9 | T (Mount Ht.) | 7.3 |
| U | 15.5 | X (Pour Path) | 22.6 |
| Y | 13.4 | Z | 29.9 |
*H dimension varies with selected draw-off valve size.
Popular Factory Options
- 2" or 3" compression or ball-type draw-off valve
- Single or dual fill faucet with 12" or 18" swing nozzle
- 48" flexible spray hose (vinyl or stainless)
- Automatic water-fill meter
- Lift-off or actuator-assisted cover
- Basket inserts, pour-lip pan holder, measuring strip & more
Covered by Legion’s standard 12-month parts & labor warranty. Extended coverage available.
