Legion TWWC-80 Steam Kettles
Description

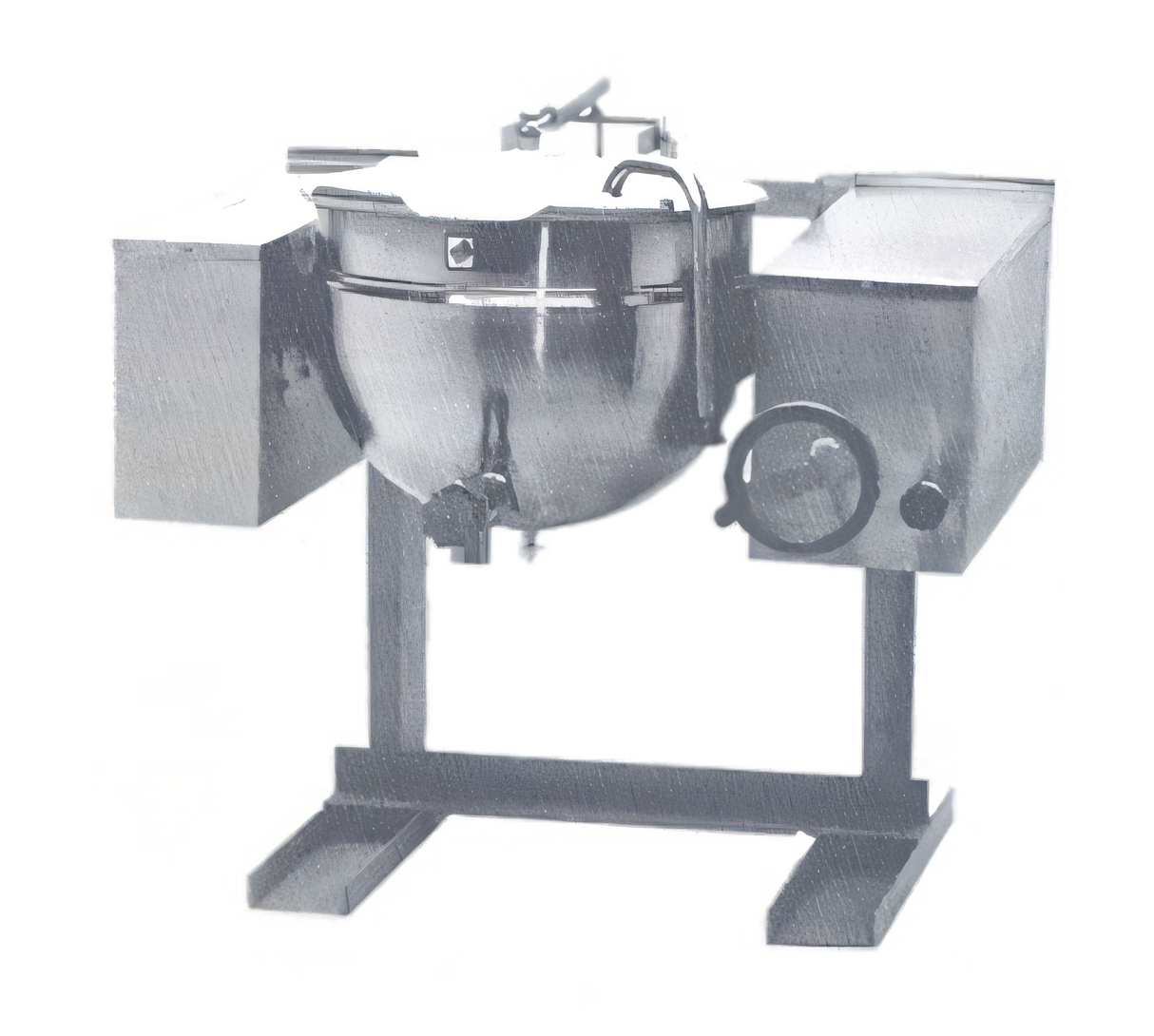

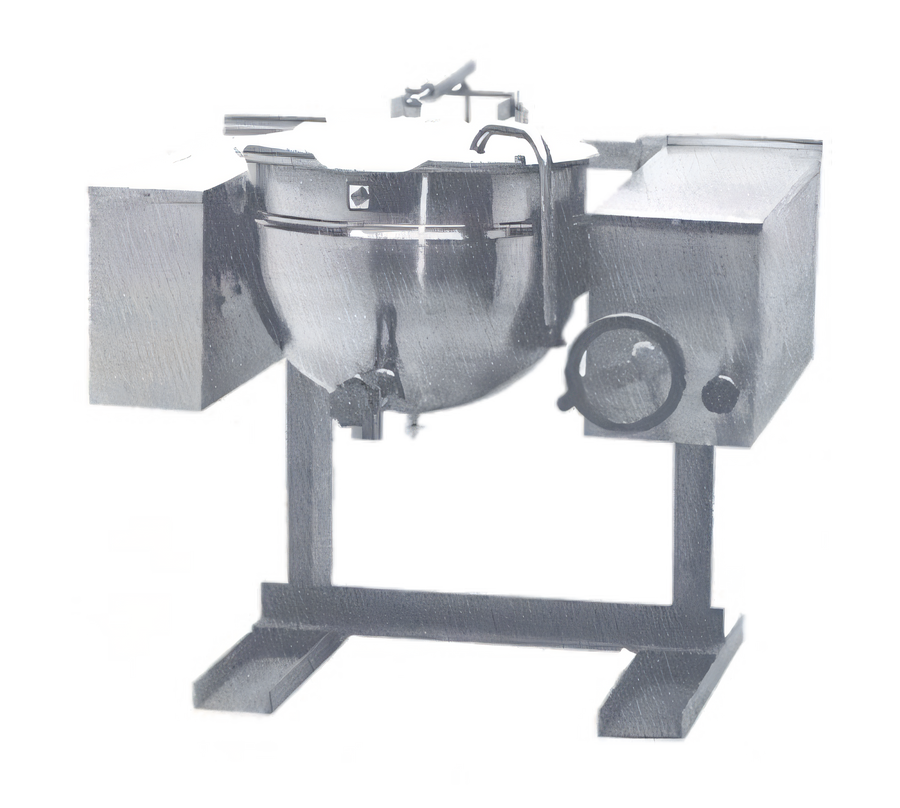

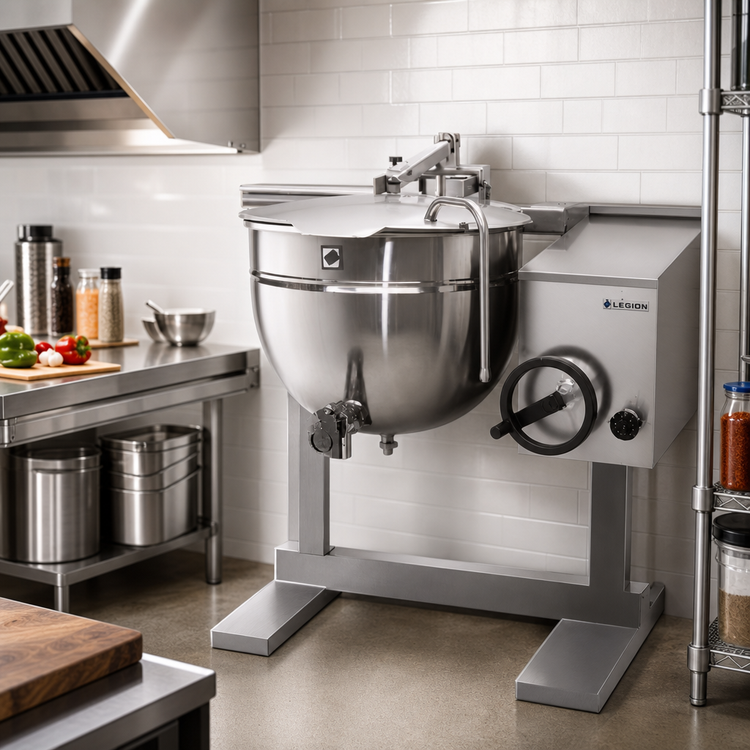

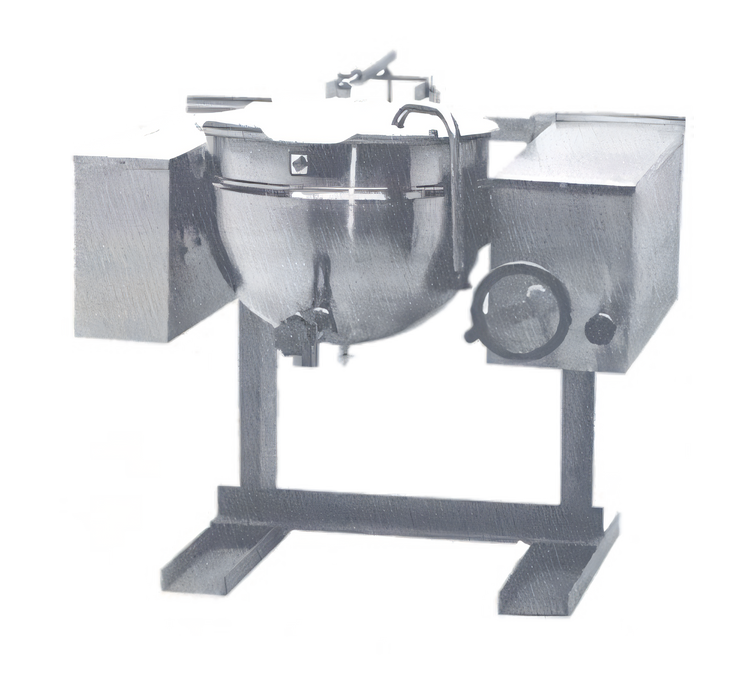

Legion TWWC-80 Direct Steam Tilting Kettle – 80 Gal.
Wall-Console Mounted • 2/3 Jacket • Made in the USABuilt for high-volume kitchens that refuse to compromise on durability or precision, the Legion TWWC-80 delivers 80 gallons (303 L) of even, steam-powered cooking in a space-saving wall-mounted design. Its seamless 304 stainless construction, self-locking worm-gear tilt and rear-access plumbing make it a reliable, easy-to-clean workhorse for soups, sauces, stocks and more.
Key Features

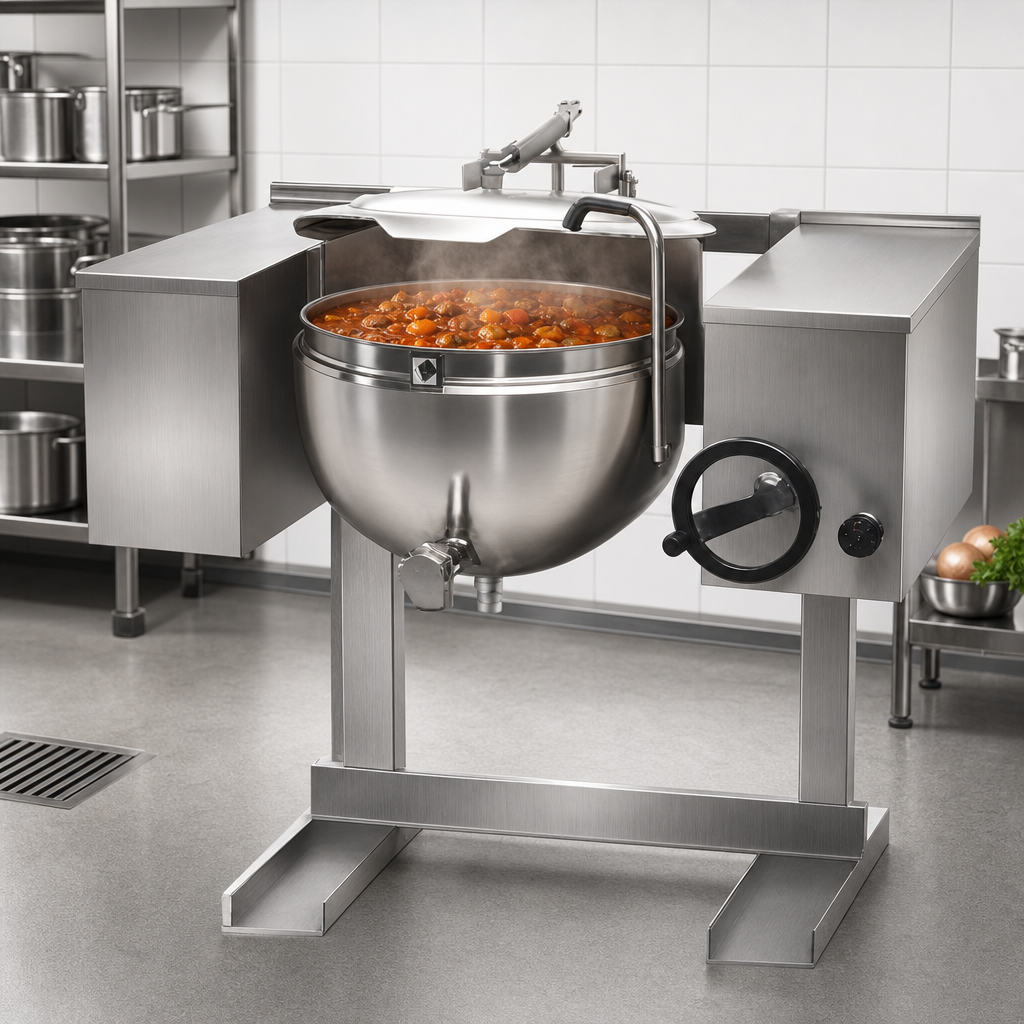

- 80 gal. / 303 L capacity – ideal for high-yield batch cooking

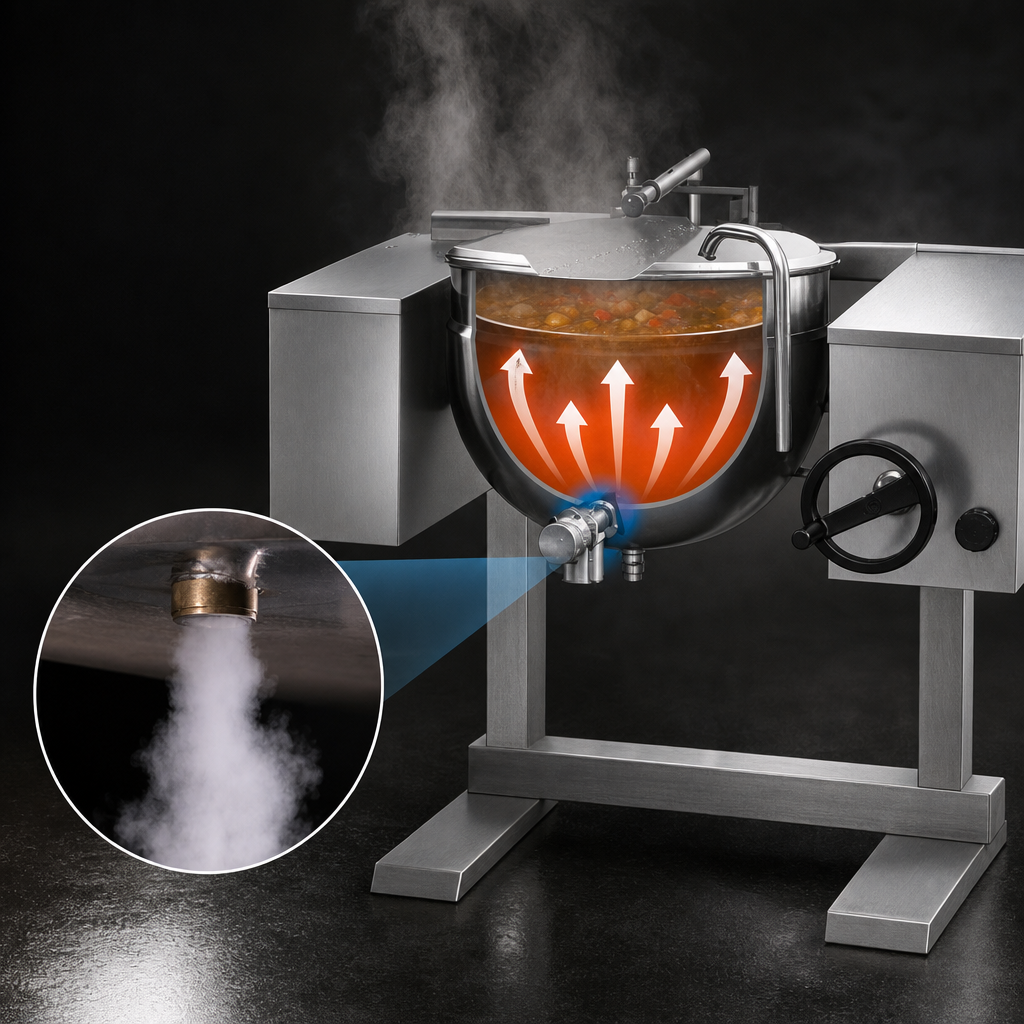

- Direct steam, 2/3-jacketed design for fast, uniform heat transfer
- Seamless deep-drawn 304 stainless kettle liner & 304L stainless jacket
- Wall-console mount with reinforced 304 stainless support consoles
- Self-locking worm-gear mechanism allows smooth, controlled tilting
- All plumbing connections housed in console with rear ¾" NPT in/out
- 30 psi maximum operating pressure certified to ASME standards
- Made in the USA and engineered for NSF compliance
At-a-Glance Specs
| Model | TWWC-80 |
|---|---|
| Capacity | 80 gal. (303 L) |
| Construction | Seamless 304 stainless liner & 304L stainless jacket |
| Jacket Coverage | 2/3 kettle body |
| Operating Pressure | 30 psi |
| Tilt Mechanism | Self-locking worm gear, manual crank |
| Steam Inlet / Outlet | ¾" NPT (rear) |
| Overall Dimensions * | A 32.5" | B 27.6" | C 43.4" | D 26.5" | E 29.3" |
| Minimum Pour Path (X) | 37.4" |
*Refer to Legion installation drawings for complete dimensional details.
Why Choose a Wall-Mounted Kettle?
- Frees up valuable floor space for traffic and storage
- Simplifies floor cleaning and sanitation
- Positions controls, plumbing and service access in a single console
Popular Accessories (sold separately)
- Single or dual fill faucet with 12" or 18" swing nozzle
- 48" flexible spray hose assembly
- 2" or 3" draw-off valve kits
- Tri-basket or single basket inserts for pasta & blanching
- Automatic water-fill meter
- Stainless lift-off or actuator-assisted cover
Legion Industries reserves the right to improve or modify design without prior notice.
