Legion TWWC-60 Steam Kettles
Description

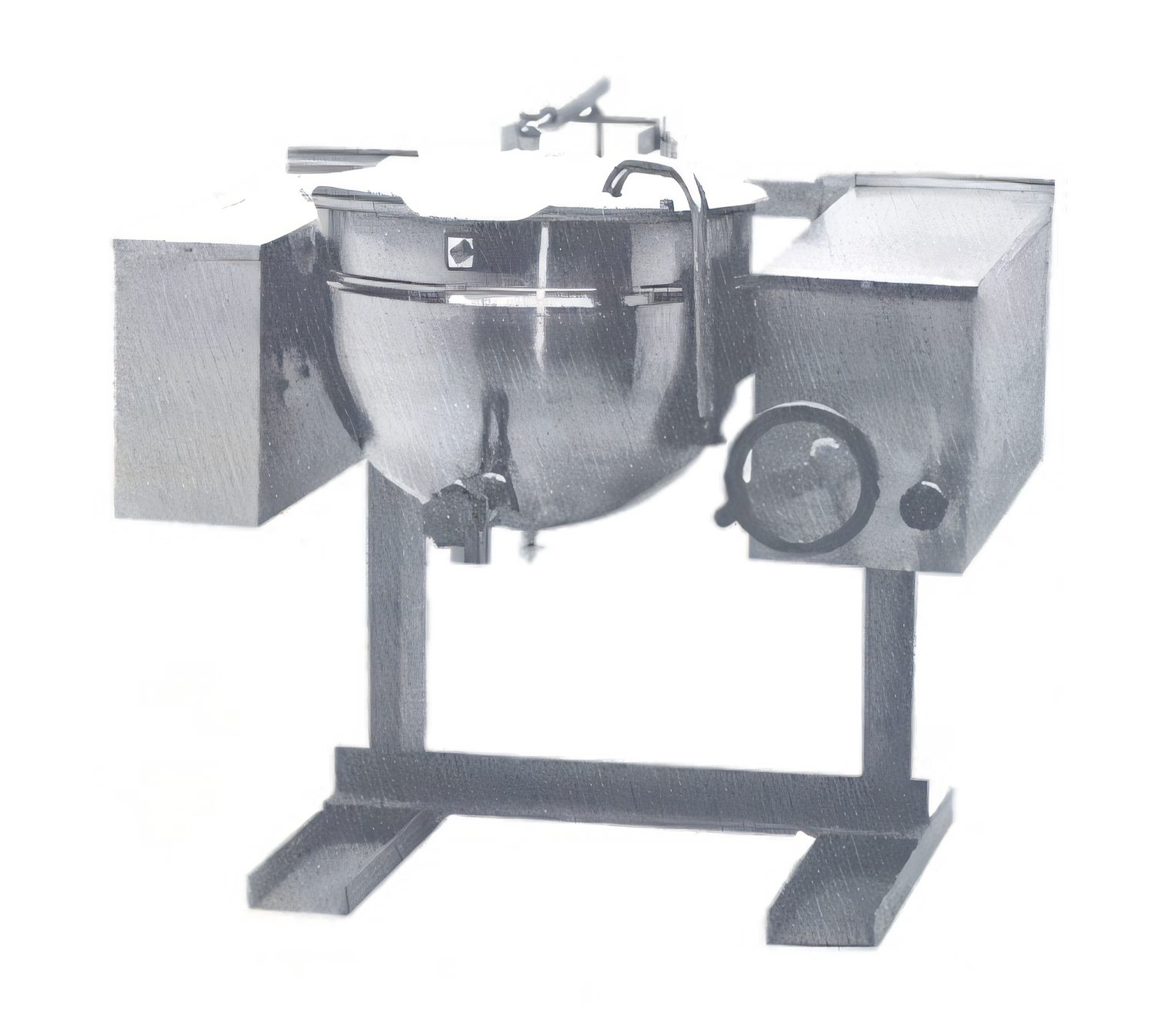

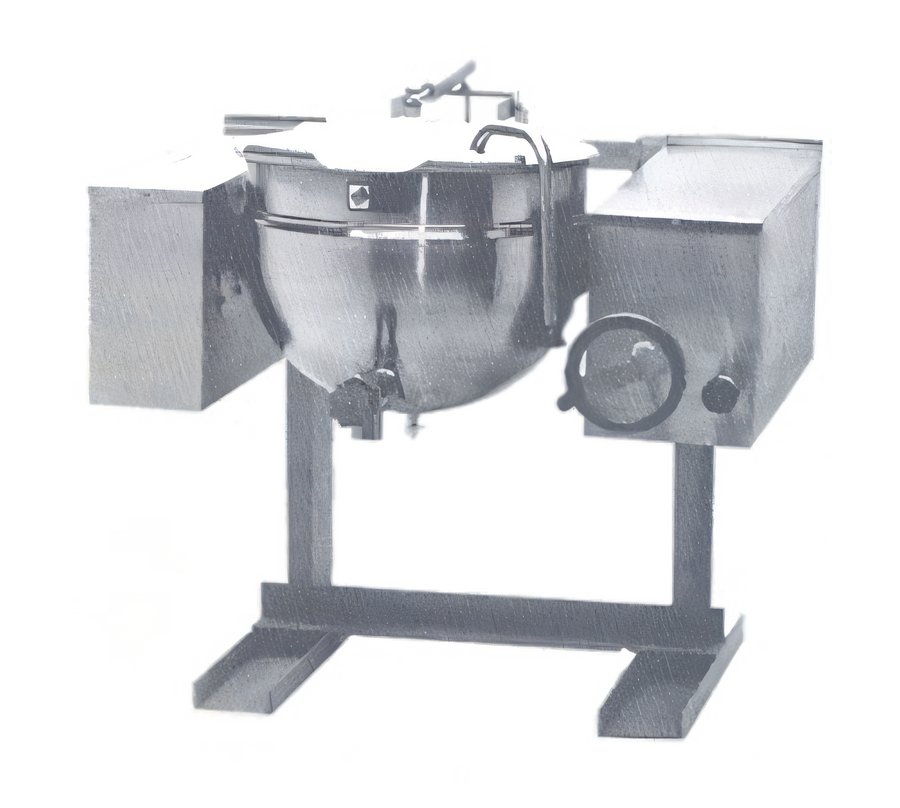

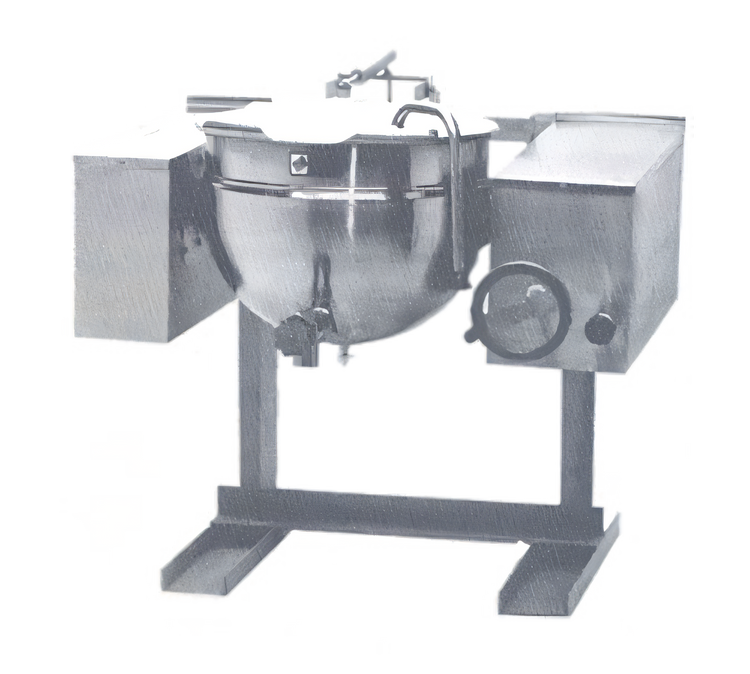

Legion TWWC-60 Direct Steam Tilting Kettle
60 gal / 227 L • Wall-Console Mounted • Made in USAEngineered for high-volume commercial kitchens that insist on speed, consistency and sanitation, the Legion TWWC-60 delivers 60 gallons of precise, even heating in a space-saving wall-mount configuration. Its seamless 304 stainless steel liner, 2/3 steam jacket and self-locking worm-gear tilt mechanism combine to give chefs maximum production capacity with minimal effort and maintenance.
Why chefs choose the TWWC-60
- Deep-drawn 304 stainless steel kettle bowl eliminates interior seams for fast, hygienic clean-up.

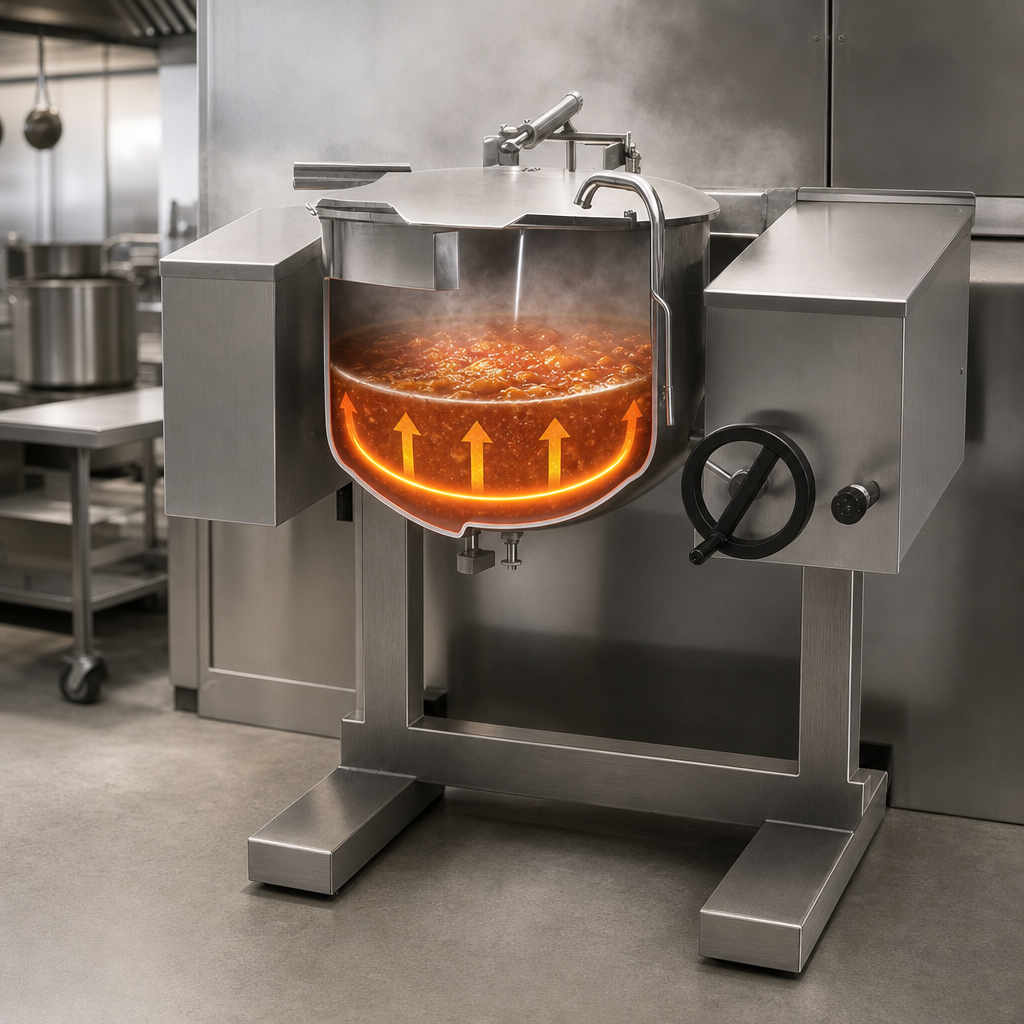

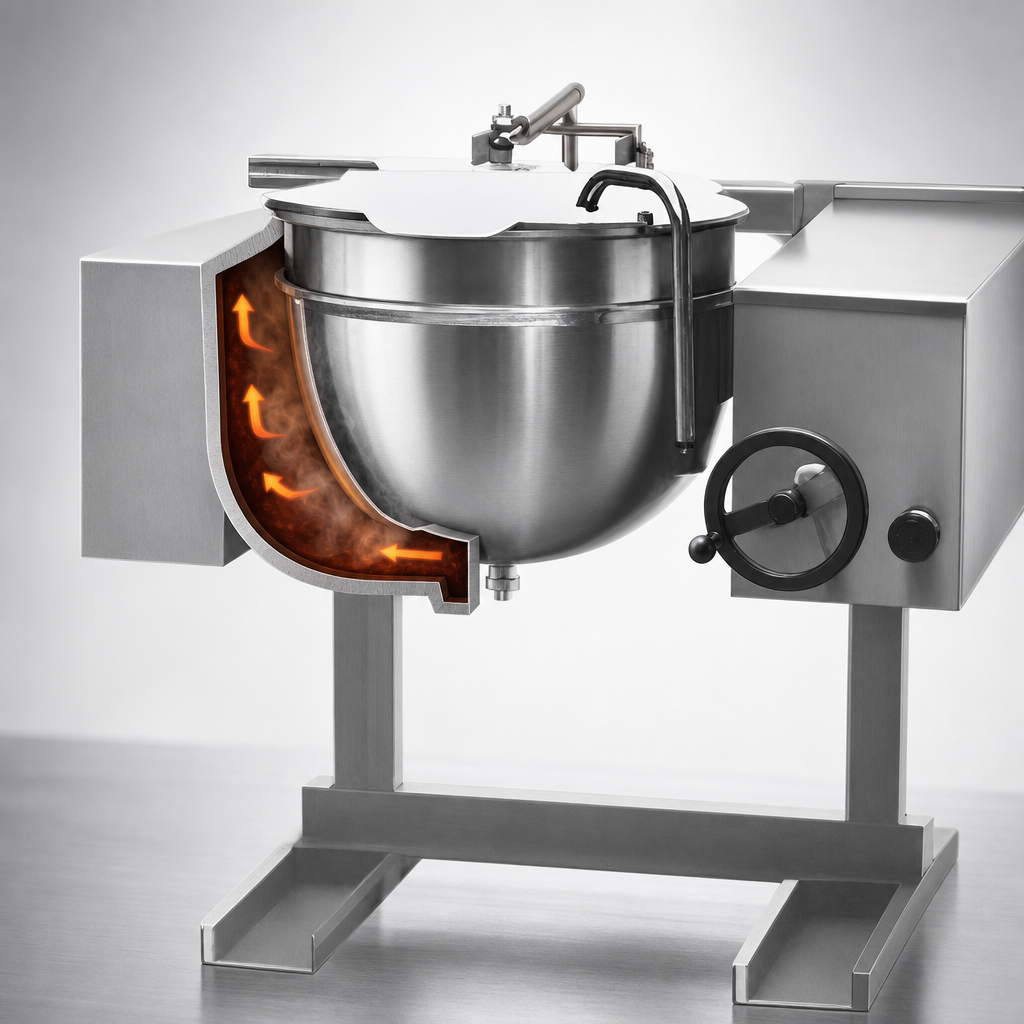

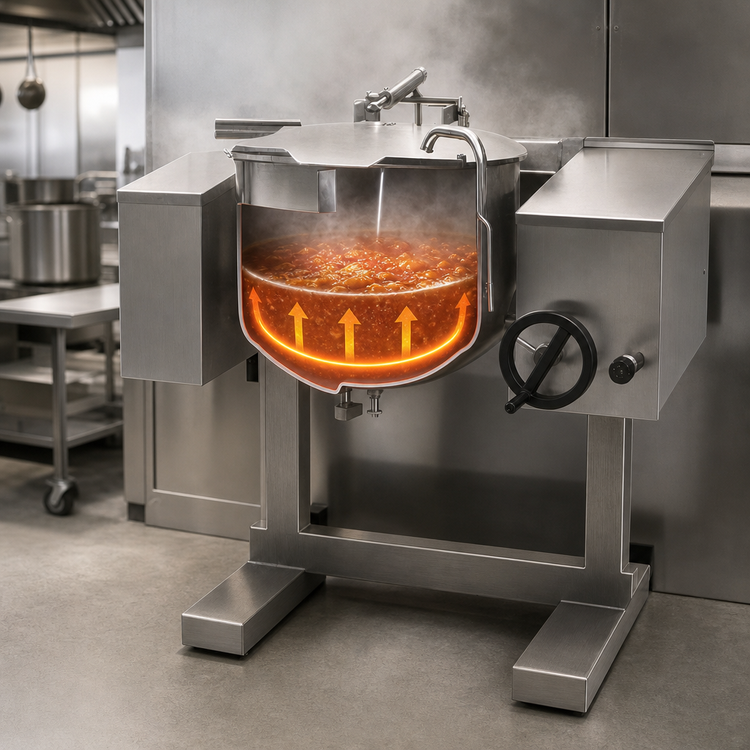

- 2/3-jacketed design surrounds product with gentle, even steam heat—no hot spots.
- 30 psi operating pressure boils water up to ≈273 °F / 134 °C for quicker batch times.
- Self-locking worm-gear tilt holds any position securely and provides smooth, controlled pour-off.

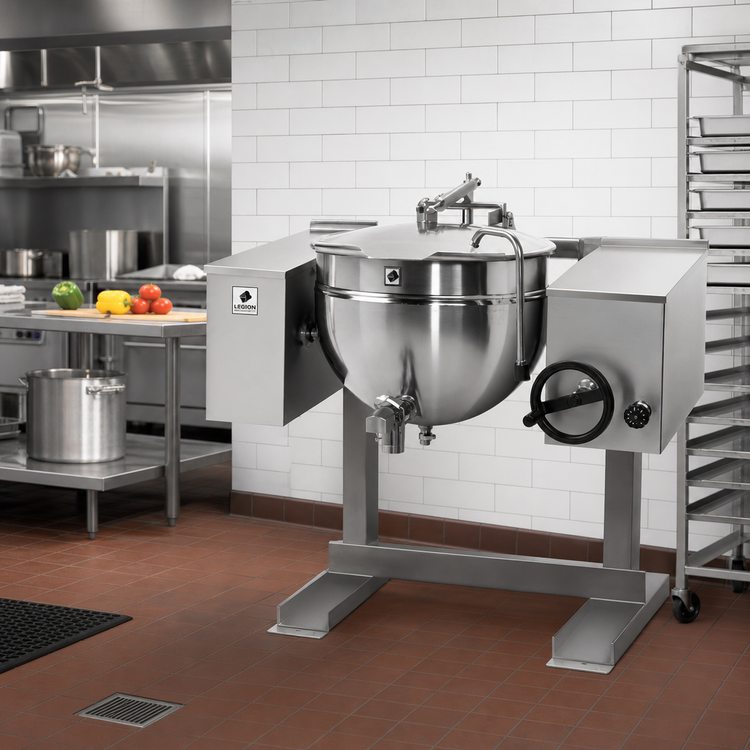

- Heavy-duty wall consoles are fully reinforced 304 stainless steel for long-term stability.
- Rear-facing ¾" NPT steam inlet & ½" NPT condensate outlet keep utilities hidden and the front clear.
- Manufactured and assembled in the USA, meeting or exceeding ASME & NSF standards.
Technical Specifications
| Model | TWWC-60 |
|---|---|
| Capacity | 60 gal / 227 L |
| Jacket Coverage | 2/3 of kettle body |
| Operating Pressure | 30 psi (207 kPa) |
| Interior Liner | Seamless 304 stainless steel, deep drawn |
| Jacket Material | 304L stainless steel, deep drawn |
| Tilt Mechanism | Manual crank, self-locking worm gear |
| Mounting Style | Wall-console, dual stainless support boxes |
| Steam Inlet | ¾" NPT (rear connection) |
| Condensate Outlet | ½" NPT (rear connection) |
| Overall Width (A) | 29.5 in / 750 mm |
| Front-to-Back Diameter (B) | 25.0 in / 635 mm |
| Lip Height (C) | 41.5 in / 1054 mm |
| Wall-to-Lip (D) | 25.1 in / 638 mm |
| Wall-to-Front Leg (E) | 27.9 in / 708 mm |
| Steam Console Width (T) | 36.9 in / 938 mm |
Popular Options & Accessories
- Single or dual fill faucet with 12″ or 18″ swing nozzle
- 48″ flexible spray hose (vinyl or stainless)
- 2″ or 3″ sanitary draw-off valve
- Automatic water-fill meter
- Two-speed mixer/agitator assembly
- Lockable or lift-off cover
- Tri-basket & nylon bag inserts
Warranty
Includes Legion’s standard 12-month parts & labor warranty (15 months from ship date). Extended coverage available—ask your sales specialist for details.
