Legion TWWC-50 Steam Kettles
Description
Legion TWWC-50 Direct Steam Tilting Wall-Mount Kettle
50 gal (189 L) – 2/3 Jacketed • Deep-Drawn 304 SS • 30 psiBuilt for high-volume kitchens that refuse to compromise on durability or performance, the Legion TWWC-50 combines a seamless 304 stainless steel cooking surface with efficient 2/3-jacketed direct steam heating. The wall-mount design frees up valuable floor space while the self-locking worm-gear tilt delivers smooth, controlled pouring of soups, sauces, stews and more—all Made in the USA.
Why It Stands Out
- Deep-drawn, one-piece 304 SS kettle liner eliminates welded seams for easier cleaning.

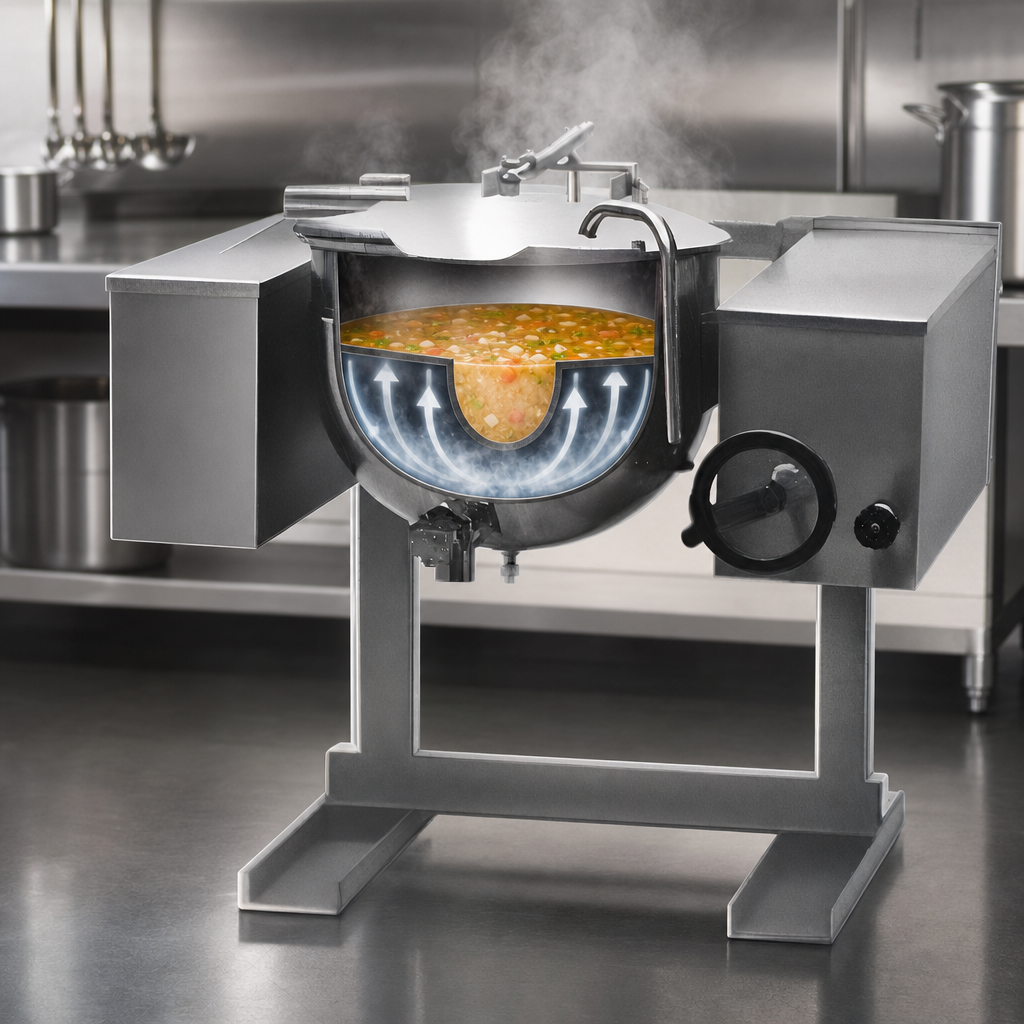

- 2/3-jacketed construction (304L SS) ensures even, rapid heat transfer across the sidewalls and bottom.
- 30 psi operating pressure handles demanding production schedules while maintaining food quality.
- Self-locking worm-gear mechanism lets one operator tilt and hold the kettle at any angle for precise portioning.

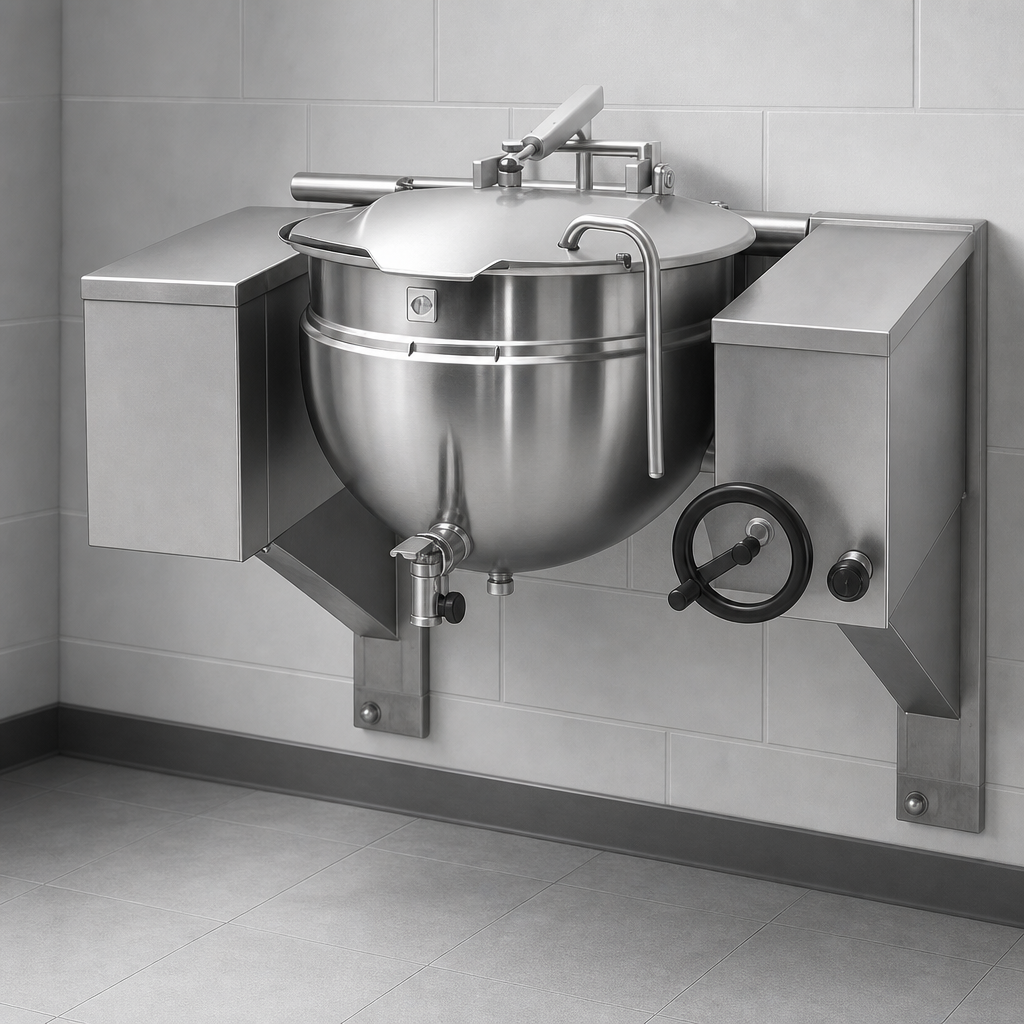

- Reinforced stainless steel support consoles mount securely to the wall; rear in/out steam connections keep lines hidden.
- Fully enclosed control console protects plumbing components for a clean, professional installation.
- NSF & ASME compliant construction; built under strict Legion quality standards.
Kitchen-Friendly Advantages

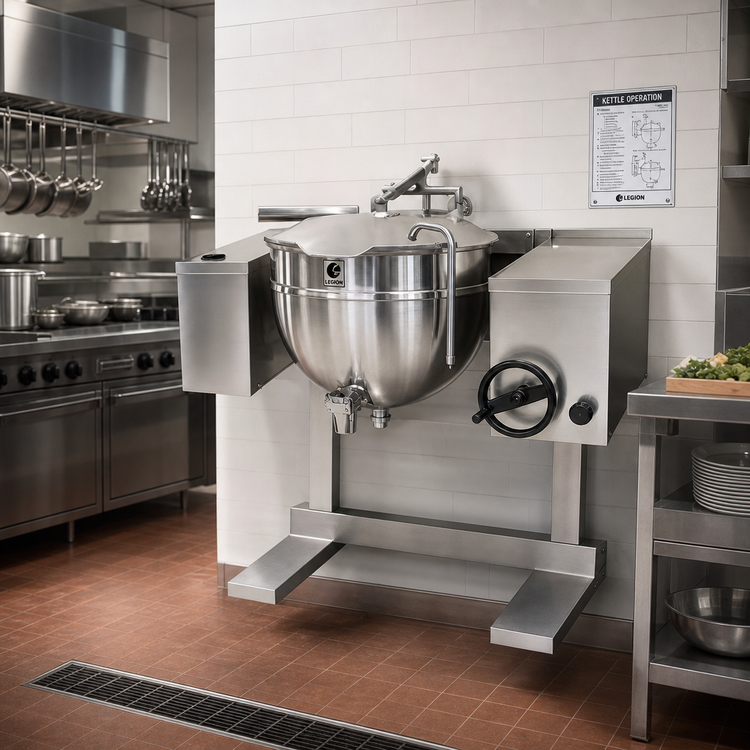

- Wall-mounted design clears floor clutter—ideal for central production kitchens and corrections facilities.
- Large 50-gallon capacity yields up to 800 eight-oz portions per batch.
- Deep kettle geometry minimizes product scorching and maximizes yield.
- Included pour lip simplifies container filling; optional draw-off valve available for bag, pan or pump filling.
- No exposed threads or crevices in the food zone for superior sanitation.
Technical Specifications
| Model | TWWC-50 |
|---|---|
| Capacity | 50 gal / 189 L |
| Operating Pressure | 30 psi (2.07 bar) max. |
| Construction | Seamless 304 SS liner & 304L 2/3 jacket; stainless support consoles |
| Tilting Mechanism | Self-locking worm gear with manual hand crank |
| Steam Connections | ¾" NPT inlet / ½" NPT outlet (rear) |
| Overall Width (T) | 36.9 in (938 mm) |
| Overall Height | 30.5 in (775 mm) to kettle rim |
| Wall Projection (X) | 14.0 in (356 mm) minimum pour path |
| Front-to-Back (B) | 21.8 in (554 mm) |
| Shipping Weight | Contact factory |
| Origin | Waynesboro, GA USA |
Popular Options (sold separately)
- 2" or 3" compression or ball-type draw-off valve with tri-basket or nylon bag inserts
- Single or dual fill faucet (12" / 18" swing nozzle) with wall bracket
- 48" flexible spray hose assembly (vinyl or stainless)
- Automatic water-fill meter
- Two-speed mixer/agitator or lift-off cover
- In-wall carrier for concealed mounting in new construction
See price list or talk with a Legion specialist for the full menu of factory-installed options.
Warranty & Certifications
Backed by a 12-month parts & labor warranty (from installation). Extended coverage up to 3 years is available at the time of purchase.
