Legion TWWC-40 Steam Kettles
Description
Legion TWWC-40 Direct Steam Tilting Wall-Mount Kettle
40 gal (151 L) • 2/3-jacketed • 304 Stainless Steel • 30 psiEngineered and built in the USA, the Legion TWWC-40 is a heavy-duty, wall-console-mounted direct-steam kettle that delivers exceptional durability, smooth tilting control, and efficient batch cooking for schools, healthcare facilities, commissaries, and high-volume restaurants.
Why You’ll Love It

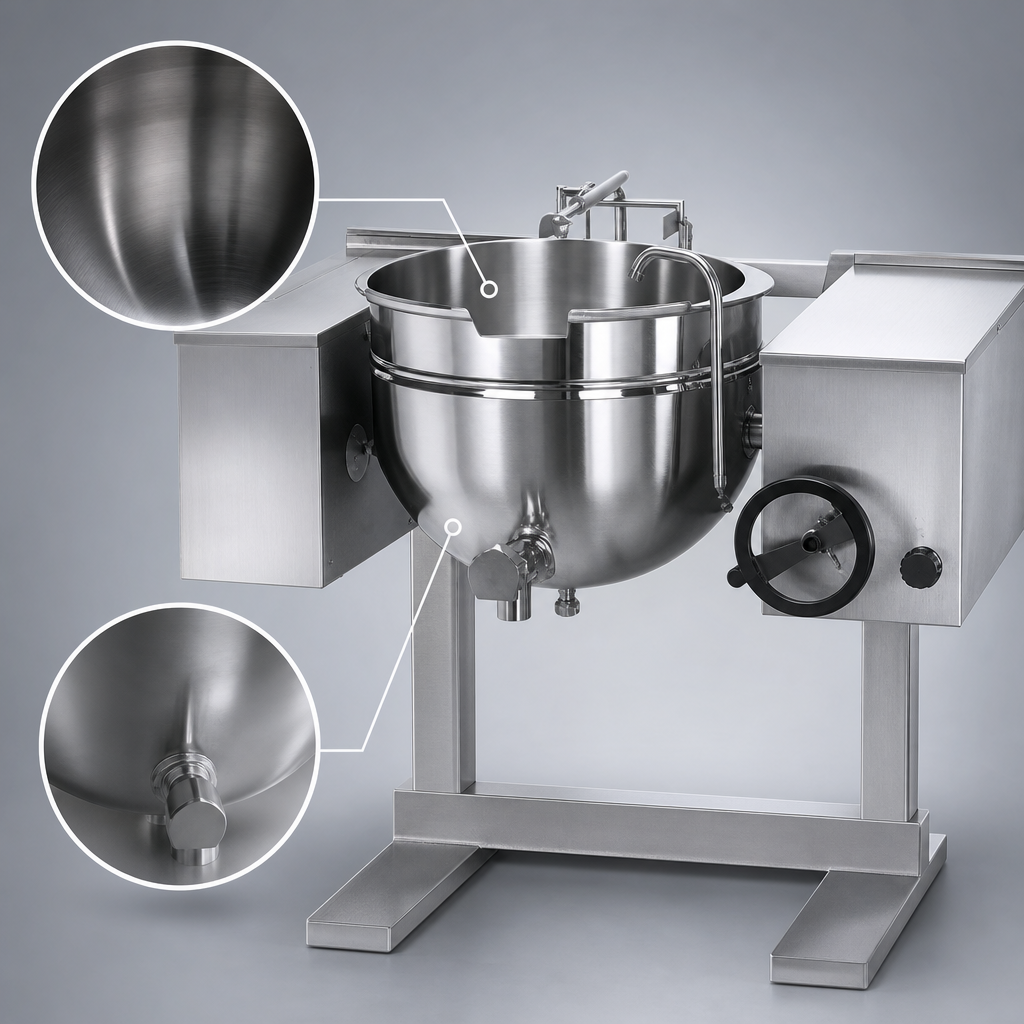

- Seamless deep-drawn 304 stainless steel liner for superior sanitation and easy clean-up.

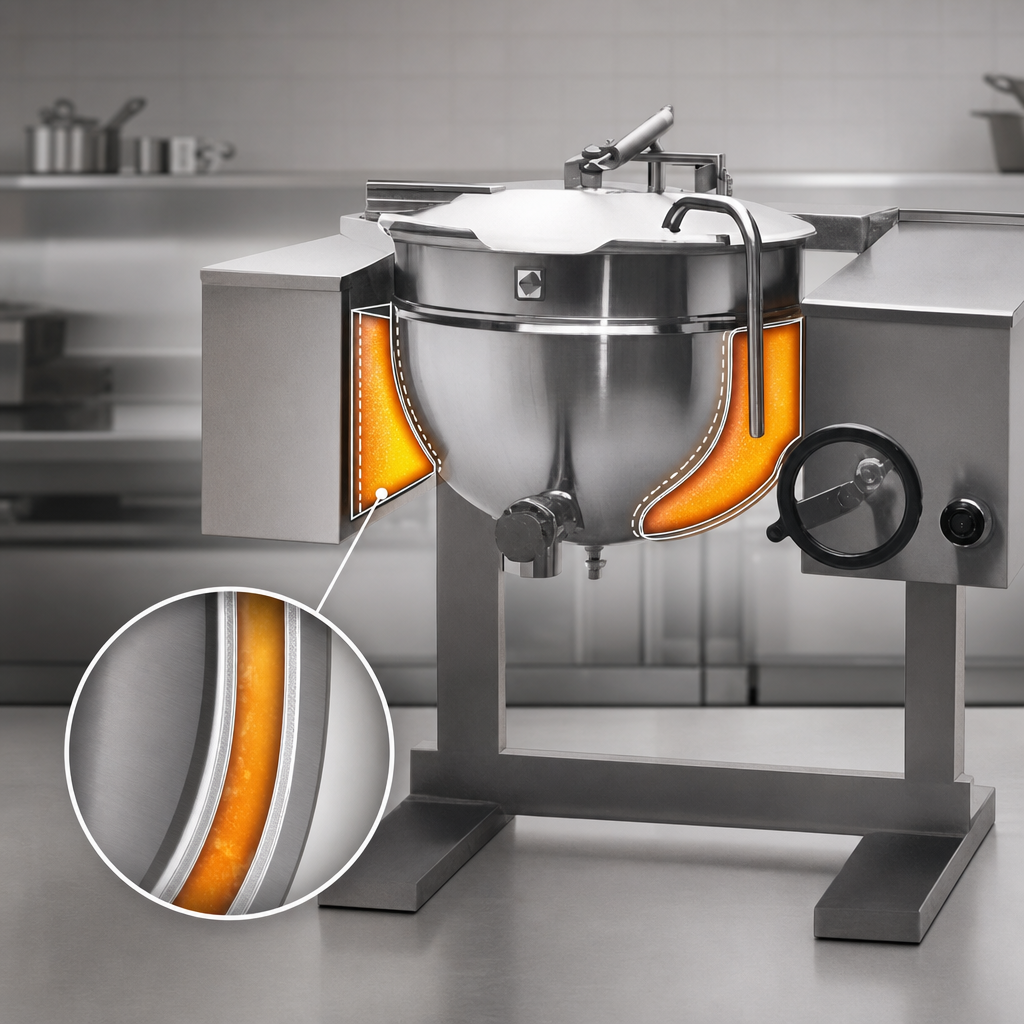

- 2/3-jacketed body surrounded by a 304L stainless jacket for rapid, even heat transfer.
- Self-locking worm-gear tilt mechanism allows precise, effort-free pouring with positive stop at any angle.

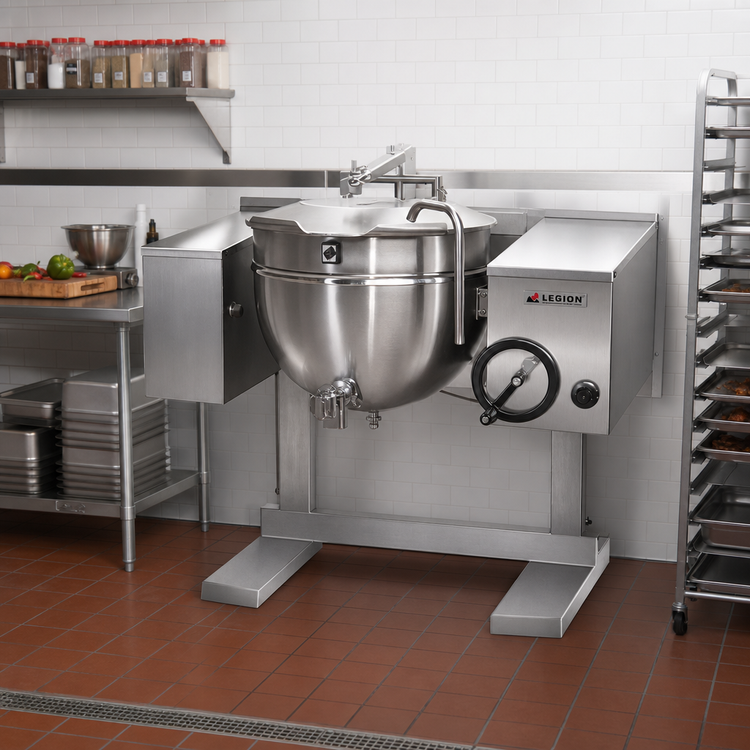

- Robust stainless steel reinforced support consoles—mounts flush to a wall and conceals all rear plumbing connections for a clean installation.
- Factory-installed connection plumbing parts; 3/4" NPT steam inlet & 1/2" NPT condensate outlet simplify hook-up.
- Designed, built, and pressure-rated to 30 psi in accordance with ASME standards.
Technical Specifications
| Model | TWWC-40 (Wall-Console Mounted) |
|---|---|
| Capacity | 40 gal / 151 L |
| Heat Source | Direct external steam (customer-supplied) |
| Operating Pressure | 30 psi (2.07 bar) |
| Jacket Coverage | 2/3 of kettle body |
| Construction | Seamless 304 S/S liner & 304L S/S jacket, fully welded |
| Tilt Mechanism | Manual self-locking worm gear with balanced hand-crank |
| Steam Inlet | 3/4" NPT (Q) |
| Condensate Outlet | 1/2" NPT (R) |
| Overall Height (C) | 41.5" (105 cm) |
| Overall Width (A) | 25.5" (65 cm) |
| Wall Projection (B) | 22.3" (57 cm) |
| Minimum Pour Path (X) | 35.5" (90 cm) |
| Approx. Shipping Weight | Consult factory |
| Agency Compliance | ASME, NSF (other listings available on request) |
Popular Factory Options (sold separately)
- Single or dual fill faucet (12" or 18" swing nozzle) with wall-mount bracket
- 48" flexible spray hose (vinyl or stainless)
- 2" or 3" draw-off valve with compression or ball-type fitting
- Automatic water-fill meter
- Mixer/Agitator, 2-speed
- Lift-off or actuator-assisted cover
- In-wall carrier for hidden structural support
Legion equipment is backed by a 12-month parts & labor warranty from date of installation (15 months from shipment). Extended coverage is available—see your dealer or Legion Industries representative for details.
