Legion TWWC-30 Steam Kettles
Description
Legion TWWC-30 Direct-Steam Tilting Wall-Mount Kettle

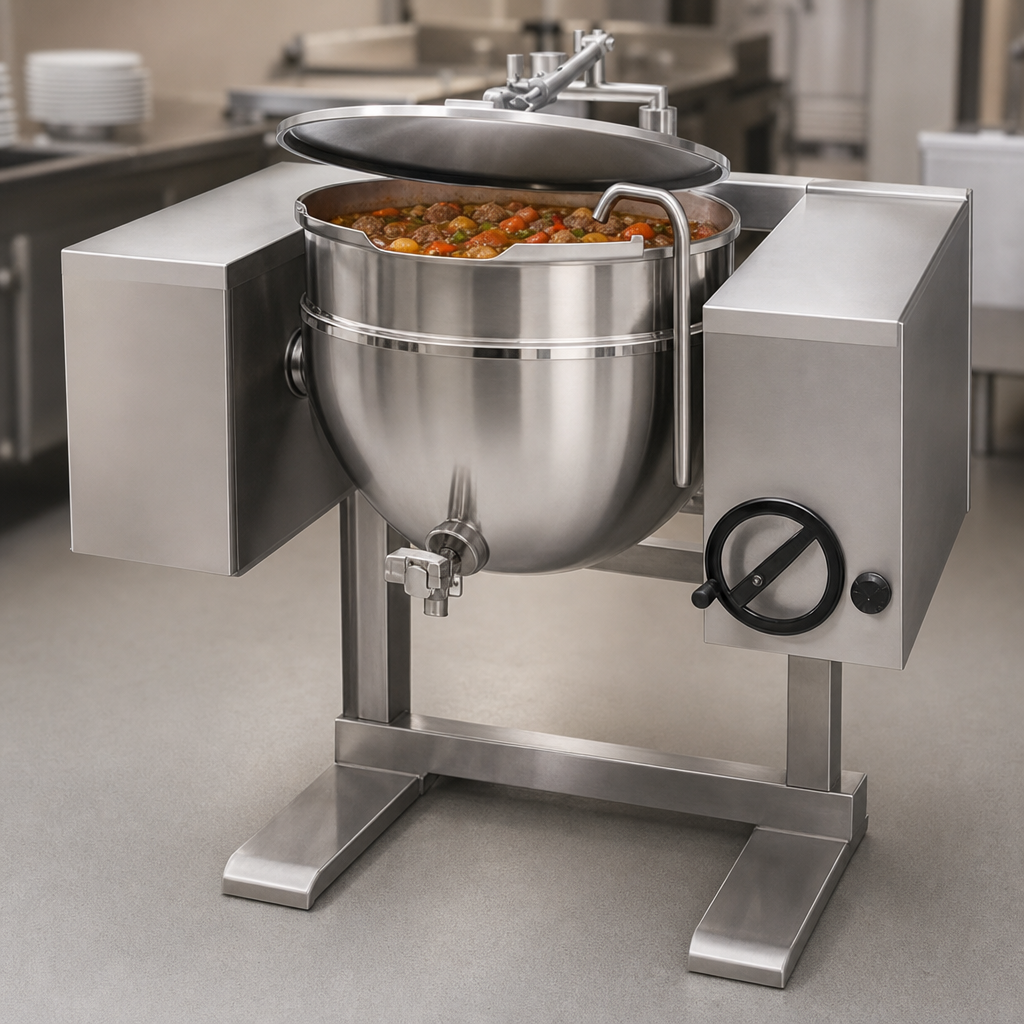

30 Gal • Seamless 304 Stainless • Made in USAEngineered for high-volume kitchens that refuse to compromise on speed, safety or sanitation, the Legion TWWC-30 gives you 30 gallons (114 L) of consistent, even heat in a space-saving wall-console design. From silky soups to signature sauces, every batch benefits from a 2/3 jacket that delivers rapid heat transfer while the self-locking worm-gear tilt guarantees smooth, splash-free pouring.
Key Benefits

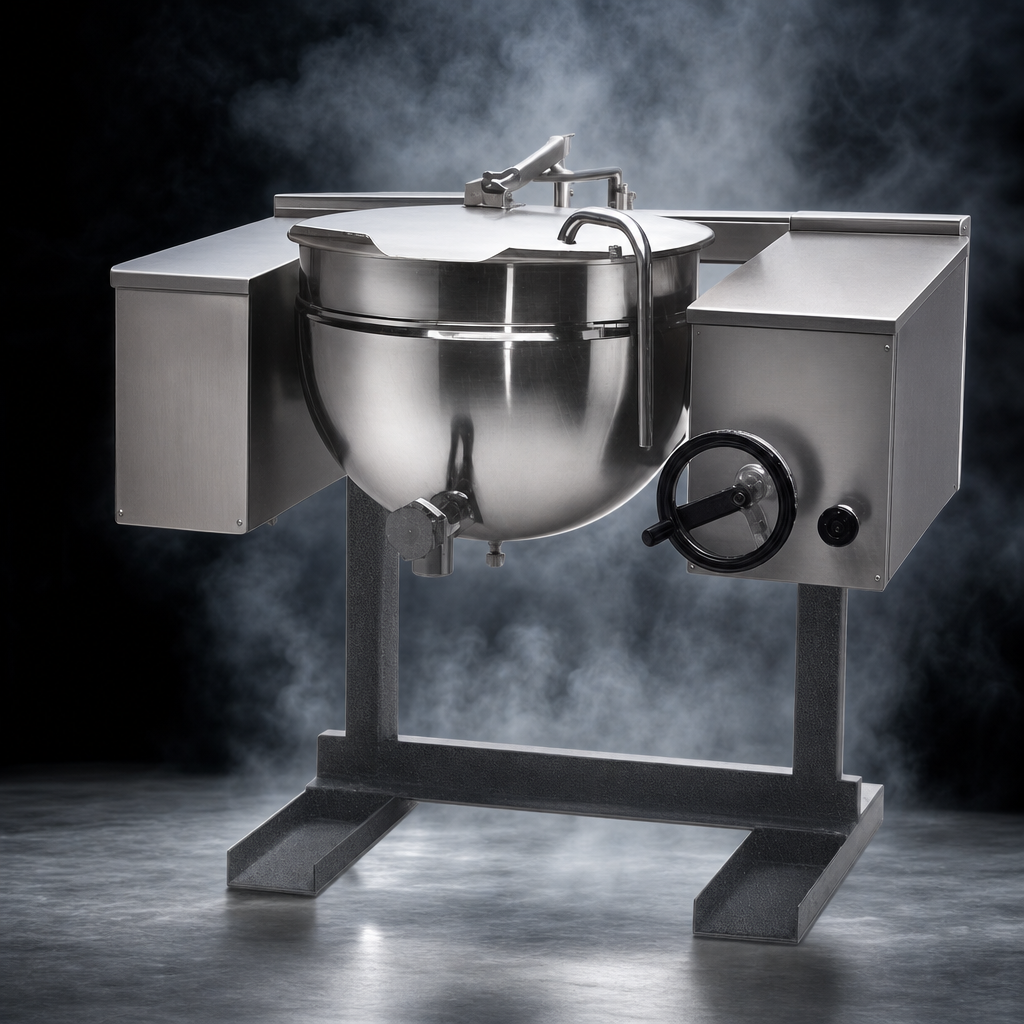

- Direct-steam 2/3 jacket heats product faster and more uniformly than stock pots.
- Seamless deep-drawn 304 stainless steel liner cleans up in seconds and resists corrosion.
- 304L stainless jacket rated at 30 psi handles high-pressure steam with ease.
- Self-locking worm-gear tilt lets you position the kettle at any angle while keeping both hands free.
- Reinforced stainless control & support consoles keep plumbing out of sight with rear connections.

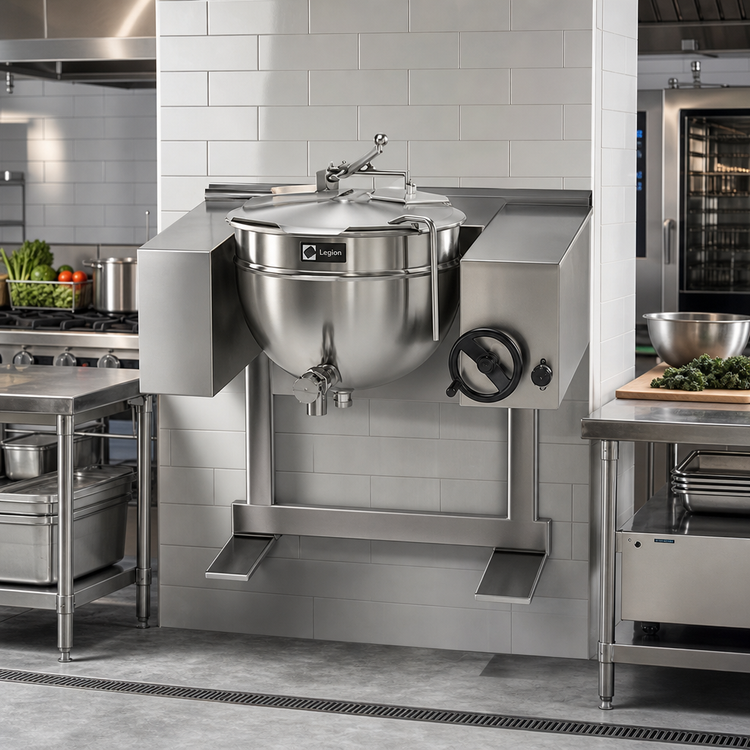

- Wall-mount design clears floor space, simplifies wash-downs and meets stringent hygiene codes.
- Built, tested and ASME/NSF compliant in Waynesboro, Georgia.
Standard Features
- Seamless deep-drawn 304 stainless kettle liner
- Seamless deep-drawn 304L stainless kettle jacket
- 30 psi operating pressure
- Self-locking worm-gear manual tilt
- 304 stainless reinforced console boxes
- Steam inlet/outlet plumbing pre-installed inside console (rear connection)
Technical Specifications
| Model | TWWC-30 |
|---|---|
| Capacity | 30 gal (114 L) |
| Heat Source | Direct external steam, 2/3 jacket |
| Operating Pressure | 30 psi (2 bar) |
| Liner Material | Seamless 304 stainless steel |
| Jacket Material | Seamless 304L stainless steel |
| Tilt Mechanism | Manual, self-locking worm-gear |
| Mounting Style | Wall-console, dual stainless support boxes |
| Steam Connections | ¾" NPT inlet (Q) ½" NPT outlet (R) |
| Overall Height | 41.3″ / 105 cm (C dimension) |
| Overall Width | 35.3″ / 90 cm (X dimension, minimum pour path) |
| Console Depth | 21.5″ / 55 cm (D dimension) |
Dimensions are manufacturer-supplied and subject to change. Confirm all clearances before rough-in.
Popular Options (sold separately)
- Single or double fill faucet with 12″ or 18″ swing nozzle
- 48″ flexible spray hose (vinyl or stainless)
- 2″ or 3″ draw-off valve with compression or ball-type fitting
- Air eliminator valve or pressure-reducing valve
- Automatic water-filling meter
- Basket, tri-basket & nylon bag inserts for pasta or stock production
- Lift-off or actuator-assisted cover
- In-wall carrier for additional mounting support
Compliance & Warranty
- Meets or exceeds ASME code for 30 psi steam pressure vessels
- NSF certified for foodservice sanitation
- 12-month parts & labor warranty from date of installation
