Legion TWWC-20 Steam Kettles
Description
Legion TWWC-20 Direct Steam Tilting Wall-Mount Kettle – 20 Gallon
2/3 Jacket · Deep-Drawn 304 Stainless · Made in USAMaximize production while freeing up valuable floor space. The Legion TWWC-20 delivers fast, even steam cooking in a rugged, wall-mounted tilting kettle that’s perfect for small-batch soups, sauces and sides.
Key advantages

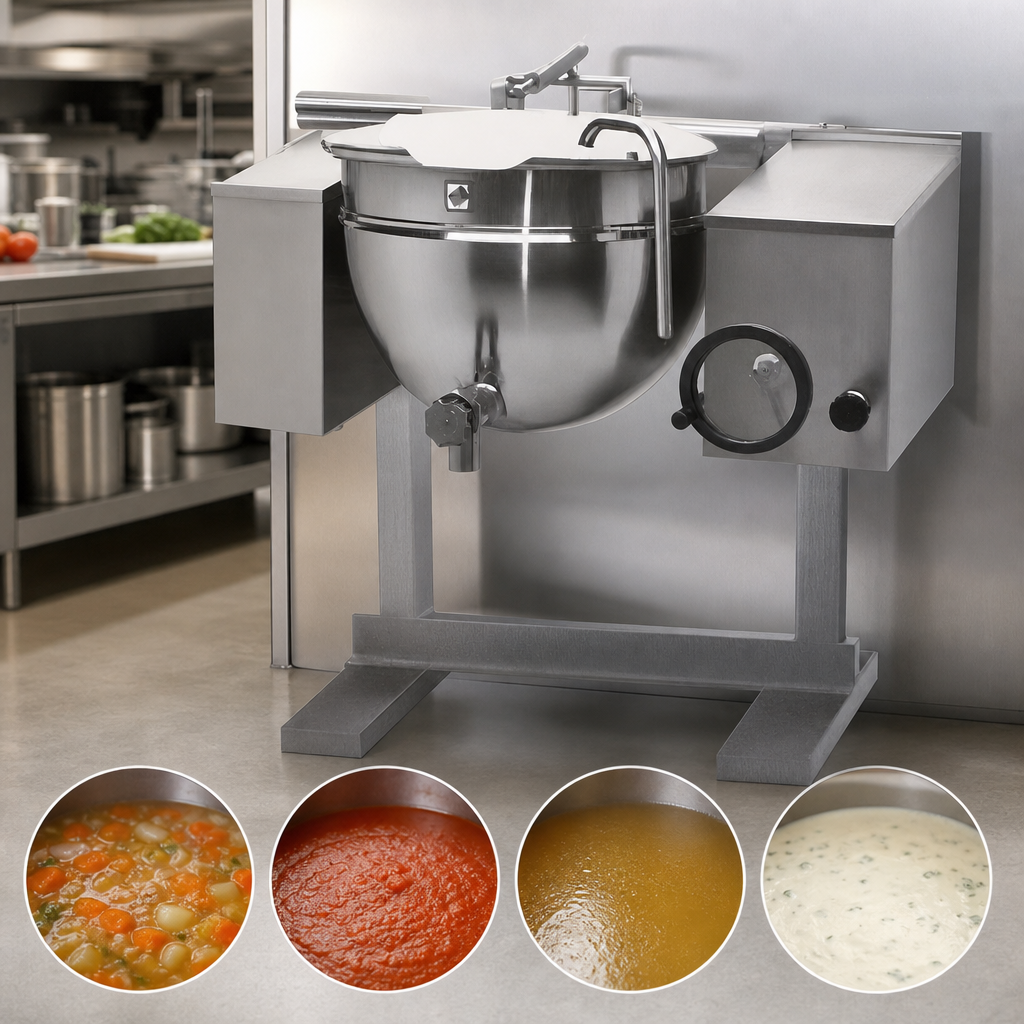

- 20 gal (76 L) capacity – sized for schools, healthcare and commissaries.
- 2/3 jacket surrounds product with uniform heat for faster, stick-free results.

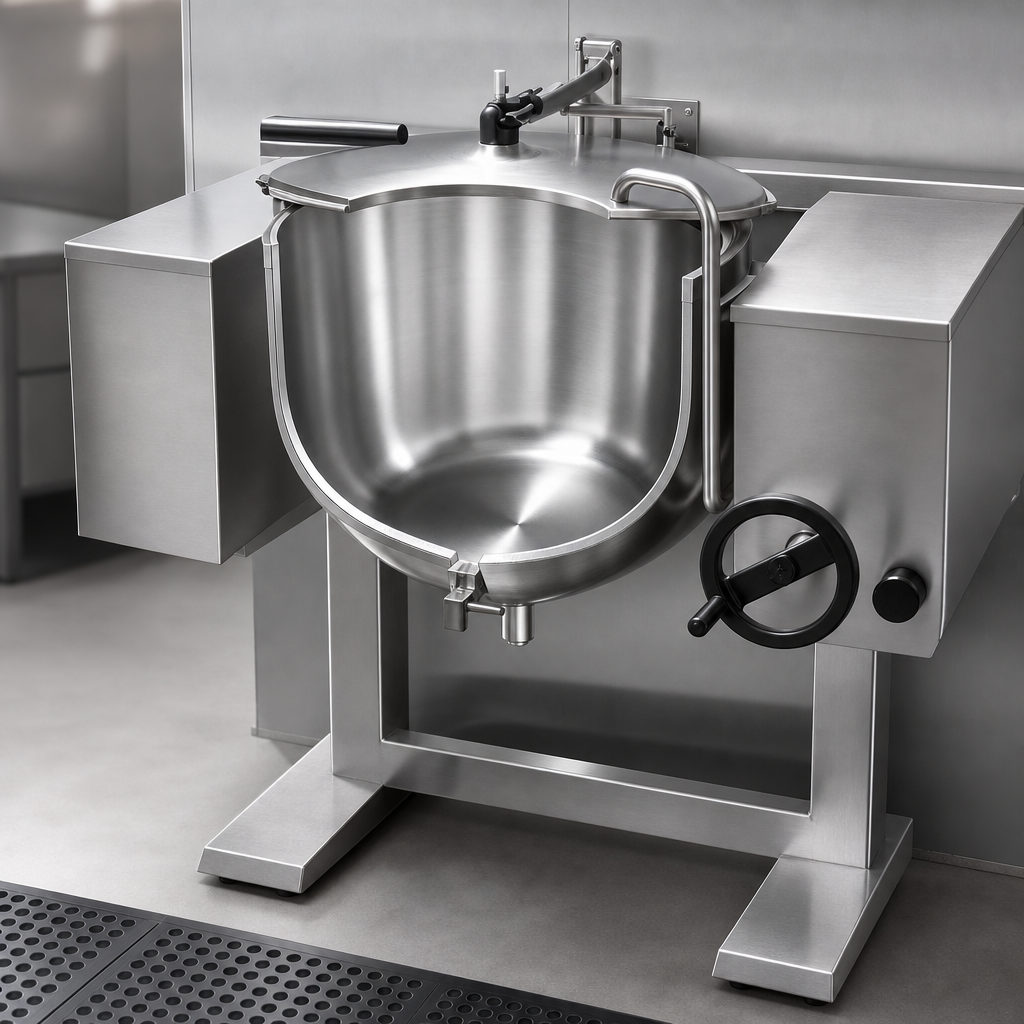

- Seamless deep-drawn 304 stainless kettle liner cleans easily and resists corrosion.
- 304L stainless jacket rated to 30 psi for direct boiler or building steam.
- Self-locking worm-gear tilt holds the kettle securely at any point in its rotation.
- Stainless wall/floor consoles with internal plumbing & rear connections reduce clutter.
- Wall-mount design keeps the area beneath the kettle clear for simple wash-downs.
- Built in the USA to ASME & NSF standards for long-term, worry-free service.
Specifications
| Model | TWWC-20 |
|---|---|
| Capacity | 20 gal / 76 L |
| Kettle Material | 304 stainless steel, seamless deep-drawn |
| Jacket Material | 304L stainless steel, 2/3 jacket |
| Operating Pressure | 30 psi (2.07 bar) |
| Tilt Mechanism | Manual crank, self-locking worm gear |
| Mounting | Stainless reinforced wall/floor consoles – rear steam & condensate connections |
| Steam Inlet | 3/4 ″ NPT |
| Condensate Outlet | 1/2 ″ NPT |
| Overall Width (A) | 22 in (559 mm) |
| Console Depth (B) | 16 in (406 mm) |
| Overall Height (C) | 39 in (991 mm) |
| Front-to-Back (D) | 20.6 in (523 mm) |
| Minimum Pour Path (X) | 33 in (838 mm) |
Dimensions taken from Legion drawing Rev. 113 and may vary slightly with draw-off valve selection.
Popular options & accessories (sold separately)
- Single or dual fill faucet with 12″ or 18″ swing nozzle
- 48″ flexible spray hose (vinyl or stainless)
- 2″ or 3″ draw-off valve assemblies
- Automatic water fill meter
- Mixer/agitator – 2 speed
- Lift-off or actuator-assisted cover
- Basket, tri-basket or nylon bag inserts
- Pour-lip pan holder & measuring strip
Boost your batch-cooking efficiency today with the Legion TWWC-20—backed by a 12-month parts & labor warranty.
