Legion TWWC-100 Steam Kettles
Description

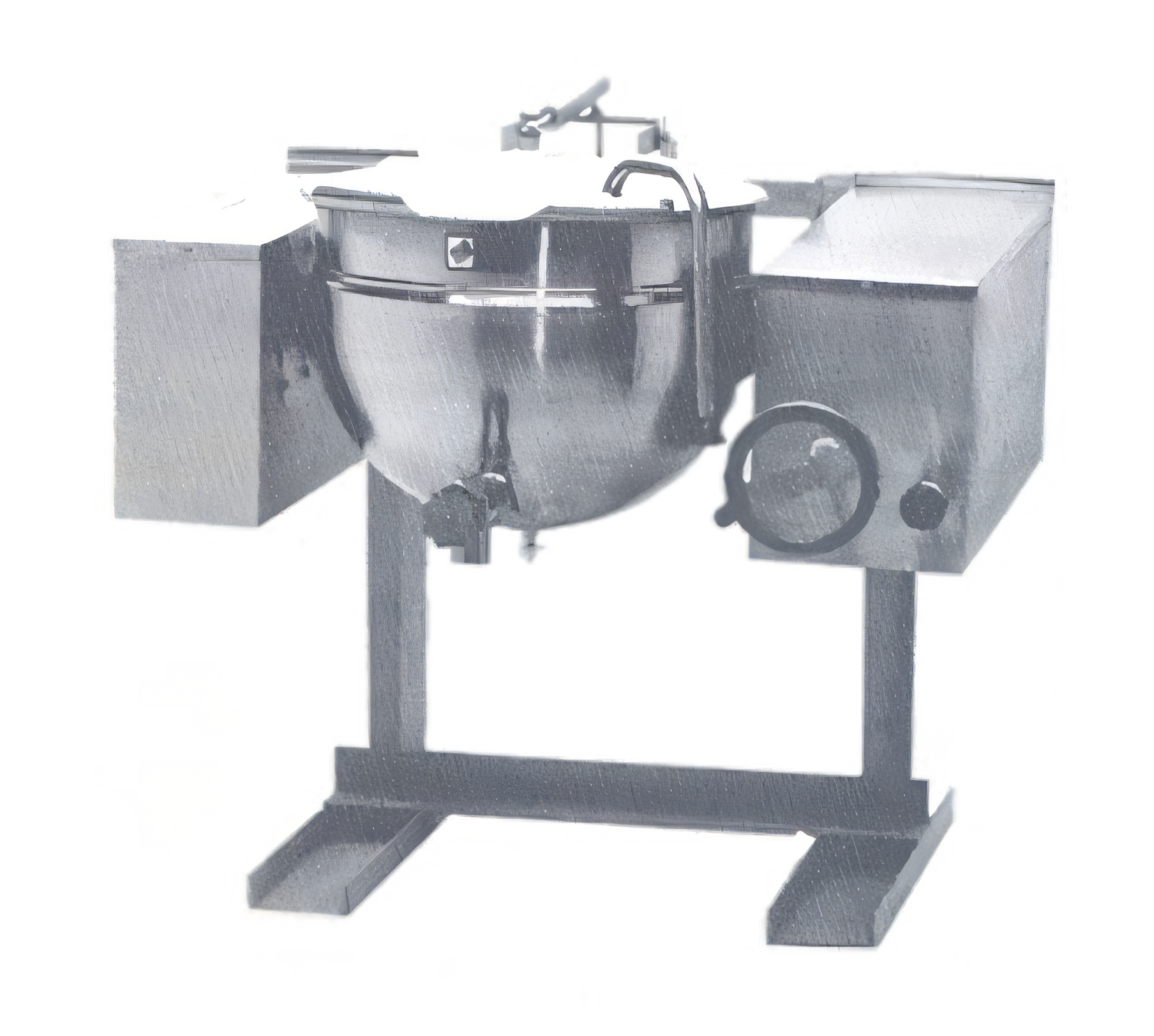

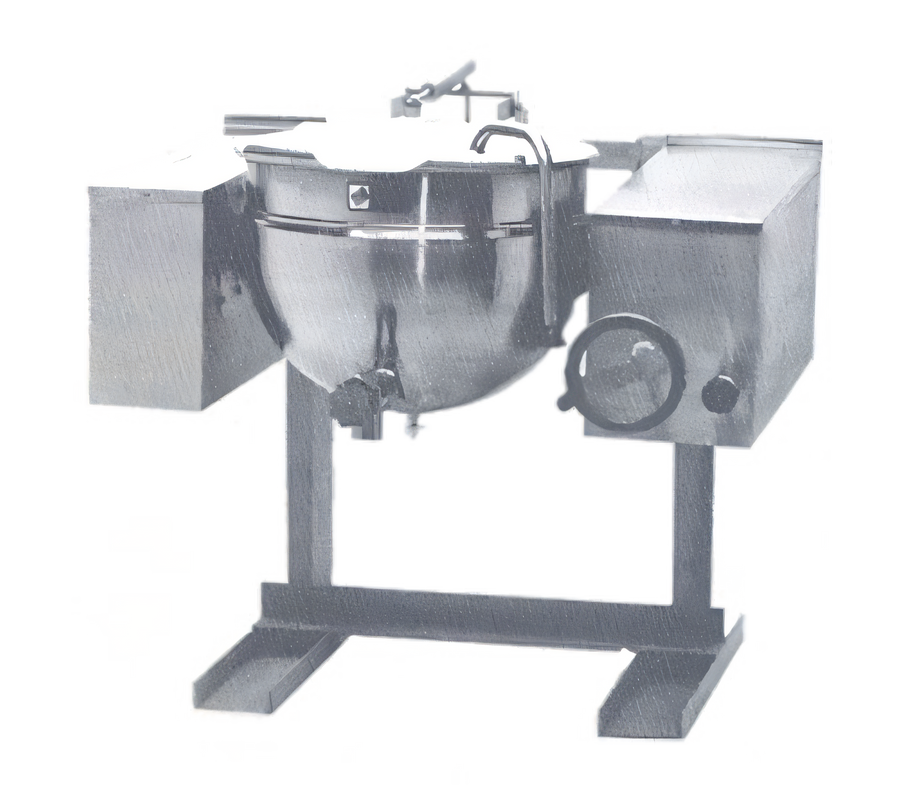

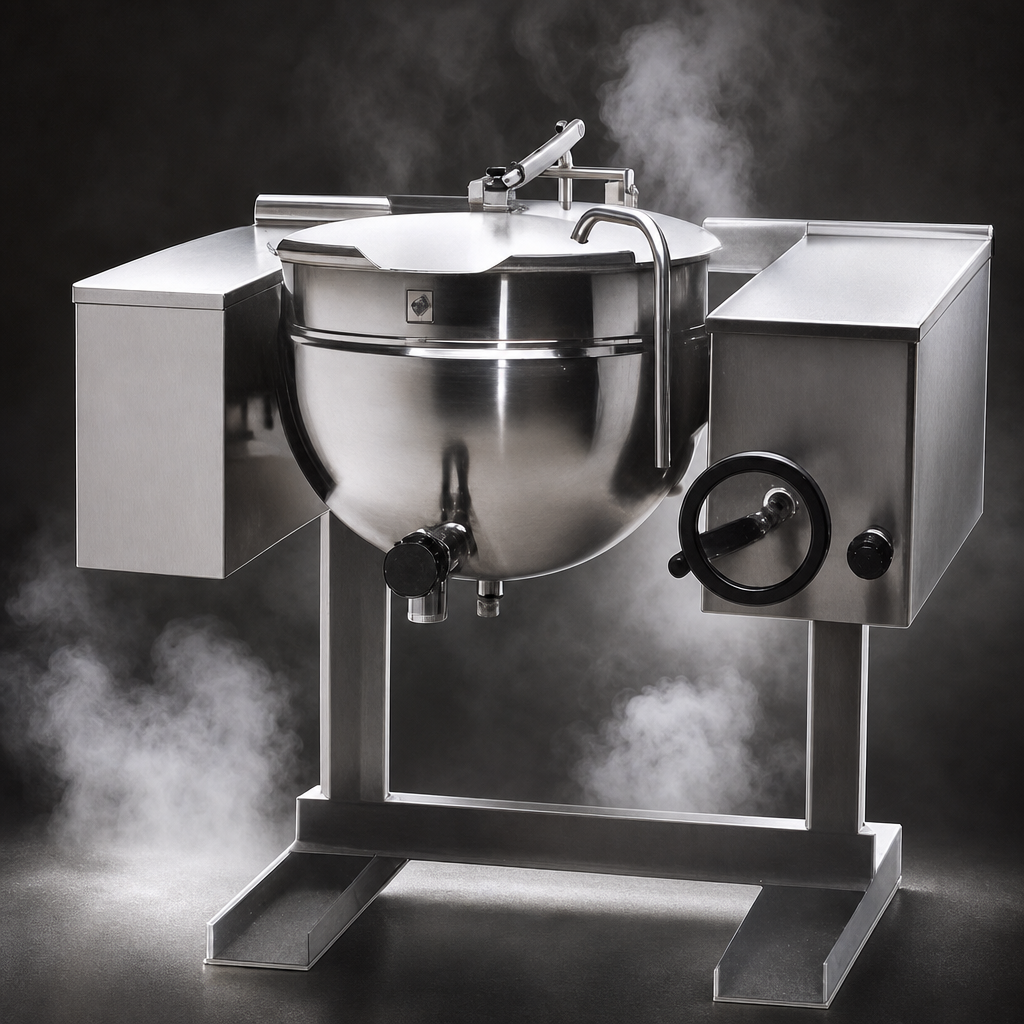

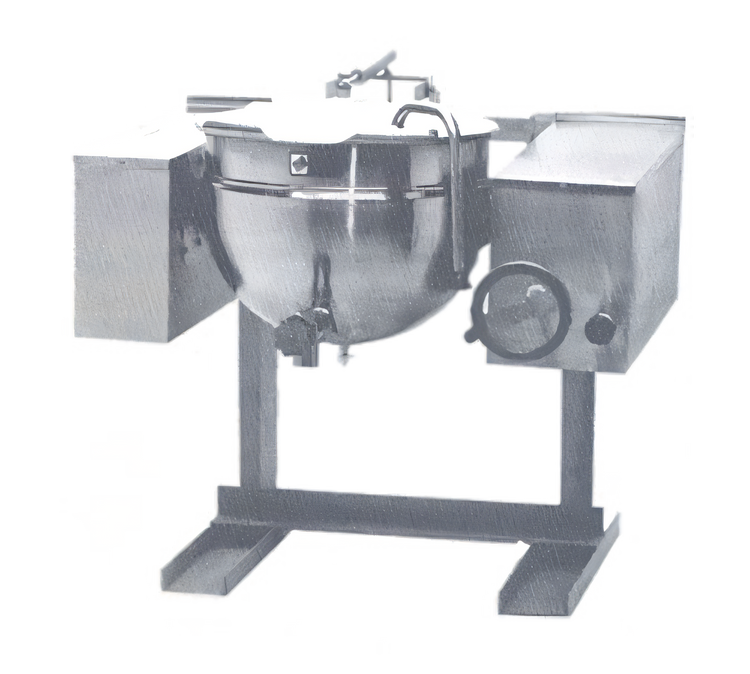

Legion TWWC-100 Direct-Steam Tilting Wall-Mount Kettle – 100 gal

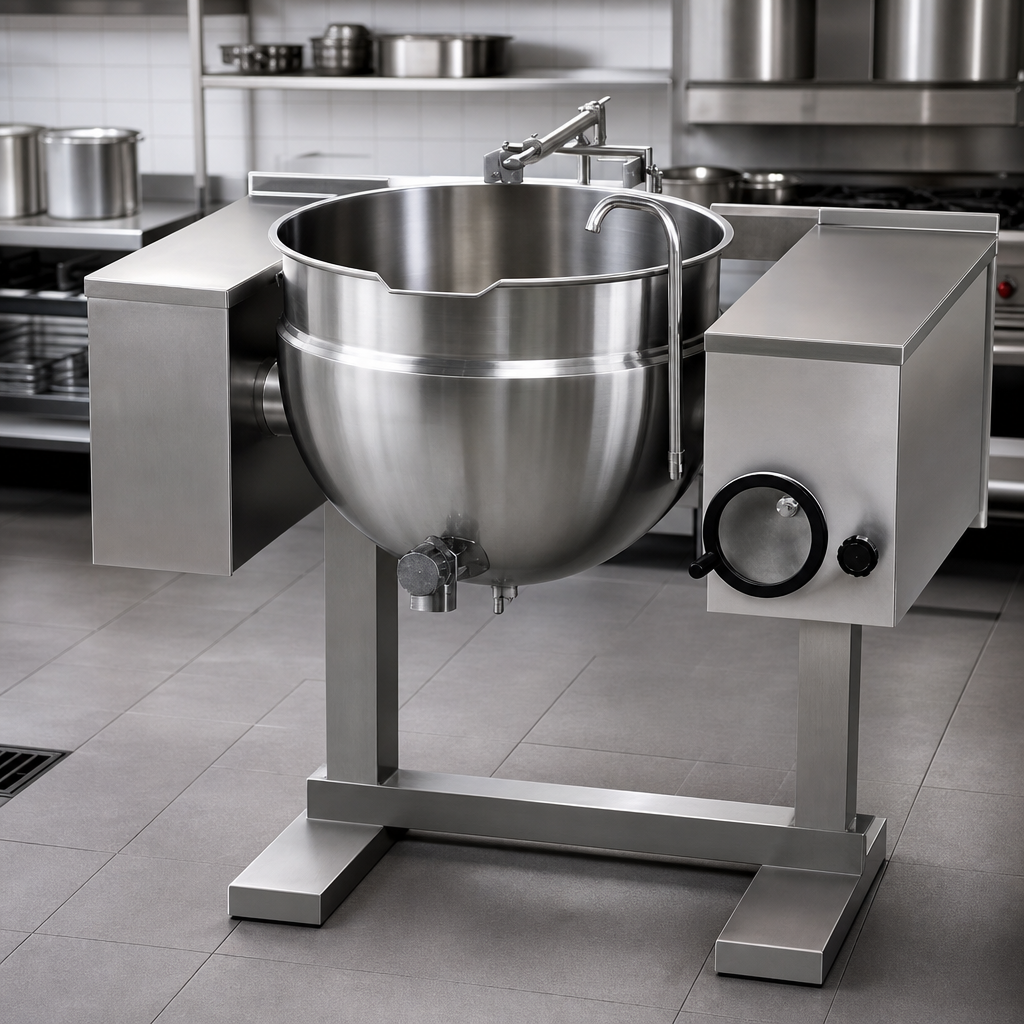

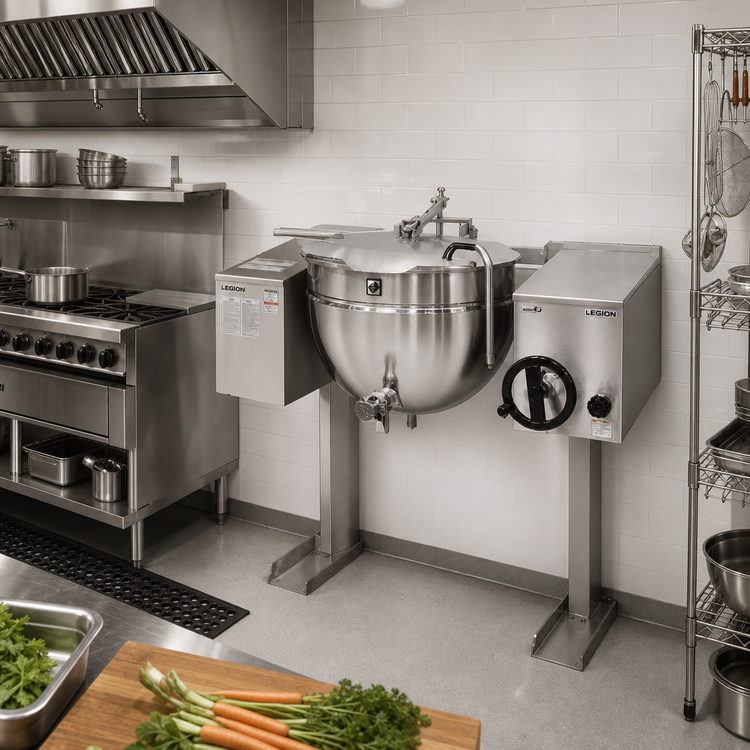

Deep-drawn 2/3 Jacket • 304 Stainless Steel • 25 psi Operating PressureWhen production volumes climb and floor space is at a premium, the Legion TWWC-100 answers with a full 100 gallon (379 L) capacity, quick-heating direct steam efficiency, and a space-saving wall-console design. Proudly made in the USA, this heavy-duty kettle is engineered for decades of trouble-free service in commissaries, correctional facilities, schools, and high-volume restaurants.
Why chefs choose the TWWC-100
- Seamless 304 stainless steel kettle liner—deep-drawn for maximum durability and easy sanitation.
- 2/3 jacketed body in corrosion-resistant 304L stainless for faster heat-up and even cooking.
- Rated 25 psi for use with most central boiler systems (direct steam).
- Self-locking worm-gear tilt mechanism lets one operator safely pour, with positive positioning every 5°.
- Wall-mounted, reinforced stainless steel consoles free the floor for easy cleaning and clear traffic paths.
- Rear NPT steam inlet & condensate outlet keep plumbing hidden and service-friendly.
- Factory-installed control console—no field drilling or fabrication required.
- ASME code stamped; NSF-listed for foodservice peace of mind.
Quick-view specifications
| Capacity | 100 gal | 379 L |
|---|---|
| Mounting style | Wall console, dual reinforced stainless supports |
| Jacket coverage | 2/3 of kettle body |
| Operating pressure | 25 psi direct steam |
| Construction | 304 stainless liner / 304L stainless jacket |
| Tilt mechanism | Manual hand-wheel, self-locking worm gear |
| Steam connections | ¾" NPT inlet & outlet (rear) |
| Overall dimensions* | W 44.5" × D 35.4" × H 41.3" |
| Made in | Waynesboro, Georgia, USA |
*Refer to spec drawing for detailed A-Z dimensions.
Popular factory options
- 2" or 3" draw-off valve (compression or ball type)
- Single or dual water fill faucet with 12" or 18" swing nozzle
- 48" flexible spray hose (vinyl or stainless)
- Air eliminator or pressure reducing valve
- Two-speed mixer/agitator assembly
- Lift-off or actuator-assisted hinged cover
- In-wall carrier kit for recessed installations
Warranty & compliance
- 12 months parts & labor from date of installation (15 months from ship date max)
- Extended warranty packages available
- Meets or exceeds ASME, NSF, UL, ETL, AGA, CSA requirements
