Legion TWU-80MV Steam Kettles
Description

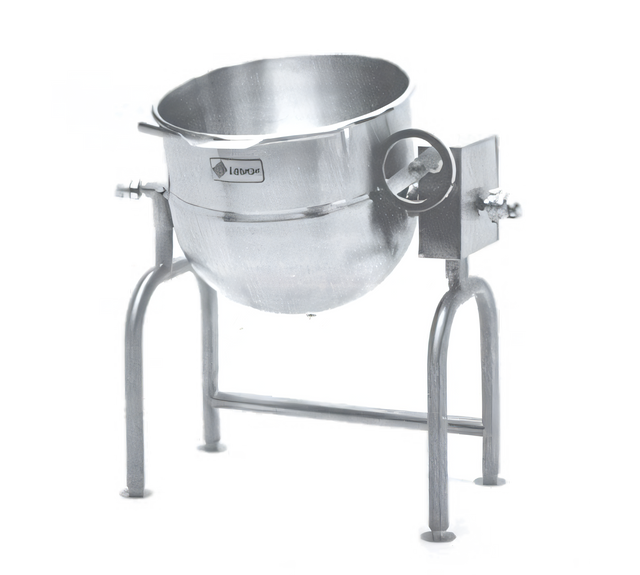

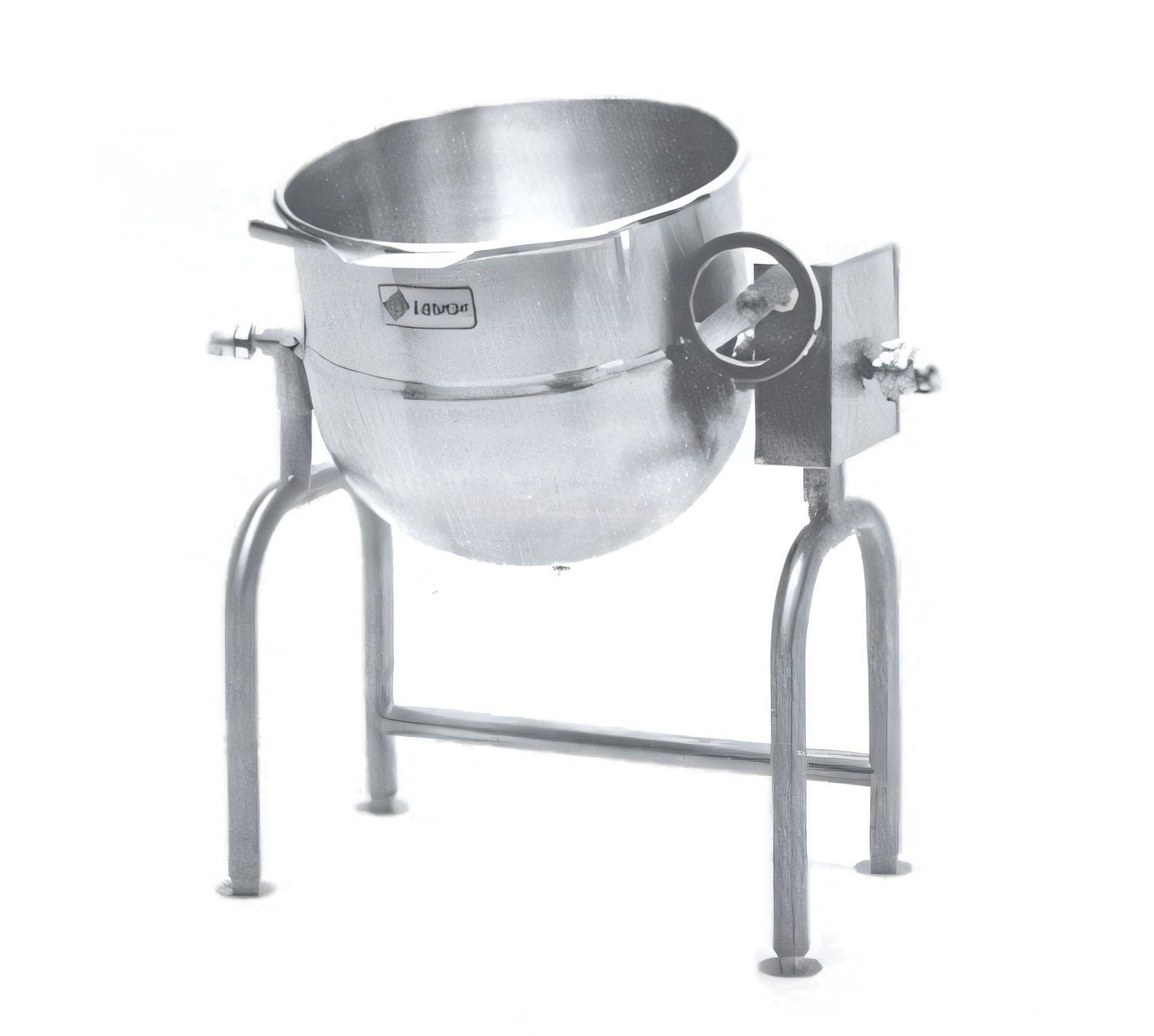

Legion 80-Gallon Direct Steam Tilting Kettle with 2-Speed Mixer
Model TWU-80-MV | 304 Stainless Steel | 30 psi Operating PressureEngineered for demanding, high-volume kitchens, the Legion TWU-80-MV combines an oversized 80-gallon 2/3-jacketed kettle with a powerful twin-shaft, two-speed agitator. From scratch-made soups to hearty chili, sauces, and bulk vegetables, this all-in-one cooker / mixer delivers even heating, consistent product movement, and effortless tilting for a safer, more efficient workflow.
Why this kettle?
- 80-gallon (303 L) capacity – ideal for central kitchens, commissaries, and production lines.
- Direct steam, 2/3 jacket – full-body heat transfer for rapid heat-up and precise simmer control.
- Seamless 304 stainless kettle liner – deep-drawn, crevice-free interior cleans fast and resists corrosion.
- Self-locking worm-gear tilt – smooth, controlled pouring with positive stop at any angle.
-
Twin-shaft 2-speed agitator
• Anchor-style main agitator hugs the kettle wall
• Counter-rotating beater breaks up lumps and ensures uniform blends
• Removable nylon scraper blades wipe every surface, preventing burn-on
• Bayonet-mount shafts lift out in seconds for cleaning or batch change-over - Rugged build – 304 stainless 2" tubular U-frame, reinforced gearbox, and adjustable flanged feet for permanent, rock-solid installation.
- 30 psi rating – ASME code-stamped jacket handles higher pressure steam for faster recovery.
- Made in the USA – built to NSF, UL, ETL, and CSA standards.
Perfect for
- Soups, chowders, and stews
- Sauces, gravies, and béchamel
- Pasta & rice par-cooking
- Custards, puddings, and oatmeal
- Chili, taco meat, and Bolognese
- Vegetable blanching & cooling
Technical specifications
| Capacity | 80 gal / 303 L |
|---|---|
| Operating pressure | 30 psi (2 bar) – ASME stamped jacket |
| Kettle material | Seamless 304 SS liner & 304L jacket |
| Mounting | U-frame floor stand, 304 SS, 2" tubular, adjustable flanged feet |
| Tilt mechanism | Self-locking worm gear, manual hand wheel |
| Agitator type | Twin-shaft anchor & counter-rotating beater |
| Agitator speeds* | Low 23 RPM / 60 RPM • High 46 RPM / 120 RPM (main / secondary) |
| Motor horsepower* | High speed 2 HP • Low speed 1 HP, totally-enclosed gear motor |
| Steam connections | ¾" NPT inlet & outlet |
| Overall dimensions** | W 53.3" • D 43.4" • H ≈ 55" (with mixer raised) |
| Net weight | Consult factory (varies with options) |
*Based on standard 15:1 gear head ratio and 2.6:1 main/secondary beater ratio.
**“H” dimension varies with draw-off valve selection.
Factory-installed options & accessories
- 2″ or 3″ draw-off valve with perforated disk strainer
- Single or dual water fill faucet (12″ or 18″ swing nozzle)
- 48″ flexible rinse hose (vinyl or stainless)
- Lift-off or actuator-assisted cover
- Tri-basket or nylon bag insert for pasta & produce
- Automatic water-metering system
- Higher-pressure jacket, air eliminator, or pressure-reducing valve
- Security packages: lockable lid, reinforced bar rim, tamper-resistant fasteners
Need a different capacity or electrical specification? Reach out via the contact form for fast, factory-direct assistance.
