Legion TWU-80 Steam Kettles
Description

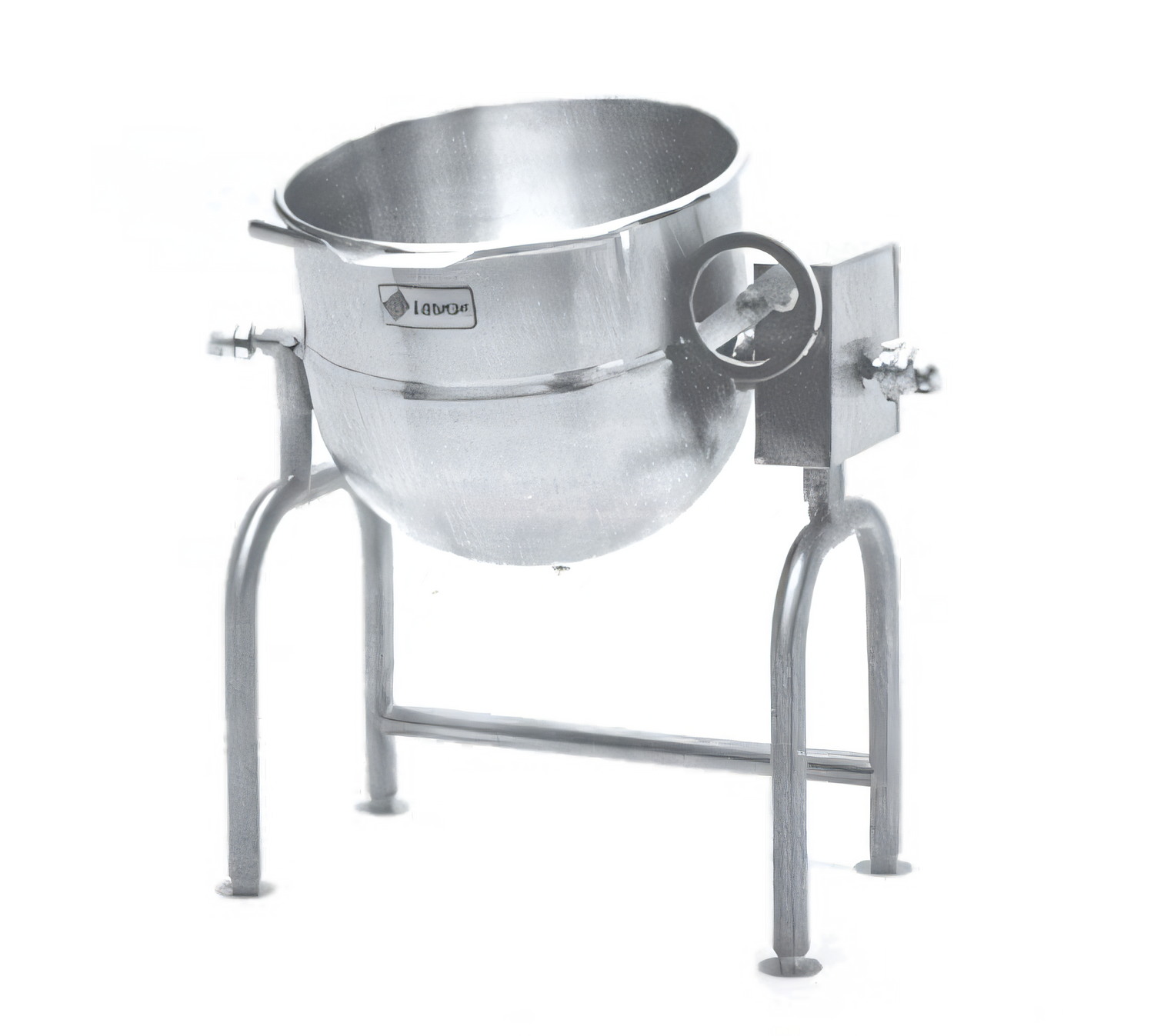

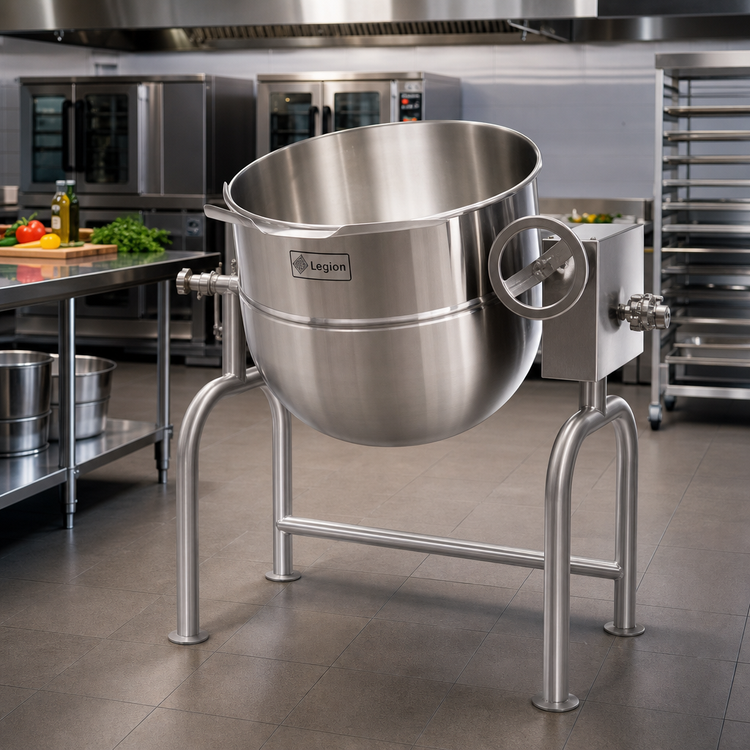

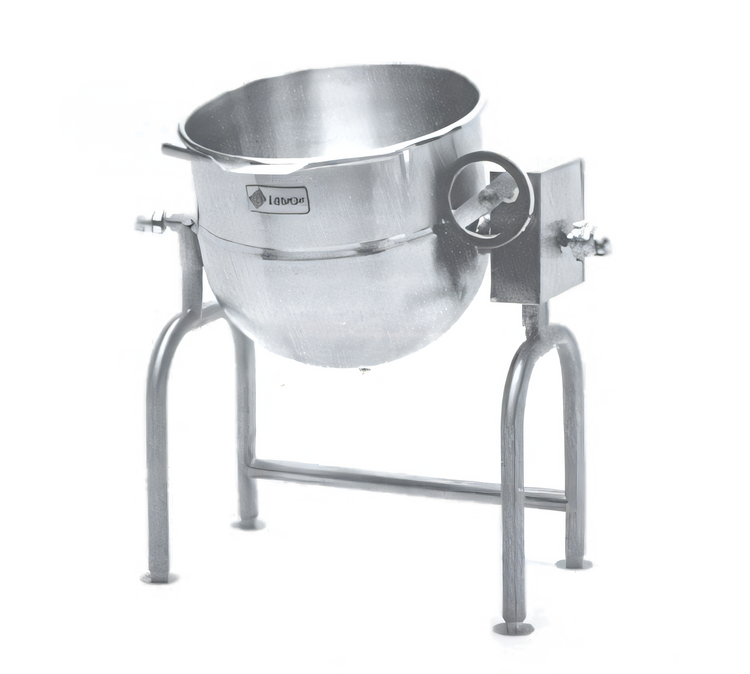

Legion TWU-80 Direct Steam Tilting Kettle – 80 Gallon
2/3-Jacketed • Deep-Drawn 304 Stainless • Made in the USAEngineered for high-volume kitchens that refuse to compromise on quality, the Legion TWU-80 delivers 80 gallons (303 L) of consistent, even-heated cooking power. Its seamless 2/3 steam jacket and self-locking worm gear tilt make large-batch soups, sauces, stocks and more safer, faster and easier than ever.
Why You’ll Love It
- Deep-drawn 304 stainless liner – one-piece, crevice-free interior for superior sanitation and effortless clean-up.

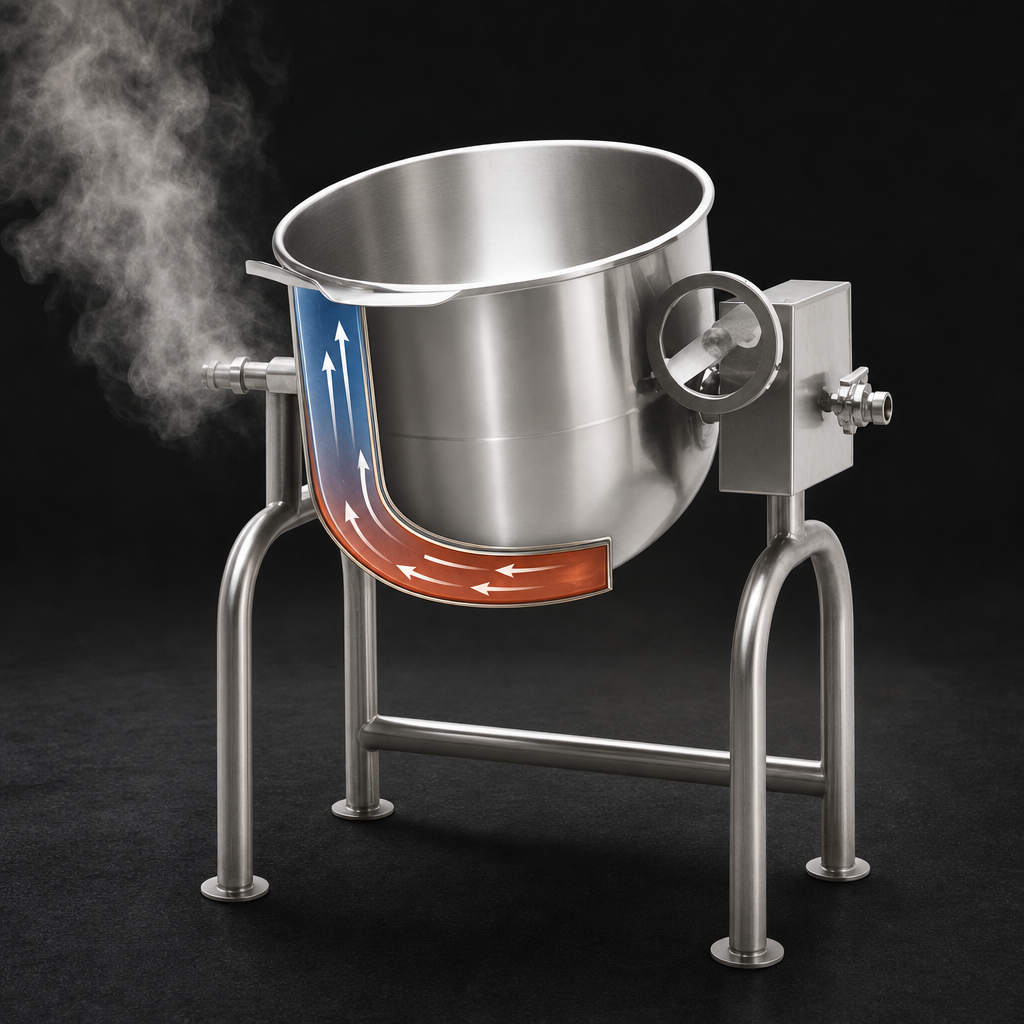

- 304L stainless, 2/3 steam jacket distributes heat evenly, cutting cook times and preventing hot spots.
- Self-locking worm gear tilt with reinforced 304 stainless gearbox provides smooth, controlled pouring at any angle.
- Rugged U-frame stand – 2" tubular 304 stainless support with adjustable flanged feet resists corrosion and keeps the kettle rock-solid on uneven floors.
- 30 psi operating pressure handles direct boiler steam for maximum cooking performance.
- Made in the USA and built to meet or exceed ASME, NSF and other major agency standards.
Technical Specifications

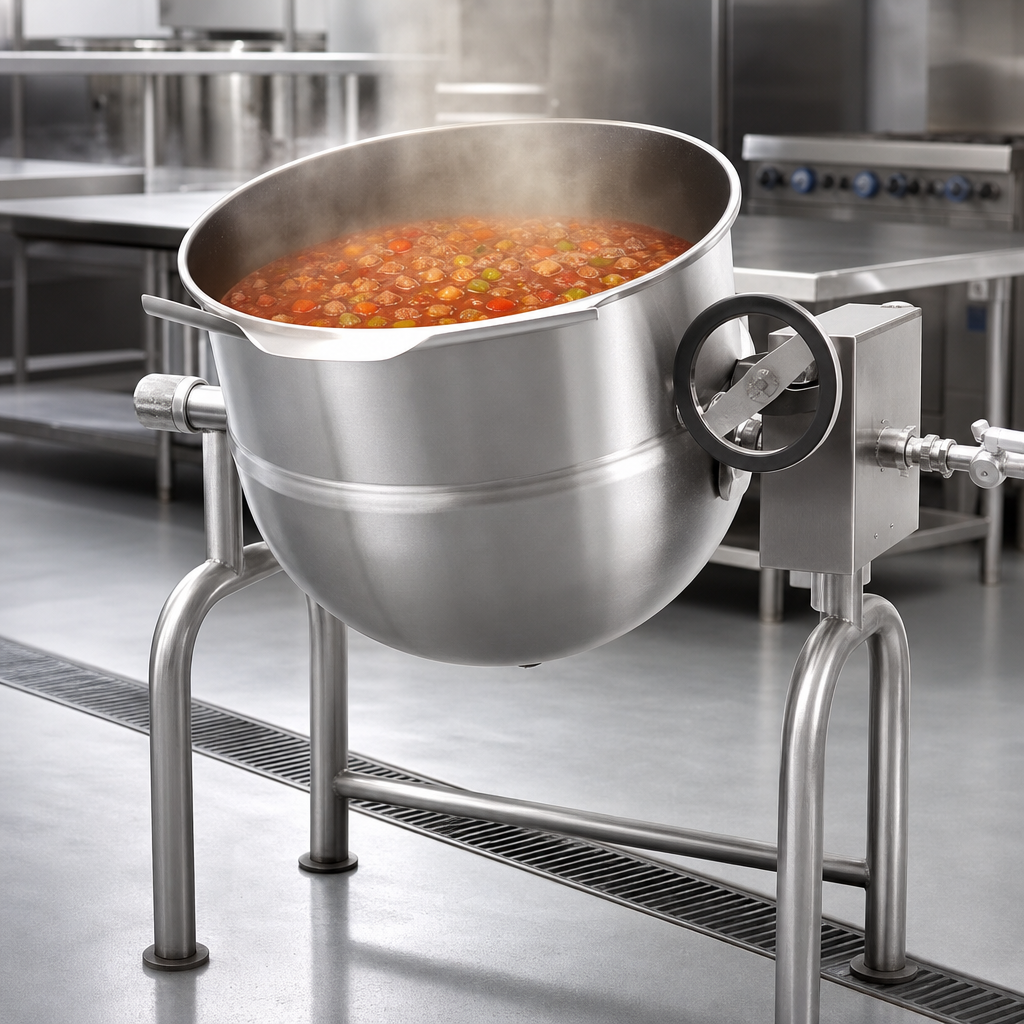

| Capacity | 80 gal / 303 L |
|---|---|
| Construction | Seamless deep-drawn 304 stainless liner & 304L stainless 2/3 jacket |
| Operating Pressure | 30 psi (207 kPa) |
| Tilt Mechanism | Self-locking worm gear, hand-wheel operated |
| Support Frame | 304 stainless, 2" tubular U-frame with adjustable flanged feet |
| Steam Connection | ¾" NPT inlet & outlet |
| Overall Dimensions (in.)* |
A 32.5 • B 27.6 • C 43.4 • D 11.0 • F 53.3 • H 12.8 K 22.0 • L 40.5 • O 27.3 • P 24.3 • X 34.4 |
*Refer to spec sheet for detailed dimensional drawings and clearance requirements.
Factory-Installed Options & Accessories
- Single or dual fill faucet with 12" or 18" swing nozzle
- 48" flexible spray hose (vinyl or stainless)
- Actuator-assisted hinged cover or lift-off cover
- 2" or 3" draw-off valve with perforated disk strainer
- Two-speed mixer/agitator assembly
- Lockable security lid & reinforced bar rim packages
- Kettle care kit, pour-lip pan holder, measuring strip & more
Legion equipment is manufactured under strict quality control and is designed to comply with ASME code as well as NSF and other applicable standards for commercial foodservice equipment.
