Legion TWU-60MV Steam Kettles
Description

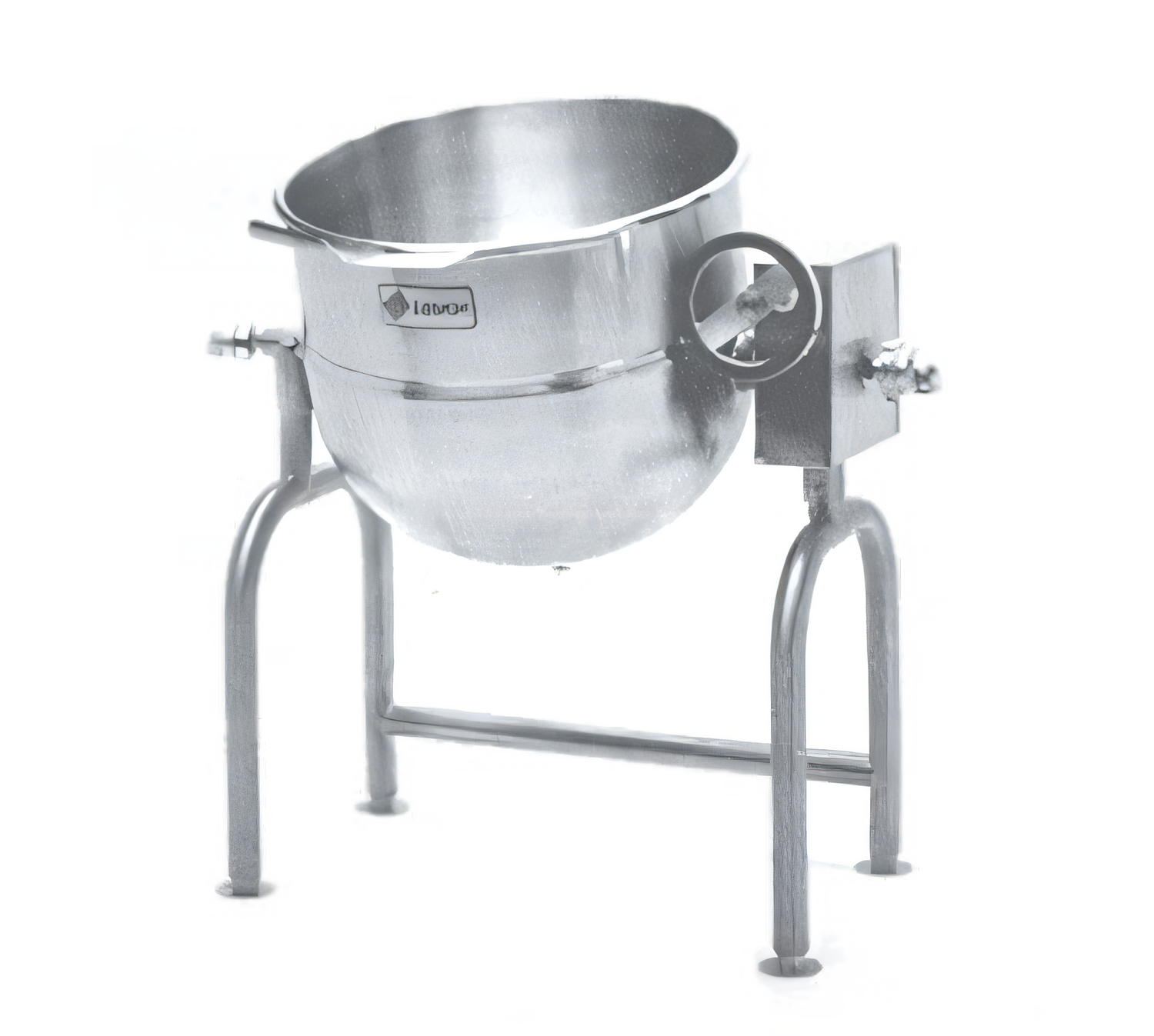

Legion TWU-60MV | 60-Gallon Direct-Steam Tilting Kettle with Twin-Shaft Mixer
2/3 Jacketed • 304 Stainless Steel • 30 psi Operating PressureMaximize production and consistency in one compact footprint. The Legion TWU-60MV combines a 60-gallon, 2/3-jacketed direct-steam kettle with a factory-mounted, two-speed MV series twin-shaft mixer—delivering even heating, thorough mixing and effortless, self-locking tilting for large-batch soups, sauces, confectionery, beverages and more.
Key Benefits
- Seamless deep-drawn 304 SS kettle liner resists pitting and speeds clean-up.
- 2/3 jacket in 304L stainless provides rapid, uniform heat transfer up to 30 psi.
- MV twin-shaft agitator with anchor, counter-rotating beater & removable nylon scrapers keeps every inch of product in motion—no scorching or cold spots.
- Two-speed gear motor (High 1.5 HP • Low 0.75 HP) lets you switch from gentle fold-in to vigorous agitation at the turn of a switch.
- Self-locking worm-gear tilt mechanism allows smooth, precise pouring by a single operator.
- Positive quick-acting rim lock swings the mixer bridge up and out of the way for loading or sanitation.
- Heavy-duty 2″ tubular stainless U-frame with adjustable flanged feet stays rock-solid under heavy loads.
- Built in the USA; ASME-coded and NSF-listed for commercial kitchens.
Mixer Performance
| Usable Capacity | 60 gal / 227 L |
|---|---|
| Motor Power | High 1.5 HP | Low 0.75 HP |
| Main Agitator RPM | High 46 | Low 23 |
| Secondary Beater RPM | High 120 | Low 60 |
| Agitator Style | 304 SS anchor w/ bayonet-mount nylon scrapers |
| Beater Style | 304 SS counter-rotating |
Kettle Specifications
| Model | TWU-60MV |
|---|---|
| Construction | All-welded 304/304L stainless kettle, jacket, gearbox & frame |
| Jacket Coverage | 2/3 (bottom & side walls) |
| Operating Pressure | 30 psi (207 kPa) max steam |
| Tilt Mechanism | Manual worm-gear with self-lock & hand wheel |
| Steam Inlet / Outlet | ¾″ NPT inlet | ½″ NPT condensate outlet |
| Interior Diameter (A) | 29.5″ / 749 mm |
| Interior Depth (B) | 25.0″ / 635 mm |
| Height to Rim (F) | 49.6″ / 1 260 mm |
| Pour-Path Clearance (X) | 31.5″ / 800 mm minimum |
| Overall Length (L) | 37.8″ / 960 mm |
What’s Included
- Legion TWU-60 2/3-jacketed tilting kettle
- Factory-installed MV two-speed twin-shaft mixer assembly
- Control console with safety interlocks & speed selector
- Adjustable stainless flanged feet
- Owner’s manual & warranty registration
Need draw-off valves, faucets, covers or custom accessories? Our foodservice specialists are ready to help you configure the perfect kettle package.
Warranty
12-month parts & labor coverage from date of installation (15 months from ship date). Extended coverage available—ask for details.
