Legion TWU-50MV Steam Kettles
Description

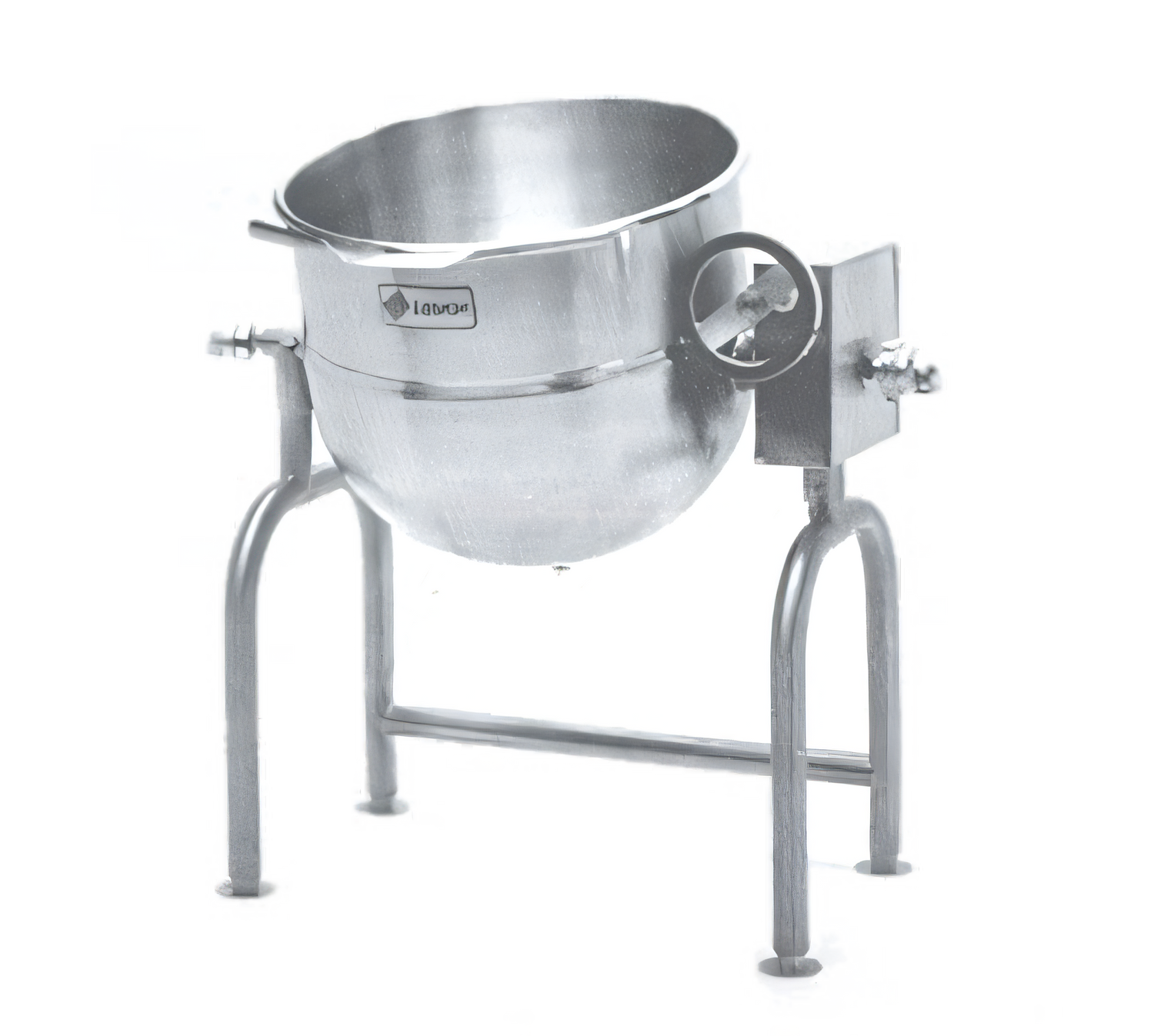

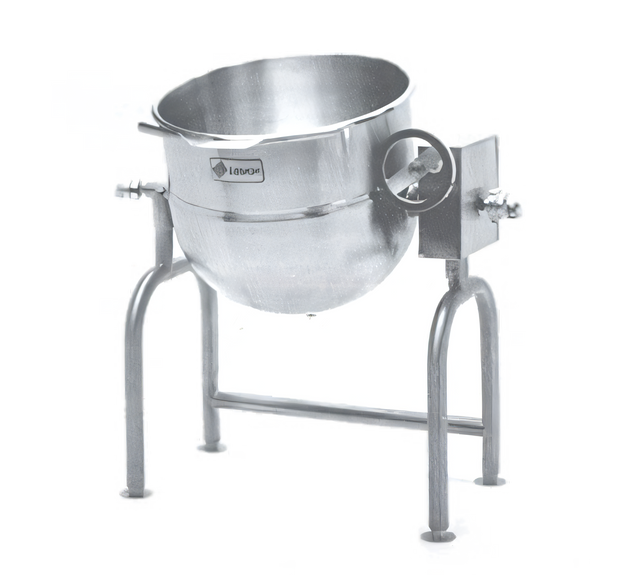

Legion TWU-50 50-Gallon Direct Steam Tilting Kettle with MV Mixer
2/3-Jacketed • Deep-Drawn 304 Stainless • 30 psi Operating PressureBuilt for production kitchens that refuse to compromise, the TWU-50 pairs Legion’s legendary 2/3-jacketed steam kettle with a powerful two-speed agitator. From silky soups to high-viscosity sauces, you’ll cook, mix and pour faster—while protecting product integrity and reducing labor.
Key Performance Advantages
- Large 50-gal. (189 L) working capacity handles medium-to-high volume batches.
- Seamless 304 stainless liner cleans easily and won’t pit, flake or rust.
- 304L stainless 2/3 jacket delivers rapid, uniform heat transfer up to 30 psi.
- Self-locking worm-gear tilt provides smooth, controlled pouring at any angle.
- Reinforced 304 stainless gearbox and pedestal for uncompromising durability.
- Rugged 2″ tubular U-frame with adjustable flanged feet—bolt-down stability in any plant.
- Made in the USA; ASME-stamped, NSF-listed and compliant with all major codes.
MV Twin-Shaft Agitator Package
- 2-speed TEFC gear motor (high 46 RPM / low 23 RPM main agitator) sized for 40-60 gal. kettles.
- Anchor-style primary agitator hugs the bowl; removable nylon blades scrape every inch.
- Counter-rotating secondary beater (120 RPM / 60 RPM) breaks up clumps for even consistency.
- Actuator-assisted bridge lift swings clear for kettle cleaning or stationary use.
- Bayonet-mount shafts pop off tool-free for the dish room.
- Safety interlock prevents high-speed starts unless the rim-lock is fully engaged.
Technical Specifications
| Model | TWU-50-MV |
|---|---|
| Capacity | 50 gal. / 189 L |
| Heating Source | Direct steam, 2/3 jacket |
| Operating Pressure | 30 psi (max) |
| Interior Metal | Seamless 304 stainless steel |
| Frame & Base | 304 stainless, 2″ tubular U-frame & pedestal |
| Tilt Mechanism | Self-locking worm-gear, manual hand wheel |
| Agitator Motor | 2 HP, two-speed, TEFC, 208/230/460 V, 60 Hz |
| Main Agitator RPM | 46 (high) / 23 (low) |
| Secondary Beater RPM | 120 (high) / 60 (low) |
| Steam Inlet / Outlet | ¾″ NPT / ½″ NPT |
| Overall Dimensions* | 37.8″ W × 38.3″ D × 49.6″ H |
*Height may vary with draw-off valve or cover options.
Optional Add-Ons
- 2″ or 3″ draw-off valve with perforated disk strainer
- Single or double fill faucet (12″ / 18″ swing nozzle)
- 48″ flexible spray hose—vinyl or stainless
- Lift-off or actuator-assisted hinged cover
- Pasta and tri-basket inserts, pour-lip pan holder & more
Warranty & Compliance
Covered by Legion’s 12-month parts & labor warranty and manufactured to ASME, NSF, UL, CSA and related standards.
