Legion TWU-50 Steam Kettles
Description

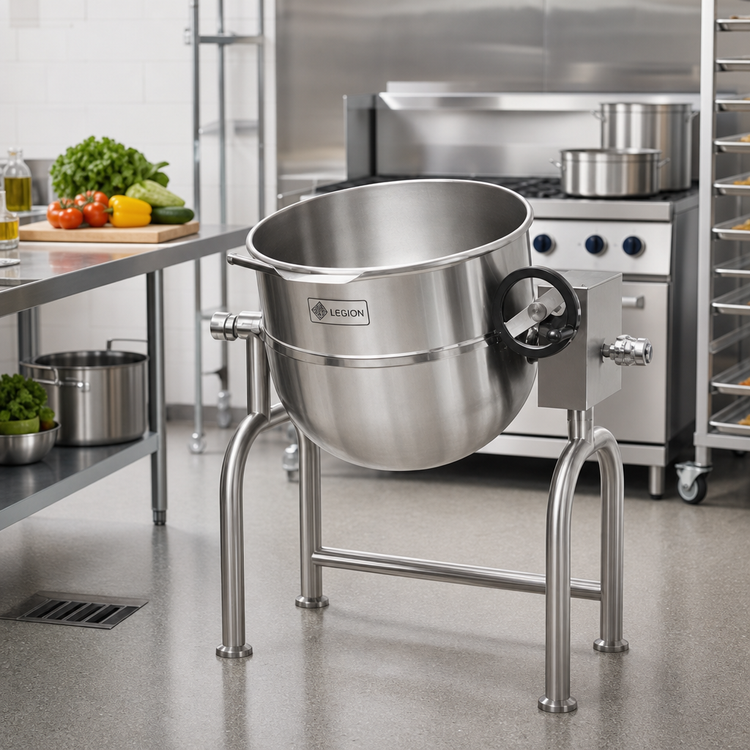

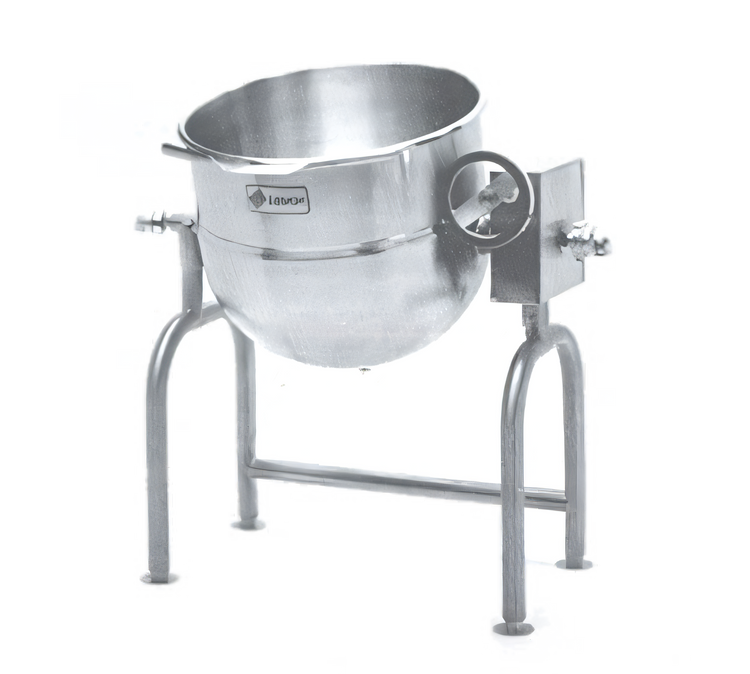

Legion TWU-50 Direct Steam Tilting Kettle – 50 Gal
2/3 Jacket • 304 Stainless Steel • Made in USABuilt for high-volume kitchens that refuse to compromise on speed, safety or flavor, the Legion TWU-50 combines a seamless 304 stainless steel liner with a full 2/3 steam jacket for fast, even heat distribution. A self-locking worm-gear tilt lets you pour with confidence, while a rugged stainless U-frame keeps the kettle rock-solid shift after shift.
Standard Features

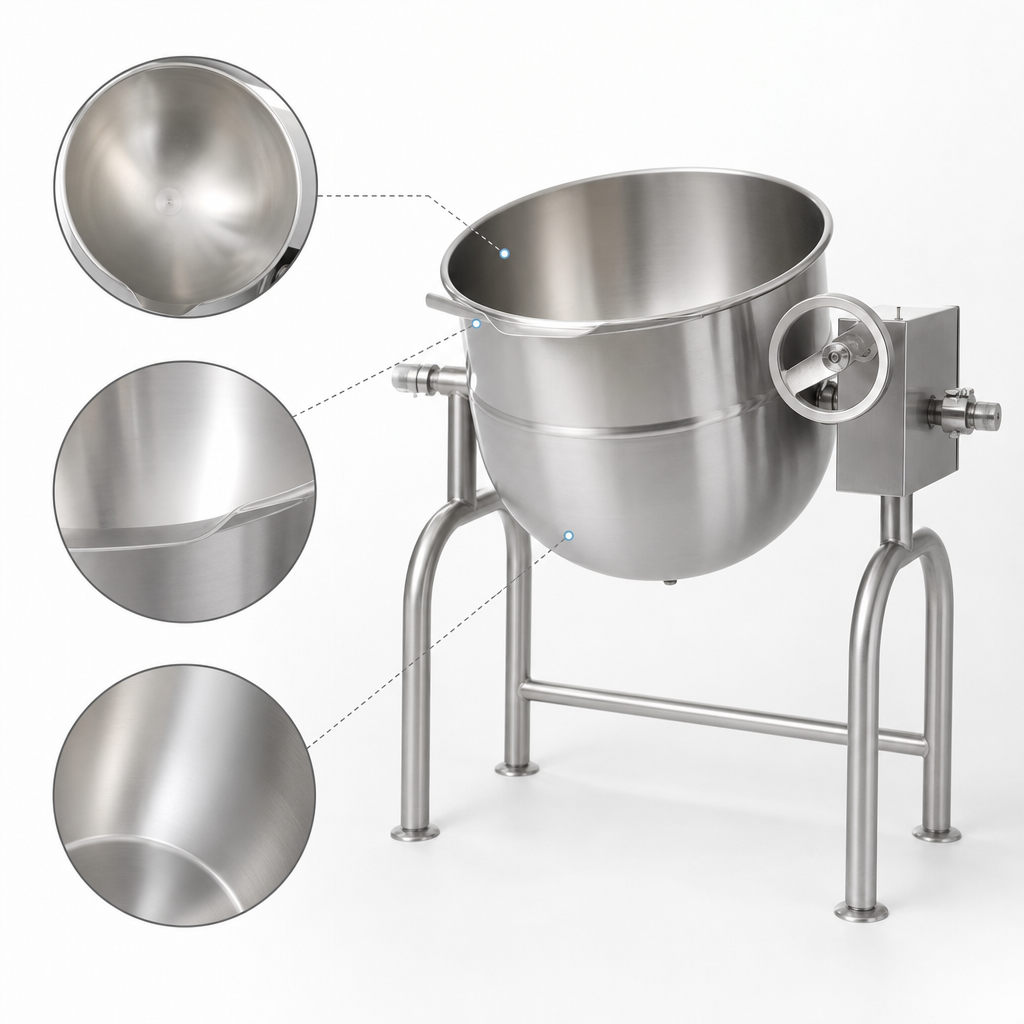

- Seamless deep-drawn 304 SS kettle liner – no crevices for food soil

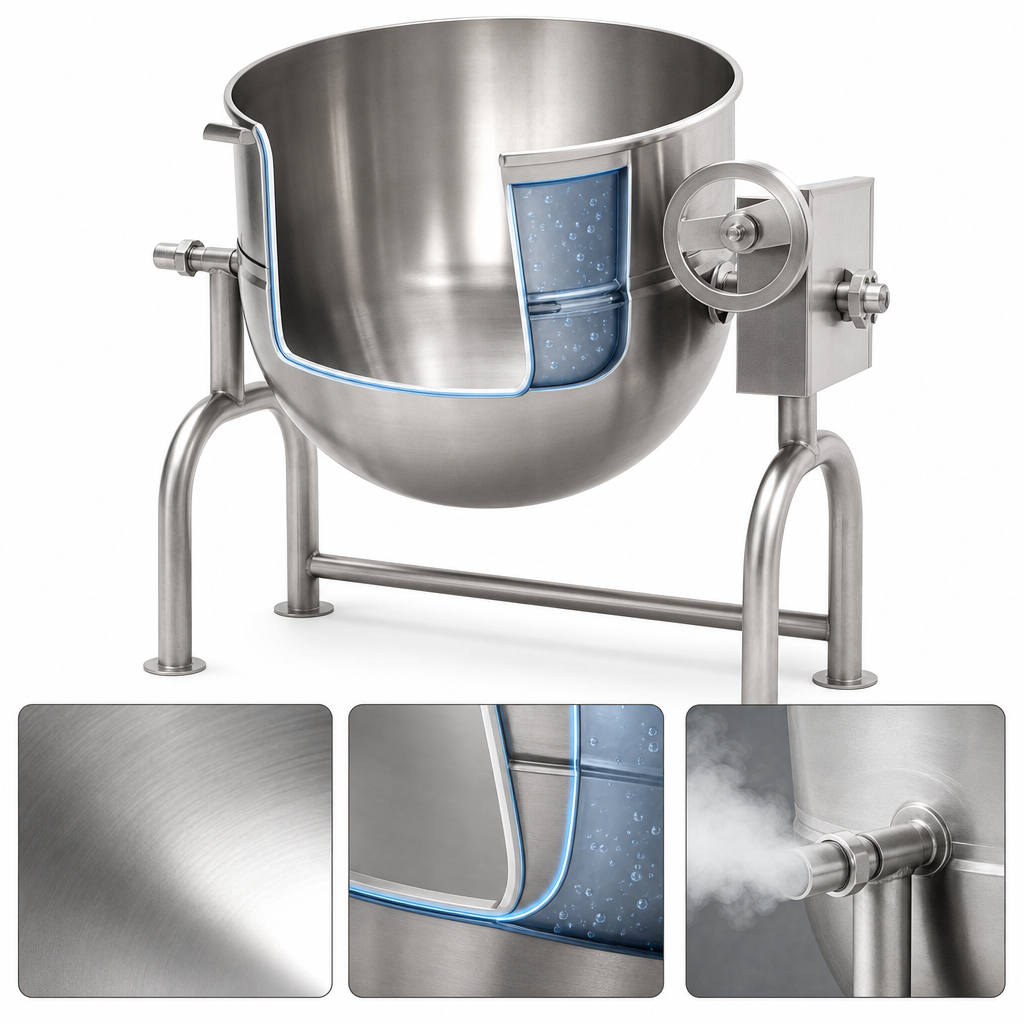

- 304L stainless 2/3 jacket for efficient, uniform steam heating
- Reinforced 304 SS worm-gear tilt mechanism – self-locking for operator safety
- Stainless control console with large hand crank for smooth 90° pour
- 2" tubular 304 SS U-frame with adjustable flanged feet
- 30 psi (2.07 bar) operating pressure rating
- ASME code stamped; NSF & other agency compliant
Specifications
| Model | TWU-50 |
|---|---|
| Capacity | 50 gal / 189 L |
| Heat Source | Direct steam (external boiler required) |
| Jacket Coverage | 2/3 of kettle body |
| Operating Pressure | 30 psi max |
| Construction | 304 SS liner & pedestal • 304L SS jacket • 304 SS frame |
| Tilt Mechanism | Self-locking worm gear with stainless gear box |
| Steam Connections | ¾" NPT inlet (Q) • ½" NPT outlet (R) |
| Overall Height (F) | 49.6 in / 1,260 mm |
| Overall Width (L) | 37.8 in / 961 mm |
| Overall Depth (O) | 25.9 in / 658 mm |
| Rim Diameter (A) | 29.5 in / 749 mm |
| Pour-Path Clearance (D) | 10.0 in / 254 mm |
Optional Accessories (sold separately)
- Single or dual fill faucet kits with 12" or 18" swing nozzles
- 48" flexible spray hose – vinyl or stainless
- Lift-off or actuator-assisted covers
- 2-speed mixer/agitator assembly
- 2" or 3" draw-off valve with perforated disk strainers
- Pour-lip pan holder, measuring strip, kettle care kit & more
