Legion TWU-30MV Steam Kettles
Description

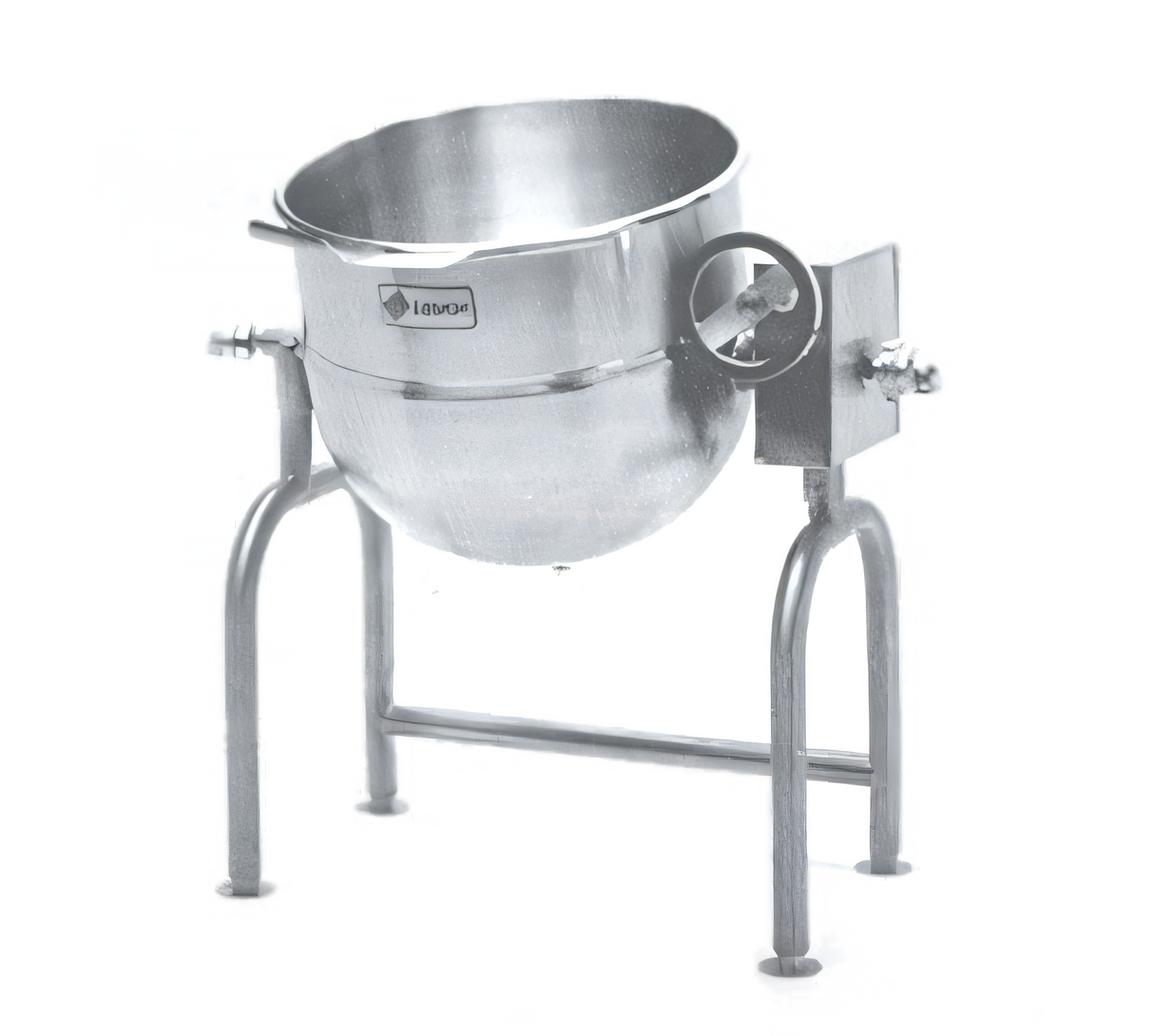

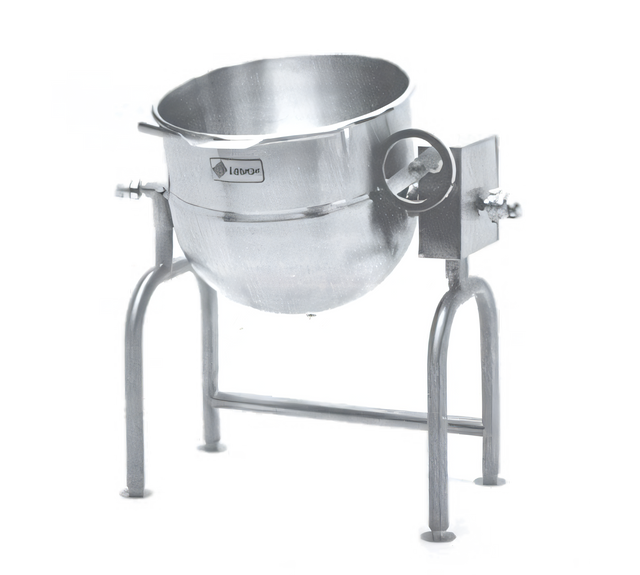

Legion 30-Gallon Direct Steam Tilting Kettle with 2-Speed Mixer
Model TWU-30-MV · 2/3 Jacket · 30 psi · Made in USAPurpose-built for high-volume production kitchens, the Legion TWU-30-MV pairs rapid, even steam heating with an integrated twin-shaft agitator. The result is a 30-gallon workhorse that delivers flawless consistency, faster cook times, and effortless pours—shift after shift.
Why You’ll Love It
- Seamless deep-drawn 304 stainless steel kettle liner—no crevices, no pitting, ultra-sanitary.
- 304L seamless 2/3 steam jacket rated at 30 psi for lightning-fast heat transfer.
- Self-locking worm-gear tilt with reinforced 304 stainless gear box—controlled, one-person pouring.
- Rugged 2″ tubular stainless U-frame & adjustable flanged feet keep the kettle level and rock solid.
- MV Series twin-shaft agitator:
- 2-speed totally-enclosed gear motor (½ HP low / 1 HP high).
- Anchor-style main agitator follows the kettle contour for thorough mixing.
- Counter-rotating beater breaks up lumps and speeds dispersion.
- Removable nylon scraper blades continuously clean sidewalls.
- Bayonet mounts for tool-free removal and quick sanitation.
- NSF & ASME compliant and proudly made in the USA.
Operational Advantages
- Integrated mixing eliminates manual stirring—boosting throughput and reducing labor.
- Even heating across the full kettle wall prevents hot spots and scorching.
- Open U-frame offers clear floor access for easy clean-up underneath the unit.
- Positive rim-lock and safety interlock stop high-speed starts when the bridge is raised.
- Deep draw construction adds strength while maximizing usable capacity.
Technical Specifications
| Capacity (working) | 30 gal | 114 L |
|---|---|
| Construction | 304 SS liner · 304L SS jacket · 304 SS gear box & frame |
| Jacket Pressure | 30 psi (max. operating) |
| Heating Source | Direct external steam |
| Steam Connections | ¾″ NPT inlet · ½″ NPT condensate outlet |
| Tilt Mechanism | Manual worm-gear, self-locking |
| Agitator Motor | 2-speed gear motor (Low 23 RPM / High 46 RPM main agitator) |
| Overall Dimensions | W 30.6″ × D 41.3″ × H 42.5″ (to rim) |
| Net Weight | Consult factory |
Popular Factory-Installed Options
- 2″ or 3″ sanitary draw-off valve with hose
- Lift-off or actuator-assisted cover
- Single or double water-fill faucets with 12″ / 18″ swing nozzles
- 48″ flexible spray hose (vinyl or stainless)
- Perforated strainer disks, basket inserts, pour-lip pan holder & more
Looking for a different capacity or a customized setup? Our food-service specialists can configure any Legion kettle to match your exact production needs.
