Legion TWU-30 Steam Kettles
Description

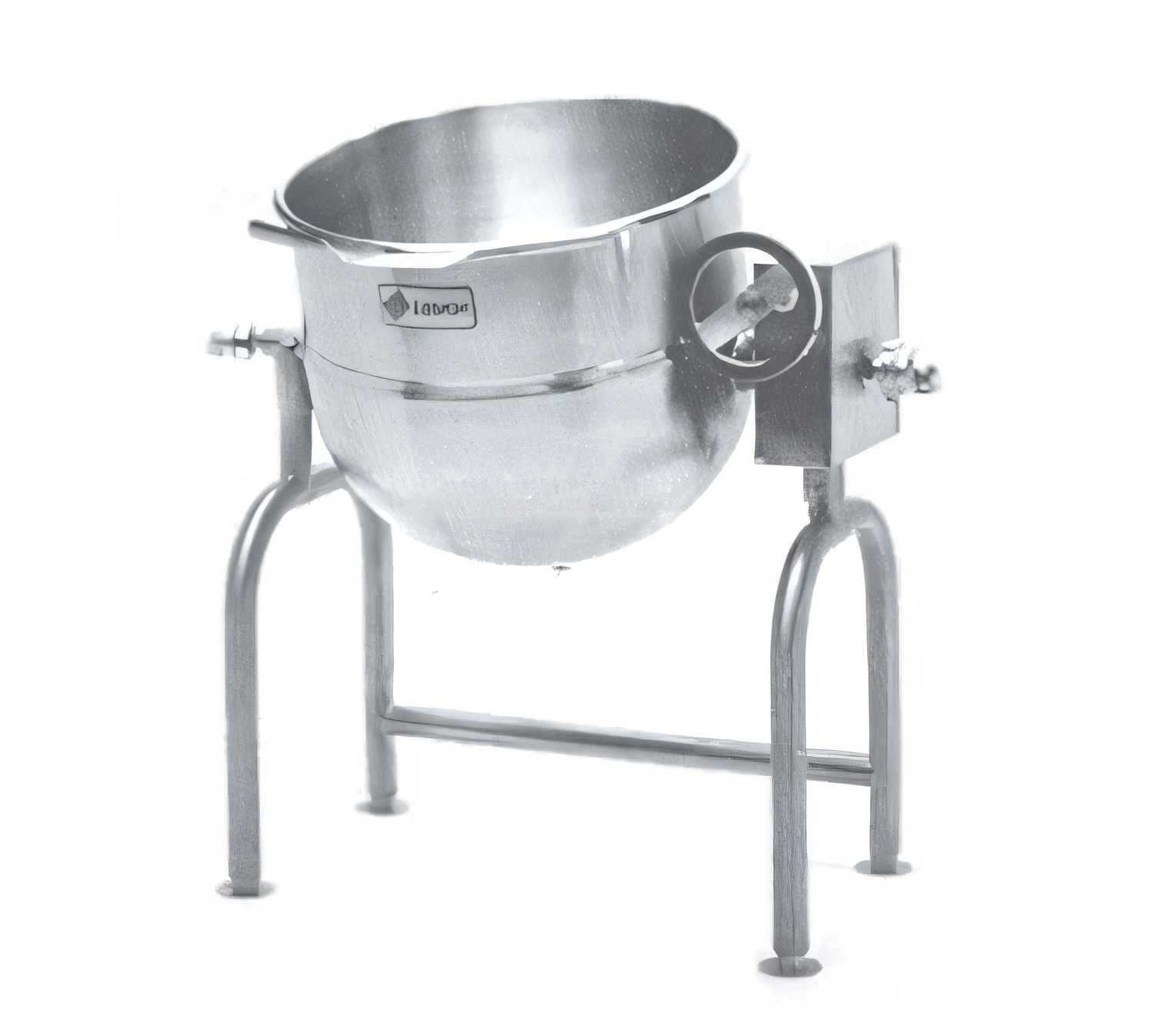

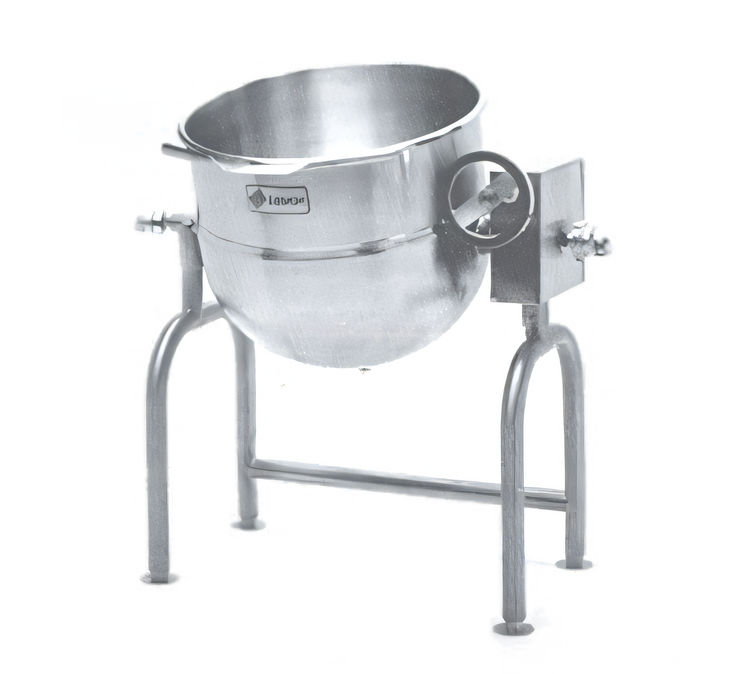

Legion TWU-30 Direct Steam Tilting Kettle – 30 Gallon
2/3 Jacketed • Deep-Drawn 304 Stainless • U-Frame Mounted • Made in USABuilt for the daily demands of high-volume kitchens, the 30-gallon Legion TWU-30 delivers rapid heat-up, consistent product quality, and effortless pouring. Its seamless 304 stainless kettle and 30 psi direct-steam jacket give you the power and durability needed for soups, sauces, reductions and more— all in a compact, easy-to-clean package that’s proudly manufactured in the United States.
Standard Features

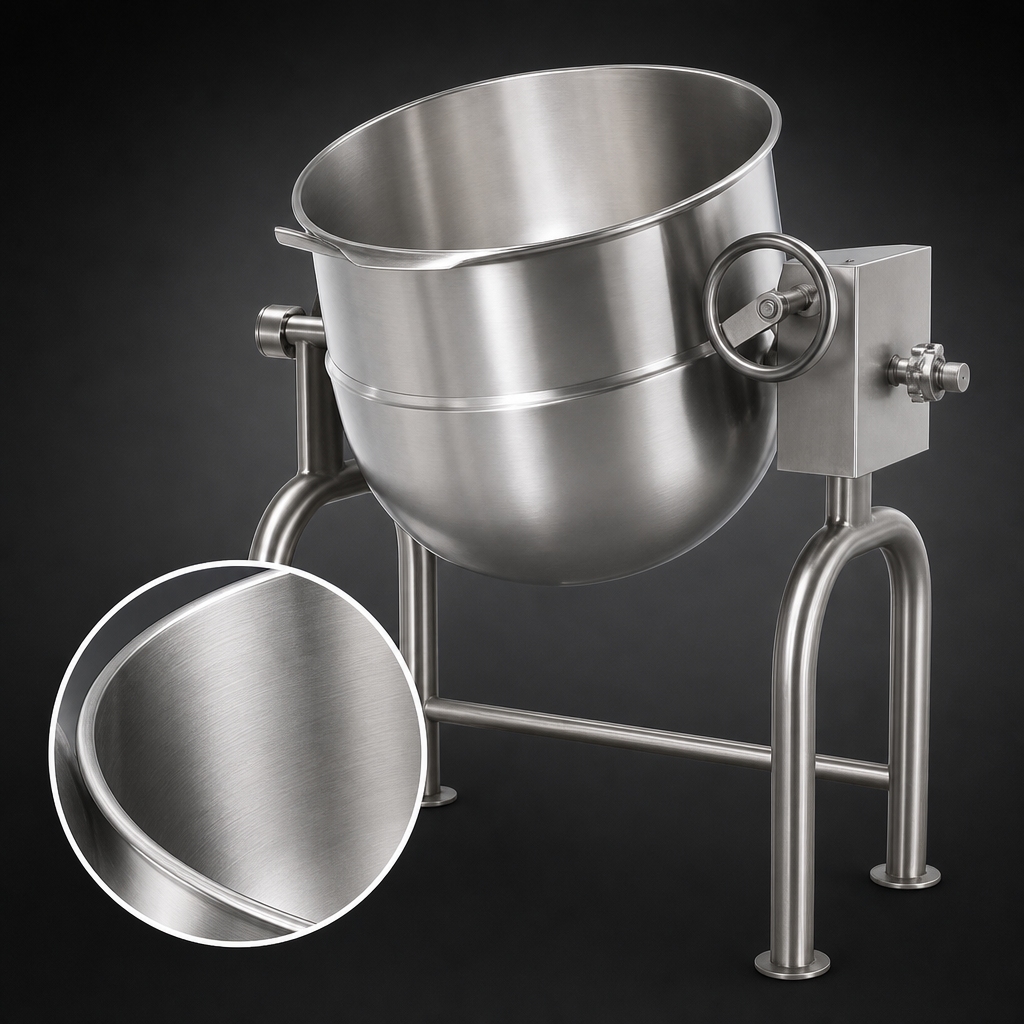

- Seamless deep-drawn 304 stainless steel kettle liner for a smooth, sanitary interior.

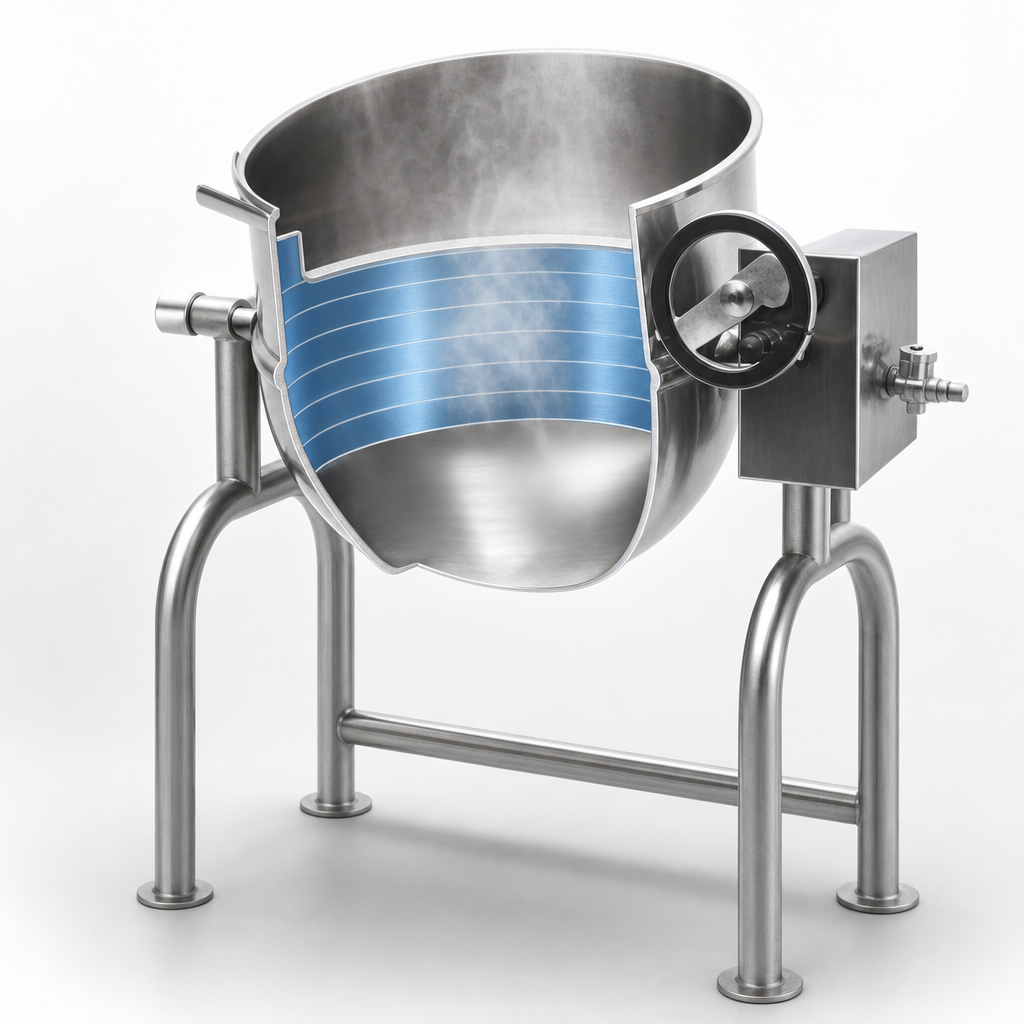

- 2/3-jacket coverage in 304L stainless steel for fast, even heating up to 30 psi (207 kPa).
- Direct steam operation—ideal when low-cost boiler steam is already available.
- Self-locking worm-gear tilt mechanism with crank handle allows controlled, drip-free pouring.
- Rugged 304 stainless gear box resists corrosion and kitchen abuse.
- Heavy-duty 2″ tubular U-frame, pedestal base & adjustable flanged feet— all 304 stainless.
- Convenient right-side control console groups tilt and steam controls within easy reach.
- Meets applicable ASME, NSF, UL, ETL, CSA, and other recognized standards.
Technical Specifications
| Model | TWU-30 |
|---|---|
| Working Capacity | 30 gal | 114 litres |
| Kettle Construction | Seamless 304 SS liner, 304L SS jacket (2/3 coverage) |
| Operating Pressure | 30 psi (Max.) direct steam |
| Tilt Mechanism | Manual crank, self-locking worm gear |
| Support Structure | 304 SS 2″ tubular U-frame with adjustable flanged feet |
| Steam Connection | ¾″ NPT inlet • ½″ NPT outlet |
| Overall Height | 42.5 in | 108 cm |
| Footprint (L × W) | 30.6 × 22.3 in | 78 × 57 cm |
| Country of Origin | USA |
Popular Options & Accessories (sold separately)
- Single or double fill faucet with 12″ / 18″ swing nozzle
- 48″ flexible spray hose (vinyl or stainless)
- Automatic water-fill meter
- Lift-off or actuator-assisted cover
- 2- or 3-inch draw-off valve, hose & perforated strainer
- Measuring strip, pour-lip pan holder, basket & bag inserts
- 2-speed mixer/agitator assembly
- Lockable lid & reinforced bar rim for security installations
Warranty
Legion backs every TWU series kettle with a 12-month parts & labor warranty (15 months from ship date). Extended coverage is available—contact us for details.
Images may depict optional accessories such as draw-off valves or covers. Specifications are subject to change without notice as Legion pursues continuous product improvement.
